NSK SPACEA Aqua Bearings - High Corrosion-Resistant Resin Bearings

NSK SPACEA Aqua Bearings - High Corrosion-Resistant Resin Bearings

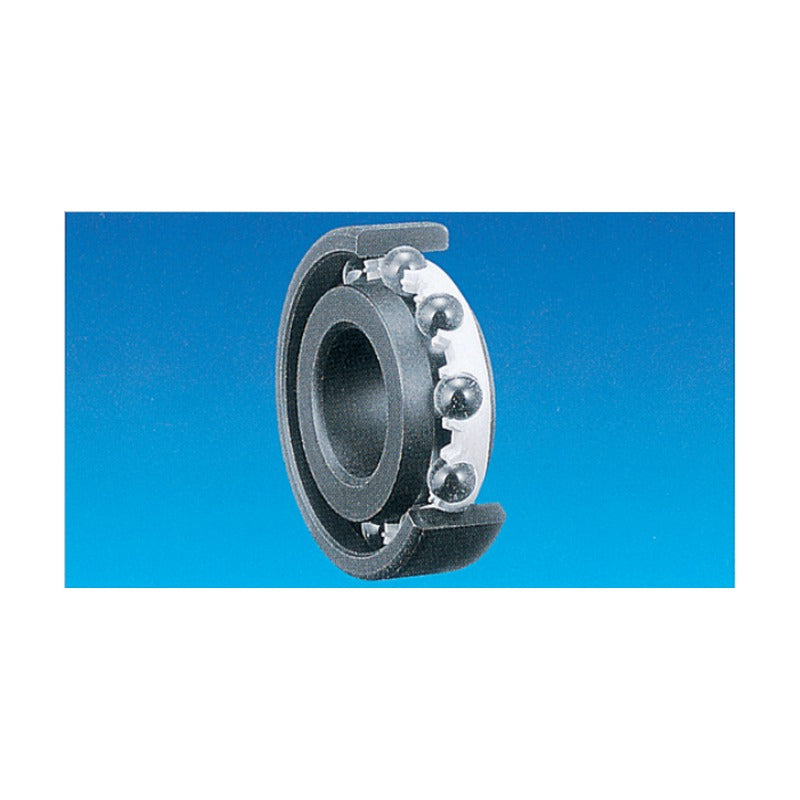

NSK SPACEA Aqua bearings with high corrosion-resistant resin rings and ceramic (PT3) or special glass (QT3) balls for use in acid and alkaline solutions.

Key features

  • Resin rings with ceramic or special glass balls
  • Corrosion resistance comparable with ceramic bearings
  • Greaseless, usable in liquids
  • Dimensional accuracy equivalent to stainless bearings

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Rings High corrosion-resistant resin
Balls Ceramic (PT3) / special glass (QT3)
Radial clearance 0.04-0.16 mm
Source NSK SPACEA Series Catalogue, p. 28-43
625L-PT3 Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | Balls: Ceramic
696L-PT3 Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | Balls: Ceramic
606L-PT3 Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | Balls: Ceramic
626L-PT3 Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | Balls: Ceramic
697L-PT3 Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | Balls: Ceramic
607L-PT3 Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | Balls: Ceramic
627L-PT3 Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | Balls: Ceramic
627L-QT3 Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | Balls: Special glass
688L-PT3 Basic no.: 688 | d: 8 mm | D: 16 mm | B: 4 mm | Balls: Ceramic
698L-PT3 Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | Balls: Ceramic
698L-QT3 Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | Balls: Special glass
608L-PT3 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | Balls: Ceramic
608L-QT3 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | Balls: Special glass
628L-PT3 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | Balls: Ceramic
628L-QT3 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | Balls: Special glass
699L-PT3 Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | Balls: Ceramic
609L-PT3 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | Balls: Ceramic
609L-QT3 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | Balls: Special glass
629L-PT3 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | Balls: Ceramic
629L-QT3 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | Balls: Special glass
R6L-PT3 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 5.558 mm | Balls: Ceramic
R6L-QT3 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 5.558 mm | Balls: Special glass
6800L-PT3 Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | Balls: Ceramic
6900L-PT3 Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | Balls: Ceramic
6900L-QT3 Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | Balls: Special glass
6000L-PT3 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | Balls: Ceramic
6000L-QT3 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | Balls: Special glass
6200L-PT3 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | Balls: Ceramic
6200L-QT3 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | Balls: Special glass
6801L-PT3 Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | Balls: Ceramic
6901L-PT3 Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | Balls: Ceramic
6901L-QT3 Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | Balls: Special glass
6001L-PT3 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | Balls: Ceramic
6001L-QT3 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | Balls: Special glass
6201L-PT3 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | Balls: Ceramic
6201L-QT3 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | Balls: Special glass
6902L-PT3 Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | Balls: Ceramic
6902L-QT3 Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | Balls: Special glass
6002L-PT3 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | Balls: Ceramic
6002L-QT3 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | Balls: Special glass
6202L-PT3 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | Balls: Ceramic
6202L-QT3 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | Balls: Special glass
6903L-PT3 Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | Balls: Ceramic
6903L-QT3 Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | Balls: Special glass
6003L-PT3 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | Balls: Ceramic
6003L-QT3 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | Balls: Special glass
6203L-PT3 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | Balls: Ceramic
6203L-QT3 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | Balls: Special glass
6804L-PT3 Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | Balls: Ceramic
6904L-PT3 Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | Balls: Ceramic
6904L-QT3 Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | Balls: Special glass
6004L-PT3 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | Balls: Ceramic
6004L-QT3 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | Balls: Special glass
6204L-PT3 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | Balls: Ceramic
6204L-QT3 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | Balls: Special glass
6805L-PT3 Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | Balls: Ceramic
6905L-PT3 Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | Balls: Ceramic
6905L-QT3 Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | Balls: Special glass
6005L-PT3 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | Balls: Ceramic
6005L-QT3 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | Balls: Special glass
6205L-PT3 Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | Balls: Ceramic
Deep Groove Ball BearingsNSK
61 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA Aqua Bearings - High Corrosion-Resistant Resin Bearings

Brand NSK·Deep Groove Ball Bearings

Available part numbers (61)

625L-PT3, 696L-PT3, 606L-PT3, 626L-PT3, 697L-PT3, 607L-PT3, 627L-PT3, 627L-QT3, 688L-PT3, 698L-PT3 + 51 more — see full table ↓
