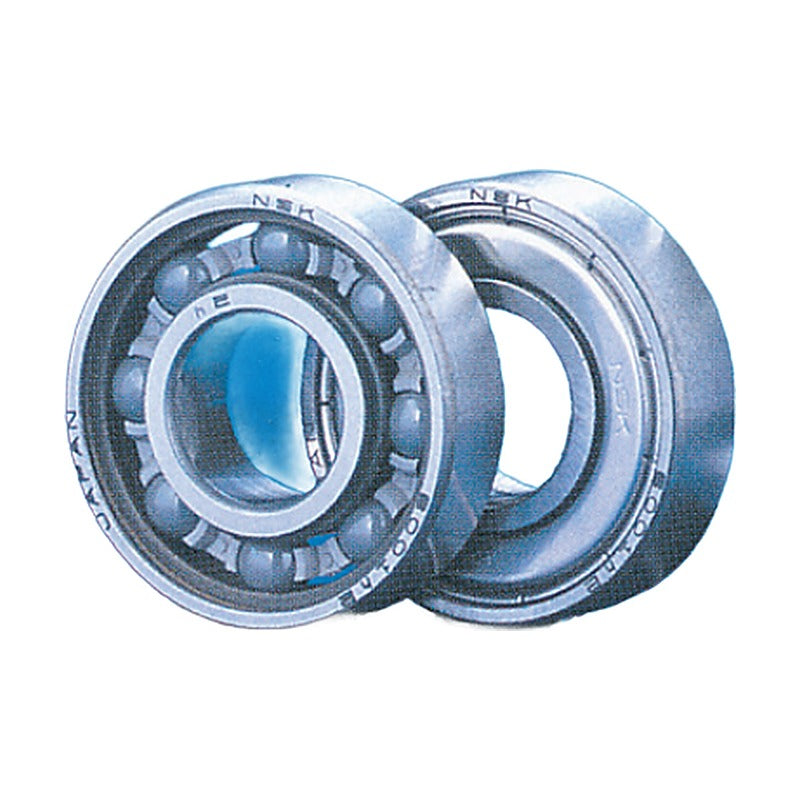

NSK SPACEA Hybrid Bearings with Ceramic Balls (YT3)

NSK SPACEA Hybrid Bearings with Ceramic Balls (YT3)

NSK SPACEA hybrid bearings with stainless rings, ceramic balls and fluorine-based solid lubrication for corrosive and vacuum environments.

Key features

  • Ceramic balls with stainless steel rings
  • Fluorine-based solid lubrication
  • Longer life than all-stainless bearings in corrosive media
  • For semiconductor / FPD cleaning and etching equipment

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Balls Ceramic
Lubrication Fluorine-based solid
Source NSK SPACEA Series Catalogue, p. 24-35
604LZZCG-YT3 Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
625LZZCG-YT3 Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
696LZZCG-YT3 Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZCG-YT3 Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZCG-YT3 Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
697LZZCG-YT3 Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZCG-YT3 Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZCG-YT3 Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZCG-YT3 Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZCG-YT3 Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZCG-YT3 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZCG-YT3 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
689LZZCG-YT3 Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZCG-YT3 Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZCG-YT3 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZCG-YT3 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
R6LZZCG-YT3 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZ-YT3 Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZ-YT3 Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZ-YT3 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZ-YT3 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6801LZZ-YT3 Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZ-YT3 Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZ-YT3 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZ-YT3 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6902LZZ-YT3 Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZ-YT3 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZ-YT3 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6903LZZ-YT3 Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZ-YT3 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZ-YT3 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6804LZZ-YT3 Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZ-YT3 Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZ-YT3 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZ-YT3 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6805LZZ-YT3 Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZ-YT3 Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZ-YT3 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZ-YT3 Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZ-YT3 Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZ-YT3 Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZ-YT3 Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZ-YT3 Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZ-YT3 Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZ-YT3 Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
Deep Groove Ball BearingsNSK
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA Hybrid Bearings with Ceramic Balls (YT3)

Brand NSK·Deep Groove Ball Bearings

Available part numbers (45)

604LZZCG-YT3, 625LZZCG-YT3, 696LZZCG-YT3, 606LZZCG-YT3, 626LZZCG-YT3, 697LZZCG-YT3, 607LZZCG-YT3, 627LZZCG-YT3, 688LZZCG-YT3, 698LZZCG-YT3 + 35 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
604LZZCG-YT3Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
625LZZCG-YT3Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
696LZZCG-YT3Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZCG-YT3Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZCG-YT3Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
697LZZCG-YT3Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZCG-YT3Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZCG-YT3Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZCG-YT3Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZCG-YT3Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZCG-YT3Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZCG-YT3Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
689LZZCG-YT3Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZCG-YT3Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZCG-YT3Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZCG-YT3Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
R6LZZCG-YT3Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZ-YT3Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZ-YT3Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZ-YT3Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZ-YT3Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6801LZZ-YT3Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZ-YT3Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZ-YT3Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZ-YT3Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6902LZZ-YT3Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZ-YT3Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZ-YT3Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6903LZZ-YT3Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZ-YT3Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZ-YT3Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6804LZZ-YT3Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZ-YT3Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZ-YT3Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZ-YT3Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6805LZZ-YT3Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZ-YT3Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZ-YT3Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZ-YT3Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZ-YT3Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZ-YT3Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZ-YT3Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZ-YT3Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZ-YT3Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZ-YT3Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
