• NSK SPACEA KPM High-Temperature Grease Bearings
1 1

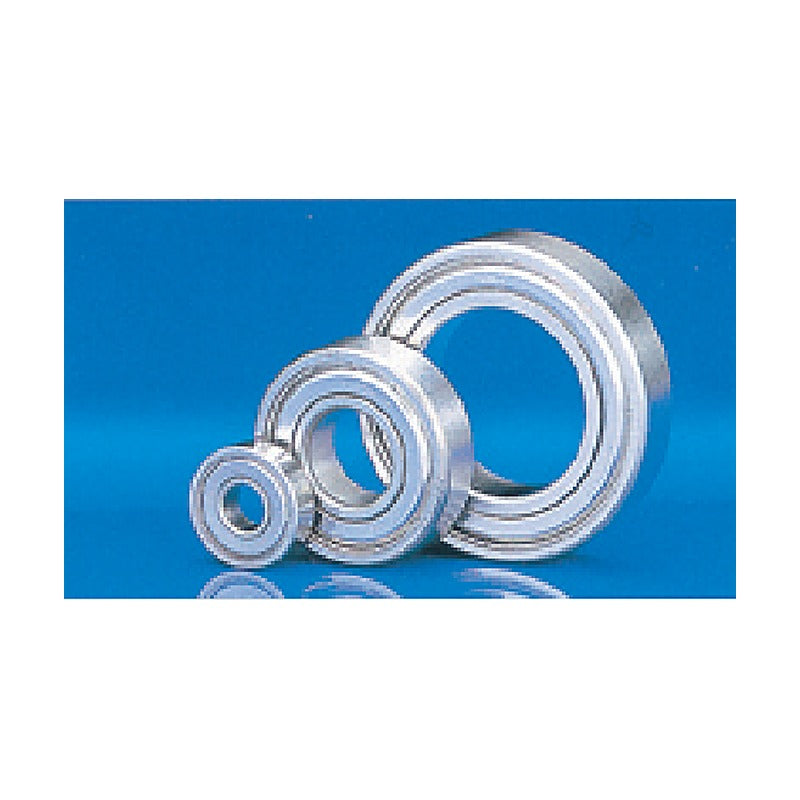

NSK SPACEA KPM High-Temperature Grease Bearings

NSK SPACEA KPM High-Temperature Grease Bearings

NSK SPACEA bearings filled with KPM high-temperature grease for long life in air at temperatures up to 230 °C.

Key features

  • KPM grease for air atmosphere up to 230 °C
  • About 5 times the life of commercial fluorine grease at 200 °C
  • Stainless steel base bearing
  • For ovens, dryers and high-temperature conveyors

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Grease KPM high temperature
Temperature Up to 230 °C (air)
Source NSK SPACEA Series Catalogue, p. 24-58
684LZZC3-H KPM Basic no.: 684 | d: 4 mm | D: 9 mm | B: 4 mm | CH: 545 N
694LZZC3-H KPM Basic no.: 694 | d: 4 mm | D: 11 mm | B: 4 mm | CH: 815 N
604LZZC3-H KPM Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
624LZZC3-H KPM Basic no.: 624 | d: 4 mm | D: 13 mm | B: 5 mm | CH: 1110 N
634LZZC3-H KPM Basic no.: 634 | d: 4 mm | D: 16 mm | B: 5 mm | CH: 1470 N
685LZZC3-H KPM Basic no.: 685 | d: 5 mm | D: 11 mm | B: 5 mm | CH: 610 N
695LZZC3-H KPM Basic no.: 695 | d: 5 mm | D: 13 mm | B: 4 mm | CH: 915 N
605LZZC3-H KPM Basic no.: 605 | d: 5 mm | D: 14 mm | B: 5 mm | CH: 1130 N
625LZZC3-H KPM Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
635LZZC3-H KPM Basic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
686LZZC3-H KPM Basic no.: 686 | d: 6 mm | D: 13 mm | B: 5 mm | CH: 920 N
696LZZC3-H KPM Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZC3-H KPM Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZC3-H KPM Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636LZZC3-H KPM Basic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
687LZZC3-H KPM Basic no.: 687 | d: 7 mm | D: 14 mm | B: 5 mm | CH: 1000 N
697LZZC3-H KPM Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZC3-H KPM Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZC3-H KPM Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZC3-H KPM Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZC3-H KPM Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZC3-H KPM Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZC3-H KPM Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
638LZZC3-H KPM Basic no.: 638 | d: 8 mm | D: 28 mm | B: 9 mm | CH: 3900 N
689LZZC3-H KPM Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZC3-H KPM Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZC3-H KPM Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZC3-H KPM Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639LZZC3-H KPM Basic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6LZZC3-H KPM Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZ-H KPM Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZ-H KPM Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZ-H KPM Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZ-H KPM Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6300LZZ-H KPM Basic no.: 6300 | d: 10 mm | D: 35 mm | B: 11 mm | CH: 6900 N
6801LZZ-H KPM Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZ-H KPM Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZ-H KPM Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZ-H KPM Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301LZZ-H KPM Basic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802LZZ-H KPM Basic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902LZZ-H KPM Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZ-H KPM Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZ-H KPM Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302LZZ-H KPM Basic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803LZZ-H KPM Basic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903LZZ-H KPM Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZ-H KPM Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZ-H KPM Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303LZZ-H KPM Basic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804LZZ-H KPM Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZ-H KPM Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZ-H KPM Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZ-H KPM Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304LZZ-H KPM Basic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805LZZ-H KPM Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZ-H KPM Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZ-H KPM Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZ-H KPM Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZ-H KPM Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZ-H KPM Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZ-H KPM Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZ-H KPM Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZ-H KPM Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZ-H KPM Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009LZZ-H KPM Basic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
Deep Groove Ball BearingsNSK
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA KPM High-Temperature Grease Bearings

Brand NSK·Deep Groove Ball Bearings

Available part numbers (66)

684LZZC3-H KPM, 694LZZC3-H KPM, 604LZZC3-H KPM, 624LZZC3-H KPM, 634LZZC3-H KPM, 685LZZC3-H KPM, 695LZZC3-H KPM, 605LZZC3-H KPM, 625LZZC3-H KPM, 635LZZC3-H KPM + 56 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
684LZZC3-H KPMBasic no.: 684 | d: 4 mm | D: 9 mm | B: 4 mm | CH: 545 N
694LZZC3-H KPMBasic no.: 694 | d: 4 mm | D: 11 mm | B: 4 mm | CH: 815 N
604LZZC3-H KPMBasic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
624LZZC3-H KPMBasic no.: 624 | d: 4 mm | D: 13 mm | B: 5 mm | CH: 1110 N
634LZZC3-H KPMBasic no.: 634 | d: 4 mm | D: 16 mm | B: 5 mm | CH: 1470 N
685LZZC3-H KPMBasic no.: 685 | d: 5 mm | D: 11 mm | B: 5 mm | CH: 610 N
695LZZC3-H KPMBasic no.: 695 | d: 5 mm | D: 13 mm | B: 4 mm | CH: 915 N
605LZZC3-H KPMBasic no.: 605 | d: 5 mm | D: 14 mm | B: 5 mm | CH: 1130 N
625LZZC3-H KPMBasic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
635LZZC3-H KPMBasic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
686LZZC3-H KPMBasic no.: 686 | d: 6 mm | D: 13 mm | B: 5 mm | CH: 920 N
696LZZC3-H KPMBasic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZC3-H KPMBasic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZC3-H KPMBasic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636LZZC3-H KPMBasic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
687LZZC3-H KPMBasic no.: 687 | d: 7 mm | D: 14 mm | B: 5 mm | CH: 1000 N
697LZZC3-H KPMBasic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZC3-H KPMBasic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZC3-H KPMBasic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZC3-H KPMBasic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZC3-H KPMBasic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZC3-H KPMBasic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZC3-H KPMBasic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
638LZZC3-H KPMBasic no.: 638 | d: 8 mm | D: 28 mm | B: 9 mm | CH: 3900 N
689LZZC3-H KPMBasic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZC3-H KPMBasic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZC3-H KPMBasic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZC3-H KPMBasic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639LZZC3-H KPMBasic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6LZZC3-H KPMBasic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZ-H KPMBasic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZ-H KPMBasic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZ-H KPMBasic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZ-H KPMBasic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6300LZZ-H KPMBasic no.: 6300 | d: 10 mm | D: 35 mm | B: 11 mm | CH: 6900 N
6801LZZ-H KPMBasic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZ-H KPMBasic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZ-H KPMBasic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZ-H KPMBasic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301LZZ-H KPMBasic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802LZZ-H KPMBasic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902LZZ-H KPMBasic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZ-H KPMBasic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZ-H KPMBasic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302LZZ-H KPMBasic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803LZZ-H KPMBasic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903LZZ-H KPMBasic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZ-H KPMBasic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZ-H KPMBasic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303LZZ-H KPMBasic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804LZZ-H KPMBasic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZ-H KPMBasic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZ-H KPMBasic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZ-H KPMBasic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304LZZ-H KPMBasic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805LZZ-H KPMBasic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZ-H KPMBasic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZ-H KPMBasic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZ-H KPMBasic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZ-H KPMBasic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZ-H KPMBasic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZ-H KPMBasic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZ-H KPMBasic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZ-H KPMBasic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZ-H KPMBasic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009LZZ-H KPMBasic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
