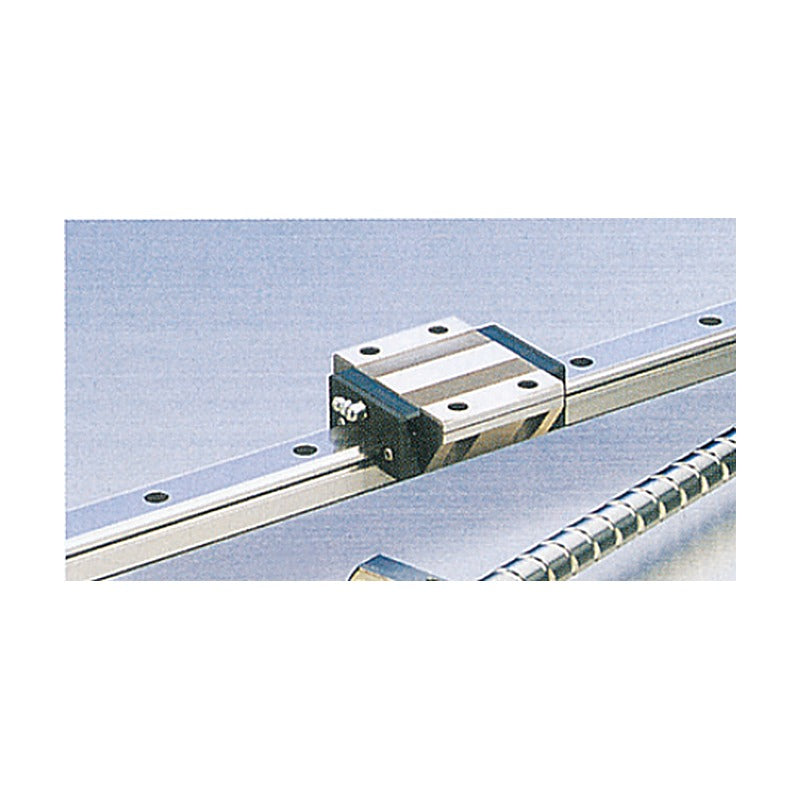

NSK SPACEA LH Linear Guides for Special Environments

NSK SPACEA LH Linear Guides for Special Environments

NSK LH series linear guides offered in SPACEA special-environment specifications (clean, vacuum, corrosion-resistant, high temperature, sanitary, dust-proof), sizes 08 to 55.

Key features

  • Available in clean, vacuum, corrosion-resistant, high-temperature, sanitary and dust-proof specifications
  • AN / BN flange-less and FL / HL / EL / GL flanged blocks
  • NSK K1 lubrication unit option (longer block length)
  • Short-lead-time availability per environment shown in catalogue

Specifications

Series SPACEA special environment
Product Linear guide block (rail separate)
Series LH
Sizes 08-55
Environments Clean, vacuum, corrosion, high temp, sanitary, dust
Source NSK SPACEA Series Catalogue, p. 82
LH08AN Height H: 11 mm | Width W: 16 mm | Block length L: 24 mm | Rail width W1: 8 mm | C: 980 N
LH10AN Height H: 13 mm | Width W: 20 mm | Block length L: 31 mm | Rail width W1: 10 mm | C: 1860 N
LH12AN Height H: 20 mm | Width W: 27 mm | Block length L: 45 mm | Rail width W1: 12 mm | C: 4310 N
LH15AN Height H: 28 mm | Width W: 34 mm | Block length L: 55 mm | Rail width W1: 16 mm | C: 8300 N
LH15BN Height H: 28 mm | Width W: 34 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH15FL Height H: 24 mm | Width W: 47 mm | Block length L: 55 mm | Rail width W1: 16 mm | C: 8300 N
LH15HL Height H: 24 mm | Width W: 47 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH15EM Height H: 24 mm | Width W: 47 mm | Block length L: 55 mm | Rail width W1: 16 mm | C: 8300 N
LH15GL Height H: 24 mm | Width W: 47 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH15GM Height H: 24 mm | Width W: 47 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH20AN Height H: 30 mm | Width W: 44 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20BN Height H: 30 mm | Width W: 44 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH20FL Height H: 30 mm | Width W: 63 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20HL Height H: 30 mm | Width W: 63 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH20EL Height H: 30 mm | Width W: 63 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20EM Height H: 30 mm | Width W: 63 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20GL Height H: 30 mm | Width W: 63 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH20GM Height H: 30 mm | Width W: 63 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH25AN Height H: 40 mm | Width W: 48 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25BN Height H: 40 mm | Width W: 48 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH25FL Height H: 36 mm | Width W: 70 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25HL Height H: 36 mm | Width W: 70 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH25EL Height H: 36 mm | Width W: 70 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25EM Height H: 36 mm | Width W: 70 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25GL Height H: 36 mm | Width W: 70 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH25GM Height H: 36 mm | Width W: 70 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH30AN Height H: 45 mm | Width W: 60 mm | Block length L: 85.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30BN Height H: 45 mm | Width W: 60 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH30FL Height H: 42 mm | Width W: 90 mm | Block length L: 98.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30HL Height H: 42 mm | Width W: 90 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH30EL Height H: 42 mm | Width W: 90 mm | Block length L: 98.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30EM Height H: 42 mm | Width W: 90 mm | Block length L: 98.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30GL Height H: 42 mm | Width W: 90 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH30GM Height H: 42 mm | Width W: 90 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH35AN Height H: 55 mm | Width W: 70 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35BN Height H: 55 mm | Width W: 70 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH35FL Height H: 48 mm | Width W: 100 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35HL Height H: 48 mm | Width W: 100 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH35EL Height H: 48 mm | Width W: 100 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35EM Height H: 48 mm | Width W: 100 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35GL Height H: 48 mm | Width W: 100 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH35GM Height H: 48 mm | Width W: 100 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH45AN Height H: 70 mm | Width W: 86 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45BN Height H: 70 mm | Width W: 86 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH45FL Height H: 60 mm | Width W: 120 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45HL Height H: 60 mm | Width W: 120 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH45EL Height H: 60 mm | Width W: 120 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45EM Height H: 60 mm | Width W: 120 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45GL Height H: 60 mm | Width W: 120 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH45GM Height H: 60 mm | Width W: 120 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH55AN Height H: 80 mm | Width W: 100 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55BN Height H: 80 mm | Width W: 100 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
LH55FL Height H: 70 mm | Width W: 140 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55HL Height H: 70 mm | Width W: 140 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
LH55EL Height H: 70 mm | Width W: 140 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55EM Height H: 70 mm | Width W: 140 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55GL Height H: 70 mm | Width W: 140 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
LH55GM Height H: 70 mm | Width W: 140 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
Linear GuidesNSK
58 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA LH Linear Guides for Special Environments

Brand NSK·Linear Guides

Available part numbers (58)

LH08AN, LH10AN, LH12AN, LH15AN, LH15BN, LH15FL, LH15HL, LH15EM, LH15GL, LH15GM + 48 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LH08ANHeight H: 11 mm | Width W: 16 mm | Block length L: 24 mm | Rail width W1: 8 mm | C: 980 N
LH10ANHeight H: 13 mm | Width W: 20 mm | Block length L: 31 mm | Rail width W1: 10 mm | C: 1860 N
LH12ANHeight H: 20 mm | Width W: 27 mm | Block length L: 45 mm | Rail width W1: 12 mm | C: 4310 N
LH15ANHeight H: 28 mm | Width W: 34 mm | Block length L: 55 mm | Rail width W1: 16 mm | C: 8300 N
LH15BNHeight H: 28 mm | Width W: 34 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH15FLHeight H: 24 mm | Width W: 47 mm | Block length L: 55 mm | Rail width W1: 16 mm | C: 8300 N
LH15HLHeight H: 24 mm | Width W: 47 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH15EMHeight H: 24 mm | Width W: 47 mm | Block length L: 55 mm | Rail width W1: 16 mm | C: 8300 N
LH15GLHeight H: 24 mm | Width W: 47 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH15GMHeight H: 24 mm | Width W: 47 mm | Block length L: 74 mm | Rail width W1: 16 mm | C: 11200 N
LH20ANHeight H: 30 mm | Width W: 44 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20BNHeight H: 30 mm | Width W: 44 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH20FLHeight H: 30 mm | Width W: 63 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20HLHeight H: 30 mm | Width W: 63 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH20ELHeight H: 30 mm | Width W: 63 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20EMHeight H: 30 mm | Width W: 63 mm | Block length L: 69.8 mm | Rail width W1: 20 mm | C: 14200 N
LH20GLHeight H: 30 mm | Width W: 63 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH20GMHeight H: 30 mm | Width W: 63 mm | Block length L: 91.8 mm | Rail width W1: 20 mm | C: 18200 N
LH25ANHeight H: 40 mm | Width W: 48 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25BNHeight H: 40 mm | Width W: 48 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH25FLHeight H: 36 mm | Width W: 70 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25HLHeight H: 36 mm | Width W: 70 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH25ELHeight H: 36 mm | Width W: 70 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25EMHeight H: 36 mm | Width W: 70 mm | Block length L: 79 mm | Rail width W1: 23 mm | C: 21000 N
LH25GLHeight H: 36 mm | Width W: 70 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH25GMHeight H: 36 mm | Width W: 70 mm | Block length L: 107 mm | Rail width W1: 23 mm | C: 26900 N
LH30ANHeight H: 45 mm | Width W: 60 mm | Block length L: 85.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30BNHeight H: 45 mm | Width W: 60 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH30FLHeight H: 42 mm | Width W: 90 mm | Block length L: 98.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30HLHeight H: 42 mm | Width W: 90 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH30ELHeight H: 42 mm | Width W: 90 mm | Block length L: 98.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30EMHeight H: 42 mm | Width W: 90 mm | Block length L: 98.6 mm | Rail width W1: 28 mm | C: 25700 N
LH30GLHeight H: 42 mm | Width W: 90 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH30GMHeight H: 42 mm | Width W: 90 mm | Block length L: 124.6 mm | Rail width W1: 28 mm | C: 37500 N
LH35ANHeight H: 55 mm | Width W: 70 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35BNHeight H: 55 mm | Width W: 70 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH35FLHeight H: 48 mm | Width W: 100 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35HLHeight H: 48 mm | Width W: 100 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH35ELHeight H: 48 mm | Width W: 100 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35EMHeight H: 48 mm | Width W: 100 mm | Block length L: 109 mm | Rail width W1: 34 mm | C: 39000 N
LH35GLHeight H: 48 mm | Width W: 100 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH35GMHeight H: 48 mm | Width W: 100 mm | Block length L: 143 mm | Rail width W1: 34 mm | C: 49500 N
LH45ANHeight H: 70 mm | Width W: 86 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45BNHeight H: 70 mm | Width W: 86 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH45FLHeight H: 60 mm | Width W: 120 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45HLHeight H: 60 mm | Width W: 120 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH45ELHeight H: 60 mm | Width W: 120 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45EMHeight H: 60 mm | Width W: 120 mm | Block length L: 139 mm | Rail width W1: 45 mm | C: 66000 N
LH45GLHeight H: 60 mm | Width W: 120 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH45GMHeight H: 60 mm | Width W: 120 mm | Block length L: 171 mm | Rail width W1: 45 mm | C: 79500 N
LH55ANHeight H: 80 mm | Width W: 100 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55BNHeight H: 80 mm | Width W: 100 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
LH55FLHeight H: 70 mm | Width W: 140 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55HLHeight H: 70 mm | Width W: 140 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
LH55ELHeight H: 70 mm | Width W: 140 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55EMHeight H: 70 mm | Width W: 140 mm | Block length L: 163 mm | Rail width W1: 53 mm | C: 97500 N
LH55GLHeight H: 70 mm | Width W: 140 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
LH55GMHeight H: 70 mm | Width W: 140 mm | Block length L: 201 mm | Rail width W1: 53 mm | C: 118000 N
