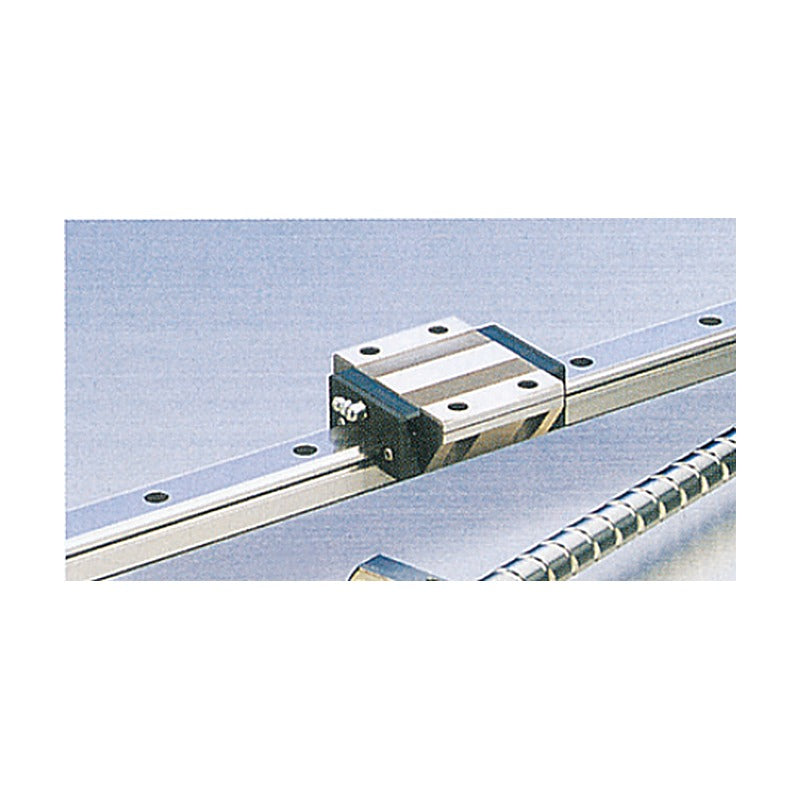

NSK SPACEA LS Linear Guides for Special Environments

NSK SPACEA LS Linear Guides for Special Environments

NSK LS series linear guides offered in SPACEA special-environment specifications, sizes 15 to 35.

Key features

  • Clean, vacuum, corrosion-resistant, high-temperature and sanitary specifications
  • CL / AL flange-less and KL / FL / EL / EM flanged blocks
  • NSK K1 lubrication unit option
  • Short-lead-time availability per environment shown in catalogue

Specifications

Series SPACEA special environment
Product Linear guide block (rail separate)
Series LS
Sizes 15-35
Environments Clean, vacuum, corrosion, high temp, sanitary
Source NSK SPACEA Series Catalogue, p. 83
LS15CL Height H: 24 mm | Width W: 34 mm | Block length L: 40.4 mm | Rail width W1: 15 mm | C: 4550 N
LS15AL Height H: 24 mm | Width W: 34 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS15KL Height H: 24 mm | Width W: 52 mm | Block length L: 40.4 mm | Rail width W1: 15 mm | C: 4550 N
LS15FL Height H: 24 mm | Width W: 52 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS15EL Height H: 24 mm | Width W: 52 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS15EM Height H: 24 mm | Width W: 52 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS20AL Height H: 28 mm | Width W: 42 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS20KL Height H: 28 mm | Width W: 59 mm | Block length L: 47.2 mm | Rail width W1: 20 mm | C: 6550 N
LS20FL Height H: 28 mm | Width W: 59 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS20EL Height H: 28 mm | Width W: 59 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS20EM Height H: 28 mm | Width W: 59 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS25CL Height H: 33 mm | Width W: 48 mm | Block length L: 59.6 mm | Rail width W1: 23 mm | C: 10600 N
LS25AL Height H: 33 mm | Width W: 48 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS25KL Height H: 33 mm | Width W: 73 mm | Block length L: 59.6 mm | Rail width W1: 23 mm | C: 10600 N
LS25FL Height H: 33 mm | Width W: 73 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS25EL Height H: 33 mm | Width W: 73 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS25EM Height H: 33 mm | Width W: 73 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS30CL Height H: 42 mm | Width W: 60 mm | Block length L: 67.4 mm | Rail width W1: 28 mm | C: 15900 N
LS30AL Height H: 42 mm | Width W: 60 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS30KL Height H: 42 mm | Width W: 90 mm | Block length L: 67.4 mm | Rail width W1: 28 mm | C: 15900 N
LS30FL Height H: 42 mm | Width W: 90 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS30EL Height H: 42 mm | Width W: 90 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS30EM Height H: 42 mm | Width W: 90 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS35CL Height H: 48 mm | Width W: 70 mm | Block length L: 77 mm | Rail width W1: 34 mm | C: 22100 N
LS35AL Height H: 48 mm | Width W: 70 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
LS35KL Height H: 48 mm | Width W: 100 mm | Block length L: 77 mm | Rail width W1: 34 mm | C: 22100 N
LS35FL Height H: 48 mm | Width W: 100 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
LS35EL Height H: 48 mm | Width W: 100 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
LS35EM Height H: 48 mm | Width W: 100 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
Linear GuidesNSK
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA LS Linear Guides for Special Environments

Brand NSK·Linear Guides

Available part numbers (29)

LS15CL, LS15AL, LS15KL, LS15FL, LS15EL, LS15EM, LS20AL, LS20KL, LS20FL, LS20EL + 19 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LS15CLHeight H: 24 mm | Width W: 34 mm | Block length L: 40.4 mm | Rail width W1: 15 mm | C: 4550 N
LS15ALHeight H: 24 mm | Width W: 34 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS15KLHeight H: 24 mm | Width W: 52 mm | Block length L: 40.4 mm | Rail width W1: 15 mm | C: 4550 N
LS15FLHeight H: 24 mm | Width W: 52 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS15ELHeight H: 24 mm | Width W: 52 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS15EMHeight H: 24 mm | Width W: 52 mm | Block length L: 56.8 mm | Rail width W1: 15 mm | C: 6700 N
LS20ALHeight H: 28 mm | Width W: 42 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS20KLHeight H: 28 mm | Width W: 59 mm | Block length L: 47.2 mm | Rail width W1: 20 mm | C: 6550 N
LS20FLHeight H: 28 mm | Width W: 59 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS20ELHeight H: 28 mm | Width W: 59 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS20EMHeight H: 28 mm | Width W: 59 mm | Block length L: 65.2 mm | Rail width W1: 20 mm | C: 8900 N
LS25CLHeight H: 33 mm | Width W: 48 mm | Block length L: 59.6 mm | Rail width W1: 23 mm | C: 10600 N
LS25ALHeight H: 33 mm | Width W: 48 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS25KLHeight H: 33 mm | Width W: 73 mm | Block length L: 59.6 mm | Rail width W1: 23 mm | C: 10600 N
LS25FLHeight H: 33 mm | Width W: 73 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS25ELHeight H: 33 mm | Width W: 73 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS25EMHeight H: 33 mm | Width W: 73 mm | Block length L: 81.6 mm | Rail width W1: 23 mm | C: 14400 N
LS30CLHeight H: 42 mm | Width W: 60 mm | Block length L: 67.4 mm | Rail width W1: 28 mm | C: 15900 N
LS30ALHeight H: 42 mm | Width W: 60 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS30KLHeight H: 42 mm | Width W: 90 mm | Block length L: 67.4 mm | Rail width W1: 28 mm | C: 15900 N
LS30FLHeight H: 42 mm | Width W: 90 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS30ELHeight H: 42 mm | Width W: 90 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS30EMHeight H: 42 mm | Width W: 90 mm | Block length L: 96.4 mm | Rail width W1: 28 mm | C: 23400 N
LS35CLHeight H: 48 mm | Width W: 70 mm | Block length L: 77 mm | Rail width W1: 34 mm | C: 22100 N
LS35ALHeight H: 48 mm | Width W: 70 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
LS35KLHeight H: 48 mm | Width W: 100 mm | Block length L: 77 mm | Rail width W1: 34 mm | C: 22100 N
LS35FLHeight H: 48 mm | Width W: 100 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
LS35ELHeight H: 48 mm | Width W: 100 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
LS35EMHeight H: 48 mm | Width W: 100 mm | Block length L: 108 mm | Rail width W1: 34 mm | C: 32500 N
