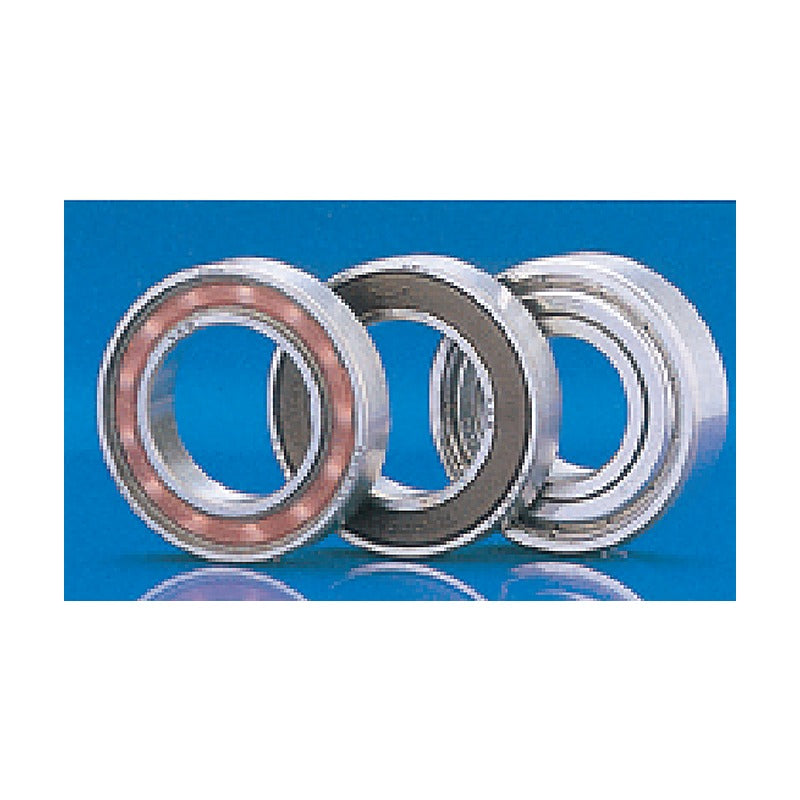

NSK SPACEA Lube-Guard Bearings (L11-H-20)

NSK SPACEA Lube-Guard Bearings (L11-H-20)

NSK SPACEA Lube-Guard bearings filled with a special solid lubricant containing a large amount of oil, for greaseless, maintenance-free operation in dusty or wet environments.

Key features

  • Solid lubricant releases oil continuously - no relubrication
  • Suited to dusty, wet and food machinery environments
  • Stainless steel base bearing
  • Standard stock type for general sizes is the contact-seal version

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Lubrication Special solid lubricant (oil-filled)
Environment Air, dust, water
Source NSK SPACEA Series Catalogue, p. 24-33
635L11-H-20 Basic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
626L11-H-20 Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636L11-H-20 Basic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
607L11-H-20 Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627L11-H-20 Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
637L11-H-20 Basic no.: 637 | d: 7 mm | D: 26 mm | B: 9 mm | CH: 3900 N
698L11-H-20 Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608L11-H-20 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628L11-H-20 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
699L11-H-20 Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609L11-H-20 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629L11-H-20 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639L11-H-20 Basic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6L11-H-20 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800L11-H-20 Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900L11-H-20 Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000L11-H-20 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200L11-H-20 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6901L11-H-20 Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001L11-H-20 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201L11-H-20 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301L11-H-20 Basic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802L11-H-20 Basic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902L11-H-20 Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002L11-H-20 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202L11-H-20 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302L11-H-20 Basic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803L11-H-20 Basic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903L11-H-20 Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003L11-H-20 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203L11-H-20 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303L11-H-20 Basic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804L11-H-20 Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904L11-H-20 Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004L11-H-20 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204L11-H-20 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304L11-H-20 Basic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805L11-H-20 Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905L11-H-20 Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005L11-H-20 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205L11-H-20 Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006L11-H-20 Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206L11-H-20 Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007L11-H-20 Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207L11-H-20 Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008L11-H-20 Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208L11-H-20 Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009L11-H-20 Basic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
Deep Groove Ball BearingsNSK
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA Lube-Guard Bearings (L11-H-20)

Brand NSK·Deep Groove Ball Bearings

Available part numbers (48)

635L11-H-20, 626L11-H-20, 636L11-H-20, 607L11-H-20, 627L11-H-20, 637L11-H-20, 698L11-H-20, 608L11-H-20, 628L11-H-20, 699L11-H-20 + 38 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
