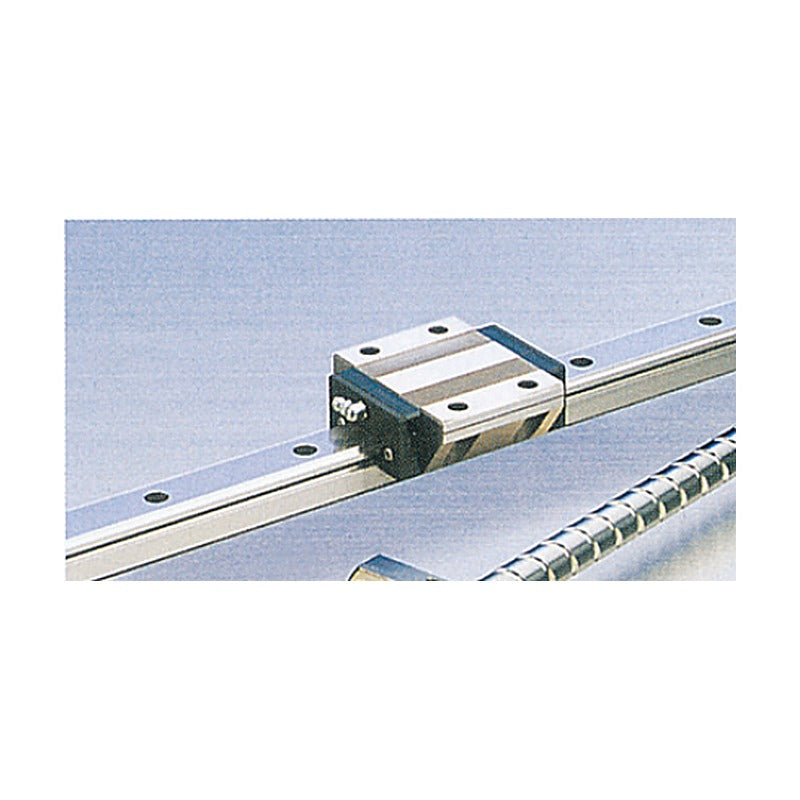

NSK SPACEA PU / LU / LE / LW Miniature Linear Guides

NSK SPACEA PU / LU / LE / LW Miniature Linear Guides

NSK miniature and wide linear guides (PU, LU, LE, LW series) offered in SPACEA special-environment specifications.

Key features

  • PU and LU miniature, LE and LW wide-rail series
  • Clean, vacuum, corrosion-resistant, high-temperature and sanitary specifications
  • Compact blocks for semiconductor and precision equipment
  • NSK K1 lubrication unit option

Specifications

Series SPACEA special environment
Product Linear guide block (rail separate)
Series PU, LU, LE, LW
Sizes 05-50
Environments Clean, vacuum, corrosion, high temp, sanitary
Source NSK SPACEA Series Catalogue, p. 83
PU09TR Height H: 10 mm | Width W: 20 mm | Block length L: 30 mm | Rail width W1: 9 mm | C: 1180 N
PU12TR Height H: 13 mm | Width W: 27 mm | Block length L: 35 mm | Rail width W1: 12 mm | C: 2160 N
PU15AL Height H: 16 mm | Width W: 32 mm | Block length L: 43 mm | Rail width W1: 15 mm | C: 4300 N
LU05TL Height H: 6 mm | Width W: 12 mm | Block length L: 18 mm | Rail width W1: 5 mm | C: 430 N
LU07AL Height H: 8 mm | Width W: 17 mm | Block length L: 20.4 mm | Rail width W1: 7 mm | C: 880 N
LU09AL Height H: 10 mm | Width W: 20 mm | Block length L: 26.8 mm | Rail width W1: 9 mm | C: 1470 N
LU09TL Height H: 10 mm | Width W: 20 mm | Block length L: 26.8 mm | Rail width W1: 9 mm | C: 1470 N
LU12AL Height H: 13 mm | Width W: 27 mm | Block length L: 34 mm | Rail width W1: 12 mm | C: 2160 N
LU12TL Height H: 13 mm | Width W: 27 mm | Block length L: 34 mm | Rail width W1: 12 mm | C: 2160 N
LU15AL Height H: 16 mm | Width W: 32 mm | Block length L: 43.6 mm | Rail width W1: 15 mm | C: 4300 N
LE09AL Height H: 12 mm | Width W: 30 mm | Block length L: 39 mm | Rail width W1: 18 mm | C: 2450 N
LE09T Height H: 12 mm | Width W: 30 mm | Block length L: 39 mm | Rail width W1: 18 mm | C: 2450 N
LE12A Height H: 14 mm | Width W: 40 mm | Block length L: 44 mm | Rail width W1: 24 mm | C: 3550 N
LE15AL Height H: 16 mm | Width W: 60 mm | Block length L: 55 mm | Rail width W1: 42 mm | C: 6200 N
LW17EL Height H: 17 mm | Width W: 60 mm | Block length L: 51.4 mm | Rail width W1: 33 mm | C: 4200 N
LW21EL Height H: 21 mm | Width W: 68 mm | Block length L: 58.8 mm | Rail width W1: 37 mm | C: 4700 N
LW27EL Height H: 27 mm | Width W: 80 mm | Block length L: 74 mm | Rail width W1: 42 mm | C: 9800 N
LW35EL Height H: 35 mm | Width W: 120 mm | Block length L: 108 mm | Rail width W1: 69 mm | C: 25700 N
LW50EL Height H: 50 mm | Width W: 162 mm | Block length L: 140.6 mm | Rail width W1: 90 mm | C: 47500 N
Linear GuidesNSK
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA PU / LU / LE / LW Miniature Linear Guides

Brand NSK·Linear Guides

Available part numbers (19)

PU09TR, PU12TR, PU15AL, LU05TL, LU07AL, LU09AL, LU09TL, LU12AL, LU12TL, LU15AL + 9 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PU09TRHeight H: 10 mm | Width W: 20 mm | Block length L: 30 mm | Rail width W1: 9 mm | C: 1180 N
PU12TRHeight H: 13 mm | Width W: 27 mm | Block length L: 35 mm | Rail width W1: 12 mm | C: 2160 N
PU15ALHeight H: 16 mm | Width W: 32 mm | Block length L: 43 mm | Rail width W1: 15 mm | C: 4300 N
LU05TLHeight H: 6 mm | Width W: 12 mm | Block length L: 18 mm | Rail width W1: 5 mm | C: 430 N
LU07ALHeight H: 8 mm | Width W: 17 mm | Block length L: 20.4 mm | Rail width W1: 7 mm | C: 880 N
LU09ALHeight H: 10 mm | Width W: 20 mm | Block length L: 26.8 mm | Rail width W1: 9 mm | C: 1470 N
LU09TLHeight H: 10 mm | Width W: 20 mm | Block length L: 26.8 mm | Rail width W1: 9 mm | C: 1470 N
LU12ALHeight H: 13 mm | Width W: 27 mm | Block length L: 34 mm | Rail width W1: 12 mm | C: 2160 N
LU12TLHeight H: 13 mm | Width W: 27 mm | Block length L: 34 mm | Rail width W1: 12 mm | C: 2160 N
LU15ALHeight H: 16 mm | Width W: 32 mm | Block length L: 43.6 mm | Rail width W1: 15 mm | C: 4300 N
LE09ALHeight H: 12 mm | Width W: 30 mm | Block length L: 39 mm | Rail width W1: 18 mm | C: 2450 N
LE09THeight H: 12 mm | Width W: 30 mm | Block length L: 39 mm | Rail width W1: 18 mm | C: 2450 N
LE12AHeight H: 14 mm | Width W: 40 mm | Block length L: 44 mm | Rail width W1: 24 mm | C: 3550 N
LE15ALHeight H: 16 mm | Width W: 60 mm | Block length L: 55 mm | Rail width W1: 42 mm | C: 6200 N
LW17ELHeight H: 17 mm | Width W: 60 mm | Block length L: 51.4 mm | Rail width W1: 33 mm | C: 4200 N
LW21ELHeight H: 21 mm | Width W: 68 mm | Block length L: 58.8 mm | Rail width W1: 37 mm | C: 4700 N
LW27ELHeight H: 27 mm | Width W: 80 mm | Block length L: 74 mm | Rail width W1: 42 mm | C: 9800 N
LW35ELHeight H: 35 mm | Width W: 120 mm | Block length L: 108 mm | Rail width W1: 69 mm | C: 25700 N
LW50ELHeight H: 50 mm | Width W: 162 mm | Block length L: 140.6 mm | Rail width W1: 90 mm | C: 47500 N
