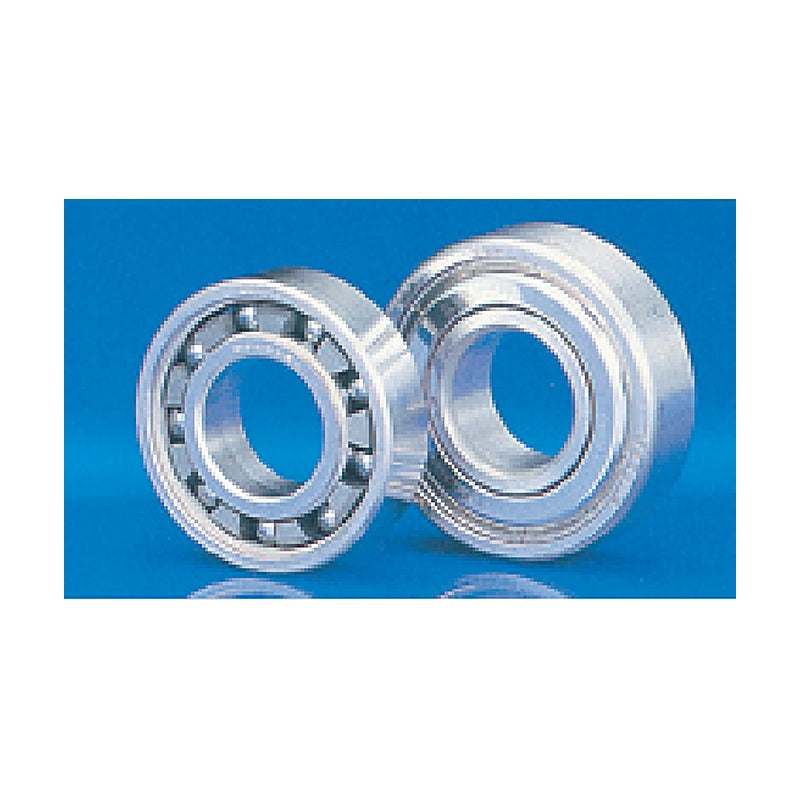

NSK SPACEA YS Self-Lubricating Cage Bearings (MoS2, HMST4)

NSK SPACEA YS Self-Lubricating Cage Bearings (MoS2, HMST4)

NSK SPACEA YS-type bearings with a long-life MoS2-based self-lubricating cage for vacuum and clean environments.

Key features

  • MoS2-based self-lubricating cage material
  • Up to 10 times the life of conventional solid-lubricated bearings
  • Low particle and low outgassing
  • For vacuum transfer equipment

Specifications

Series SPACEA special environment
Basic types Miniature and deep groove ball bearings
Availability Stock, short lead time or made to order
Lubrication MoS2 self-lubricating cage
Environment Vacuum, clean
Source NSK SPACEA Series Catalogue, p. 24-56
684LZZC3-HMST4 Basic no.: 684 | d: 4 mm | D: 9 mm | B: 4 mm | CH: 545 N
694LZZC3-HMST4 Basic no.: 694 | d: 4 mm | D: 11 mm | B: 4 mm | CH: 815 N
604LZZC3-HMST4 Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
624LZZC3-HMST4 Basic no.: 624 | d: 4 mm | D: 13 mm | B: 5 mm | CH: 1110 N
634LZZC3-HMST4 Basic no.: 634 | d: 4 mm | D: 16 mm | B: 5 mm | CH: 1470 N
685LZZC3-HMST4 Basic no.: 685 | d: 5 mm | D: 11 mm | B: 5 mm | CH: 610 N
695LZZC3-HMST4 Basic no.: 695 | d: 5 mm | D: 13 mm | B: 4 mm | CH: 915 N
605LZZC3-HMST4 Basic no.: 605 | d: 5 mm | D: 14 mm | B: 5 mm | CH: 1130 N
625LZZC3-HMST4 Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
635LZZC3-HMST4 Basic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
686LZZC3-HMST4 Basic no.: 686 | d: 6 mm | D: 13 mm | B: 5 mm | CH: 920 N
696LZZC3-HMST4 Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZC3-HMST4 Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZC3-HMST4 Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636LZZC3-HMST4 Basic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
687LZZC3-HMST4 Basic no.: 687 | d: 7 mm | D: 14 mm | B: 5 mm | CH: 1000 N
697LZZC3-HMST4 Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZC3-HMST4 Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZC3-HMST4 Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZC3-HMST4 Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZC3-HMST4 Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZC3-HMST4 Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZC3-HMST4 Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
638LZZC3-HMST4 Basic no.: 638 | d: 8 mm | D: 28 mm | B: 9 mm | CH: 3900 N
689LZZC3-HMST4 Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZC3-HMST4 Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZC3-HMST4 Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZC3-HMST4 Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639LZZC3-HMST4 Basic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6LZZC3-HMST4 Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZC3-HMST4 Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZC3-HMST4 Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZC3-HMST4 Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZC3-HMST4 Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6300LZZC3-HMST4 Basic no.: 6300 | d: 10 mm | D: 35 mm | B: 11 mm | CH: 6900 N
6801LZZC3-HMST4 Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZC3-HMST4 Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZC3-HMST4 Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZC3-HMST4 Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301LZZC3-HMST4 Basic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802LZZC3-HMST4 Basic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902LZZC3-HMST4 Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZC3-HMST4 Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZC3-HMST4 Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302LZZC3-HMST4 Basic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803LZZC3-HMST4 Basic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903LZZC3-HMST4 Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZC3-HMST4 Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZC3-HMST4 Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303LZZC3-HMST4 Basic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804LZZC3-HMST4 Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZC3-HMST4 Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZC3-HMST4 Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZC3-HMST4 Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304LZZC3-HMST4 Basic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805LZZC3-HMST4 Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZC3-HMST4 Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZC3-HMST4 Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZC3-HMST4 Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZC3-HMST4 Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZC3-HMST4 Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZC3-HMST4 Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZC3-HMST4 Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZC3-HMST4 Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZC3-HMST4 Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009LZZC3-HMST4 Basic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
Deep Groove Ball BearingsNSK
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SPACEA YS Self-Lubricating Cage Bearings (MoS2, HMST4)

Brand NSK·Deep Groove Ball Bearings

Available part numbers (66)

684LZZC3-HMST4, 694LZZC3-HMST4, 604LZZC3-HMST4, 624LZZC3-HMST4, 634LZZC3-HMST4, 685LZZC3-HMST4, 695LZZC3-HMST4, 605LZZC3-HMST4, 625LZZC3-HMST4, 635LZZC3-HMST4 + 56 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
684LZZC3-HMST4Basic no.: 684 | d: 4 mm | D: 9 mm | B: 4 mm | CH: 545 N
694LZZC3-HMST4Basic no.: 694 | d: 4 mm | D: 11 mm | B: 4 mm | CH: 815 N
604LZZC3-HMST4Basic no.: 604 | d: 4 mm | D: 12 mm | B: 4 mm | CH: 815 N
624LZZC3-HMST4Basic no.: 624 | d: 4 mm | D: 13 mm | B: 5 mm | CH: 1110 N
634LZZC3-HMST4Basic no.: 634 | d: 4 mm | D: 16 mm | B: 5 mm | CH: 1470 N
685LZZC3-HMST4Basic no.: 685 | d: 5 mm | D: 11 mm | B: 5 mm | CH: 610 N
695LZZC3-HMST4Basic no.: 695 | d: 5 mm | D: 13 mm | B: 4 mm | CH: 915 N
605LZZC3-HMST4Basic no.: 605 | d: 5 mm | D: 14 mm | B: 5 mm | CH: 1130 N
625LZZC3-HMST4Basic no.: 625 | d: 5 mm | D: 16 mm | B: 5 mm | CH: 1470 N
635LZZC3-HMST4Basic no.: 635 | d: 5 mm | D: 19 mm | B: 6 mm | CH: 2220 N
686LZZC3-HMST4Basic no.: 686 | d: 6 mm | D: 13 mm | B: 5 mm | CH: 920 N
696LZZC3-HMST4Basic no.: 696 | d: 6 mm | D: 15 mm | B: 5 mm | CH: 1470 N
606LZZC3-HMST4Basic no.: 606 | d: 6 mm | D: 17 mm | B: 6 mm | CH: 1920 N
626LZZC3-HMST4Basic no.: 626 | d: 6 mm | D: 19 mm | B: 6 mm | CH: 2220 N
636LZZC3-HMST4Basic no.: 636 | d: 6 mm | D: 22 mm | B: 7 mm | CH: 2800 N
687LZZC3-HMST4Basic no.: 687 | d: 7 mm | D: 14 mm | B: 5 mm | CH: 1000 N
697LZZC3-HMST4Basic no.: 697 | d: 7 mm | D: 17 mm | B: 5 mm | CH: 1370 N
607LZZC3-HMST4Basic no.: 607 | d: 7 mm | D: 19 mm | B: 6 mm | CH: 2220 N
627LZZC3-HMST4Basic no.: 627 | d: 7 mm | D: 22 mm | B: 7 mm | CH: 2800 N
688LZZC3-HMST4Basic no.: 688 | d: 8 mm | D: 16 mm | B: 5 mm | CH: 1370 N
698LZZC3-HMST4Basic no.: 698 | d: 8 mm | D: 19 mm | B: 6 mm | CH: 1900 N
608LZZC3-HMST4Basic no.: 608 | d: 8 mm | D: 22 mm | B: 7 mm | CH: 2800 N
628LZZC3-HMST4Basic no.: 628 | d: 8 mm | D: 24 mm | B: 8 mm | CH: 2850 N
638LZZC3-HMST4Basic no.: 638 | d: 8 mm | D: 28 mm | B: 9 mm | CH: 3900 N
689LZZC3-HMST4Basic no.: 689 | d: 9 mm | D: 17 mm | B: 5 mm | CH: 1130 N
699LZZC3-HMST4Basic no.: 699 | d: 9 mm | D: 20 mm | B: 6 mm | CH: 1460 N
609LZZC3-HMST4Basic no.: 609 | d: 9 mm | D: 24 mm | B: 7 mm | CH: 2850 N
629LZZC3-HMST4Basic no.: 629 | d: 9 mm | D: 26 mm | B: 8 mm | CH: 3900 N
639LZZC3-HMST4Basic no.: 639 | d: 9 mm | D: 30 mm | B: 10 mm | CH: 4350 N
R6LZZC3-HMST4Basic no.: R6 | d: 9.525 mm | D: 22.225 mm | B: 7.142 mm | CH: 2830 N
6800LZZC3-HMST4Basic no.: 6800 | d: 10 mm | D: 19 mm | B: 5 mm | CH: 1460 N
6900LZZC3-HMST4Basic no.: 6900 | d: 10 mm | D: 22 mm | B: 6 mm | CH: 2290 N
6000LZZC3-HMST4Basic no.: 6000 | d: 10 mm | D: 26 mm | B: 8 mm | CH: 3900 N
6200LZZC3-HMST4Basic no.: 6200 | d: 10 mm | D: 30 mm | B: 9 mm | CH: 4350 N
6300LZZC3-HMST4Basic no.: 6300 | d: 10 mm | D: 35 mm | B: 11 mm | CH: 6900 N
6801LZZC3-HMST4Basic no.: 6801 | d: 12 mm | D: 21 mm | B: 5 mm | CH: 1630 N
6901LZZC3-HMST4Basic no.: 6901 | d: 12 mm | D: 24 mm | B: 6 mm | CH: 2460 N
6001LZZC3-HMST4Basic no.: 6001 | d: 12 mm | D: 28 mm | B: 8 mm | CH: 4350 N
6201LZZC3-HMST4Basic no.: 6201 | d: 12 mm | D: 32 mm | B: 10 mm | CH: 5800 N
6301LZZC3-HMST4Basic no.: 6301 | d: 12 mm | D: 37 mm | B: 12 mm | CH: 8250 N
6802LZZC3-HMST4Basic no.: 6802 | d: 15 mm | D: 24 mm | B: 5 mm | CH: 1760 N
6902LZZC3-HMST4Basic no.: 6902 | d: 15 mm | D: 28 mm | B: 7 mm | CH: 3700 N
6002LZZC3-HMST4Basic no.: 6002 | d: 15 mm | D: 32 mm | B: 9 mm | CH: 4750 N
6202LZZC3-HMST4Basic no.: 6202 | d: 15 mm | D: 35 mm | B: 11 mm | CH: 6500 N
6302LZZC3-HMST4Basic no.: 6302 | d: 15 mm | D: 42 mm | B: 13 mm | CH: 9700 N
6803LZZC3-HMST4Basic no.: 6803 | d: 17 mm | D: 26 mm | B: 5 mm | CH: 2240 N
6903LZZC3-HMST4Basic no.: 6903 | d: 17 mm | D: 30 mm | B: 7 mm | CH: 3900 N
6003LZZC3-HMST4Basic no.: 6003 | d: 17 mm | D: 35 mm | B: 10 mm | CH: 5100 N
6203LZZC3-HMST4Basic no.: 6203 | d: 17 mm | D: 40 mm | B: 12 mm | CH: 8150 N
6303LZZC3-HMST4Basic no.: 6303 | d: 17 mm | D: 47 mm | B: 14 mm | CH: 11600 N
6804LZZC3-HMST4Basic no.: 6804 | d: 20 mm | D: 32 mm | B: 7 mm | CH: 3400 N
6904LZZC3-HMST4Basic no.: 6904 | d: 20 mm | D: 37 mm | B: 9 mm | CH: 5400 N
6004LZZC3-HMST4Basic no.: 6004 | d: 20 mm | D: 42 mm | B: 12 mm | CH: 7950 N
6204LZZC3-HMST4Basic no.: 6204 | d: 20 mm | D: 47 mm | B: 14 mm | CH: 10900 N
6304LZZC3-HMST4Basic no.: 6304 | d: 20 mm | D: 52 mm | B: 15 mm | CH: 13500 N
6805LZZC3-HMST4Basic no.: 6805 | d: 25 mm | D: 37 mm | B: 7 mm | CH: 3800 N
6905LZZC3-HMST4Basic no.: 6905 | d: 25 mm | D: 42 mm | B: 9 mm | CH: 5950 N
6005LZZC3-HMST4Basic no.: 6005 | d: 25 mm | D: 47 mm | B: 12 mm | CH: 8550 N
6205LZZC3-HMST4Basic no.: 6205 | d: 25 mm | D: 52 mm | B: 15 mm | CH: 11900 N
6006LZZC3-HMST4Basic no.: 6006 | d: 30 mm | D: 55 mm | B: 13 mm | CH: 11300 N
6206LZZC3-HMST4Basic no.: 6206 | d: 30 mm | D: 62 mm | B: 16 mm | CH: 16500 N
6007LZZC3-HMST4Basic no.: 6007 | d: 35 mm | D: 62 mm | B: 14 mm | CH: 13600 N
6207LZZC3-HMST4Basic no.: 6207 | d: 35 mm | D: 72 mm | B: 17 mm | CH: 21800 N
6008LZZC3-HMST4Basic no.: 6008 | d: 40 mm | D: 68 mm | B: 15 mm | CH: 14200 N
6208LZZC3-HMST4Basic no.: 6208 | d: 40 mm | D: 80 mm | B: 18 mm | CH: 24800 N
6009LZZC3-HMST4Basic no.: 6009 | d: 45 mm | D: 75 mm | B: 16 mm | CH: 17800 N
