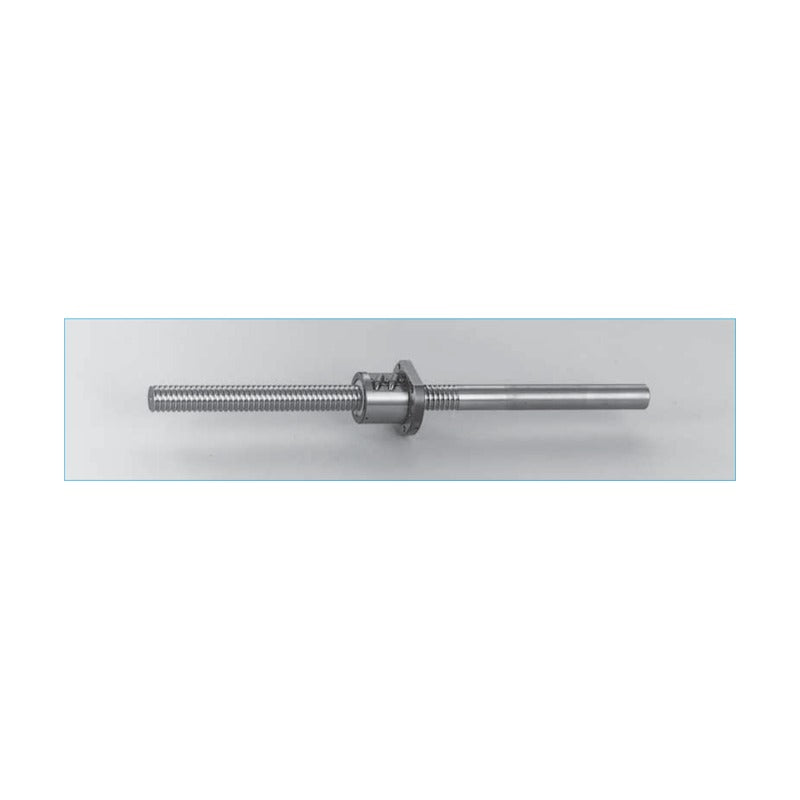

NSK SS Type Ball Screws for Machine Tools, Blank Shaft End

NSK SS Type Ball Screws for Machine Tools, Blank Shaft End

NSK SS type standard ball screws for machine tools with blank shaft ends and preloaded tube or deflector nuts.

Key features

  • Shaft diameters 20 to 50 mm
  • PFT, ZFT, DFT tube nuts and ZFD deflector nuts
  • P, Z and D preload
  • Accuracy grade C5
  • Blank shaft ends for custom machining

Specifications

Type SS (blank shaft end)
Accuracy grade C5
Brand NSK
Product type Ball Screws
Listed models 135
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B405-B432
W2003SS-1P-C5Z4 Shaft x lead: 20 x 4 mm | Max stroke: 251 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2005SS-1P-C5Z4 Shaft x lead: 20 x 4 mm | Max stroke: 451 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2008SS-1P-C5Z4 Shaft x lead: 20 x 4 mm | Max stroke: 751 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2003SS-2P-C5Z5 Shaft x lead: 20 x 5 mm | Max stroke: 244 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2005SS-2P-C5Z5 Shaft x lead: 20 x 5 mm | Max stroke: 444 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2007SS-1P-C5Z5 Shaft x lead: 20 x 5 mm | Max stroke: 644 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2010SS-1P-C5Z5 Shaft x lead: 20 x 5 mm | Max stroke: 944 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2503SS-1P-C5Z4 Shaft x lead: 25 x 4 mm | Max stroke: 252 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2506SS-1P-C5Z4 Shaft x lead: 25 x 4 mm | Max stroke: 552 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2510SS-1P-C5Z4 Shaft x lead: 25 x 4 mm | Max stroke: 952 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2503SS-2P-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 245 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2505SS-1P-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 445 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2508SS-1P-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 745 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2512SS-1P-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 1145 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2504SS-1P-C5Z6 Shaft x lead: 25 x 6 mm | Max stroke: 338 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2508SS-2P-C5Z6 Shaft x lead: 25 x 6 mm | Max stroke: 738 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2512SS-2P-C5Z6 Shaft x lead: 25 x 6 mm | Max stroke: 1138 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2502SS-1ZY-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 184 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2504SS-3ZY-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 334 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2506SS-2ZY-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 534 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2509SS-1ZY-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 834 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2512SS-3ZY-C5Z5 Shaft x lead: 25 x 5 mm | Max stroke: 1134 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2504SS-4ZY-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 312 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2506SS-3ZY-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 512 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2508SS-3ZY-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 712 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2511SS-1ZY-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 1012 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2515SS-2ZY-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 1412 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2504SS-2P-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 319 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2507SS-1P-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 619 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2510SS-2P-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 919 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2515SS-1P-C5Z10 Shaft x lead: 25 x 10 mm | Max stroke: 1419 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2804SS-1P-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 344 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2806SS-1P-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 544 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2808SS-1P-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 744 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2812SS-1P-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 1144 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2804SS-3P-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 337 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2806SS-3P-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 537 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2808SS-3P-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 737 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2812SS-3P-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 1137 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2804SS-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 314 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2806SS-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 514 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2808SS-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 714 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2812SS-2Z-C5Z5 Shaft x lead: 28 x 5 mm | Max stroke: 1114 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2804SS-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 301 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2806SS-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 501 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2808SS-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 701 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2812SS-4Z-C5Z6 Shaft x lead: 28 x 6 mm | Max stroke: 1101 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W3204SS-1P-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 344 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3206SS-1P-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 544 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3208SS-1P-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 744 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3212SS-1P-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 1144 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3215SS-1P-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 1444 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3206SS-3P-C5Z6 Shaft x lead: 32 x 6 mm | Max stroke: 537 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3210SS-1P-C5Z6 Shaft x lead: 32 x 6 mm | Max stroke: 937 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3215SS-3P-C5Z6 Shaft x lead: 32 x 6 mm | Max stroke: 1437 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3204SS-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 314 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3206SS-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 514 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3208SS-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 714 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3212SS-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 1114 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3215SS-2Z-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 1414 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3206SS-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Max stroke: 501 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3210SS-2Z-C5Z6 Shaft x lead: 32 x 6 mm | Max stroke: 901 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3215SS-4Z-C5Z6 Shaft x lead: 32 x 6 mm | Max stroke: 1401 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3206SS-5Z-C5Z8 Shaft x lead: 32 x 8 mm | Max stroke: 518 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3210SS-3Z-C5Z8 Shaft x lead: 32 x 8 mm | Max stroke: 918 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3215SS-5Z-C5Z8 Shaft x lead: 32 x 8 mm | Max stroke: 1418 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3204SS-3ZY-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 323 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3206SS-6ZY-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 523 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3209SS-1ZY-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 823 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3212SS-3ZY-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 1123 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3216SS-1ZY-C5Z5 Shaft x lead: 32 x 5 mm | Max stroke: 1523 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3205SS-3ZY-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 380 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3207SS-3ZY-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 580 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3210SS-6ZY-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 880 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3214SS-3ZY-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 1280 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3218SS-3ZY-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 1680 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3205SS-1Z-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3207SS-1Z-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3210SS-4Z-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3214SS-1Z-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 1300 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3218SS-1Z-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 1700 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3607SS-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Max stroke: 597 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3612SS-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Max stroke: 1097 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3620SS-1Z-C5Z10 Shaft x lead: 36 x 10 mm | Max stroke: 1897 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W4006SS-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Max stroke: 511 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4010SS-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Max stroke: 911 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4016SS-1Z-C5Z5 Shaft x lead: 40 x 5 mm | Max stroke: 1511 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W3205SS-2D-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 310 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3207SS-2D-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 510 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3210SS-5D-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 810 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3214SS-2D-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 1210 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3218SS-2D-C5Z10 Shaft x lead: 32 x 10 mm | Max stroke: 1610 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3607SS-2D-C5Z10 Shaft x lead: 36 x 10 mm | Max stroke: 507 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3612SS-2D-C5Z10 Shaft x lead: 36 x 10 mm | Max stroke: 1007 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3620SS-2D-C5Z10 Shaft x lead: 36 x 10 mm | Max stroke: 1807 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W4007SS-1Z-C5Z8 Shaft x lead: 40 x 8 mm | Max stroke: 570 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4012SS-1Z-C5Z8 Shaft x lead: 40 x 8 mm | Max stroke: 1070 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4018SS-1Z-C5Z8 Shaft x lead: 40 x 8 mm | Max stroke: 1670 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4007SS-2Z-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 597 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4010SS-2Z-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 897 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4014SS-1Z-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 1297 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4018SS-2Z-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 1697 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4024SS-1Z-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 2297 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4010SS-4Z-C5Z12 Shaft x lead: 40 x 12 mm | Max stroke: 883 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4016SS-2Z-C5Z12 Shaft x lead: 40 x 12 mm | Max stroke: 1483 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4025SS-1Z-C5Z12 Shaft x lead: 40 x 12 mm | Max stroke: 2383 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4007SS-3D-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 507 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4010SS-3D-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 807 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4014SS-2D-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 1207 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4018SS-3D-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 1607 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4024SS-2D-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 2207 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4010SS-5D-C5Z12 Shaft x lead: 40 x 12 mm | Max stroke: 775 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4016SS-3D-C5Z12 Shaft x lead: 40 x 12 mm | Max stroke: 1375 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4025SS-2D-C5Z12 Shaft x lead: 40 x 12 mm | Max stroke: 2275 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4007SS-4ZY-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 557 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4010SS-6ZY-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 857 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4014SS-3ZY-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 1257 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4018SS-4ZY-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 1657 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4024SS-3ZY-C5Z10 Shaft x lead: 40 x 10 mm | Max stroke: 2257 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W5007SS-1ZY-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 557 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5010SS-3ZY-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 857 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5015SS-3ZY-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 1357 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5020SS-3ZY-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 1857 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5026SS-3ZY-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 2457 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W4510SS-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Max stroke: 897 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4516SS-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Max stroke: 1497 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4525SS-1Z-C5Z10 Shaft x lead: 45 x 10 mm | Max stroke: 2397 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W5010SS-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 897 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5015SS-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 1397 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5020SS-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 1897 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5026SS-1Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 2497 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5010SS-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 837 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5015SS-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 1337 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5020SS-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 1837 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5026SS-2Z-C5Z10 Shaft x lead: 50 x 10 mm | Max stroke: 2437 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
Ball ScrewsNSK
135 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK SS Type Ball Screws for Machine Tools, Blank Shaft End

Brand NSK·Ball Screws

Available part numbers (135)

W2003SS-1P-C5Z4, W2005SS-1P-C5Z4, W2008SS-1P-C5Z4, W2003SS-2P-C5Z5, W2005SS-2P-C5Z5, W2007SS-1P-C5Z5, W2010SS-1P-C5Z5, W2503SS-1P-C5Z4, W2506SS-1P-C5Z4, W2510SS-1P-C5Z4 + 125 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W2003SS-1P-C5Z4Shaft x lead: 20 x 4 mm | Max stroke: 251 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2005SS-1P-C5Z4Shaft x lead: 20 x 4 mm | Max stroke: 451 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2008SS-1P-C5Z4Shaft x lead: 20 x 4 mm | Max stroke: 751 mm | Accuracy: C5 | Axial play: Z | Ca: 5.42 kN | C0a: 10.7 kN
W2003SS-2P-C5Z5Shaft x lead: 20 x 5 mm | Max stroke: 244 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2005SS-2P-C5Z5Shaft x lead: 20 x 5 mm | Max stroke: 444 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2007SS-1P-C5Z5Shaft x lead: 20 x 5 mm | Max stroke: 644 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2010SS-1P-C5Z5Shaft x lead: 20 x 5 mm | Max stroke: 944 mm | Accuracy: C5 | Axial play: Z | Ca: 9.41 kN | C0a: 17.1 kN
W2503SS-1P-C5Z4Shaft x lead: 25 x 4 mm | Max stroke: 252 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2506SS-1P-C5Z4Shaft x lead: 25 x 4 mm | Max stroke: 552 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2510SS-1P-C5Z4Shaft x lead: 25 x 4 mm | Max stroke: 952 mm | Accuracy: C5 | Axial play: Z | Ca: 6.02 kN | C0a: 13.6 kN
W2503SS-2P-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 245 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2505SS-1P-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 445 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2508SS-1P-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 745 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2512SS-1P-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 1145 mm | Accuracy: C5 | Axial play: Z | Ca: 10.4 kN | C0a: 21.9 kN
W2504SS-1P-C5Z6Shaft x lead: 25 x 6 mm | Max stroke: 338 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2508SS-2P-C5Z6Shaft x lead: 25 x 6 mm | Max stroke: 738 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2512SS-2P-C5Z6Shaft x lead: 25 x 6 mm | Max stroke: 1138 mm | Accuracy: C5 | Axial play: Z | Ca: 14.1 kN | C0a: 26.8 kN
W2502SS-1ZY-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 184 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2504SS-3ZY-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 334 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2506SS-2ZY-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 534 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2509SS-1ZY-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 834 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2512SS-3ZY-C5Z5Shaft x lead: 25 x 5 mm | Max stroke: 1134 mm | Accuracy: C5 | Axial play: Z | Ca: 9.79 kN | C0a: 22.9 kN
W2504SS-4ZY-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 312 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2506SS-3ZY-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 512 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2508SS-3ZY-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 712 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2511SS-1ZY-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 1012 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2515SS-2ZY-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 1412 mm | Accuracy: C5 | Axial play: Z | Ca: 11.4 kN | C0a: 21.4 kN
W2504SS-2P-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 319 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2507SS-1P-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 619 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2510SS-2P-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 919 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2515SS-1P-C5Z10Shaft x lead: 25 x 10 mm | Max stroke: 1419 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 19 kN
W2804SS-1P-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 344 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2806SS-1P-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 544 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2808SS-1P-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 744 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2812SS-1P-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 1144 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2804SS-3P-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 337 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2806SS-3P-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 537 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2808SS-3P-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 737 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2812SS-3P-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 1137 mm | Accuracy: C5 | Axial play: Z | Ca: 11 kN | C0a: 24.4 kN
W2804SS-2Z-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 314 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2806SS-2Z-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 514 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2808SS-2Z-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 714 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2812SS-2Z-C5Z5Shaft x lead: 28 x 5 mm | Max stroke: 1114 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2804SS-4Z-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 301 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2806SS-4Z-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 501 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2808SS-4Z-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 701 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W2812SS-4Z-C5Z6Shaft x lead: 28 x 6 mm | Max stroke: 1101 mm | Accuracy: C5 | Axial play: Z | Ca: 17.4 kN | C0a: 48.8 kN
W3204SS-1P-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 344 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3206SS-1P-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 544 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3208SS-1P-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 744 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3212SS-1P-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 1144 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3215SS-1P-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 1444 mm | Accuracy: C5 | Axial play: Z | Ca: 11.6 kN | C0a: 28 kN
W3206SS-3P-C5Z6Shaft x lead: 32 x 6 mm | Max stroke: 537 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3210SS-1P-C5Z6Shaft x lead: 32 x 6 mm | Max stroke: 937 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3215SS-3P-C5Z6Shaft x lead: 32 x 6 mm | Max stroke: 1437 mm | Accuracy: C5 | Axial play: Z | Ca: 15.5 kN | C0a: 34.7 kN
W3204SS-2Z-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 314 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3206SS-2Z-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 514 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3208SS-2Z-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 714 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3212SS-2Z-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 1114 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3215SS-2Z-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 1414 mm | Accuracy: C5 | Axial play: Z | Ca: 18.5 kN | C0a: 56.1 kN
W3206SS-4Z-C5Z6Shaft x lead: 32 x 6 mm | Max stroke: 501 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3210SS-2Z-C5Z6Shaft x lead: 32 x 6 mm | Max stroke: 901 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3215SS-4Z-C5Z6Shaft x lead: 32 x 6 mm | Max stroke: 1401 mm | Accuracy: C5 | Axial play: Z | Ca: 24.7 kN | C0a: 69.4 kN
W3206SS-5Z-C5Z8Shaft x lead: 32 x 8 mm | Max stroke: 518 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3210SS-3Z-C5Z8Shaft x lead: 32 x 8 mm | Max stroke: 918 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3215SS-5Z-C5Z8Shaft x lead: 32 x 8 mm | Max stroke: 1418 mm | Accuracy: C5 | Axial play: Z | Ca: 17.5 kN | C0a: 41 kN
W3204SS-3ZY-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 323 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3206SS-6ZY-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 523 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3209SS-1ZY-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 823 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3212SS-3ZY-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 1123 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3216SS-1ZY-C5Z5Shaft x lead: 32 x 5 mm | Max stroke: 1523 mm | Accuracy: C5 | Axial play: Z | Ca: 14.2 kN | C0a: 40.7 kN
W3205SS-3ZY-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 380 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3207SS-3ZY-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 580 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3210SS-6ZY-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 880 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3214SS-3ZY-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 1280 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3218SS-3ZY-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 1680 mm | Accuracy: C5 | Axial play: Z | Ca: 25.9 kN | C0a: 52.8 kN
W3205SS-1Z-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 400 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3207SS-1Z-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 600 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3210SS-4Z-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 900 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3214SS-1Z-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 1300 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3218SS-1Z-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 1700 mm | Accuracy: C5 | Axial play: Z | Ca: 25.5 kN | C0a: 54 kN
W3607SS-1Z-C5Z10Shaft x lead: 36 x 10 mm | Max stroke: 597 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3612SS-1Z-C5Z10Shaft x lead: 36 x 10 mm | Max stroke: 1097 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W3620SS-1Z-C5Z10Shaft x lead: 36 x 10 mm | Max stroke: 1897 mm | Accuracy: C5 | Axial play: Z | Ca: 27.2 kN | C0a: 61.3 kN
W4006SS-1Z-C5Z5Shaft x lead: 40 x 5 mm | Max stroke: 511 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4010SS-1Z-C5Z5Shaft x lead: 40 x 5 mm | Max stroke: 911 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W4016SS-1Z-C5Z5Shaft x lead: 40 x 5 mm | Max stroke: 1511 mm | Accuracy: C5 | Axial play: Z | Ca: 20.2 kN | C0a: 70.6 kN
W3205SS-2D-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 310 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3207SS-2D-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 510 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3210SS-5D-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 810 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3214SS-2D-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 1210 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3218SS-2D-C5Z10Shaft x lead: 32 x 10 mm | Max stroke: 1610 mm | Accuracy: C5 | Axial play: Z | Ca: 46.3 kN | C0a: 108 kN
W3607SS-2D-C5Z10Shaft x lead: 36 x 10 mm | Max stroke: 507 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3612SS-2D-C5Z10Shaft x lead: 36 x 10 mm | Max stroke: 1007 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W3620SS-2D-C5Z10Shaft x lead: 36 x 10 mm | Max stroke: 1807 mm | Accuracy: C5 | Axial play: Z | Ca: 49.3 kN | C0a: 123 kN
W4007SS-1Z-C5Z8Shaft x lead: 40 x 8 mm | Max stroke: 570 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4012SS-1Z-C5Z8Shaft x lead: 40 x 8 mm | Max stroke: 1070 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4018SS-1Z-C5Z8Shaft x lead: 40 x 8 mm | Max stroke: 1670 mm | Accuracy: C5 | Axial play: Z | Ca: 34.9 kN | C0a: 103 kN
W4007SS-2Z-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 597 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4010SS-2Z-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 897 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4014SS-1Z-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 1297 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4018SS-2Z-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 1697 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4024SS-1Z-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 2297 mm | Accuracy: C5 | Axial play: Z | Ca: 28.6 kN | C0a: 68.6 kN
W4010SS-4Z-C5Z12Shaft x lead: 40 x 12 mm | Max stroke: 883 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4016SS-2Z-C5Z12Shaft x lead: 40 x 12 mm | Max stroke: 1483 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4025SS-1Z-C5Z12Shaft x lead: 40 x 12 mm | Max stroke: 2383 mm | Accuracy: C5 | Axial play: Z | Ca: 33.6 kN | C0a: 77.5 kN
W4007SS-3D-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 507 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4010SS-3D-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 807 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4014SS-2D-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 1207 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4018SS-3D-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 1607 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4024SS-2D-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 2207 mm | Accuracy: C5 | Axial play: Z | Ca: 52 kN | C0a: 137 kN
W4010SS-5D-C5Z12Shaft x lead: 40 x 12 mm | Max stroke: 775 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4016SS-3D-C5Z12Shaft x lead: 40 x 12 mm | Max stroke: 1375 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4025SS-2D-C5Z12Shaft x lead: 40 x 12 mm | Max stroke: 2275 mm | Accuracy: C5 | Axial play: Z | Ca: 61 kN | C0a: 155 kN
W4007SS-4ZY-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 557 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4010SS-6ZY-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 857 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4014SS-3ZY-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 1257 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4018SS-4ZY-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 1657 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W4024SS-3ZY-C5Z10Shaft x lead: 40 x 10 mm | Max stroke: 2257 mm | Accuracy: C5 | Axial play: Z | Ca: 38.4 kN | C0a: 93.3 kN
W5007SS-1ZY-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 557 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5010SS-3ZY-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 857 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5015SS-3ZY-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 1357 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5020SS-3ZY-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 1857 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W5026SS-3ZY-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 2457 mm | Accuracy: C5 | Axial play: Z | Ca: 43.6 kN | C0a: 122 kN
W4510SS-1Z-C5Z10Shaft x lead: 45 x 10 mm | Max stroke: 897 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4516SS-1Z-C5Z10Shaft x lead: 45 x 10 mm | Max stroke: 1497 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W4525SS-1Z-C5Z10Shaft x lead: 45 x 10 mm | Max stroke: 2397 mm | Accuracy: C5 | Axial play: Z | Ca: 29.9 kN | C0a: 77.3 kN
W5010SS-1Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 897 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5015SS-1Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 1397 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5020SS-1Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 1897 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5026SS-1Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 2497 mm | Accuracy: C5 | Axial play: Z | Ca: 31.8 kN | C0a: 87.4 kN
W5010SS-2Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 837 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5015SS-2Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 1337 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5020SS-2Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 1837 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN
W5026SS-2Z-C5Z10Shaft x lead: 50 x 10 mm | Max stroke: 2437 mm | Accuracy: C5 | Axial play: Z | Ca: 57.7 kN | C0a: 175 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
