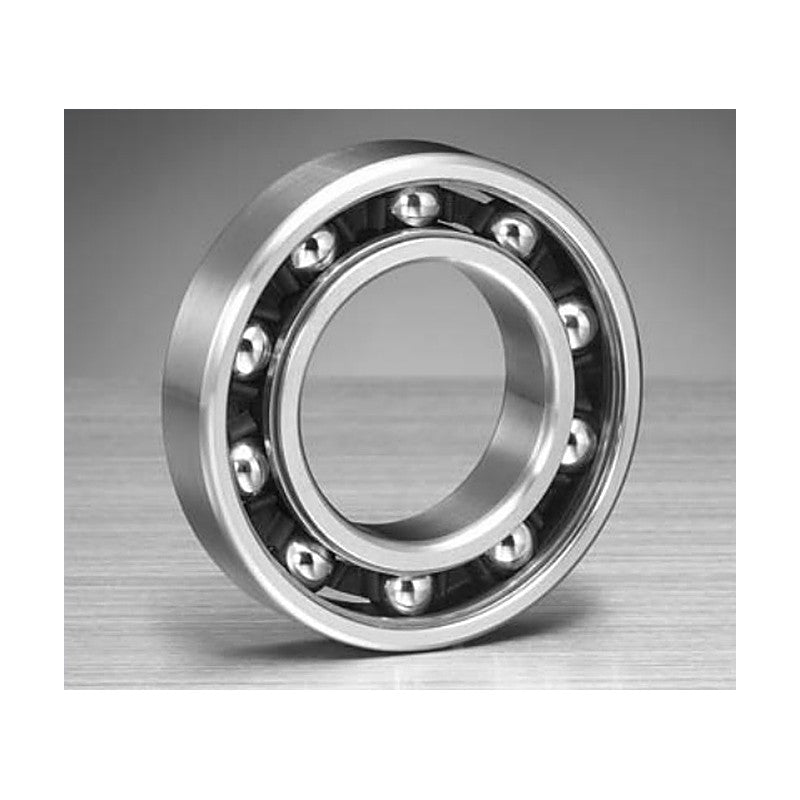

NSK T1X Precision Deep Groove Ball Bearings (60, 62, 63; Open, ZZ, VV)

NSK T1X Precision Deep Groove Ball Bearings (60, 62, 63; Open, ZZ, VV)

NSK precision deep groove ball bearings with T1X ball-guided polyamide cage in 60, 62 and 63 series, open, shielded (ZZ) or non-contact sealed (VV), bore 10 to 50 mm.

Key features

  • Ball-guided polyamide cage (T1X) for high-speed use
  • Open, steel shield (ZZ) and non-contact rubber seal (VV) versions
  • 60, 62 and 63 dimension series
  • Precision classes P2, P4, P5
  • TYA cage high-speed version available on request

Specifications

Series 60 / 62 / 63 T1X
Bore range 10 - 50 mm
Cage T1X polyamide
Closures Open, ZZ, VV
Speed basis T1X cage
Source NSK Super Precision Bearings, p. 119-120
6000T1X d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.87 kN | Speed: 38,900 min-1
6000T1XZZ d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.87 kN | Speed: 38,900 min-1
6000T1XVV d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.87 kN | Speed: 38,900 min-1
6200T1X d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.10 kN | C0r: 2.39 kN | Speed: 35,000 min-1
6200T1XZZ d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.10 kN | C0r: 2.39 kN | Speed: 35,000 min-1
6200T1XVV d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.10 kN | C0r: 2.39 kN | Speed: 35,000 min-1
6001T1X d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.10 kN | C0r: 2.37 kN | Speed: 35,000 min-1
6001T1XZZ d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.10 kN | C0r: 2.37 kN | Speed: 35,000 min-1
6001T1XVV d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.10 kN | C0r: 2.37 kN | Speed: 35,000 min-1
6201T1X d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.80 kN | C0r: 3.05 kN | Speed: 31,900 min-1
6201T1XZZ d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.80 kN | C0r: 3.05 kN | Speed: 31,900 min-1
6201T1XVV d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.80 kN | C0r: 3.05 kN | Speed: 31,900 min-1
6301T1X d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.70 kN | C0r: 4.20 kN | Speed: 28,600 min-1
6301T1XZZ d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.70 kN | C0r: 4.20 kN | Speed: 28,600 min-1
6301T1XVV d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.70 kN | C0r: 4.20 kN | Speed: 28,600 min-1
6002T1X d: 15 mm | D: 32 mm | B: 9 mm | Cr: 5.60 kN | C0r: 2.83 kN | Speed: 29,800 min-1
6002T1XZZ d: 15 mm | D: 32 mm | B: 9 mm | Cr: 5.60 kN | C0r: 2.83 kN | Speed: 29,800 min-1
6002T1XVV d: 15 mm | D: 32 mm | B: 9 mm | Cr: 5.60 kN | C0r: 2.83 kN | Speed: 29,800 min-1
6202T1X d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.65 kN | C0r: 3.75 kN | Speed: 28,000 min-1
6202T1XZZ d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.65 kN | C0r: 3.75 kN | Speed: 28,000 min-1
6202T1XVV d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.65 kN | C0r: 3.75 kN | Speed: 28,000 min-1
6302T1X d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Speed: 24,600 min-1
6302T1XZZ d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Speed: 24,600 min-1
6302T1XVV d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Speed: 24,600 min-1
6003T1X d: 17 mm | D: 35 mm | B: 10 mm | Cr: 6.00 kN | C0r: 3.25 kN | Speed: 27,000 min-1
6003T1XZZ d: 17 mm | D: 35 mm | B: 10 mm | Cr: 6.00 kN | C0r: 3.25 kN | Speed: 27,000 min-1
6003T1XVV d: 17 mm | D: 35 mm | B: 10 mm | Cr: 6.00 kN | C0r: 3.25 kN | Speed: 27,000 min-1
6203T1X d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN | Speed: 24,600 min-1
6203T1XZZ d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN | Speed: 24,600 min-1
6203T1XVV d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN | Speed: 24,600 min-1
6303T1X d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.6 kN | C0r: 6.65 kN | Speed: 21,900 min-1
6303T1XZZ d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.6 kN | C0r: 6.65 kN | Speed: 21,900 min-1
6303T1XVV d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.6 kN | C0r: 6.65 kN | Speed: 21,900 min-1
6004T1X d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.00 kN | Speed: 22,600 min-1
6004T1XZZ d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.00 kN | Speed: 22,600 min-1
6004T1XVV d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.00 kN | Speed: 22,600 min-1
6204T1X d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.60 kN | Speed: 20,900 min-1
6204T1XZZ d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.60 kN | Speed: 20,900 min-1
6204T1XVV d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.60 kN | Speed: 20,900 min-1
6005T1X d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Speed: 19,500 min-1
6005T1XZZ d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Speed: 19,500 min-1
6005T1XVV d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Speed: 19,500 min-1
6205T1X d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN | Speed: 18,200 min-1
6205T1XZZ d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN | Speed: 18,200 min-1
6205T1XVV d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN | Speed: 18,200 min-1
6305T1X d: 25 mm | D: 62 mm | B: 17 mm | Cr: 20.6 kN | C0r: 11.2 kN | Speed: 16,100 min-1
6305T1XZZ d: 25 mm | D: 62 mm | B: 17 mm | Cr: 20.6 kN | C0r: 11.2 kN | Speed: 16,100 min-1
6305T1XVV d: 25 mm | D: 62 mm | B: 17 mm | Cr: 20.6 kN | C0r: 11.2 kN | Speed: 16,100 min-1
6006T1X d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.30 kN | Speed: 16,500 min-1
6006T1XZZ d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.30 kN | Speed: 16,500 min-1
6006T1XVV d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.30 kN | Speed: 16,500 min-1
6206T1X d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Speed: 15,300 min-1
6206T1XZZ d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Speed: 15,300 min-1
6206T1XVV d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Speed: 15,300 min-1
6306T1X d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 14.1 kN | Speed: 13,800 min-1
6306T1XZZ d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 14.1 kN | Speed: 13,800 min-1
6306T1XVV d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 14.1 kN | Speed: 13,800 min-1
6007T1X d: 35 mm | D: 62 mm | B: 14 mm | Cr: 16.0 kN | C0r: 10.3 kN | Speed: 14,500 min-1
6007T1XZZ d: 35 mm | D: 62 mm | B: 14 mm | Cr: 16.0 kN | C0r: 10.3 kN | Speed: 14,500 min-1
6007T1XVV d: 35 mm | D: 62 mm | B: 14 mm | Cr: 16.0 kN | C0r: 10.3 kN | Speed: 14,500 min-1
6207T1X d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Speed: 13,100 min-1
6207T1XZZ d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Speed: 13,100 min-1
6207T1XVV d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.3 kN | Speed: 13,100 min-1
6307T1X d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.5 kN | C0r: 18.0 kN | Speed: 12,200 min-1
6307T1XZZ d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.5 kN | C0r: 18.0 kN | Speed: 12,200 min-1
6307T1XVV d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.5 kN | C0r: 18.0 kN | Speed: 12,200 min-1
6008T1X d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.8 kN | C0r: 11.5 kN | Speed: 13,000 min-1
6008T1XZZ d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.8 kN | C0r: 11.5 kN | Speed: 13,000 min-1
6008T1XVV d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.8 kN | C0r: 11.5 kN | Speed: 13,000 min-1
6208T1X d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.9 kN | Speed: 11,700 min-1
6208T1XZZ d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.9 kN | Speed: 11,700 min-1
6208T1XVV d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.9 kN | Speed: 11,700 min-1
6308T1X d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.5 kN | C0r: 22.6 kN | Speed: 10,800 min-1
6308T1XZZ d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.5 kN | C0r: 22.6 kN | Speed: 10,800 min-1
6308T1XVV d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.5 kN | C0r: 22.6 kN | Speed: 10,800 min-1
6009T1X d: 45 mm | D: 75 mm | B: 16 mm | Cr: 20.9 kN | C0r: 15.2 kN | Speed: 11,700 min-1
6009T1XZZ d: 45 mm | D: 75 mm | B: 16 mm | Cr: 20.9 kN | C0r: 15.2 kN | Speed: 11,700 min-1
6009T1XVV d: 45 mm | D: 75 mm | B: 16 mm | Cr: 20.9 kN | C0r: 15.2 kN | Speed: 11,700 min-1
6209T1X d: 45 mm | D: 85 mm | B: 19 mm | Cr: 31.5 kN | C0r: 20.4 kN | Speed: 10,800 min-1
6209T1XZZ d: 45 mm | D: 85 mm | B: 19 mm | Cr: 31.5 kN | C0r: 20.4 kN | Speed: 10,800 min-1
6209T1XVV d: 45 mm | D: 85 mm | B: 19 mm | Cr: 31.5 kN | C0r: 20.4 kN | Speed: 10,800 min-1
6010T1X d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Speed: 10,800 min-1
6010T1XZZ d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Speed: 10,800 min-1
6010T1XVV d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Speed: 10,800 min-1
Deep Groove Ball BearingsNSK
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK T1X Precision Deep Groove Ball Bearings (60, 62, 63; Open, ZZ, VV)

Brand NSK·Deep Groove Ball Bearings

Available part numbers (84)

6000T1X, 6000T1XZZ, 6000T1XVV, 6200T1X, 6200T1XZZ, 6200T1XVV, 6001T1X, 6001T1XZZ, 6001T1XVV, 6201T1X + 74 more — see full table ↓
