NSK TS Series Linear Guides (general industrial use)

NSK TS Series Linear Guides (general industrial use)

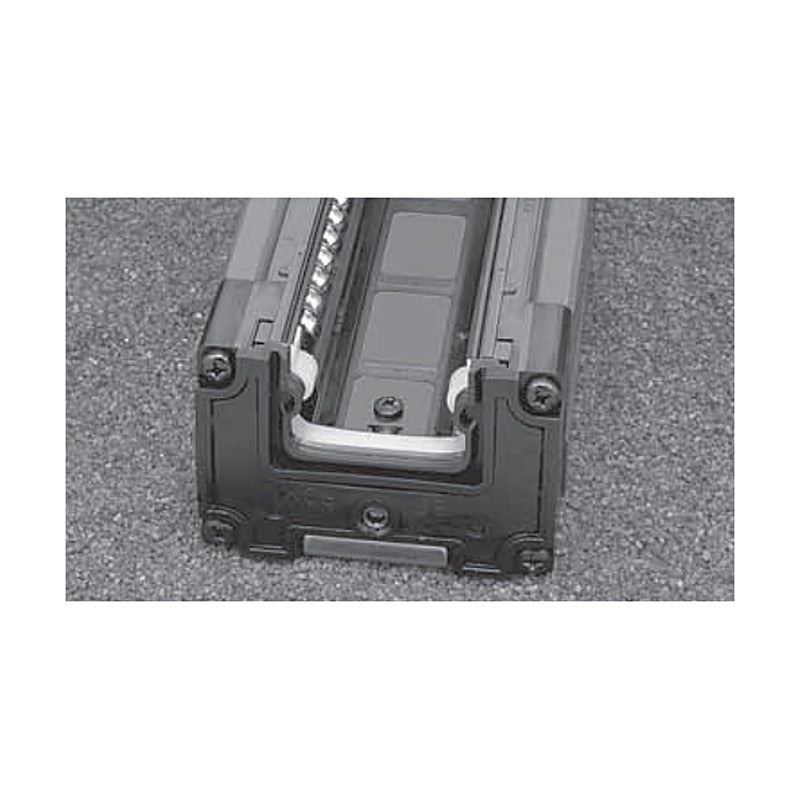

NSK TS Series is an economical random-matching linear guide with the NSK K1 lubrication unit built into the end cap, sizes 15 to 35.

Key features

  • Economical linear guide for general industrial use
  • NSK K1 lubrication unit installed inside the end cap
  • Random-matching ball slides and rails (normal grade KL)
  • Two rail designs: Type I (counterbored) and Type II (tapped)
  • Square AN type ball slide

Specifications

Series TS
Application general industrial use
Sizes 15, 20, 25, 30, 35
Slide shape codes AN
Load rating basis C for 50 km rated life
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A243-A248
TS15AN Rail width W1: 15 mm | Height H: 28 mm | Width W: 34 mm | Length L: 72.2 mm | C: 9.8 kN | C0: 11.8 kN
TS20AN Rail width W1: 20 mm | Height H: 30 mm | Width W: 44 mm | Length L: 87 mm | C: 15.7 kN | C0: 19.1 kN
TS25AN Rail width W1: 23 mm | Height H: 40 mm | Width W: 48 mm | Length L: 100 mm | C: 21.8 kN | C0: 26 kN
TS30AN Rail width W1: 28 mm | Height H: 45 mm | Width W: 60 mm | Length L: 115 mm | C: 31 kN | C0: 37.5 kN
TS35AN Rail width W1: 34 mm | Height H: 55 mm | Width W: 70 mm | Length L: 135.8 mm | C: 46.5 kN | C0: 53 kN
