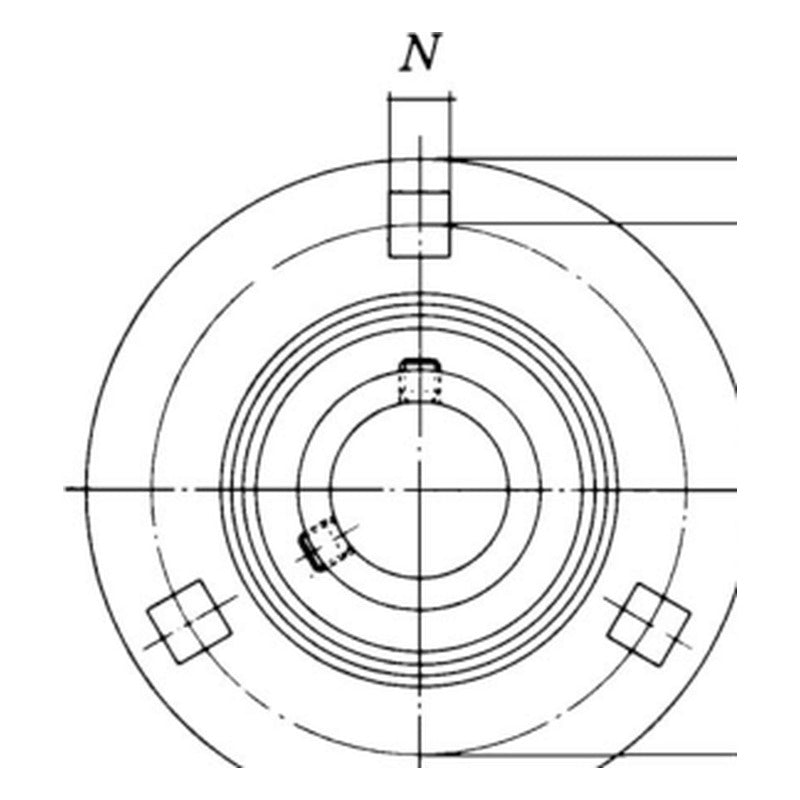

NSK UBPF / ENPF Pressed Steel Round Flange Units (Shaft 12-35)

NSK UBPF / ENPF Pressed Steel Round Flange Units (Shaft 12-35)

NSK UBPF (set screw) and ENPF (eccentric collar) pressed steel round flange units for light-duty applications, shaft diameters 12 to 35 mm.

Key features

  • Lightweight pressed steel three-bolt round flange housing
  • UBPF: set-screw locking; ENPF: eccentric collar locking
  • Self-aligning insert bearing
  • Low-cost solution for light loads

Specifications

Product Ball bearing unit
Housing Pressed steel, round flange
Insert UB / EN deep groove ball bearing
Locking Set screw (UBPF), eccentric collar (ENPF)
Shaft 12-35 mm
Source NSK Rolling Bearings Catalogue (Part 3), p. 298-299
UBPF 201 Shaft: 12 mm | Bearing: UB 201 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
ENPF 201 Shaft: 12 mm | Bearing: EN 201 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
UBPF 202 Shaft: 15 mm | Bearing: UB 202 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
ENPF 202 Shaft: 15 mm | Bearing: EN 202 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
UBPF 203 Shaft: 17 mm | Bearing: UB 203 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
ENPF 203 Shaft: 17 mm | Bearing: EN 203 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
UBPF 204 Shaft: 20 mm | Bearing: UB 204 | H: 90 mm | J1: 71 mm | Cr: 12.8 kN
ENPF 204 Shaft: 20 mm | Bearing: EN 204 | H: 90 mm | J1: 71 mm | Cr: 12.8 kN
UBPF 205 Shaft: 25 mm | Bearing: UB 205 | H: 95 mm | J1: 76 mm | Cr: 14 kN
ENPF 205 Shaft: 25 mm | Bearing: EN 205 | H: 95 mm | J1: 76 mm | Cr: 14 kN
UBPF 206 Shaft: 30 mm | Bearing: UB 206 | H: 113 mm | J1: 90 mm | Cr: 19.5 kN
ENPF 206 Shaft: 30 mm | Bearing: EN 206 | H: 113 mm | J1: 90 mm | Cr: 19.6 kN
UBPF 207 Shaft: 35 mm | Bearing: UB 207 | H: 122 mm | J1: 100 mm | Cr: 25.7 kN
ENPF 207 Shaft: 35 mm | Bearing: EN 207 | H: 122 mm | J1: 100 mm | Cr: 25.7 kN
Mounted Bearing UnitsNSK
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK UBPF / ENPF Pressed Steel Round Flange Units (Shaft 12-35)

Brand NSK·Mounted Bearing Units

Available part numbers (14)

UBPF 201, ENPF 201, UBPF 202, ENPF 202, UBPF 203, ENPF 203, UBPF 204, ENPF 204, UBPF 205, ENPF 205 + 4 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UBPF 201Shaft: 12 mm | Bearing: UB 201 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
ENPF 201Shaft: 12 mm | Bearing: EN 201 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
UBPF 202Shaft: 15 mm | Bearing: UB 202 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
ENPF 202Shaft: 15 mm | Bearing: EN 202 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
UBPF 203Shaft: 17 mm | Bearing: UB 203 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
ENPF 203Shaft: 17 mm | Bearing: EN 203 | H: 81 mm | J1: 63 mm | Cr: 9.55 kN
UBPF 204Shaft: 20 mm | Bearing: UB 204 | H: 90 mm | J1: 71 mm | Cr: 12.8 kN
ENPF 204Shaft: 20 mm | Bearing: EN 204 | H: 90 mm | J1: 71 mm | Cr: 12.8 kN
UBPF 205Shaft: 25 mm | Bearing: UB 205 | H: 95 mm | J1: 76 mm | Cr: 14 kN
ENPF 205Shaft: 25 mm | Bearing: EN 205 | H: 95 mm | J1: 76 mm | Cr: 14 kN
UBPF 206Shaft: 30 mm | Bearing: UB 206 | H: 113 mm | J1: 90 mm | Cr: 19.5 kN
ENPF 206Shaft: 30 mm | Bearing: EN 206 | H: 113 mm | J1: 90 mm | Cr: 19.6 kN
UBPF 207Shaft: 35 mm | Bearing: UB 207 | H: 122 mm | J1: 100 mm | Cr: 25.7 kN
ENPF 207Shaft: 35 mm | Bearing: EN 207 | H: 122 mm | J1: 100 mm | Cr: 25.7 kN
