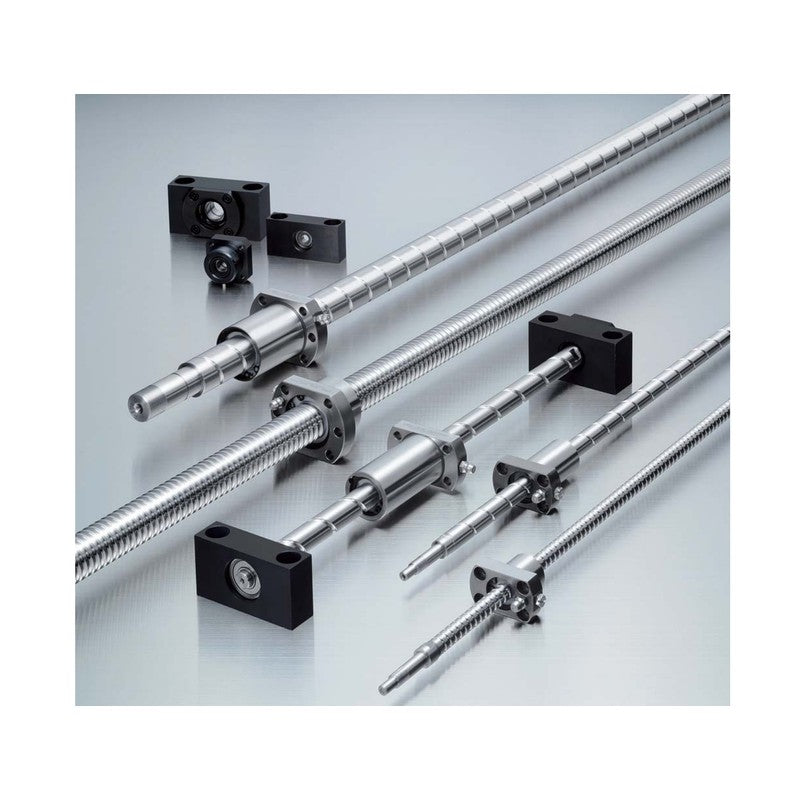

NSK USS Clean Compact Ball Screws (JIS C3, LG2 Grease)

NSK USS Clean Compact Ball Screws (JIS C3, LG2 Grease)

NSK USS compact ball screws packed with NSK LG2 clean grease, reducing particle emission to about 1/100 of conventional ball screws, JIS C3 accuracy, shaft 10 to 15 mm.

Key features

  • NSK LG2 clean grease: particle emission about 1/100
  • JIS C3 lead accuracy
  • Low-noise BSS nut, compact nut diameter
  • Two oil holes with grease nipple fitted as standard
  • Nut interchangeable with PSS and FSS series

Specifications

Series USS
Accuracy JIS C3
Shaft dia range 10 - 15 mm
Lead 5 mm
Grease NSK LG2 clean grease
Source NSK Standard Stock Ball Screws for Transfer, p. 28-30
USS1005N1D0221 Shaft dia: 10 mm | Lead: 5 mm | Overall length: 221 mm | Ca: 2,930 N | C0a: 4,790 N
USS1005N1D0321 Shaft dia: 10 mm | Lead: 5 mm | Overall length: 321 mm | Ca: 2,930 N | C0a: 4,790 N
USS1005N1D0521 Shaft dia: 10 mm | Lead: 5 mm | Overall length: 521 mm | Ca: 2,930 N | C0a: 4,790 N
USS1205N1D0221 Shaft dia: 12 mm | Lead: 5 mm | Overall length: 221 mm | Ca: 3,200 N | C0a: 5,860 N
USS1205N1D0321 Shaft dia: 12 mm | Lead: 5 mm | Overall length: 321 mm | Ca: 3,200 N | C0a: 5,860 N
USS1205N1D0621 Shaft dia: 12 mm | Lead: 5 mm | Overall length: 621 mm | Ca: 3,200 N | C0a: 5,860 N
USS1505N1D0261 Shaft dia: 15 mm | Lead: 5 mm | Overall length: 261 mm | Ca: 5,460 N | C0a: 10,200 N
USS1505N1D0361 Shaft dia: 15 mm | Lead: 5 mm | Overall length: 361 mm | Ca: 5,460 N | C0a: 10,200 N
USS1505N1D0561 Shaft dia: 15 mm | Lead: 5 mm | Overall length: 561 mm | Ca: 5,460 N | C0a: 10,200 N
USS1505N1D0761 Shaft dia: 15 mm | Lead: 5 mm | Overall length: 761 mm | Ca: 5,460 N | C0a: 10,200 N
Ball ScrewsNSK
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK USS Clean Compact Ball Screws (JIS C3, LG2 Grease)

Brand NSK·Ball Screws

Available part numbers (10)

USS1005N1D0221, USS1005N1D0321, USS1005N1D0521, USS1205N1D0221, USS1205N1D0321, USS1205N1D0621, USS1505N1D0261, USS1505N1D0361, USS1505N1D0561, USS1505N1D0761

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
USS1005N1D0221Shaft dia: 10 mm | Lead: 5 mm | Overall length: 221 mm | Ca: 2,930 N | C0a: 4,790 N
USS1005N1D0321Shaft dia: 10 mm | Lead: 5 mm | Overall length: 321 mm | Ca: 2,930 N | C0a: 4,790 N
USS1005N1D0521Shaft dia: 10 mm | Lead: 5 mm | Overall length: 521 mm | Ca: 2,930 N | C0a: 4,790 N
USS1205N1D0221Shaft dia: 12 mm | Lead: 5 mm | Overall length: 221 mm | Ca: 3,200 N | C0a: 5,860 N
USS1205N1D0321Shaft dia: 12 mm | Lead: 5 mm | Overall length: 321 mm | Ca: 3,200 N | C0a: 5,860 N
USS1205N1D0621Shaft dia: 12 mm | Lead: 5 mm | Overall length: 621 mm | Ca: 3,200 N | C0a: 5,860 N
USS1505N1D0261Shaft dia: 15 mm | Lead: 5 mm | Overall length: 261 mm | Ca: 5,460 N | C0a: 10,200 N
USS1505N1D0361Shaft dia: 15 mm | Lead: 5 mm | Overall length: 361 mm | Ca: 5,460 N | C0a: 10,200 N
USS1505N1D0561Shaft dia: 15 mm | Lead: 5 mm | Overall length: 561 mm | Ca: 5,460 N | C0a: 10,200 N
USS1505N1D0761Shaft dia: 15 mm | Lead: 5 mm | Overall length: 761 mm | Ca: 5,460 N | C0a: 10,200 N
