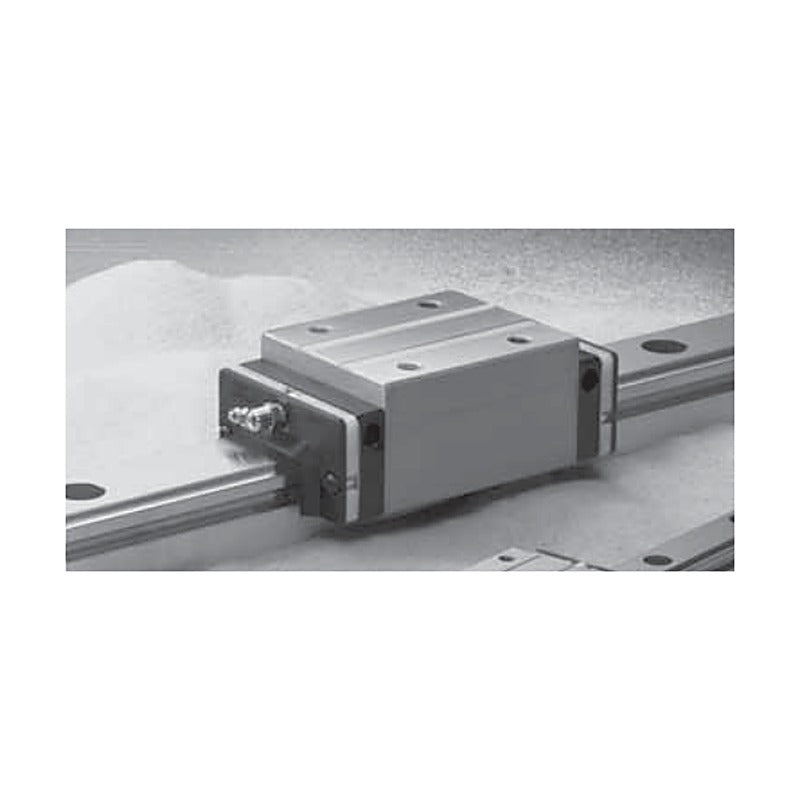

NSK VH Series Linear Guides (general industrial use)

NSK VH Series Linear Guides (general industrial use)

NSK VH Series linear guides come with the NSK K1 lubrication unit as standard for long maintenance intervals, in sizes 15 to 55 with high-load and super-high-load ball slides.

Key features

  • NSK K1 lubrication unit fitted as standard for long-term maintenance-free operation
  • Ball slide dimensions interchangeable with LH Series
  • High load capacity in four directions
  • Flanged and square ball slides, high-load and super-high-load types
  • Length values in angle brackets include the NSK K1 unit

Specifications

Series VH
Application general industrial use
Sizes 15, 20, 25, 30, 35, 45, 55
Slide shape codes AL, AN, BL, BN, EL, EM, FL, GL, GM, HL
Load rating basis C for 50 km rated life
Reference number Series+size+rail length+shape+material+slides/rail-serial+accuracy+preload
Note Length L excludes NSK K1; with K1 see catalogue
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A207-A228
VH15AN Rail width W1: 15 mm | Height H: 28 mm | Width W: 34 mm | Length L: 70.6 mm | C: 10.8 kN | C0: 20.7 kN
VH15BN Rail width W1: 15 mm | Height H: 28 mm | Width W: 34 mm | Length L: 89.6 mm | C: 14.6 kN | C0: 32 kN
VH15EL Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 70.6 mm | C: 10.8 kN | C0: 20.7 kN
VH15GL Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 89.6 mm | C: 14.6 kN | C0: 32 kN
VH15FL Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 70.6 mm | C: 10.8 kN | C0: 20.7 kN
VH15HL Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 89.6 mm | C: 14.6 kN | C0: 32 kN
VH15EM Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 70.6 mm | C: 10.8 kN | C0: 20.7 kN
VH15GM Rail width W1: 15 mm | Height H: 24 mm | Width W: 47 mm | Length L: 89.6 mm | C: 14.6 kN | C0: 32 kN
VH20AN Rail width W1: 20 mm | Height H: 30 mm | Width W: 44 mm | Length L: 87.4 mm | C: 17.4 kN | C0: 32.5 kN
VH20BN Rail width W1: 20 mm | Height H: 30 mm | Width W: 44 mm | Length L: 109.4 mm | C: 23.5 kN | C0: 50.5 kN
VH20EL Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 87.4 mm | C: 17.4 kN | C0: 32.5 kN
VH20GL Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 109.4 mm | C: 23.5 kN | C0: 50.5 kN
VH20FL Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 87.4 mm | C: 17.4 kN | C0: 32.5 kN
VH20HL Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 109.4 mm | C: 23.5 kN | C0: 50.5 kN
VH20EM Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 87.4 mm | C: 17.4 kN | C0: 32.5 kN
VH20GM Rail width W1: 20 mm | Height H: 30 mm | Width W: 63 mm | Length L: 109.4 mm | C: 23.5 kN | C0: 50.5 kN
VH25AN Rail width W1: 23 mm | Height H: 40 mm | Width W: 48 mm | Length L: 97 mm | C: 25.6 kN | C0: 46 kN
VH25BN Rail width W1: 23 mm | Height H: 40 mm | Width W: 48 mm | Length L: 125 mm | C: 34.5 kN | C0: 71 kN
VH25AL Rail width W1: 23 mm | Height H: 36 mm | Width W: 48 mm | Length L: 97 mm | C: 25.6 kN | C0: 46 kN
VH25BL Rail width W1: 23 mm | Height H: 36 mm | Width W: 48 mm | Length L: 125 mm | C: 34.5 kN | C0: 71 kN
VH25EL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 97 mm | C: 25.6 kN | C0: 46 kN
VH25GL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 125 mm | C: 34.5 kN | C0: 71 kN
VH25FL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 97 mm | C: 25.6 kN | C0: 46 kN
VH25HL Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 125 mm | C: 34.5 kN | C0: 71 kN
VH25EM Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 97 mm | C: 25.6 kN | C0: 46 kN
VH25GM Rail width W1: 23 mm | Height H: 36 mm | Width W: 70 mm | Length L: 125 mm | C: 34.5 kN | C0: 71 kN
VH30AN Rail width W1: 28 mm | Height H: 45 mm | Width W: 60 mm | Length L: 104.4 mm | C: 31 kN | C0: 51.5 kN
VH30BN Rail width W1: 28 mm | Height H: 45 mm | Width W: 60 mm | Length L: 143.4 mm | C: 46 kN | C0: 91.5 kN
VH30AL Rail width W1: 28 mm | Height H: 42 mm | Width W: 60 mm | Length L: 104.4 mm | C: 31 kN | C0: 51.5 kN
VH30BL Rail width W1: 28 mm | Height H: 42 mm | Width W: 60 mm | Length L: 143.4 mm | C: 46 kN | C0: 91.5 kN
VH30EL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 117.4 mm | C: 35.5 kN | C0: 63 kN
VH30GL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 143.4 mm | C: 46 kN | C0: 91.5 kN
VH30FL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 117.4 mm | C: 35.5 kN | C0: 63 kN
VH30HL Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 143.4 mm | C: 46 kN | C0: 91.5 kN
VH30EM Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 117.4 mm | C: 35.5 kN | C0: 63 kN
VH30GM Rail width W1: 28 mm | Height H: 42 mm | Width W: 90 mm | Length L: 143.4 mm | C: 46 kN | C0: 91.5 kN
VH35AN Rail width W1: 34 mm | Height H: 55 mm | Width W: 70 mm | Length L: 128.8 mm | C: 47.5 kN | C0: 80.5 kN
VH35BN Rail width W1: 34 mm | Height H: 55 mm | Width W: 70 mm | Length L: 162.8 mm | C: 61.5 kN | C0: 117 kN
VH35AL Rail width W1: 34 mm | Height H: 48 mm | Width W: 70 mm | Length L: 128.8 mm | C: 47.5 kN | C0: 80.5 kN
VH35BL Rail width W1: 34 mm | Height H: 48 mm | Width W: 70 mm | Length L: 162.8 mm | C: 61.5 kN | C0: 117 kN
VH35EL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 128.8 mm | C: 47.5 kN | C0: 80.5 kN
VH35GL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 162.8 mm | C: 61.5 kN | C0: 117 kN
VH35FL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 128.8 mm | C: 47.5 kN | C0: 80.5 kN
VH35HL Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 162.8 mm | C: 61.5 kN | C0: 117 kN
VH35EM Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 128.8 mm | C: 47.5 kN | C0: 80.5 kN
VH35GM Rail width W1: 34 mm | Height H: 48 mm | Width W: 100 mm | Length L: 162.8 mm | C: 61.5 kN | C0: 117 kN
VH45AN Rail width W1: 45 mm | Height H: 70 mm | Width W: 86 mm | Length L: 161.4 mm | C: 81 kN | C0: 140 kN
VH45BN Rail width W1: 45 mm | Height H: 70 mm | Width W: 86 mm | Length L: 193.4 mm | C: 99 kN | C0: 187 kN
VH45AL Rail width W1: 45 mm | Height H: 60 mm | Width W: 86 mm | Length L: 161.4 mm | C: 81 kN | C0: 140 kN
VH45BL Rail width W1: 45 mm | Height H: 60 mm | Width W: 86 mm | Length L: 193.4 mm | C: 99 kN | C0: 187 kN
VH45EL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 161.4 mm | C: 81 kN | C0: 140 kN
VH45GL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 193.4 mm | C: 99 kN | C0: 187 kN
VH45FL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 161.4 mm | C: 81 kN | C0: 140 kN
VH45HL Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 193.4 mm | C: 99 kN | C0: 187 kN
VH45EM Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 161.4 mm | C: 81 kN | C0: 140 kN
VH45GM Rail width W1: 45 mm | Height H: 60 mm | Width W: 120 mm | Length L: 193.4 mm | C: 99 kN | C0: 187 kN
VH55AN Rail width W1: 53 mm | Height H: 80 mm | Width W: 100 mm | Length L: 185.4 mm | C: 119 kN | C0: 198 kN
VH55BN Rail width W1: 53 mm | Height H: 80 mm | Width W: 100 mm | Length L: 223.4 mm | C: 146 kN | C0: 264 kN
VH55AL Rail width W1: 53 mm | Height H: 70 mm | Width W: 100 mm | Length L: 185.4 mm | C: 119 kN | C0: 198 kN
VH55BL Rail width W1: 53 mm | Height H: 70 mm | Width W: 100 mm | Length L: 223.4 mm | C: 146 kN | C0: 264 kN
VH55EL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 185.4 mm | C: 119 kN | C0: 198 kN
VH55GL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 223.4 mm | C: 146 kN | C0: 264 kN
VH55FL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 185.4 mm | C: 119 kN | C0: 198 kN
VH55HL Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 223.4 mm | C: 146 kN | C0: 264 kN
VH55EM Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 185.4 mm | C: 119 kN | C0: 198 kN
VH55GM Rail width W1: 53 mm | Height H: 70 mm | Width W: 140 mm | Length L: 223.4 mm | C: 146 kN | C0: 264 kN
