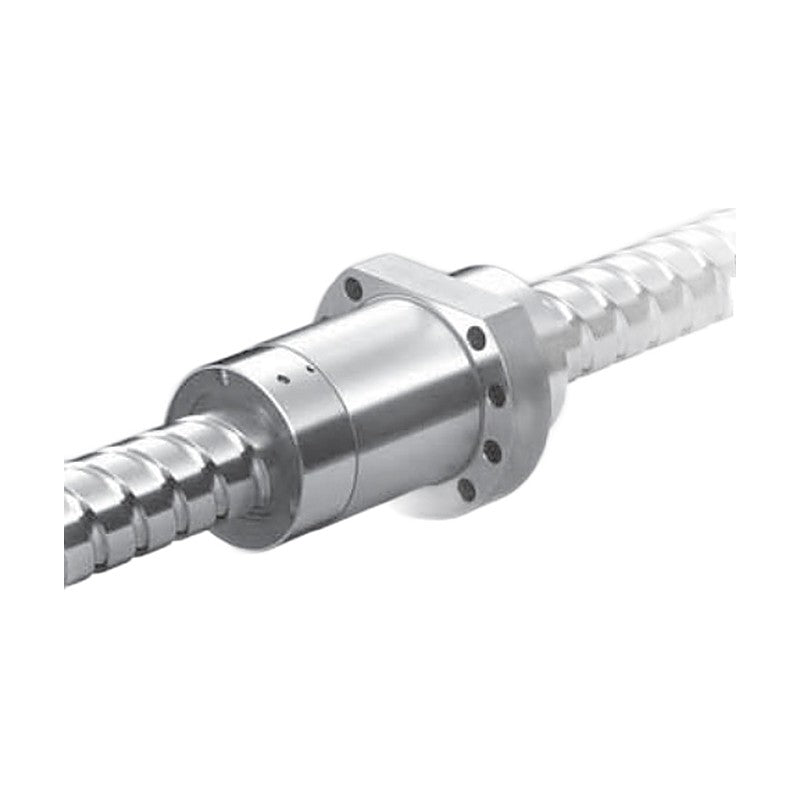

NSK VSS Type Ball Screws for Contaminated Environments

NSK VSS Type Ball Screws for Contaminated Environments

NSK VSS type ball screws feature special seals that keep out fine contamination such as wood or metal dust for long life in harsh environments.

Key features

  • Special seals block fine dust and chips
  • Long life in contaminated environments
  • Suited to woodworking and grinding machines
  • Shaft diameters 32 to 50 mm
  • NSK K1 lubrication option

Specifications

Series VSS
Brand NSK
Product type Ball Screws
Listed models 6
Dimension units mm
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. B139-B142
VSS3210-6E Shaft dia d: 32 mm | Lead l: 10 mm | Ca: 43.3 kN | C0a: 111 kN | Nut model: VSS
VSS3216-5E Shaft dia d: 32 mm | Lead l: 16 mm | Ca: 36.7 kN | C0a: 90.8 kN | Nut model: VSS
VSS3220-5E Shaft dia d: 32 mm | Lead l: 20 mm | Ca: 36.7 kN | C0a: 90.8 kN | Nut model: VSS
VSS3232-4E Shaft dia d: 32 mm | Lead l: 32 mm | Ca: 25 kN | C0a: 58.3 kN | Nut model: VSS
VSS4040-4E Shaft dia d: 40 mm | Lead l: 40 mm | Ca: 33.6 kN | C0a: 83.9 kN | Nut model: VSS
VSS5050-4E Shaft dia d: 50 mm | Lead l: 50 mm | Ca: 37.3 kN | C0a: 105 kN | Nut model: VSS
Ball ScrewsNSK
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK VSS Type Ball Screws for Contaminated Environments

Brand NSK·Ball Screws

Available part numbers (6)

VSS3210-6E, VSS3216-5E, VSS3220-5E, VSS3232-4E, VSS4040-4E, VSS5050-4E

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VSS3210-6EShaft dia d: 32 mm | Lead l: 10 mm | Ca: 43.3 kN | C0a: 111 kN | Nut model: VSS
VSS3216-5EShaft dia d: 32 mm | Lead l: 16 mm | Ca: 36.7 kN | C0a: 90.8 kN | Nut model: VSS
VSS3220-5EShaft dia d: 32 mm | Lead l: 20 mm | Ca: 36.7 kN | C0a: 90.8 kN | Nut model: VSS
VSS3232-4EShaft dia d: 32 mm | Lead l: 32 mm | Ca: 25 kN | C0a: 58.3 kN | Nut model: VSS
VSS4040-4EShaft dia d: 40 mm | Lead l: 40 mm | Ca: 33.6 kN | C0a: 83.9 kN | Nut model: VSS
VSS5050-4EShaft dia d: 50 mm | Lead l: 50 mm | Ca: 37.3 kN | C0a: 105 kN | Nut model: VSS
