NSK WRP Roller Packs with WFT Fitting Plates and WED Wedge Blocks

NSK WRP Roller Packs with WFT Fitting Plates and WED Wedge Blocks

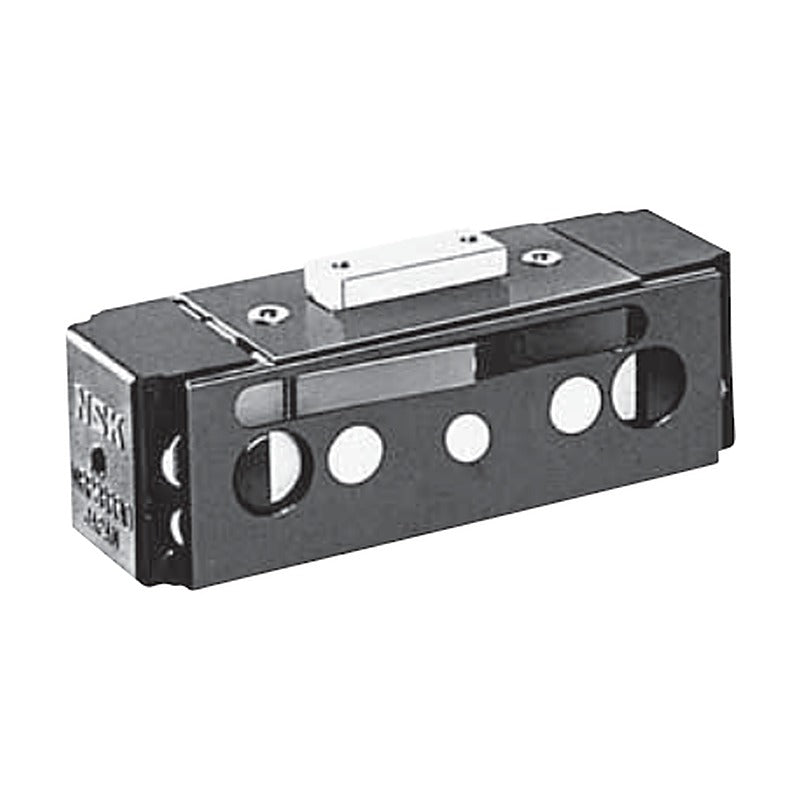

NSK WRP roller packs are recirculating roller units for heavy-load linear guideways; WFT fitting plates mount them and WED wedge blocks apply and adjust preload.

Key features

  • Short double-row rollers prevent roller skewing
  • Fitting plate distributes load equally to the rollers
  • Wedge block for easy preload adjustment via adjust screw
  • Height grouped in 2 um classes (A to E)
  • Can be installed on vertical shafts; low noise

Specifications

Height tolerance +/-0.005 mm, grouped A-E
Friction coefficient 0.005 or less (starting)
Lubrication Oil ISO VG32-150 or grease No. 2
Brand NSK
Product type Linear Guides
Source NSK Linear Guides / Ball Screws / Monocarriers catalogue (Precision Machine Components), p. A386-A392
WRP 251907 Item: roller pack | Width W: 25 mm | Height H: 19 mm | Length L: 65.5 mm | C: 31 kN | C0: 40.5 kN
WRP 312609 Item: roller pack | Width W: 31 mm | Height H: 26 mm | Length L: 85 mm | C: 57 kN | C0: 73 kN
WRP 383310 Item: roller pack | Width W: 38.1 mm | Height H: 33.31 mm | Length L: 104 mm | C: 91 kN | C0: 113 kN
WRP 454014 Item: roller pack | Width W: 45 mm | Height H: 40 mm | Length L: 138 mm | C: 151 kN | C0: 191 kN
WFT 25 Item: fitting plate | Width W: 10 mm | Height H: 5 mm | Length L: 20 mm | For: WRP 251907
WFT 31 Item: fitting plate | Width W: 12 mm | Height H: 5 mm | Length L: 26 mm | For: WRP 312609
WFT 38 Item: fitting plate | Width W: 12.8 mm | Height H: 5.6 mm | Length L: 29 mm | For: WRP 383310
WFT 45 Item: fitting plate | Width W: 16 mm | Height H: 5 mm | Length L: 40 mm | For: WRP 454014
WED 25 Item: wedge block | Width W: 23 mm | Height H: 12 mm | Length L: 47 mm | For: WRP 251907
WED 31 Item: wedge block | Width W: 28 mm | Height H: 14 mm | Length L: 63 mm | For: WRP 312609
WED 38 Item: wedge block | Width W: 35 mm | Height H: 17.47 mm | Length L: 76 mm | For: WRP 383310
WED 45 Item: wedge block | Width W: 40 mm | Height H: 20 mm | Length L: 95 mm | For: WRP 454014
