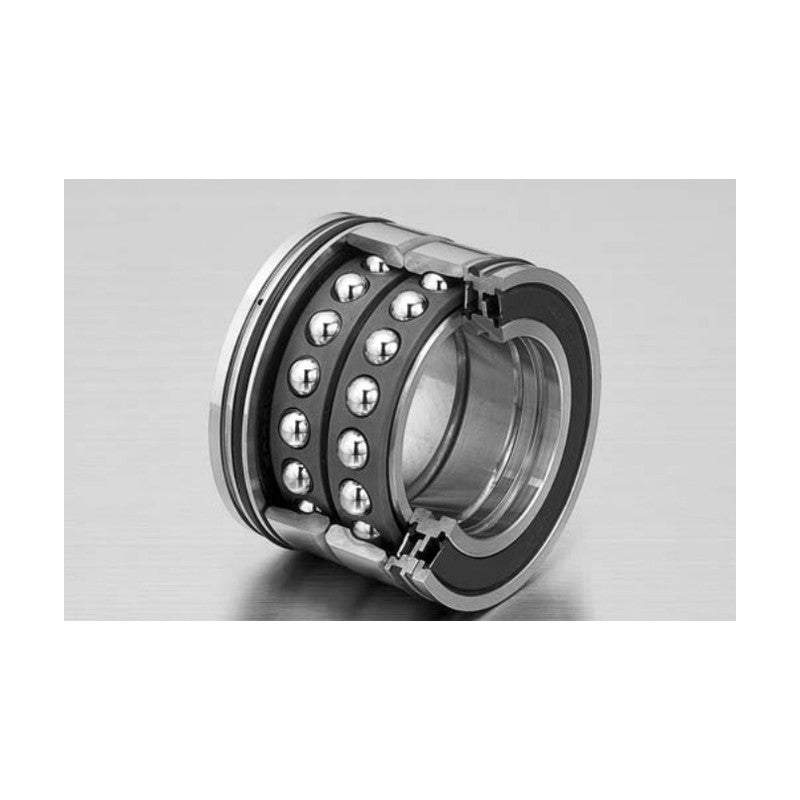

NSK X-MTV Sealed Spacers for Machine Tool Spindles (MTV19, MTV10)

NSK X-MTV Sealed Spacers for Machine Tool Spindles (MTV19, MTV10)

NSK X-MTV sealed spacers fit between spindle bearings and combine a seal with a labyrinth to keep coolant and contaminants out of the bearing, for 19 and 10 series bearings.

Key features

  • Seal fitted between inner and outer spacer
  • Double protection: seal plus labyrinth
  • Prevents grease leakage from the bearing
  • Outer and inner spacers in SUJ2 steel
  • Use with universal-matched (SU/DU) bearings

Specifications

Product Sealed spacer X-MTV
Material SUJ2 spacers, NBR / SECC seal
Bore range 30 - 120 mm
Width 10 mm
Source NSK Super Precision Bearings, p. 134-135
X30-MTV19 d: 30 mm | D: 47 mm | B: 10 mm | Series: 19
X35-MTV19 d: 35 mm | D: 55 mm | B: 10 mm | Series: 19
X40-MTV19 d: 40 mm | D: 62 mm | B: 10 mm | Series: 19
X45-MTV19 d: 45 mm | D: 68 mm | B: 10 mm | Series: 19
X50-MTV19 d: 50 mm | D: 72 mm | B: 10 mm | Series: 19
X55-MTV19 d: 55 mm | D: 80 mm | B: 10 mm | Series: 19
X60-MTV19 d: 60 mm | D: 85 mm | B: 10 mm | Series: 19
X65-MTV19 d: 65 mm | D: 90 mm | B: 10 mm | Series: 19
X70-MTV19 d: 70 mm | D: 100 mm | B: 10 mm | Series: 19
X75-MTV19 d: 75 mm | D: 105 mm | B: 10 mm | Series: 19
X80-MTV19 d: 80 mm | D: 110 mm | B: 10 mm | Series: 19
X85-MTV19 d: 85 mm | D: 120 mm | B: 10 mm | Series: 19
X90-MTV19 d: 90 mm | D: 125 mm | B: 10 mm | Series: 19
X95-MTV19 d: 95 mm | D: 130 mm | B: 10 mm | Series: 19
X100-MTV19 d: 100 mm | D: 140 mm | B: 10 mm | Series: 19
X105-MTV19 d: 105 mm | D: 145 mm | B: 10 mm | Series: 19
X110-MTV19 d: 110 mm | D: 150 mm | B: 10 mm | Series: 19
X30-MTV10 d: 30 mm | D: 55 mm | B: 10 mm | Series: 10
X35-MTV10 d: 35 mm | D: 62 mm | B: 10 mm | Series: 10
X40-MTV10 d: 40 mm | D: 68 mm | B: 10 mm | Series: 10
X45-MTV10 d: 45 mm | D: 75 mm | B: 10 mm | Series: 10
X50-MTV10 d: 50 mm | D: 80 mm | B: 10 mm | Series: 10
X55-MTV10 d: 55 mm | D: 90 mm | B: 10 mm | Series: 10
X60-MTV10 d: 60 mm | D: 95 mm | B: 10 mm | Series: 10
X65-MTV10 d: 65 mm | D: 100 mm | B: 10 mm | Series: 10
X70-MTV10 d: 70 mm | D: 110 mm | B: 10 mm | Series: 10
X75-MTV10 d: 75 mm | D: 115 mm | B: 10 mm | Series: 10
X80-MTV10 d: 80 mm | D: 125 mm | B: 10 mm | Series: 10
X85-MTV10 d: 85 mm | D: 130 mm | B: 10 mm | Series: 10
X90-MTV10 d: 90 mm | D: 140 mm | B: 10 mm | Series: 10
X95-MTV10 d: 95 mm | D: 145 mm | B: 10 mm | Series: 10
X100-MTV10 d: 100 mm | D: 150 mm | B: 10 mm | Series: 10
X105-MTV10 d: 105 mm | D: 160 mm | B: 10 mm | Series: 10
X110-MTV10 d: 110 mm | D: 170 mm | B: 10 mm | Series: 10
X120-MTV10 d: 120 mm | D: 180 mm | B: 10 mm | Series: 10
Bearing AccessoriesNSK
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK X-MTV Sealed Spacers for Machine Tool Spindles (MTV19, MTV10)

Brand NSK·Bearing Accessories

Available part numbers (35)

X30-MTV19, X35-MTV19, X40-MTV19, X45-MTV19, X50-MTV19, X55-MTV19, X60-MTV19, X65-MTV19, X70-MTV19, X75-MTV19 + 25 more — see full table ↓

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
