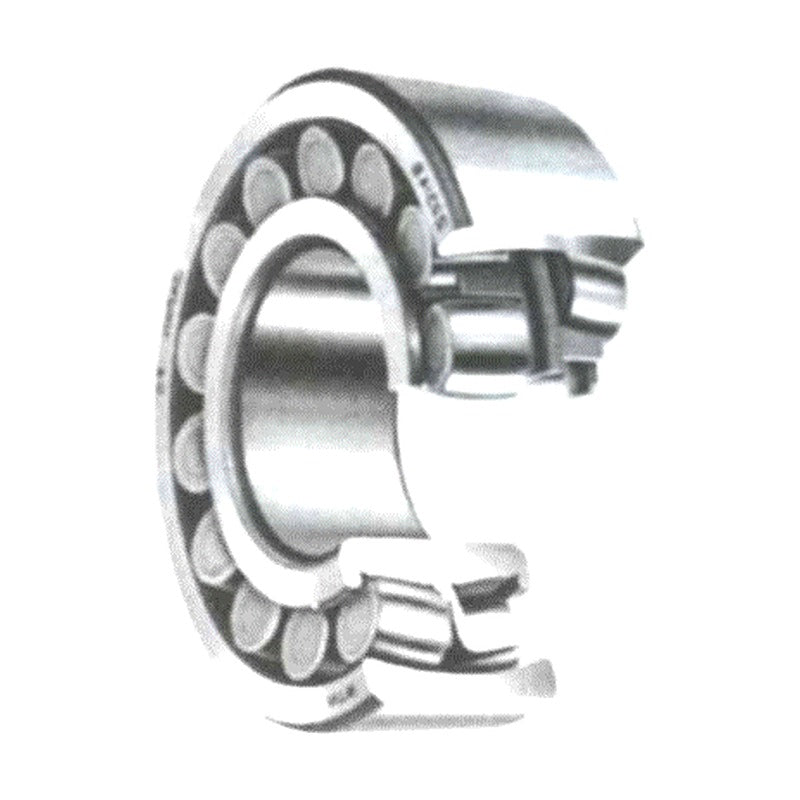

NTN 222 Series Spherical Roller Bearings (Cylindrical & Tapered Bore)

NTN 222 Series Spherical Roller Bearings (Cylindrical & Tapered Bore)

NTN 222 series double-row spherical roller bearings, bore 40-280 mm, with cylindrical bore or tapered bore (K = 1:12, K30 = 1:30).

Key features

  • Self-aligning design tolerates shaft deflection and misalignment
  • Very high radial load capacity with axial load in both directions
  • Tapered bore versions for adapter or withdrawal sleeve mounting
  • Mass shown for cylindrical bore type

Specifications

Series 222
Bearing type Double-row spherical roller bearing
Bore range 40-280 mm
Bore options Cylindrical, tapered K (1:12), K30 (1:30)
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 129-133
22208CK d: 40 mm | D: 80 mm | B: 23 mm | Cr: 79 kN | C0r: 88.5 kN | Mass: 0.526 kg
22209C d: 45 mm | D: 85 mm | B: 23 mm | Cr: 82.5 kN | C0r: 95 kN | Mass: 0.584 kg
22209CK d: 45 mm | D: 85 mm | B: 23 mm | Cr: 82.5 kN | C0r: 95 kN | Mass: 0.584 kg
22210C d: 50 mm | D: 90 mm | B: 23 mm | Cr: 86 kN | C0r: 102 kN | Mass: 0.63 kg
22210CK d: 50 mm | D: 90 mm | B: 23 mm | Cr: 86 kN | C0r: 102 kN | Mass: 0.63 kg
22211E d: 55 mm | D: 100 mm | B: 25 mm | Cr: 118 kN | C0r: 144 kN | Mass: 0.808 kg
22211EK d: 55 mm | D: 100 mm | B: 25 mm | Cr: 118 kN | C0r: 144 kN | Mass: 0.808 kg
22211B d: 55 mm | D: 100 mm | B: 25 mm | Cr: 93.5 kN | C0r: 110 kN | Mass: 0.85 kg
22211BK d: 55 mm | D: 100 mm | B: 25 mm | Cr: 93.5 kN | C0r: 110 kN | Mass: 0.85 kg
22212E d: 60 mm | D: 110 mm | B: 28 mm | Cr: 150 kN | C0r: 182 kN | Mass: 1.09 kg
22212EK d: 60 mm | D: 110 mm | B: 28 mm | Cr: 150 kN | C0r: 182 kN | Mass: 1.09 kg
22212B d: 60 mm | D: 110 mm | B: 28 mm | Cr: 115 kN | C0r: 147 kN | Mass: 1.15 kg
22212BK d: 60 mm | D: 110 mm | B: 28 mm | Cr: 115 kN | C0r: 147 kN | Mass: 1.15 kg
22213E d: 65 mm | D: 120 mm | B: 31 mm | Cr: 177 kN | C0r: 217 kN | Mass: 1.43 kg
22213EK d: 65 mm | D: 120 mm | B: 31 mm | Cr: 177 kN | C0r: 217 kN | Mass: 1.43 kg
22213B d: 65 mm | D: 120 mm | B: 31 mm | Cr: 143 kN | C0r: 179 kN | Mass: 1.5 kg
22213BK d: 65 mm | D: 120 mm | B: 31 mm | Cr: 143 kN | C0r: 179 kN | Mass: 1.5 kg
22214E d: 70 mm | D: 125 mm | B: 31 mm | Cr: 184 kN | C0r: 232 kN | Mass: 1.51 kg
22214EK d: 70 mm | D: 125 mm | B: 31 mm | Cr: 184 kN | C0r: 232 kN | Mass: 1.51 kg
22214B d: 70 mm | D: 125 mm | B: 31 mm | Cr: 154 kN | C0r: 201 kN | Mass: 1.55 kg
22214BK d: 70 mm | D: 125 mm | B: 31 mm | Cr: 154 kN | C0r: 201 kN | Mass: 1.55 kg
22215E d: 75 mm | D: 130 mm | B: 31 mm | Cr: 190 kN | C0r: 246 kN | Mass: 1.59 kg
22215EK d: 75 mm | D: 130 mm | B: 31 mm | Cr: 190 kN | C0r: 246 kN | Mass: 1.59 kg
22215B d: 75 mm | D: 130 mm | B: 31 mm | Cr: 166 kN | C0r: 223 kN | Mass: 1.65 kg
22215BK d: 75 mm | D: 130 mm | B: 31 mm | Cr: 166 kN | C0r: 223 kN | Mass: 1.65 kg
22216E d: 80 mm | D: 140 mm | B: 33 mm | Cr: 213 kN | C0r: 277 kN | Mass: 1.99 kg
22216EK d: 80 mm | D: 140 mm | B: 33 mm | Cr: 213 kN | C0r: 277 kN | Mass: 1.99 kg
22216B d: 80 mm | D: 140 mm | B: 33 mm | Cr: 179 kN | C0r: 239 kN | Mass: 2.15 kg
22216BK d: 80 mm | D: 140 mm | B: 33 mm | Cr: 179 kN | C0r: 239 kN | Mass: 2.15 kg
22217E d: 85 mm | D: 150 mm | B: 36 mm | Cr: 251 kN | C0r: 320 kN | Mass: 2.49 kg
22217EK d: 85 mm | D: 150 mm | B: 36 mm | Cr: 251 kN | C0r: 320 kN | Mass: 2.49 kg
22217B d: 85 mm | D: 150 mm | B: 36 mm | Cr: 206 kN | C0r: 272 kN | Mass: 2.66 kg
22217BK d: 85 mm | D: 150 mm | B: 36 mm | Cr: 206 kN | C0r: 272 kN | Mass: 2.66 kg
22218E d: 90 mm | D: 160 mm | B: 40 mm | Cr: 292 kN | C0r: 385 kN | Mass: 3.24 kg
22218EK d: 90 mm | D: 160 mm | B: 40 mm | Cr: 292 kN | C0r: 385 kN | Mass: 3.24 kg
22218B d: 90 mm | D: 160 mm | B: 40 mm | Cr: 256 kN | C0r: 345 kN | Mass: 3.5 kg
22218BK d: 90 mm | D: 160 mm | B: 40 mm | Cr: 256 kN | C0r: 345 kN | Mass: 3.5 kg
22219B d: 95 mm | D: 170 mm | B: 43 mm | Cr: 294 kN | C0r: 390 kN | Mass: 4.1 kg
22219BK d: 95 mm | D: 170 mm | B: 43 mm | Cr: 294 kN | C0r: 390 kN | Mass: 4.1 kg
22220B d: 100 mm | D: 180 mm | B: 46 mm | Cr: 315 kN | C0r: 415 kN | Mass: 4.95 kg
22220BK d: 100 mm | D: 180 mm | B: 46 mm | Cr: 315 kN | C0r: 415 kN | Mass: 4.95 kg
22222B d: 110 mm | D: 200 mm | B: 53 mm | Cr: 410 kN | C0r: 570 kN | Mass: 7.2 kg
22222BK d: 110 mm | D: 200 mm | B: 53 mm | Cr: 410 kN | C0r: 570 kN | Mass: 7.2 kg
22224B d: 120 mm | D: 215 mm | B: 58 mm | Cr: 485 kN | C0r: 700 kN | Mass: 9.1 kg
22224BK d: 120 mm | D: 215 mm | B: 58 mm | Cr: 485 kN | C0r: 700 kN | Mass: 9.1 kg
22226B d: 130 mm | D: 230 mm | B: 64 mm | Cr: 570 kN | C0r: 790 kN | Mass: 11.2 kg
22226K d: 130 mm | D: 230 mm | B: 64 mm | Cr: 570 kN | C0r: 790 kN | Mass: 11.2 kg
22228B d: 140 mm | D: 250 mm | B: 68 mm | Cr: 685 kN | C0r: 975 kN | Mass: 14 kg
22228BK d: 140 mm | D: 250 mm | B: 68 mm | Cr: 685 kN | C0r: 975 kN | Mass: 14 kg
22230B d: 150 mm | D: 270 mm | B: 73 mm | Cr: 775 kN | C0r: 1160 kN | Mass: 18.1 kg
22230BK d: 150 mm | D: 270 mm | B: 73 mm | Cr: 775 kN | C0r: 1160 kN | Mass: 18.1 kg
22232B d: 160 mm | D: 290 mm | B: 80 mm | Cr: 870 kN | C0r: 1290 kN | Mass: 22.7 kg
22232BK d: 160 mm | D: 290 mm | B: 80 mm | Cr: 870 kN | C0r: 1290 kN | Mass: 22.7 kg
22234B d: 170 mm | D: 310 mm | B: 86 mm | Cr: 1000 kN | C0r: 1520 kN | Mass: 28 kg
22234BK d: 170 mm | D: 310 mm | B: 86 mm | Cr: 1000 kN | C0r: 1520 kN | Mass: 28 kg
22236B d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1040 kN | C0r: 1610 kN | Mass: 29.3 kg
22236BK d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1040 kN | C0r: 1610 kN | Mass: 29.3 kg
22238B d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1160 kN | C0r: 1810 kN | Mass: 36.6 kg
22238BK d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1160 kN | C0r: 1810 kN | Mass: 36.6 kg
22240B d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1310 kN | C0r: 2010 kN | Mass: 44 kg
22244B d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1580 kN | C0r: 2460 kN | Mass: 60.4 kg
22244BK d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1580 kN | C0r: 2460 kN | Mass: 60.4 kg
22248B d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1940 kN | C0r: 3100 kN | Mass: 81.7 kg
22252B d: 260 mm | D: 480 mm | B: 130 mm | Cr: 2230 kN | C0r: 3600 kN | Mass: 106 kg
22252BK d: 260 mm | D: 480 mm | B: 130 mm | Cr: 2230 kN | C0r: 3600 kN | Mass: 106 kg
22256B d: 280 mm | D: 500 mm | B: 130 mm | Cr: 2310 kN | C0r: 3800 kN | Mass: 112 kg
22256BK d: 280 mm | D: 500 mm | B: 130 mm | Cr: 2310 kN | C0r: 3800 kN | Mass: 112 kg
Spherical Roller BearingsNTN
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 222 Series Spherical Roller Bearings (Cylindrical & Tapered Bore)

Brand NTN·Spherical Roller Bearings

Available part numbers (67)

22208CK, 22209C, 22209CK, 22210C, 22210CK, 22211E, 22211EK, 22211B, 22211BK, 22212E + 57 more — see full table ↓
