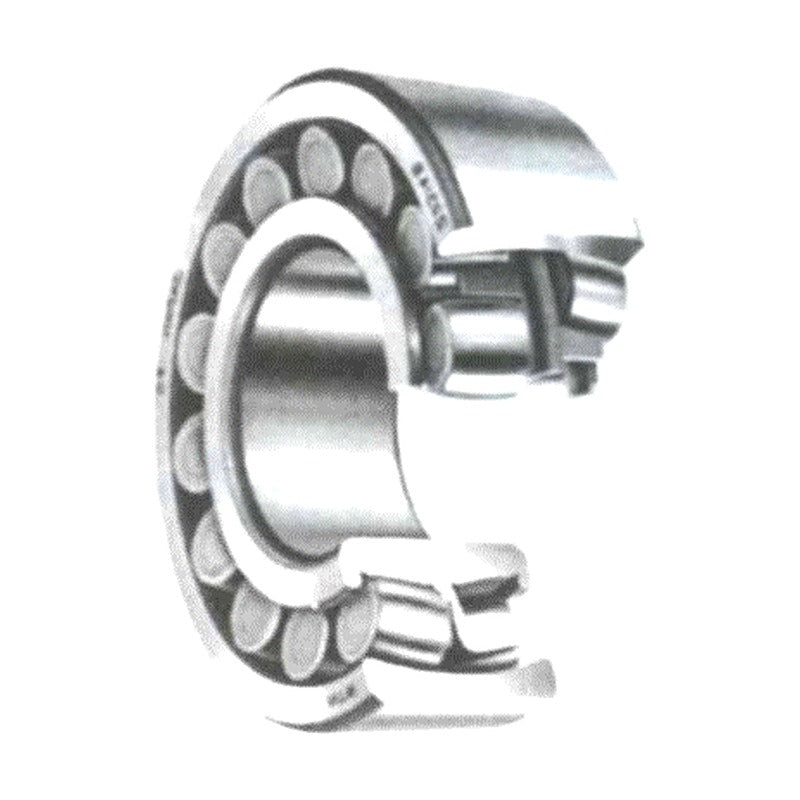

NTN 240 Series Spherical Roller Bearings (Cylindrical & Tapered Bore)

NTN 240 Series Spherical Roller Bearings (Cylindrical & Tapered Bore)

NTN 240 series double-row spherical roller bearings, bore 120-1120 mm, with cylindrical bore or tapered bore (K = 1:12, K30 = 1:30).

Key features

  • Self-aligning design tolerates shaft deflection and misalignment
  • Very high radial load capacity with axial load in both directions
  • Tapered bore versions for adapter or withdrawal sleeve mounting
  • Mass shown for cylindrical bore type

Specifications

Series 240
Bearing type Double-row spherical roller bearing
Bore range 120-1120 mm
Bore options Cylindrical, tapered K (1:12), K30 (1:30)
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 130-136
24024B d: 120 mm | D: 180 mm | B: 60 mm | Cr: 390 kN | C0r: 670 kN | Mass: 5.48 kg
24024BK30 d: 120 mm | D: 180 mm | B: 60 mm | Cr: 390 kN | C0r: 670 kN | Mass: 5.48 kg
24024C d: 120 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 695 kN | Mass: 5.48 kg
24024CK30 d: 120 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 695 kN | Mass: 5.48 kg
24026B d: 130 mm | D: 200 mm | B: 69 mm | Cr: 505 kN | C0r: 895 kN | Mass: 8.08 kg
24026BK30 d: 130 mm | D: 200 mm | B: 69 mm | Cr: 505 kN | C0r: 895 kN | Mass: 8.08 kg
24026C d: 130 mm | D: 200 mm | B: 69 mm | Cr: 490 kN | C0r: 860 kN | Mass: 7.91 kg
24026CK30 d: 130 mm | D: 200 mm | B: 69 mm | Cr: 490 kN | C0r: 860 kN | Mass: 7.91 kg
24028B d: 140 mm | D: 210 mm | B: 69 mm | Cr: 510 kN | C0r: 945 kN | Mass: 8.57 kg
24028BK30 d: 140 mm | D: 210 mm | B: 69 mm | Cr: 510 kN | C0r: 945 kN | Mass: 8.57 kg
24028C d: 140 mm | D: 210 mm | B: 69 mm | Cr: 520 kN | C0r: 940 kN | Mass: 8.48 kg
24028CK30 d: 140 mm | D: 210 mm | B: 69 mm | Cr: 520 kN | C0r: 940 kN | Mass: 8.48 kg
24030B d: 150 mm | D: 225 mm | B: 75 mm | Cr: 585 kN | C0r: 1060 kN | Mass: 10.7 kg
24030BK30 d: 150 mm | D: 225 mm | B: 75 mm | Cr: 585 kN | C0r: 1060 kN | Mass: 10.7 kg
24030C d: 150 mm | D: 225 mm | B: 75 mm | Cr: 600 kN | C0r: 1090 kN | Mass: 10.5 kg
24030CK30 d: 150 mm | D: 225 mm | B: 75 mm | Cr: 600 kN | C0r: 1090 kN | Mass: 10.5 kg
24032B d: 160 mm | D: 240 mm | B: 80 mm | Cr: 650 kN | C0r: 1200 kN | Mass: 13 kg
24032BK30 d: 160 mm | D: 240 mm | B: 80 mm | Cr: 650 kN | C0r: 1200 kN | Mass: 13 kg
24032C d: 160 mm | D: 240 mm | B: 80 mm | Cr: 665 kN | C0r: 1250 kN | Mass: 12 kg
24032CK30 d: 160 mm | D: 240 mm | B: 80 mm | Cr: 665 kN | C0r: 1250 kN | Mass: 12 kg
24034B d: 170 mm | D: 260 mm | B: 90 mm | Cr: 800 kN | C0r: 1470 kN | Mass: 17.7 kg
24034BK30 d: 170 mm | D: 260 mm | B: 90 mm | Cr: 800 kN | C0r: 1470 kN | Mass: 17.7 kg
24034C d: 170 mm | D: 260 mm | B: 90 mm | Cr: 815 kN | C0r: 1500 kN | Mass: 17.4 kg
24034CK30 d: 170 mm | D: 260 mm | B: 90 mm | Cr: 815 kN | C0r: 1500 kN | Mass: 17.4 kg
24036B d: 180 mm | D: 280 mm | B: 100 mm | Cr: 965 kN | C0r: 1770 kN | Mass: 23.3 kg
24036BK30 d: 180 mm | D: 280 mm | B: 100 mm | Cr: 965 kN | C0r: 1770 kN | Mass: 23.3 kg
24036C d: 180 mm | D: 280 mm | B: 100 mm | Cr: 965 kN | C0r: 1770 kN | Mass: 23 kg
24036CK30 d: 180 mm | D: 280 mm | B: 100 mm | Cr: 965 kN | C0r: 1770 kN | Mass: 23 kg
24038B d: 190 mm | D: 290 mm | B: 100 mm | Cr: 995 kN | C0r: 1850 kN | Mass: 24.3 kg
24038BK30 d: 190 mm | D: 290 mm | B: 100 mm | Cr: 995 kN | C0r: 1850 kN | Mass: 24.3 kg
24038C d: 190 mm | D: 290 mm | B: 100 mm | Cr: 970 kN | C0r: 1820 kN | Mass: 23 kg
24038CK30 d: 190 mm | D: 290 mm | B: 100 mm | Cr: 970 kN | C0r: 1820 kN | Mass: 23 kg
24040B d: 200 mm | D: 310 mm | B: 109 mm | Cr: 1160 kN | C0r: 2140 kN | Mass: 31 kg
24040BK30 d: 200 mm | D: 310 mm | B: 109 mm | Cr: 1160 kN | C0r: 2140 kN | Mass: 31 kg
24044B d: 220 mm | D: 340 mm | B: 118 mm | Cr: 1350 kN | C0r: 2570 kN | Mass: 40.2 kg
24044BK30 d: 220 mm | D: 340 mm | B: 118 mm | Cr: 1350 kN | C0r: 2570 kN | Mass: 40.2 kg
24048B d: 240 mm | D: 360 mm | B: 118 mm | Cr: 1410 kN | C0r: 2770 kN | Mass: 43 kg
24048BK30 d: 240 mm | D: 360 mm | B: 118 mm | Cr: 1410 kN | C0r: 2770 kN | Mass: 43 kg
24052B d: 260 mm | D: 400 mm | B: 140 mm | Cr: 1830 kN | C0r: 3550 kN | Mass: 65.2 kg
24052BK30 d: 260 mm | D: 400 mm | B: 140 mm | Cr: 1830 kN | C0r: 3550 kN | Mass: 65.2 kg
24056B d: 280 mm | D: 420 mm | B: 140 mm | Cr: 1950 kN | C0r: 3950 kN | Mass: 69 kg
24056BK30 d: 280 mm | D: 420 mm | B: 140 mm | Cr: 1950 kN | C0r: 3950 kN | Mass: 69 kg
24060B d: 300 mm | D: 460 mm | B: 160 mm | Cr: 2450 kN | C0r: 4950 kN | Mass: 98 kg
24060BK30 d: 300 mm | D: 460 mm | B: 160 mm | Cr: 2450 kN | C0r: 4950 kN | Mass: 98 kg
24084B d: 420 mm | D: 620 mm | B: 200 mm | Cr: 3850 kN | C0r: 8450 kN | Mass: 210 kg
24084BK30 d: 420 mm | D: 620 mm | B: 200 mm | Cr: 3850 kN | C0r: 8450 kN | Mass: 210 kg
24088B d: 440 mm | D: 650 mm | B: 212 mm | Cr: 4300 kN | C0r: 9450 kN | Mass: 245 kg
24088BK30 d: 440 mm | D: 650 mm | B: 212 mm | Cr: 4300 kN | C0r: 9450 kN | Mass: 245 kg
24092B d: 460 mm | D: 680 mm | B: 218 mm | Cr: 4600 kN | C0r: 10200 kN | Mass: 276 kg
24092BK30 d: 460 mm | D: 680 mm | B: 218 mm | Cr: 4600 kN | C0r: 10200 kN | Mass: 276 kg
24096B d: 480 mm | D: 700 mm | B: 218 mm | Cr: 4650 kN | C0r: 10500 kN | Mass: 285 kg
24096BK30 d: 480 mm | D: 700 mm | B: 218 mm | Cr: 4650 kN | C0r: 10500 kN | Mass: 285 kg
240/500B d: 500 mm | D: 720 mm | B: 218 mm | Cr: 4750 kN | C0r: 10900 kN | Mass: 295 kg
240/500BK30 d: 500 mm | D: 720 mm | B: 218 mm | Cr: 4750 kN | C0r: 10900 kN | Mass: 295 kg
240/530B d: 530 mm | D: 780 mm | B: 250 mm | Cr: 5600 kN | C0r: 12700 kN | Mass: 413 kg
240/530BK30 d: 530 mm | D: 780 mm | B: 250 mm | Cr: 5600 kN | C0r: 12700 kN | Mass: 413 kg
240/560B d: 560 mm | D: 820 mm | B: 258 mm | Cr: 6100 kN | C0r: 14100 kN | Mass: 467 kg
240/560BK30 d: 560 mm | D: 820 mm | B: 258 mm | Cr: 6100 kN | C0r: 14100 kN | Mass: 467 kg
240/600B d: 600 mm | D: 870 mm | B: 272 mm | Cr: 6450 kN | C0r: 15600 kN | Mass: 544 kg
240/600BK30 d: 600 mm | D: 870 mm | B: 272 mm | Cr: 6450 kN | C0r: 15600 kN | Mass: 544 kg
240/630B d: 630 mm | D: 920 mm | B: 290 mm | Cr: 7550 kN | C0r: 17900 kN | Mass: 657 kg
240/630BK30 d: 630 mm | D: 920 mm | B: 290 mm | Cr: 7550 kN | C0r: 17900 kN | Mass: 657 kg
240/670B d: 670 mm | D: 980 mm | B: 308 mm | Cr: 8650 kN | C0r: 20600 kN | Mass: 794 kg
240/670BK30 d: 670 mm | D: 980 mm | B: 308 mm | Cr: 8650 kN | C0r: 20600 kN | Mass: 794 kg
240/710B d: 710 mm | D: 1030 mm | B: 315 mm | Cr: 9300 kN | C0r: 22500 kN | Mass: 884 kg
240/710BK30 d: 710 mm | D: 1030 mm | B: 315 mm | Cr: 9300 kN | C0r: 22500 kN | Mass: 884 kg
240/750B d: 750 mm | D: 1090 mm | B: 335 mm | Cr: 10100 kN | C0r: 24600 kN | Mass: 1060 kg
240/750BK30 d: 750 mm | D: 1090 mm | B: 335 mm | Cr: 10100 kN | C0r: 24600 kN | Mass: 1060 kg
240/800B d: 800 mm | D: 1150 mm | B: 345 mm | Cr: 11200 kN | C0r: 27800 kN | Mass: 1190 kg
240/800BK30 d: 800 mm | D: 1150 mm | B: 345 mm | Cr: 11200 kN | C0r: 27800 kN | Mass: 1190 kg
240/850B d: 850 mm | D: 1220 mm | B: 365 mm | Cr: 12500 kN | C0r: 31500 kN | Mass: 1410 kg
240/850BK30 d: 850 mm | D: 1220 mm | B: 365 mm | Cr: 12500 kN | C0r: 31500 kN | Mass: 1410 kg
240/900B d: 900 mm | D: 1280 mm | B: 375 mm | Cr: 13200 kN | C0r: 33500 kN | Mass: 1570 kg
240/900BK30 d: 900 mm | D: 1280 mm | B: 375 mm | Cr: 13200 kN | C0r: 33500 kN | Mass: 1570 kg
240/950B d: 950 mm | D: 1360 mm | B: 412 mm | Cr: 15500 kN | C0r: 40000 kN | Mass: 1970 kg
240/950BK30 d: 950 mm | D: 1360 mm | B: 412 mm | Cr: 15500 kN | C0r: 40000 kN | Mass: 1970 kg
240/1000B d: 1000 mm | D: 1420 mm | B: 412 mm | Cr: 16000 kN | C0r: 42000 kN | Mass: 2110 kg
240/1000BK301036 d: 1000 mm | D: 1420 mm | B: 412 mm | Cr: 16000 kN | C0r: 42000 kN | Mass: 2110 kg
240/1060B d: 1060 mm | D: 1500 mm | B: 438 mm | Cr: 17800 kN | C0r: 47000 kN | Mass: 2450 kg
240/1060BK301104 d: 1060 mm | D: 1500 mm | B: 438 mm | Cr: 17800 kN | C0r: 47000 kN | Mass: 2450 kg
240/1120B d: 1120 mm | D: 1580 mm | B: 462 mm | Cr: 19500 kN | C0r: 52500 kN | Mass: 2890 kg
240/1120BK301164 d: 1120 mm | D: 1580 mm | B: 462 mm | Cr: 19500 kN | C0r: 52500 kN | Mass: 2890 kg
Spherical Roller BearingsNTN
82 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 240 Series Spherical Roller Bearings (Cylindrical & Tapered Bore)

Brand NTN·Spherical Roller Bearings

Available part numbers (82)

24024B, 24024BK30, 24024C, 24024CK30, 24026B, 24026BK30, 24026C, 24026CK30, 24028B, 24028BK30 + 72 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
