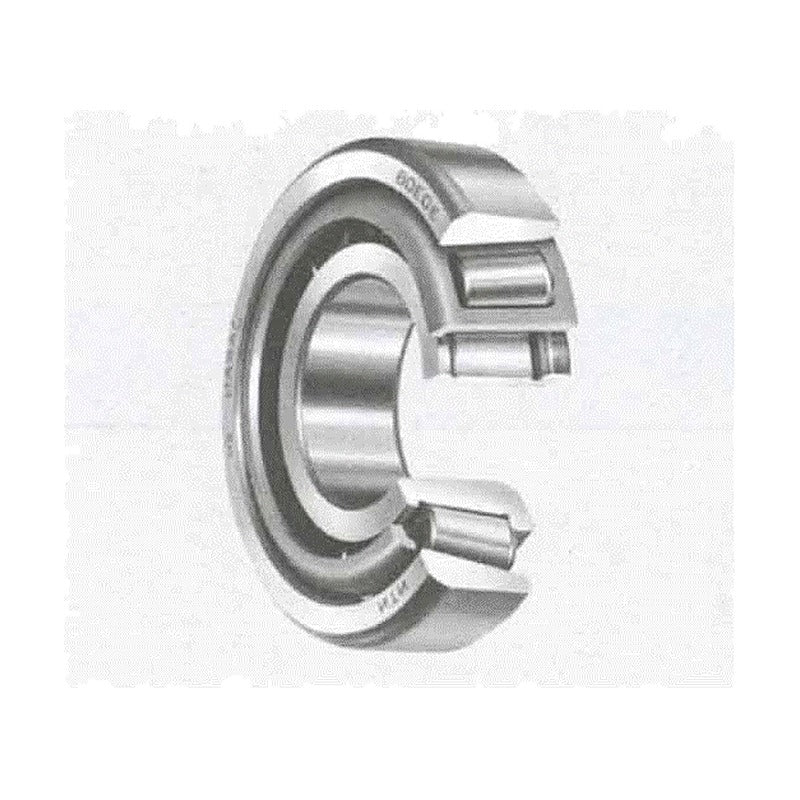

NTN 31300 Series Tapered Roller Bearings (Metric, Single Row)

NTN 31300 Series Tapered Roller Bearings (Metric, Single Row)

NTN 31300 series single-row metric tapered roller bearings, bore 100-150 mm, cone and cup supplied as an assembly.

Key features

  • Carries combined radial and one-direction axial loads
  • Separable cone (inner ring with rollers) and cup
  • 4T- prefix: NTN 4T long-life specification; E/ET prefixes and U, X, E1 suffixes as listed
  • Usually mounted in opposed pairs with clearance or preload adjustment

Specifications

Series 31300
Bearing type Single-row tapered roller bearing
Bore range 100-150 mm
Dimension system Metric (ISO)
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 85-86
31320XU d: 100 mm | D: 215 mm | T: 56.5 mm | Cr: 355 kN | C0r: 435 kN | Mass: 8.67 kg
31321XU d: 105 mm | D: 225 mm | T: 58 mm | Cr: 380 kN | C0r: 470 kN | Mass: 9.68 kg
31322XU d: 110 mm | D: 240 mm | T: 63 mm | Cr: 430 kN | C0r: 535 kN | Mass: 11.9 kg
31324XU d: 120 mm | D: 260 mm | T: 68 mm | Cr: 515 kN | C0r: 655 kN | Mass: 15.4 kg
31326XU d: 130 mm | D: 280 mm | T: 72 mm | Cr: 600 kN | C0r: 780 kN | Mass: 19 kg
31328XU d: 140 mm | D: 300 mm | T: 77 mm | Cr: 685 kN | C0r: 905 kN | Mass: 23 kg
31330XU d: 150 mm | D: 320 mm | T: 82 mm | Cr: - | C0r: - | Mass: 27.7 kg
Tapered Roller BearingsNTN
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 31300 Series Tapered Roller Bearings (Metric, Single Row)

Brand NTN·Tapered Roller Bearings

Available part numbers (7)

31320XU, 31321XU, 31322XU, 31324XU, 31326XU, 31328XU, 31330XU

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
31320XUd: 100 mm | D: 215 mm | T: 56.5 mm | Cr: 355 kN | C0r: 435 kN | Mass: 8.67 kg
31321XUd: 105 mm | D: 225 mm | T: 58 mm | Cr: 380 kN | C0r: 470 kN | Mass: 9.68 kg
31322XUd: 110 mm | D: 240 mm | T: 63 mm | Cr: 430 kN | C0r: 535 kN | Mass: 11.9 kg
31324XUd: 120 mm | D: 260 mm | T: 68 mm | Cr: 515 kN | C0r: 655 kN | Mass: 15.4 kg
31326XUd: 130 mm | D: 280 mm | T: 72 mm | Cr: 600 kN | C0r: 780 kN | Mass: 19 kg
31328XUd: 140 mm | D: 300 mm | T: 77 mm | Cr: 685 kN | C0r: 905 kN | Mass: 23 kg
31330XUd: 150 mm | D: 320 mm | T: 82 mm | Cr: - | C0r: - | Mass: 27.7 kg
