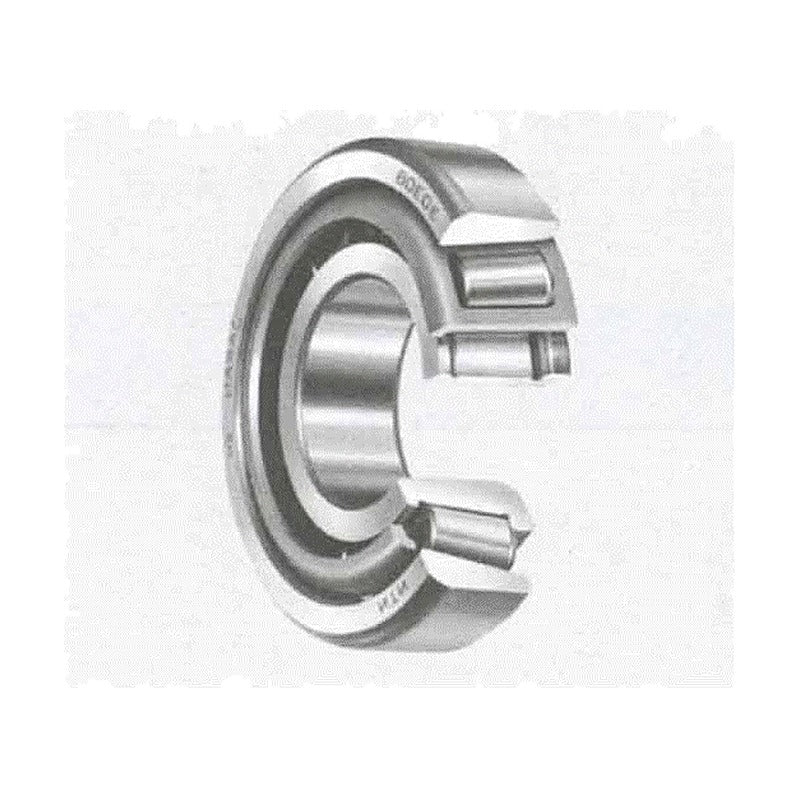

NTN 32200 Series Tapered Roller Bearings (Metric, Single Row)

NTN 32200 Series Tapered Roller Bearings (Metric, Single Row)

NTN 32200 series single-row metric tapered roller bearings, bore 17-200 mm, cone and cup supplied as an assembly.

Key features

  • Carries combined radial and one-direction axial loads
  • Separable cone (inner ring with rollers) and cup
  • 4T- prefix: NTN 4T long-life specification; E/ET prefixes and U, X, E1 suffixes as listed
  • Usually mounted in opposed pairs with clearance or preload adjustment

Specifications

Series 32200
Bearing type Single-row tapered roller bearing
Bore range 17-200 mm
Dimension system Metric (ISO)
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 80-87
4T-32203 d: 17 mm | D: 40 mm | T: 17.25 mm | Cr: 27.3 kN | C0r: 28.3 kN | Mass: 0.102 kg
4T-32203R d: 17 mm | D: 40 mm | T: 17.25 mm | Cr: 26.2 kN | C0r: 28.2 kN | Mass: -
4T-32204 d: 20 mm | D: 47 mm | T: 19.25 mm | Cr: 36.5 kN | C0r: 39.5 kN | Mass: 0.16 kg
4T-32205 d: 25 mm | D: 52 mm | T: 19.25 mm | Cr: 42 kN | C0r: 47 kN | Mass: 0.187 kg
4T-32205R d: 25 mm | D: 52 mm | T: 19.25 mm | Cr: 38 kN | C0r: 43 kN | Mass: -
4T-32205C d: 25 mm | D: 52 mm | T: 19.25 mm | Cr: 38 kN | C0r: 46.5 kN | Mass: 0.19 kg
4T-32205CR d: 25 mm | D: 52 mm | T: 19.25 mm | Cr: 34.5 kN | C0r: 42 kN | Mass: -
4T-32206 d: 30 mm | D: 62 mm | T: 21.25 mm | Cr: 54.5 kN | C0r: 64 kN | Mass: 0.301 kg
4T-32206C d: 30 mm | D: 62 mm | T: 21.25 mm | Cr: 50 kN | C0r: 60 kN | Mass: 0.294 kg
4T-32207 d: 35 mm | D: 72 mm | T: 24.25 mm | Cr: 72.5 kN | C0r: 87 kN | Mass: 0.457 kg
4T-32207C d: 35 mm | D: 72 mm | T: 24.25 mm | Cr: 68 kN | C0r: 85.5 kN | Mass: 0.461 kg
4T-32207CR d: 35 mm | D: 72 mm | T: 24.25 mm | Cr: 62 kN | C0r: 78.5 kN | Mass: -
4T-32208 d: 40 mm | D: 80 mm | T: 24.75 mm | Cr: 79.5 kN | C0r: 93.5 kN | Mass: 0.558 kg
4T-32209 d: 45 mm | D: 85 mm | T: 24.75 mm | Cr: 82 kN | C0r: 100 kN | Mass: 0.607 kg
4T-32210 d: 50 mm | D: 90 mm | T: 24.75 mm | Cr: 87.5 kN | C0r: 109 kN | Mass: 0.648 kg
4T-32211 d: 55 mm | D: 100 mm | T: 26.75 mm | Cr: 108 kN | C0r: 134 kN | Mass: 0.876 kg
32212U d: 60 mm | D: 110 mm | T: 29.75 mm | Cr: 130 kN | C0r: 164 kN | Mass: 1.18 kg
32213U d: 65 mm | D: 120 mm | T: 32.75 mm | Cr: 159 kN | C0r: 206 kN | Mass: 1.58 kg
32214U d: 70 mm | D: 125 mm | T: 33.25 mm | Cr: 166 kN | C0r: 220 kN | Mass: 1.68 kg
32215U d: 75 mm | D: 130 mm | T: 33.25 mm | Cr: 168 kN | C0r: 224 kN | Mass: 1.74 kg
32216U d: 80 mm | D: 140 mm | T: 35.25 mm | Cr: 199 kN | C0r: 265 kN | Mass: 2.18 kg
32217U d: 85 mm | D: 150 mm | T: 38.5 mm | Cr: 224 kN | C0r: 300 kN | Mass: 2.75 kg
32218U d: 90 mm | D: 160 mm | T: 42.5 mm | Cr: 262 kN | C0r: 360 kN | Mass: 3.49 kg
32219U d: 95 mm | D: 170 mm | T: 45.5 mm | Cr: 299 kN | C0r: 415 kN | Mass: 4.3 kg
32220U d: 100 mm | D: 180 mm | T: 49 mm | Cr: 330 kN | C0r: 465 kN | Mass: 5.12 kg
32221U d: 105 mm | D: 190 mm | T: 53 mm | Cr: 380 kN | C0r: 540 kN | Mass: 6.25 kg
32222U d: 110 mm | D: 200 mm | T: 56 mm | Cr: 420 kN | C0r: 605 kN | Mass: 7.43 kg
32226U d: 130 mm | D: 230 mm | T: 67.75 mm | Cr: 530 kN | C0r: 815 kN | Mass: 11.2 kg
32228U d: 140 mm | D: 250 mm | T: 71.75 mm | Cr: 610 kN | C0r: 920 kN | Mass: 14.1 kg
32230U d: 150 mm | D: 270 mm | T: 77 mm | Cr: 700 kN | C0r: 1070 kN | Mass: 18.2 kg
32232U d: 160 mm | D: 290 mm | T: 84 mm | Cr: 890 kN | C0r: 1420 kN | Mass: 23.5 kg
32234U d: 170 mm | D: 310 mm | T: 91 mm | Cr: 1000 kN | C0r: 1600 kN | Mass: 28.7 kg
32236U d: 180 mm | D: 320 mm | T: 91 mm | Cr: 1030 kN | C0r: 1690 kN | Mass: 30.7 kg
32238 d: 190 mm | D: 340 mm | T: 97 mm | Cr: 1000 kN | C0r: 1670 kN | Mass: -
32240 d: 200 mm | D: 360 mm | T: 104 mm | Cr: 1150 kN | C0r: 1970 kN | Mass: -
