NTN 32900 Series Tapered Roller Bearings (Metric, Single Row)

NTN 32900 Series Tapered Roller Bearings (Metric, Single Row)

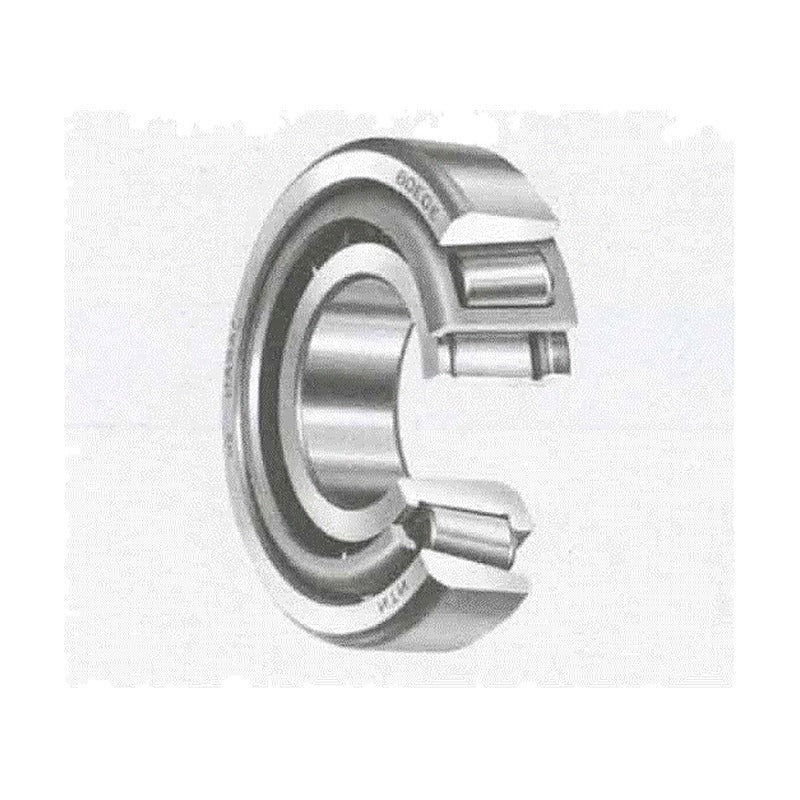

NTN 32900 series single-row metric tapered roller bearings, bore 35-360 mm, cone and cup supplied as an assembly.

Key features

  • Carries combined radial and one-direction axial loads
  • Separable cone (inner ring with rollers) and cup
  • 4T- prefix: NTN 4T long-life specification; E/ET prefixes and U, X, E1 suffixes as listed
  • Usually mounted in opposed pairs with clearance or preload adjustment

Specifications

Series 32900
Bearing type Single-row tapered roller bearing
Bore range 35-360 mm
Dimension system Metric (ISO)
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 81-88
32907XU d: 35 mm | D: 55 mm | T: 14 mm | Cr: 27.4 kN | C0r: 37.5 kN | Mass: 0.121 kg
32908XU d: 40 mm | D: 62 mm | T: 15 mm | Cr: 32.5 kN | C0r: 48 kN | Mass: 0.161 kg
32910 d: 50 mm | D: 72 mm | T: 15 mm | Cr: 31.5 kN | C0r: 50.5 kN | Mass: -
32911XU d: 55 mm | D: 80 mm | T: 17 mm | Cr: 44.5 kN | C0r: 73.5 kN | Mass: 0.274 kg
32912XA d: 60 mm | D: 85 mm | T: 17 mm | Cr: 51 kN | C0r: 83 kN | Mass: -
4T-32913XU d: 65 mm | D: 90 mm | T: 17 mm | Cr: 48.5 kN | C0r: 85 kN | Mass: 0.315 kg
4T-32914XU d: 70 mm | D: 100 mm | T: 20 mm | Cr: 68.5 kN | C0r: 110 kN | Mass: 0.487 kg
32915XU d: 75 mm | D: 105 mm | T: 20 mm | Cr: 69.5 kN | C0r: 114 kN | Mass: 0.511 kg
32916XU d: 80 mm | D: 110 mm | T: 20 mm | Cr: 72 kN | C0r: 121 kN | Mass: 0.54 kg
32917XU d: 85 mm | D: 120 mm | T: 23 mm | Cr: 94 kN | C0r: 157 kN | Mass: 0.773 kg
32918XU d: 90 mm | D: 125 mm | T: 23 mm | Cr: 97.5 kN | C0r: 168 kN | Mass: 0.817 kg
32919XU d: 95 mm | D: 130 mm | T: 23 mm | Cr: 101 kN | C0r: 178 kN | Mass: 0.851 kg
32920XU d: 100 mm | D: 140 mm | T: 25 mm | Cr: 121 kN | C0r: 206 kN | Mass: 1.14 kg
32920 d: 100 mm | D: 140 mm | T: 25 mm | Cr: 97.5 kN | C0r: 162 kN | Mass: -
32921XA d: 105 mm | D: 145 mm | T: 25 mm | Cr: 126 kN | C0r: 219 kN | Mass: -
32922XA d: 110 mm | D: 150 mm | T: 25 mm | Cr: 127 kN | C0r: 226 kN | Mass: -
32924XU d: 120 mm | D: 165 mm | T: 29 mm | Cr: 162 kN | C0r: 294 kN | Mass: 1.77 kg
32924 d: 120 mm | D: 165 mm | T: 29 mm | Cr: 118 kN | C0r: 205 kN | Mass: -
32926XU d: 130 mm | D: 180 mm | T: 32 mm | Cr: 194 kN | C0r: 350 kN | Mass: 2.36 kg
32926 d: 130 mm | D: 180 mm | T: 32 mm | Cr: 142 kN | C0r: 252 kN | Mass: -
32928XU d: 140 mm | D: 190 mm | T: 32 mm | Cr: 200 kN | C0r: 375 kN | Mass: 2.51 kg
32930XU d: 150 mm | D: 210 mm | T: 38 mm | Cr: 268 kN | C0r: 490 kN | Mass: 3.92 kg
32932XU d: 160 mm | D: 220 mm | T: 38 mm | Cr: 276 kN | C0r: 520 kN | Mass: 4.15 kg
32934XU d: 170 mm | D: 230 mm | T: 38 mm | Cr: 286 kN | C0r: 560 kN | Mass: 4.4 kg
32936XU d: 180 mm | D: 250 mm | T: 45 mm | Cr: 350 kN | C0r: 700 kN | Mass: 6.54 kg
32938 d: 190 mm | D: 260 mm | T: 45 mm | Cr: 280 kN | C0r: 525 kN | Mass: -
32940XUE1 d: 200 mm | D: 280 mm | T: 51 mm | Cr: 485 kN | C0r: 895 kN | Mass: 8.88 kg
32944E1 d: 220 mm | D: 300 mm | T: 51 mm | Cr: 345 kN | C0r: 670 kN | Mass: -
32948XUE1 d: 240 mm | D: 320 mm | T: 51 mm | Cr: 490 kN | C0r: 1000 kN | Mass: 10.9 kg
32952XUE1 d: 260 mm | D: 360 mm | T: 63.5 mm | Cr: 705 kN | C0r: 1430 kN | Mass: 18.8 kg
32956XUE1 d: 280 mm | D: 380 mm | T: 63.5 mm | Cr: 725 kN | C0r: 1520 kN | Mass: 20 kg
32960XUE1 d: 300 mm | D: 420 mm | T: 76 mm | Cr: 1010 kN | C0r: 2090 kN | Mass: 31.4 kg
32964XUE1 d: 320 mm | D: 440 mm | T: 76 mm | Cr: - | C0r: - | Mass: 33.1 kg
32964E1 d: 320 mm | D: 440 mm | T: 76 mm | Cr: 865 kN | C0r: 1880 kN | Mass: -
32968XUE1 d: 340 mm | D: 460 mm | T: 76 mm | Cr: - | C0r: - | Mass: 34.9 kg
32968E1 d: 340 mm | D: 460 mm | T: 76 mm | Cr: 910 kN | C0r: 1980 kN | Mass: -
32972XUE1 d: 360 mm | D: 480 mm | T: 76 mm | Cr: - | C0r: - | Mass: 36.6 kg
Tapered Roller BearingsNTN
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 32900 Series Tapered Roller Bearings (Metric, Single Row)

Brand NTN·Tapered Roller Bearings

Available part numbers (37)

32907XU, 32908XU, 32910, 32911XU, 32912XA, 4T-32913XU, 4T-32914XU, 32915XU, 32916XU, 32917XU + 27 more — see full table ↓
