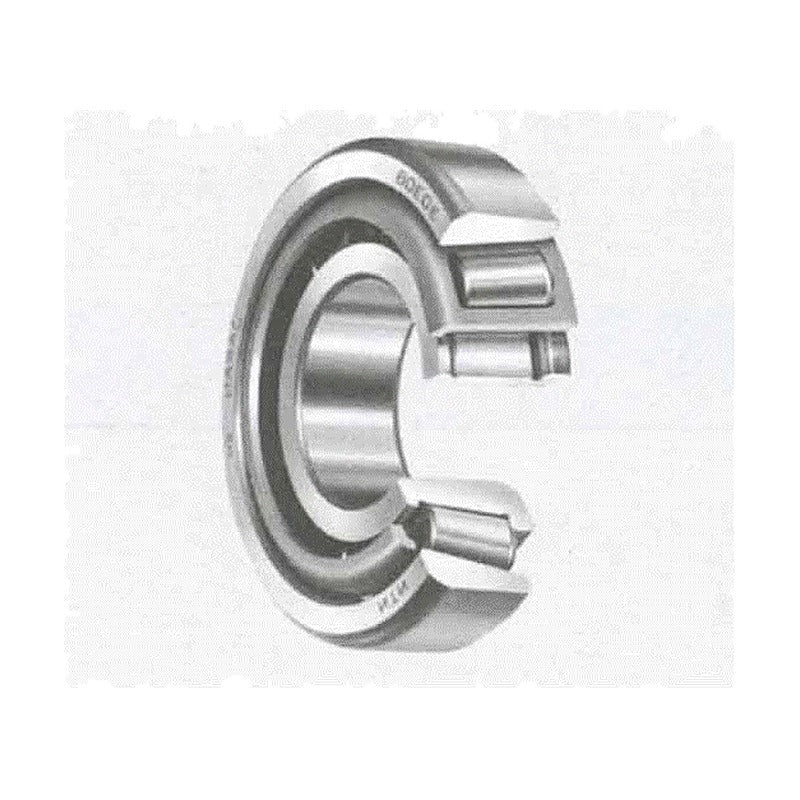

NTN 33100 Series Tapered Roller Bearings (Metric, Single Row)

NTN 33100 Series Tapered Roller Bearings (Metric, Single Row)

NTN 33100 series single-row metric tapered roller bearings, bore 40-65 mm, cone and cup supplied as an assembly.

Key features

  • Carries combined radial and one-direction axial loads
  • Separable cone (inner ring with rollers) and cup
  • 4T- prefix: NTN 4T long-life specification; E/ET prefixes and U, X, E1 suffixes as listed
  • Usually mounted in opposed pairs with clearance or preload adjustment

Specifications

Series 33100
Bearing type Single-row tapered roller bearing
Bore range 40-65 mm
Dimension system Metric (ISO)
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 81-83
4T-33108 d: 40 mm | D: 75 mm | T: 26 mm | Cr: 79.5 kN | C0r: 103 kN | Mass: 0.494 kg
4T-33109 d: 45 mm | D: 80 mm | T: 26 mm | Cr: 84.5 kN | C0r: 115 kN | Mass: 0.542 kg
4T-33110 d: 50 mm | D: 85 mm | T: 26 mm | Cr: 86.5 kN | C0r: 121 kN | Mass: 0.58 kg
4T-33111 d: 55 mm | D: 95 mm | T: 30 mm | Cr: 111 kN | C0r: 155 kN | Mass: 0.846 kg
4T-33112 d: 60 mm | D: 100 mm | T: 30 mm | Cr: 113 kN | C0r: 164 kN | Mass: 0.912 kg
4T-33113 d: 65 mm | D: 110 mm | T: 34 mm | Cr: 144 kN | C0r: 211 kN | Mass: 1.28 kg
Tapered Roller BearingsNTN
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 33100 Series Tapered Roller Bearings (Metric, Single Row)

Brand NTN·Tapered Roller Bearings

Available part numbers (6)

4T-33108, 4T-33109, 4T-33110, 4T-33111, 4T-33112, 4T-33113

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4T-33108d: 40 mm | D: 75 mm | T: 26 mm | Cr: 79.5 kN | C0r: 103 kN | Mass: 0.494 kg
4T-33109d: 45 mm | D: 80 mm | T: 26 mm | Cr: 84.5 kN | C0r: 115 kN | Mass: 0.542 kg
4T-33110d: 50 mm | D: 85 mm | T: 26 mm | Cr: 86.5 kN | C0r: 121 kN | Mass: 0.58 kg
4T-33111d: 55 mm | D: 95 mm | T: 30 mm | Cr: 111 kN | C0r: 155 kN | Mass: 0.846 kg
4T-33112d: 60 mm | D: 100 mm | T: 30 mm | Cr: 113 kN | C0r: 164 kN | Mass: 0.912 kg
4T-33113d: 65 mm | D: 110 mm | T: 34 mm | Cr: 144 kN | C0r: 211 kN | Mass: 1.28 kg
