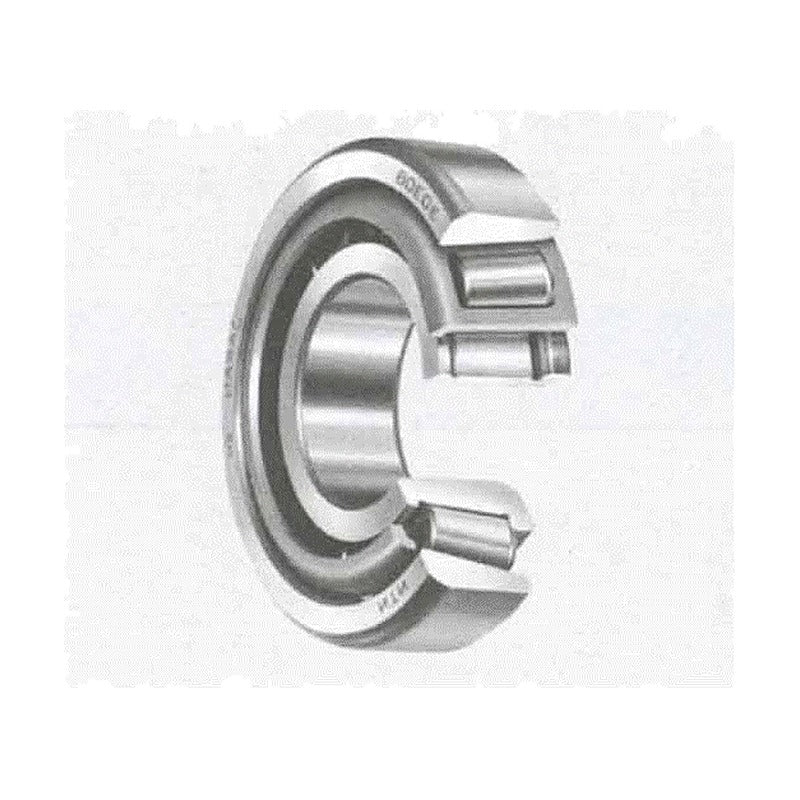

NTN 33200 Series Tapered Roller Bearings (Metric, Single Row)

NTN 33200 Series Tapered Roller Bearings (Metric, Single Row)

NTN 33200 series single-row metric tapered roller bearings, bore 25-85 mm, cone and cup supplied as an assembly.

Key features

  • Carries combined radial and one-direction axial loads
  • Separable cone (inner ring with rollers) and cup
  • 4T- prefix: NTN 4T long-life specification; E/ET prefixes and U, X, E1 suffixes as listed
  • Usually mounted in opposed pairs with clearance or preload adjustment

Specifications

Series 33200
Bearing type Single-row tapered roller bearing
Bore range 25-85 mm
Dimension system Metric (ISO)
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 80-84
4T-33205 d: 25 mm | D: 52 mm | T: 22 mm | Cr: 47.5 kN | C0r: 57.5 kN | Mass: 0.217 kg
4T-33206 d: 30 mm | D: 62 mm | T: 25 mm | Cr: 65 kN | C0r: 77 kN | Mass: 0.344 kg
4T-33207 d: 35 mm | D: 72 mm | T: 28 mm | Cr: 87.5 kN | C0r: 109 kN | Mass: 0.531 kg
4T-33208 d: 40 mm | D: 80 mm | T: 32 mm | Cr: 103 kN | C0r: 132 kN | Mass: 0.728 kg
4T-33209 d: 45 mm | D: 85 mm | T: 32 mm | Cr: 107 kN | C0r: 141 kN | Mass: 0.783 kg
4T-33210 d: 50 mm | D: 90 mm | T: 32 mm | Cr: 115 kN | C0r: 158 kN | Mass: 0.852 kg
4T-33211 d: 55 mm | D: 100 mm | T: 35 mm | Cr: 138 kN | C0r: 188 kN | Mass: 1.15 kg
33212U d: 60 mm | D: 110 mm | T: 38 mm | Cr: 161 kN | C0r: 223 kN | Mass: 1.55 kg
33213U d: 65 mm | D: 120 mm | T: 41 mm | Cr: 195 kN | C0r: 265 kN | Mass: 1.98 kg
4T-33214U d: 70 mm | D: 125 mm | T: 41 mm | Cr: 201 kN | C0r: 282 kN | Mass: 2.1 kg
33215U d: 75 mm | D: 130 mm | T: 41 mm | Cr: 208 kN | C0r: 298 kN | Mass: 2.2 kg
33216U d: 80 mm | D: 140 mm | T: 46 mm | Cr: 250 kN | C0r: 365 kN | Mass: 2.92 kg
33217U d: 85 mm | D: 150 mm | T: 49 mm | Cr: 284 kN | C0r: 420 kN | Mass: 3.58 kg
Tapered Roller BearingsNTN
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 33200 Series Tapered Roller Bearings (Metric, Single Row)

Brand NTN·Tapered Roller Bearings

Available part numbers (13)

4T-33205, 4T-33206, 4T-33207, 4T-33208, 4T-33209, 4T-33210, 4T-33211, 33212U, 33213U, 4T-33214U + 3 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4T-33205d: 25 mm | D: 52 mm | T: 22 mm | Cr: 47.5 kN | C0r: 57.5 kN | Mass: 0.217 kg
4T-33206d: 30 mm | D: 62 mm | T: 25 mm | Cr: 65 kN | C0r: 77 kN | Mass: 0.344 kg
4T-33207d: 35 mm | D: 72 mm | T: 28 mm | Cr: 87.5 kN | C0r: 109 kN | Mass: 0.531 kg
4T-33208d: 40 mm | D: 80 mm | T: 32 mm | Cr: 103 kN | C0r: 132 kN | Mass: 0.728 kg
4T-33209d: 45 mm | D: 85 mm | T: 32 mm | Cr: 107 kN | C0r: 141 kN | Mass: 0.783 kg
4T-33210d: 50 mm | D: 90 mm | T: 32 mm | Cr: 115 kN | C0r: 158 kN | Mass: 0.852 kg
4T-33211d: 55 mm | D: 100 mm | T: 35 mm | Cr: 138 kN | C0r: 188 kN | Mass: 1.15 kg
33212Ud: 60 mm | D: 110 mm | T: 38 mm | Cr: 161 kN | C0r: 223 kN | Mass: 1.55 kg
33213Ud: 65 mm | D: 120 mm | T: 41 mm | Cr: 195 kN | C0r: 265 kN | Mass: 1.98 kg
4T-33214Ud: 70 mm | D: 125 mm | T: 41 mm | Cr: 201 kN | C0r: 282 kN | Mass: 2.1 kg
33215Ud: 75 mm | D: 130 mm | T: 41 mm | Cr: 208 kN | C0r: 298 kN | Mass: 2.2 kg
33216Ud: 80 mm | D: 140 mm | T: 46 mm | Cr: 250 kN | C0r: 365 kN | Mass: 2.92 kg
33217Ud: 85 mm | D: 150 mm | T: 49 mm | Cr: 284 kN | C0r: 420 kN | Mass: 3.58 kg
