NTN 51200 Series Single-Direction Thrust Ball Bearings

NTN 51200 Series Single-Direction Thrust Ball Bearings

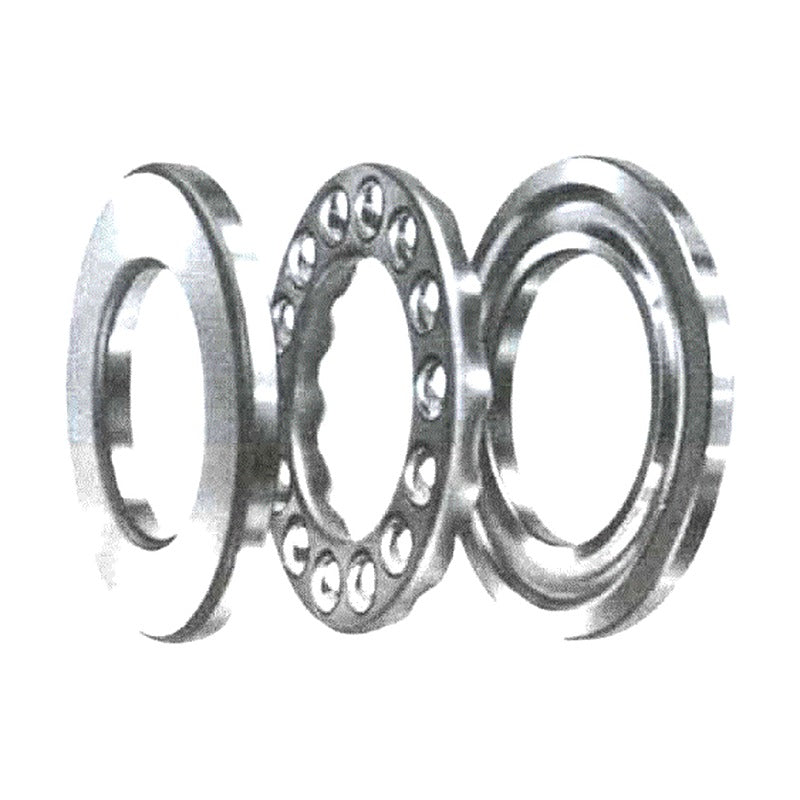

NTN 51200 series single-direction thrust ball bearings, bore 10-300 mm, with shaft washer, housing washer and ball-and-cage assembly.

Key features

  • Carries axial load in one direction
  • Separable shaft washer, housing washer and cage assembly
  • Flat seat washers
  • Axial load ratings Ca / C0a listed

Specifications

Series 51200
Bearing type Single-direction thrust ball bearing
Bore range 10-300 mm
Load rating unit kN (axial)
Brand NTN
Source NTN NTN Ball and Roller Bearings catalogue, p. 156-159
51200 d: 10 mm | D: 26 mm | T: 11 mm | Ca: 12.7 kN | C0a: 17.1 kN | Mass: 0.03 kg
51201 d: 12 mm | D: 28 mm | T: 11 mm | Ca: 13.2 kN | C0a: 19 kN | Mass: 0.034 kg
51202 d: 15 mm | D: 32 mm | T: 12 mm | Ca: 16.6 kN | C0a: 24.8 kN | Mass: 0.046 kg
51203 d: 17 mm | D: 35 mm | T: 12 mm | Ca: 17.2 kN | C0a: 27.3 kN | Mass: 0.054 kg
51204 d: 20 mm | D: 40 mm | T: 14 mm | Ca: 22.3 kN | C0a: 37.5 kN | Mass: 0.081 kg
51205 d: 25 mm | D: 47 mm | T: 15 mm | Ca: 27.8 kN | C0a: 50.5 kN | Mass: 0.111 kg
51206 d: 30 mm | D: 52 mm | T: 16 mm | Ca: 29.3 kN | C0a: 58 kN | Mass: 0.139 kg
51207 d: 35 mm | D: 62 mm | T: 18 mm | Ca: 39 kN | C0a: 78 kN | Mass: 0.215 kg
51208 d: 40 mm | D: 68 mm | T: 19 mm | Ca: 47 kN | C0a: 98.5 kN | Mass: 0.276 kg
51209 d: 45 mm | D: 73 mm | T: 20 mm | Ca: 48 kN | C0a: 105 kN | Mass: 0.317 kg
51210 d: 50 mm | D: 78 mm | T: 22 mm | Ca: 48.5 kN | C0a: 111 kN | Mass: 0.378 kg
51211 d: 55 mm | D: 90 mm | T: 25 mm | Ca: 69.5 kN | C0a: 159 kN | Mass: 0.608 kg
51212 d: 60 mm | D: 95 mm | T: 26 mm | Ca: 73.5 kN | C0a: 179 kN | Mass: 0.676 kg
51213 d: 65 mm | D: 100 mm | T: 27 mm | Ca: 73.5 kN | C0a: 189 kN | Mass: 0.767 kg
51214 d: 70 mm | D: 105 mm | T: 27 mm | Ca: 76 kN | C0a: 199 kN | Mass: 0.793 kg
51215 d: 75 mm | D: 110 mm | T: 27 mm | Ca: 77.5 kN | C0a: 209 kN | Mass: 0.874 kg
51216 d: 80 mm | D: 115 mm | T: 28 mm | Ca: 78.5 kN | C0a: 218 kN | Mass: 0.916 kg
51217 d: 85 mm | D: 125 mm | T: 31 mm | Ca: 95.5 kN | C0a: 264 kN | Mass: 1.25 kg
51218 d: 90 mm | D: 135 mm | T: 35 mm | Ca: 117 kN | C0a: 325 kN | Mass: 1.7 kg
51220 d: 100 mm | D: 150 mm | T: 38 mm | Ca: 147 kN | C0a: 410 kN | Mass: 2.29 kg
51222 d: 110 mm | D: 160 mm | T: 38 mm | Ca: 153 kN | C0a: 450 kN | Mass: 2.46 kg
51224 d: 120 mm | D: 170 mm | T: 39 mm | Ca: 154 kN | C0a: 470 kN | Mass: 2.71 kg
51226 d: 130 mm | D: 190 mm | T: 45 mm | Ca: 191 kN | C0a: 565 kN | Mass: 4.22 kg
51228 d: 140 mm | D: 200 mm | T: 46 mm | Ca: 193 kN | C0a: 595 kN | Mass: 4.77 kg
51230 d: 150 mm | D: 215 mm | T: 50 mm | Ca: 220 kN | C0a: 685 kN | Mass: 5.87 kg
51232 d: 160 mm | D: 225 mm | T: 51 mm | Ca: 223 kN | C0a: 720 kN | Mass: 6.32 kg
51234 d: 170 mm | D: 240 mm | T: 55 mm | Ca: 261 kN | C0a: 835 kN | Mass: 7.81 kg
51236 d: 180 mm | D: 250 mm | T: 56 mm | Ca: 266 kN | C0a: 875 kN | Mass: 8.34 kg
51238 d: 190 mm | D: 270 mm | T: 62 mm | Ca: 310 kN | C0a: 60 kN | Mass: 11.3 kg
51240 d: 200 mm | D: 280 mm | T: 62 mm | Ca: 315 kN | C0a: 1110 kN | Mass: 11.8 kg
51244 d: 220 mm | D: 300 mm | T: 63 mm | Ca: 325 kN | C0a: 1210 kN | Mass: 13 kg
51248 d: 240 mm | D: 340 mm | T: 78 mm | Ca: 415 kN | C0a: 1650 kN | Mass: 22.4 kg
51252 d: 260 mm | D: 360 mm | T: 79 mm | Ca: 440 kN | C0a: 1810 kN | Mass: 24.2 kg
51256 d: 280 mm | D: 380 mm | T: 80 mm | Ca: 460 kN | C0a: 1970 kN | Mass: 26.1 kg
51260 d: 300 mm | D: 420 mm | T: 95 mm | Ca: 590 kN | C0a: 2680 kN | Mass: 40.6 kg
Thrust BearingsNTN
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 51200 Series Single-Direction Thrust Ball Bearings

Brand NTN·Thrust Bearings

Available part numbers (35)

51200, 51201, 51202, 51203, 51204, 51205, 51206, 51207, 51208, 51209 + 25 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
51200d: 10 mm | D: 26 mm | T: 11 mm | Ca: 12.7 kN | C0a: 17.1 kN | Mass: 0.03 kg
51201d: 12 mm | D: 28 mm | T: 11 mm | Ca: 13.2 kN | C0a: 19 kN | Mass: 0.034 kg
51202d: 15 mm | D: 32 mm | T: 12 mm | Ca: 16.6 kN | C0a: 24.8 kN | Mass: 0.046 kg
51203d: 17 mm | D: 35 mm | T: 12 mm | Ca: 17.2 kN | C0a: 27.3 kN | Mass: 0.054 kg
51204d: 20 mm | D: 40 mm | T: 14 mm | Ca: 22.3 kN | C0a: 37.5 kN | Mass: 0.081 kg
51205d: 25 mm | D: 47 mm | T: 15 mm | Ca: 27.8 kN | C0a: 50.5 kN | Mass: 0.111 kg
51206d: 30 mm | D: 52 mm | T: 16 mm | Ca: 29.3 kN | C0a: 58 kN | Mass: 0.139 kg
51207d: 35 mm | D: 62 mm | T: 18 mm | Ca: 39 kN | C0a: 78 kN | Mass: 0.215 kg
51208d: 40 mm | D: 68 mm | T: 19 mm | Ca: 47 kN | C0a: 98.5 kN | Mass: 0.276 kg
51209d: 45 mm | D: 73 mm | T: 20 mm | Ca: 48 kN | C0a: 105 kN | Mass: 0.317 kg
51210d: 50 mm | D: 78 mm | T: 22 mm | Ca: 48.5 kN | C0a: 111 kN | Mass: 0.378 kg
51211d: 55 mm | D: 90 mm | T: 25 mm | Ca: 69.5 kN | C0a: 159 kN | Mass: 0.608 kg
51212d: 60 mm | D: 95 mm | T: 26 mm | Ca: 73.5 kN | C0a: 179 kN | Mass: 0.676 kg
51213d: 65 mm | D: 100 mm | T: 27 mm | Ca: 73.5 kN | C0a: 189 kN | Mass: 0.767 kg
51214d: 70 mm | D: 105 mm | T: 27 mm | Ca: 76 kN | C0a: 199 kN | Mass: 0.793 kg
51215d: 75 mm | D: 110 mm | T: 27 mm | Ca: 77.5 kN | C0a: 209 kN | Mass: 0.874 kg
51216d: 80 mm | D: 115 mm | T: 28 mm | Ca: 78.5 kN | C0a: 218 kN | Mass: 0.916 kg
51217d: 85 mm | D: 125 mm | T: 31 mm | Ca: 95.5 kN | C0a: 264 kN | Mass: 1.25 kg
51218d: 90 mm | D: 135 mm | T: 35 mm | Ca: 117 kN | C0a: 325 kN | Mass: 1.7 kg
51220d: 100 mm | D: 150 mm | T: 38 mm | Ca: 147 kN | C0a: 410 kN | Mass: 2.29 kg
51222d: 110 mm | D: 160 mm | T: 38 mm | Ca: 153 kN | C0a: 450 kN | Mass: 2.46 kg
51224d: 120 mm | D: 170 mm | T: 39 mm | Ca: 154 kN | C0a: 470 kN | Mass: 2.71 kg
51226d: 130 mm | D: 190 mm | T: 45 mm | Ca: 191 kN | C0a: 565 kN | Mass: 4.22 kg
51228d: 140 mm | D: 200 mm | T: 46 mm | Ca: 193 kN | C0a: 595 kN | Mass: 4.77 kg
51230d: 150 mm | D: 215 mm | T: 50 mm | Ca: 220 kN | C0a: 685 kN | Mass: 5.87 kg
51232d: 160 mm | D: 225 mm | T: 51 mm | Ca: 223 kN | C0a: 720 kN | Mass: 6.32 kg
51234d: 170 mm | D: 240 mm | T: 55 mm | Ca: 261 kN | C0a: 835 kN | Mass: 7.81 kg
51236d: 180 mm | D: 250 mm | T: 56 mm | Ca: 266 kN | C0a: 875 kN | Mass: 8.34 kg
51238d: 190 mm | D: 270 mm | T: 62 mm | Ca: 310 kN | C0a: 60 kN | Mass: 11.3 kg
51240d: 200 mm | D: 280 mm | T: 62 mm | Ca: 315 kN | C0a: 1110 kN | Mass: 11.8 kg
51244d: 220 mm | D: 300 mm | T: 63 mm | Ca: 325 kN | C0a: 1210 kN | Mass: 13 kg
51248d: 240 mm | D: 340 mm | T: 78 mm | Ca: 415 kN | C0a: 1650 kN | Mass: 22.4 kg
51252d: 260 mm | D: 360 mm | T: 79 mm | Ca: 440 kN | C0a: 1810 kN | Mass: 24.2 kg
51256d: 280 mm | D: 380 mm | T: 80 mm | Ca: 460 kN | C0a: 1970 kN | Mass: 26.1 kg
51260d: 300 mm | D: 420 mm | T: 95 mm | Ca: 590 kN | C0a: 2680 kN | Mass: 40.6 kg
