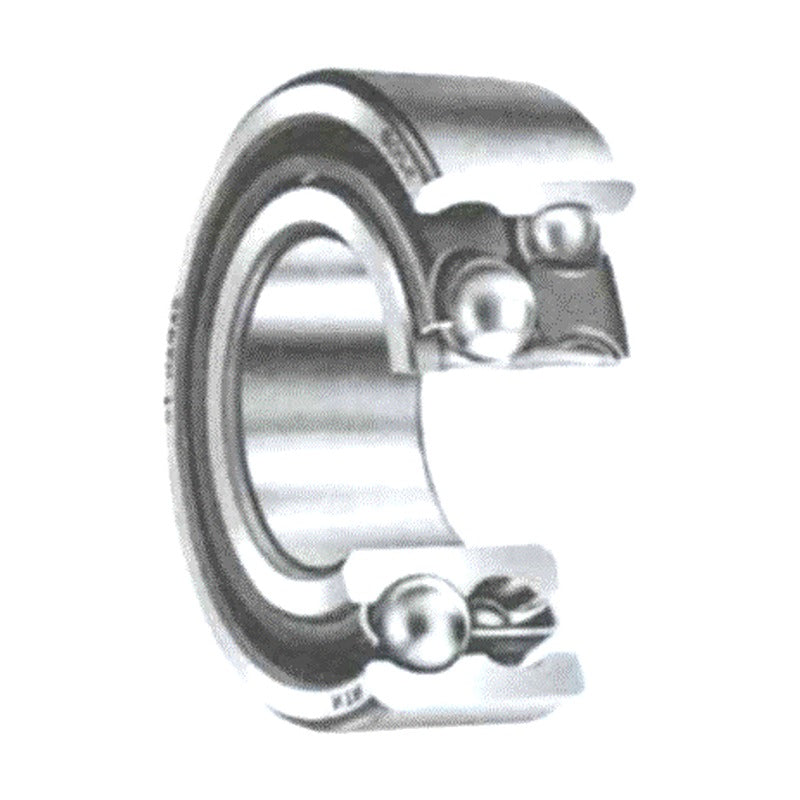

NTN 5200 Series Double-Row Angular Contact Ball Bearings (Open)

NTN 5200 Series Double-Row Angular Contact Ball Bearings (Open)

NTN 5200 series double-row angular contact ball bearings, bore 10-100 mm, equivalent to two single-row bearings back to back.

Key features

  • Two rows of balls in back-to-back arrangement
  • Carries radial loads and axial loads in both directions
  • High rigidity against moment loads
  • Compact width compared with paired single-row bearings

Specifications

Series 5200
Bearing type Double-row angular contact ball bearing
Bore range 10-100 mm
Load rating unit kN
Brand NTN
Source NTN NTN Ball and Roller Bearings catalogue, p. 43-44
5200 d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5201 d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 9.15 kN | C0r: 5.05 kN | Mass: 0.057 kg
5202 d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 10 kN | C0r: 6.05 kN | Mass: 0.064 kg
5203 d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 12.8 kN | C0r: 7.9 kN | Mass: 0.096 kg
5204 d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 19 kN | C0r: 12.1 kN | Mass: 0.153 kg
5205 d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 20.6 kN | C0r: 14.3 kN | Mass: 0.175 kg
5206 d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 28.6 kN | C0r: 20.4 kN | Mass: 0.286 kg
5207 d: 35 mm | D: 72 mm | B: 27 mm | Cr: 38 kN | C0r: 27.8 kN | Mass: 0.436 kg
5208 d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 42.5 kN | C0r: 32.5 kN | Mass: 0.59 kg
5209 d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 48 kN | C0r: 37 kN | Mass: 0.64 kg
5210 d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 51 kN | C0r: 42 kN | Mass: 0.689 kg
5211 d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 63 kN | C0r: 53 kN | Mass: 0.986 kg
5212 d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 71.5 kN | C0r: 58.5 kN | Mass: 1.27 kg
5213 d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 83.5 kN | C0r: 72.5 kN | Mass: 1.57 kg
5214 d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 90.5 kN | C0r: 79.5 kN | Mass: 1.8 kg
5215 d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 90 kN | C0r: 80.5 kN | Mass: 1.9 kg
5216 d: 80 mm | D: 140 mm | B: 44.4 mm | Cr: 106 kN | C0r: 95.5 kN | Mass: 2.39 kg
5217 d: 85 mm | D: 150 mm | B: 49.2 mm | Cr: 112 kN | C0r: 106 kN | Mass: 3.06 kg
5218 d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 140 kN | C0r: 129 kN | Mass: 3.73 kg
5219 d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 159 kN | C0r: 148 kN | Mass: 4.86 kg
5220 d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 178 kN | C0r: 167 kN | Mass: 5.94 kg
Angular Contact Ball BearingsNTN
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 5200 Series Double-Row Angular Contact Ball Bearings (Open)

Brand NTN·Angular Contact Ball Bearings

Available part numbers (21)

5200, 5201, 5202, 5203, 5204, 5205, 5206, 5207, 5208, 5209 + 11 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5200d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5201d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 9.15 kN | C0r: 5.05 kN | Mass: 0.057 kg
5202d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 10 kN | C0r: 6.05 kN | Mass: 0.064 kg
5203d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 12.8 kN | C0r: 7.9 kN | Mass: 0.096 kg
5204d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 19 kN | C0r: 12.1 kN | Mass: 0.153 kg
5205d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 20.6 kN | C0r: 14.3 kN | Mass: 0.175 kg
5206d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 28.6 kN | C0r: 20.4 kN | Mass: 0.286 kg
5207d: 35 mm | D: 72 mm | B: 27 mm | Cr: 38 kN | C0r: 27.8 kN | Mass: 0.436 kg
5208d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 42.5 kN | C0r: 32.5 kN | Mass: 0.59 kg
5209d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 48 kN | C0r: 37 kN | Mass: 0.64 kg
5210d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 51 kN | C0r: 42 kN | Mass: 0.689 kg
5211d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 63 kN | C0r: 53 kN | Mass: 0.986 kg
5212d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 71.5 kN | C0r: 58.5 kN | Mass: 1.27 kg
5213d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 83.5 kN | C0r: 72.5 kN | Mass: 1.57 kg
5214d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 90.5 kN | C0r: 79.5 kN | Mass: 1.8 kg
5215d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 90 kN | C0r: 80.5 kN | Mass: 1.9 kg
5216d: 80 mm | D: 140 mm | B: 44.4 mm | Cr: 106 kN | C0r: 95.5 kN | Mass: 2.39 kg
5217d: 85 mm | D: 150 mm | B: 49.2 mm | Cr: 112 kN | C0r: 106 kN | Mass: 3.06 kg
5218d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 140 kN | C0r: 129 kN | Mass: 3.73 kg
5219d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 159 kN | C0r: 148 kN | Mass: 4.86 kg
5220d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 178 kN | C0r: 167 kN | Mass: 5.94 kg
