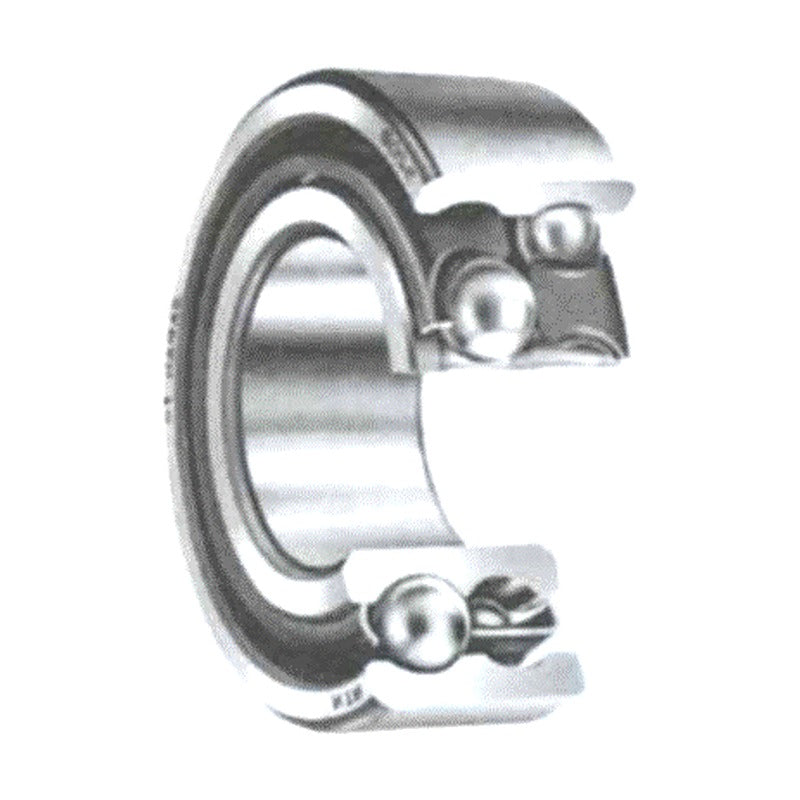

NTN 5200A/5300A Double-Row Angular Contact Bearings (ZZ, LLB, LLU)

NTN 5200A/5300A Double-Row Angular Contact Bearings (ZZ, LLB, LLU)

NTN 5200A and 5300A series double-row angular contact ball bearings with shields (ZZ), non-contact seals (LLB) or contact seals (LLU).

Key features

  • Pre-lubricated shielded and sealed versions
  • ZZ shields, LLB non-contact seals, LLU contact seals
  • Carries radial and bi-directional axial loads
  • Double-row back-to-back design for rigidity

Specifications

Series 5200A, 5300A
Bearing type Double-row angular contact ball bearing
Closures ZZ, LLB, LLU
Load rating unit kN
Brand NTN
Source NTN NTN Ball and Roller Bearings catalogue, p. 45
5200AZZ d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5200ALLB d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5200ALLU d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5201AZZ d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 7.6 kN | C0r: 4.5 kN | Mass: 0.057 kg
5201ALLB d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 7.6 kN | C0r: 4.5 kN | Mass: 0.057 kg
5201ALLU d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 7.6 kN | C0r: 4.5 kN | Mass: 0.057 kg
5302AZZ d: 15 mm | D: 42 mm | B: 19 mm | Cr: 14.2 kN | C0r: 8.85 kN | Mass: 0.132 kg
5302ALLB d: 15 mm | D: 42 mm | B: 19 mm | Cr: 14.2 kN | C0r: 8.85 kN | Mass: 0.132 kg
5302ALLU d: 15 mm | D: 42 mm | B: 19 mm | Cr: 14.2 kN | C0r: 8.85 kN | Mass: 0.132 kg
5306AZZ d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 33 kN | C0r: 24.3 kN | Mass: 0.553 kg
5306ALLB d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 33 kN | C0r: 24.3 kN | Mass: 0.553 kg
5306ALLU d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 33 kN | C0r: 24.3 kN | Mass: 0.553 kg
5207AZZ d: 35 mm | D: 72 mm | B: 27 mm | Cr: 33 kN | C0r: 24.5 kN | Mass: 0.436 kg
5207ALLB d: 35 mm | D: 72 mm | B: 27 mm | Cr: 33 kN | C0r: 24.5 kN | Mass: 0.436 kg
5207ALLU d: 35 mm | D: 72 mm | B: 27 mm | Cr: 33 kN | C0r: 24.5 kN | Mass: 0.436 kg
5307AZZ d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 49.5 kN | C0r: 35 kN | Mass: 0.766 kg
5307ALLB d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 49.5 kN | C0r: 35 kN | Mass: 0.766 kg
5307ALLU d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 49.5 kN | C0r: 35 kN | Mass: 0.766 kg
5208AZZ d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 32 kN | Mass: 0.59 kg
5208ALLB d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 32 kN | Mass: 0.59 kg
5208ALLU d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 32 kN | Mass: 0.59 kg
5308AZZ d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 55 kN | C0r: 40 kN | Mass: 1.01 kg
5308ALLB d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 55 kN | C0r: 40 kN | Mass: 1.01 kg
5308ALLU d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 55 kN | C0r: 40 kN | Mass: 1.01 kg
Angular Contact Ball BearingsNTN
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 5200A/5300A Double-Row Angular Contact Bearings (ZZ, LLB, LLU)

Brand NTN·Angular Contact Ball Bearings

Available part numbers (24)

5200AZZ, 5200ALLB, 5200ALLU, 5201AZZ, 5201ALLB, 5201ALLU, 5302AZZ, 5302ALLB, 5302ALLU, 5306AZZ + 14 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5200AZZd: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5200ALLBd: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5200ALLUd: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 6.95 kN | C0r: 3.8 kN | Mass: 0.049 kg
5201AZZd: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 7.6 kN | C0r: 4.5 kN | Mass: 0.057 kg
5201ALLBd: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 7.6 kN | C0r: 4.5 kN | Mass: 0.057 kg
5201ALLUd: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 7.6 kN | C0r: 4.5 kN | Mass: 0.057 kg
5302AZZd: 15 mm | D: 42 mm | B: 19 mm | Cr: 14.2 kN | C0r: 8.85 kN | Mass: 0.132 kg
5302ALLBd: 15 mm | D: 42 mm | B: 19 mm | Cr: 14.2 kN | C0r: 8.85 kN | Mass: 0.132 kg
5302ALLUd: 15 mm | D: 42 mm | B: 19 mm | Cr: 14.2 kN | C0r: 8.85 kN | Mass: 0.132 kg
5306AZZd: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 33 kN | C0r: 24.3 kN | Mass: 0.553 kg
5306ALLBd: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 33 kN | C0r: 24.3 kN | Mass: 0.553 kg
5306ALLUd: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 33 kN | C0r: 24.3 kN | Mass: 0.553 kg
5207AZZd: 35 mm | D: 72 mm | B: 27 mm | Cr: 33 kN | C0r: 24.5 kN | Mass: 0.436 kg
5207ALLBd: 35 mm | D: 72 mm | B: 27 mm | Cr: 33 kN | C0r: 24.5 kN | Mass: 0.436 kg
5207ALLUd: 35 mm | D: 72 mm | B: 27 mm | Cr: 33 kN | C0r: 24.5 kN | Mass: 0.436 kg
5307AZZd: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 49.5 kN | C0r: 35 kN | Mass: 0.766 kg
5307ALLBd: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 49.5 kN | C0r: 35 kN | Mass: 0.766 kg
5307ALLUd: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 49.5 kN | C0r: 35 kN | Mass: 0.766 kg
5208AZZd: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 32 kN | Mass: 0.59 kg
5208ALLBd: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 32 kN | Mass: 0.59 kg
5208ALLUd: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 32 kN | Mass: 0.59 kg
5308AZZd: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 55 kN | C0r: 40 kN | Mass: 1.01 kg
5308ALLBd: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 55 kN | C0r: 40 kN | Mass: 1.01 kg
5308ALLUd: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 55 kN | C0r: 40 kN | Mass: 1.01 kg
