• NTN 5629/5620 Double-Direction Angular Contact Thrust Ball Bearings
1 1

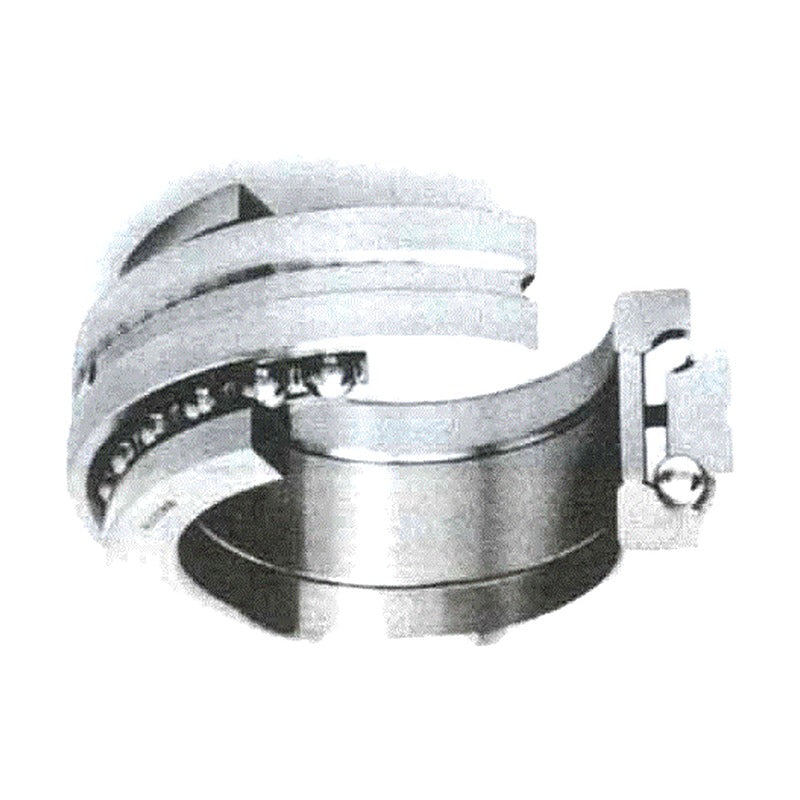

NTN 5629/5620 Double-Direction Angular Contact Thrust Ball Bearings

NTN 5629/5620 Double-Direction Angular Contact Thrust Ball Bearings

NTN 5629 and 5620 series double-direction angular contact thrust ball bearings, used with NN30 double-row cylindrical roller bearings in machine tool spindles.

Key features

  • Supports axial loads in both directions with high rigidity
  • 60 deg contact angle
  • Paired with NN30 double-row cylindrical roller bearings
  • Small and large outer diameter types (M suffix) listed

Specifications

Series 5629, 5620
Bearing type Double-direction angular contact thrust ball bearing
Load rating unit kN (axial)
Brand NTN
Product category Thrust Bearings
Source NTN NTN Ball and Roller Bearings catalogue, p. 160-161
562005 d: 25 mm | D: 47 mm | T: 28 mm | Ca: 13.2 kN | C0a: 28.3 kN | Mass: 0.197 kg
562005M d: 27 mm | D: 47 mm | T: 28 mm | Ca: 13.2 kN | C0a: 28.3 kN | Mass: 0.177 kg
562006 d: 30 mm | D: 55 mm | T: 32 mm | Ca: 14 kN | C0a: 32.5 kN | Mass: 0.301 kg
562006M d: 32 mm | D: 55 mm | T: 32 mm | Ca: 14 kN | C0a: 32.5 kN | Mass: 0.28 kg
562007 d: 35 mm | D: 62 mm | T: 34 mm | Ca: 19.7 kN | C0a: 48.5 kN | Mass: 0.394 kg
562007M d: 37 mm | D: 62 mm | T: 34 mm | Ca: 19.7 kN | C0a: 48.5 kN | Mass: 0.35 kg
562008 d: 40 mm | D: 68 mm | T: 36 mm | Ca: 23.8 kN | C0a: 58.5 kN | Mass: 0.482 kg
562008M d: 42 mm | D: 68 mm | T: 36 mm | Ca: 23.8 kN | C0a: 58.5 kN | Mass: 0.44 kg
562009 d: 45 mm | D: 75 mm | T: 38 mm | Ca: 26 kN | C0a: 69 kN | Mass: 0.605 kg
562009M d: 47 mm | D: 75 mm | T: 38 mm | Ca: 26 kN | C0a: 69 kN | Mass: 0.54 kg
562010 d: 50 mm | D: 80 mm | T: 38 mm | Ca: 26.8 kN | C0a: 74 kN | Mass: 0.638 kg
562010M d: 52 mm | D: 80 mm | T: 38 mm | Ca: 26.8 kN | C0a: 74 kN | Mass: 0.59 kg
562011 d: 55 mm | D: 90 mm | T: 44 mm | Ca: 37 kN | C0a: 99 kN | Mass: 0.988 kg
562011M d: 57 mm | D: 90 mm | T: 44 mm | Ca: 37 kN | C0a: 99 kN | Mass: 0.9 kg
562012 d: 60 mm | D: 95 mm | T: 44 mm | Ca: 37.5 kN | C0a: 103 kN | Mass: 1.06 kg
562012M d: 62 mm | D: 95 mm | T: 44 mm | Ca: 37.5 kN | C0a: 103 kN | Mass: 0.96 kg
562013 d: 65 mm | D: 100 mm | T: 44 mm | Ca: 39 kN | C0a: 111 kN | Mass: 1.08 kg
562013M d: 67 mm | D: 100 mm | T: 44 mm | Ca: 39 kN | C0a: 111 kN | Mass: 1 kg
562014 d: 70 mm | D: 110 mm | T: 48 mm | Ca: 47.5 kN | C0a: 140 kN | Mass: 1.53 kg
562014M d: 73 mm | D: 110 mm | T: 48 mm | Ca: 47.5 kN | C0a: 140 kN | Mass: 1.4 kg
562015 d: 75 mm | D: 115 mm | T: 48 mm | Ca: 49 kN | C0a: 150 kN | Mass: 1.61 kg
562015M d: 78 mm | D: 115 mm | T: 48 mm | Ca: 49 kN | C0a: 150 kN | Mass: 1.5 kg
562016 d: 80 mm | D: 125 mm | T: 54 mm | Ca: 57.5 kN | C0a: 178 kN | Mass: 2.2 kg
562016M d: 83 mm | D: 125 mm | T: 54 mm | Ca: 57.5 kN | C0a: 178 kN | Mass: 2 kg
562017 d: 85 mm | D: 130 mm | T: 54 mm | Ca: 58 kN | C0a: 184 kN | Mass: 2.31 kg
562017M d: 88 mm | D: 130 mm | T: 54 mm | Ca: 58 kN | C0a: 184 kN | Mass: 2.1 kg
562018 d: 90 mm | D: 140 mm | T: 60 mm | Ca: 67.5 kN | C0a: 216 kN | Mass: 3.05 kg
562018M d: 93 mm | D: 140 mm | T: 60 mm | Ca: 67.5 kN | C0a: 216 kN | Mass: 2.7 kg
562019 d: 95 mm | D: 145 mm | T: 60 mm | Ca: 68 kN | C0a: 223 kN | Mass: 3.18 kg
562019M d: 98 mm | D: 145 mm | T: 60 mm | Ca: 68 kN | C0a: 223 kN | Mass: 2.9 kg
562020 d: 100 mm | D: 140 mm | T: 48 mm | Ca: 52 kN | C0a: 179 kN | Mass: 2.04 kg
562020M d: 103 mm | D: 150 mm | T: 60 mm | Ca: 68.5 kN | C0a: 229 kN | Mass: 3 kg
562021 d: 105 mm | D: 160 mm | T: 66 mm | Ca: 78.5 kN | C0a: 266 kN | Mass: 4.19 kg
562021M d: 109 mm | D: 160 mm | T: 66 mm | Ca: 78.5 kN | C0a: 266 kN | Mass: 3.7 kg
562022 d: 110 mm | D: 170 mm | T: 72 mm | Ca: 96 kN | C0a: 315 kN | Mass: 5.35 kg
562022M d: 114 mm | D: 170 mm | T: 72 mm | Ca: 96 kN | C0a: 315 kN | Mass: 4.9 kg
562024 d: 120 mm | D: 180 mm | T: 72 mm | Ca: 98 kN | C0a: 335 kN | Mass: 5.73 kg
562024M d: 124 mm | D: 180 mm | T: 72 mm | Ca: 98 kN | C0a: 335 kN | Mass: 5.2 kg
562026 d: 130 mm | D: 200 mm | T: 84 mm | Ca: 139 kN | C0a: 460 kN | Mass: 8.58 kg
562026M d: 135 mm | D: 200 mm | T: 84 mm | Ca: 139 kN | C0a: 460 kN | Mass: 7.6 kg
562028 d: 140 mm | D: 210 mm | T: 84 mm | Ca: 144 kN | C0a: 495 kN | Mass: 9.1 kg
562028M d: 145 mm | D: 210 mm | T: 84 mm | Ca: 144 kN | C0a: 495 kN | Mass: 8.1 kg
562030 d: 150 mm | D: 225 mm | T: 90 mm | Ca: 147 kN | C0a: 525 kN | Mass: 11.2 kg
562030M d: 155 mm | D: 225 mm | T: 90 mm | Ca: 147 kN | C0a: 525 kN | Mass: 10 kg
562032 d: 160 mm | D: 240 mm | T: 96 mm | Ca: 172 kN | C0a: 620 kN | Mass: 13.6 kg
562032M d: 165 mm | D: 240 mm | T: 96 mm | Ca: 172 kN | C0a: 620 kN | Mass: 11.9 kg
562034 d: 170 mm | D: 260 mm | T: 108 mm | Ca: 202 kN | C0a: 735 kN | Mass: 18.5 kg
562034M d: 176 mm | D: 260 mm | T: 108 mm | Ca: 202 kN | C0a: 735 kN | Mass: 16.5 kg
562036 d: 180 mm | D: 280 mm | T: 120 mm | Ca: 234 kN | C0a: 865 kN | Mass: 24.7 kg
562036M d: 187 mm | D: 280 mm | T: 120 mm | Ca: 234 kN | C0a: 865 kN | Mass: 21.8 kg
562038 d: 190 mm | D: 290 mm | T: 120 mm | Ca: 236 kN | C0a: 890 kN | Mass: 25.5 kg
562038M d: 197 mm | D: 290 mm | T: 120 mm | Ca: 236 kN | C0a: 890 kN | Mass: 23 kg
562040 d: 200 mm | D: 310 mm | T: 132 mm | Ca: 271 kN | C0a: 1030 kN | Mass: 32.7 kg
562040M d: 207 mm | D: 310 mm | T: 132 mm | Ca: 271 kN | C0a: 1030 kN | Mass: 29.7 kg
562044 d: 220 mm | D: 340 mm | T: 144 mm | Ca: 335 kN | C0a: 1270 kN | Mass: 42.8 kg
562044M d: 228 mm | D: 340 mm | T: 144 mm | Ca: 335 kN | C0a: 1270 kN | Mass: 38.5 kg
562048 d: 240 mm | D: 360 mm | T: 144 mm | Ca: 340 kN | C0a: 1350 kN | Mass: 45.8 kg
562048M d: 248 mm | D: 360 mm | T: 144 mm | Ca: 340 kN | C0a: 1350 kN | Mass: 41.2 kg
562052 d: 260 mm | D: 400 mm | T: 164 mm | Ca: 405 kN | C0a: 1710 kN | Mass: 67 kg
562052M d: 269 mm | D: 400 mm | T: 164 mm | Ca: 405 kN | C0a: 1710 kN | Mass: 60.3 kg
562056 d: 280 mm | D: 420 mm | T: 164 mm | Ca: 415 kN | C0a: 1810 kN | Mass: 71.7 kg
562056M d: 289 mm | D: 420 mm | T: 164 mm | Ca: 415 kN | C0a: 1810 kN | Mass: 64 kg
562060 d: 300 mm | D: 460 mm | T: 190 mm | Ca: 475 kN | C0a: 2170 kN | Mass: 102 kg
562060M d: 310 mm | D: 460 mm | T: 190 mm | Ca: 475 kN | C0a: 2170 kN | Mass: 91.8 kg
562064 d: 320 mm | D: 480 mm | T: 190 mm | Ca: 480 kN | C0a: 2230 kN | Mass: 108 kg
562064M d: 330 mm | D: 480 mm | T: 190 mm | Ca: 480 kN | C0a: 2230 kN | Mass: 97.2 kg
Thrust BearingsNTN
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 5629/5620 Double-Direction Angular Contact Thrust Ball Bearings

Brand NTN·Thrust Bearings

Available part numbers (66)

562005, 562005M, 562006, 562006M, 562007, 562007M, 562008, 562008M, 562009, 562009M + 56 more — see full table ↓
