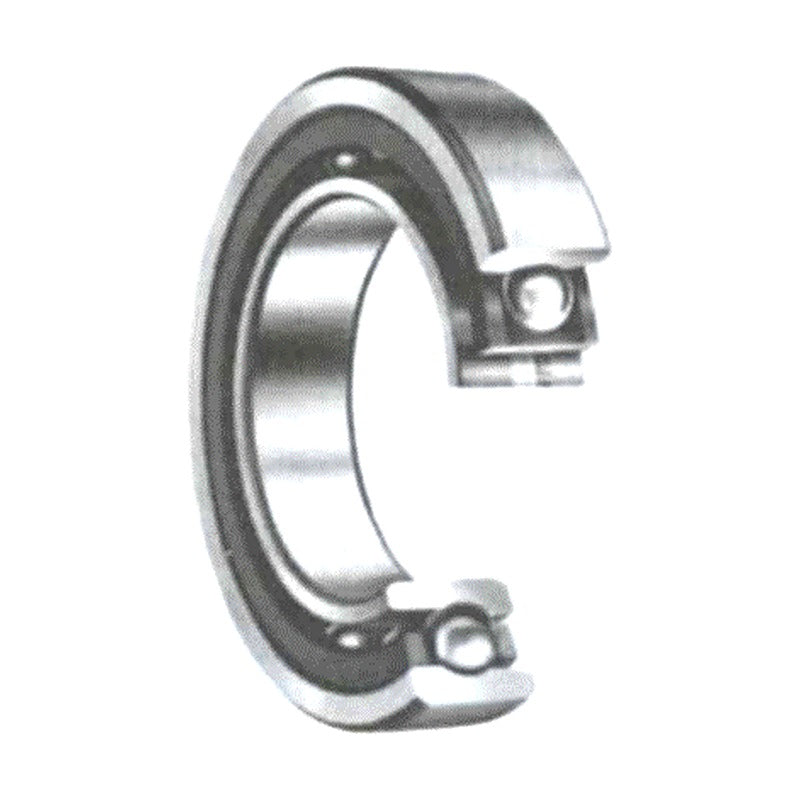

NTN 5S-BNT Ceramic Ball Angular Contact Bearings (Hybrid)

NTN 5S-BNT Ceramic Ball Angular Contact Bearings (Hybrid)

NTN 5S-BNT series angular contact ball bearings with ceramic balls (hybrid design) for ultra high-speed spindle applications.

Key features

  • Ceramic rolling elements reduce centrifugal force and heat generation
  • Ultra high-speed angular contact design
  • Dynamic load rating Cr listed for reference
  • 5S-BNT0 and 5S-BNT2 dimension series

Specifications

Series 5S-BNT0, 5S-BNT2
Bearing type Hybrid ceramic ball angular contact bearing
Rolling elements Ceramic balls
Load rating unit kN
Brand NTN
Source NTN NTN Ball and Roller Bearings catalogue, p. 39-40
5S-BNT000 d: 10 mm | D: 26 mm | B: 8 mm | Cr: 3.75 kN | Mass: 0.013 kg
5S-BNT200 d: 10 mm | D: 30 mm | B: 9 mm | Cr: 4.95 kN | Mass: 0.016 kg
5S-BNT001 d: 12 mm | D: 28 mm | B: 8 mm | Cr: 4.15 kN | Mass: 0.018 kg
5S-BNT201 d: 12 mm | D: 32 mm | B: 10 mm | Cr: 5.4 kN | Mass: 0.021 kg
5S-BNT002 d: 15 mm | D: 32 mm | B: 9 mm | Cr: 4.75 kN | Mass: 0.026 kg
5S-BNT202 d: 15 mm | D: 35 mm | B: 11 mm | Cr: 6.85 kN | Mass: 0.03 kg
5S-BNT003 d: 17 mm | D: 35 mm | B: 10 mm | Cr: 5.9 kN | Mass: 0.029 kg
5S-BNT203 d: 17 mm | D: 40 mm | B: 12 mm | Cr: 8.55 kN | Mass: 0.046 kg
5S-BNT004 d: 20 mm | D: 42 mm | B: 12 mm | Cr: 8 kN | Mass: 0.05 kg
5S-BNT204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 11.2 kN | Mass: 0.08 kg
5S-BNT005 d: 25 mm | D: 47 mm | B: 12 mm | Cr: 8.95 kN | Mass: 0.059 kg
5S-BNT205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 12.7 kN | Mass: 0.113 kg
5S-BNT006 d: 30 mm | D: 55 mm | B: 13 mm | Cr: 11.6 kN | Mass: 0.097 kg
5S-BNT206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 17.6 kN | Mass: 0.113 kg
5S-BNT007 d: 35 mm | D: 62 mm | B: 14 mm | Cr: 14.6 kN | Mass: 0.128 kg
5S-BNT207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 23.2 kN | Mass: 0.255 kg
5S-BNT008 d: 40 mm | D: 68 mm | B: 15 mm | Cr: 15.7 kN | Mass: 0.162 kg
5S-BNT208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 27.8 kN | Mass: 0.331 kg
5S-BNT009 d: 45 mm | D: 75 mm | B: 16 mm | Cr: 18.6 kN | Mass: 0.208 kg
5S-BNT209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 31 kN | Mass: 0.374 kg
Angular Contact Ball BearingsNTN
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 5S-BNT Ceramic Ball Angular Contact Bearings (Hybrid)

Brand NTN·Angular Contact Ball Bearings

Available part numbers (20)

5S-BNT000, 5S-BNT200, 5S-BNT001, 5S-BNT201, 5S-BNT002, 5S-BNT202, 5S-BNT003, 5S-BNT203, 5S-BNT004, 5S-BNT204 + 10 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5S-BNT000d: 10 mm | D: 26 mm | B: 8 mm | Cr: 3.75 kN | Mass: 0.013 kg
5S-BNT200d: 10 mm | D: 30 mm | B: 9 mm | Cr: 4.95 kN | Mass: 0.016 kg
5S-BNT001d: 12 mm | D: 28 mm | B: 8 mm | Cr: 4.15 kN | Mass: 0.018 kg
5S-BNT201d: 12 mm | D: 32 mm | B: 10 mm | Cr: 5.4 kN | Mass: 0.021 kg
5S-BNT002d: 15 mm | D: 32 mm | B: 9 mm | Cr: 4.75 kN | Mass: 0.026 kg
5S-BNT202d: 15 mm | D: 35 mm | B: 11 mm | Cr: 6.85 kN | Mass: 0.03 kg
5S-BNT003d: 17 mm | D: 35 mm | B: 10 mm | Cr: 5.9 kN | Mass: 0.029 kg
5S-BNT203d: 17 mm | D: 40 mm | B: 12 mm | Cr: 8.55 kN | Mass: 0.046 kg
5S-BNT004d: 20 mm | D: 42 mm | B: 12 mm | Cr: 8 kN | Mass: 0.05 kg
5S-BNT204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 11.2 kN | Mass: 0.08 kg
5S-BNT005d: 25 mm | D: 47 mm | B: 12 mm | Cr: 8.95 kN | Mass: 0.059 kg
5S-BNT205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 12.7 kN | Mass: 0.113 kg
5S-BNT006d: 30 mm | D: 55 mm | B: 13 mm | Cr: 11.6 kN | Mass: 0.097 kg
5S-BNT206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 17.6 kN | Mass: 0.113 kg
5S-BNT007d: 35 mm | D: 62 mm | B: 14 mm | Cr: 14.6 kN | Mass: 0.128 kg
5S-BNT207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 23.2 kN | Mass: 0.255 kg
5S-BNT008d: 40 mm | D: 68 mm | B: 15 mm | Cr: 15.7 kN | Mass: 0.162 kg
5S-BNT208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 27.8 kN | Mass: 0.331 kg
5S-BNT009d: 45 mm | D: 75 mm | B: 16 mm | Cr: 18.6 kN | Mass: 0.208 kg
5S-BNT209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 31 kN | Mass: 0.374 kg
