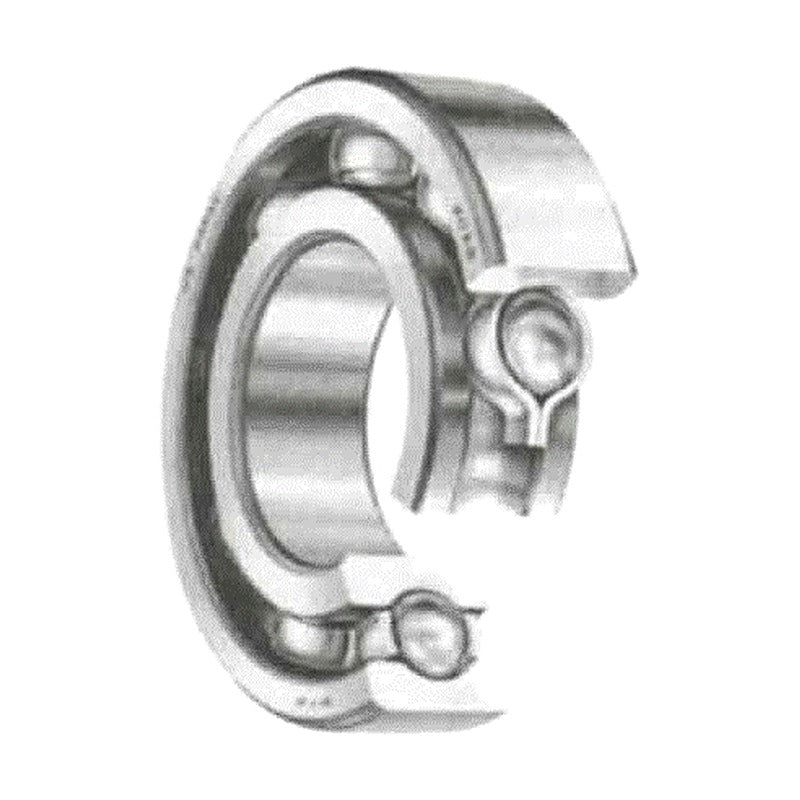

NTN 64 Series Deep Groove Ball Bearings (Open)

NTN 64 Series Deep Groove Ball Bearings (Open)

NTN 64 series single-row deep groove ball bearings, bore 17-60 mm, in open, shielded and sealed versions plus snap-ring groove types where listed.

Key features

  • Single-row deep groove design for radial and moderate axial loads
  • ZZ: steel shields on both sides
  • LLB / LLF: non-contact rubber seals both sides; LLH: low-torque seals; LLU: contact seals
  • N: snap ring groove; NR: snap ring groove with snap ring
  • Basic load ratings to ISO 281 / ISO 76 as listed by NTN

Specifications

Series 64
Bearing type Single-row deep groove ball bearing
Bore range 17-60 mm
Load rating unit kN
Mass Open type, approx.
Source NTN NTN Ball and Roller Bearings catalogue, p. 5-7
6403 d: 17 mm | D: 62 mm | B: 17 mm | Cr: 22.7 kN | C0r: 10.8 kN | Mass: 0.27 kg
6404 d: 20 mm | D: 72 mm | B: 19 mm | Cr: 28.5 kN | C0r: 13.9 kN | Mass: 0.4 kg
6405 d: 25 mm | D: 80 mm | B: 21 mm | Cr: 34.5 kN | C0r: 17.5 kN | Mass: 0.53 kg
6406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 43.5 kN | C0r: 23.9 kN | Mass: 0.735 kg
6407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 55 kN | C0r: 31 kN | Mass: 0.952 kg
6408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 63.5 kN | C0r: 36.5 kN | Mass: 1.23 kg
6409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 77 kN | C0r: 45 kN | Mass: 1.53 kg
6410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 83 kN | C0r: 49.5 kN | Mass: 1.88 kg
6411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 89 kN | C0r: 54 kN | Mass: 2.29 kg
6412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 102 kN | C0r: 64.5 kN | Mass: 2.77 kg
Deep Groove Ball BearingsNTN
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 64 Series Deep Groove Ball Bearings (Open)

Brand NTN·Deep Groove Ball Bearings

Available part numbers (10)

6403, 6404, 6405, 6406, 6407, 6408, 6409, 6410, 6411, 6412

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6403d: 17 mm | D: 62 mm | B: 17 mm | Cr: 22.7 kN | C0r: 10.8 kN | Mass: 0.27 kg
6404d: 20 mm | D: 72 mm | B: 19 mm | Cr: 28.5 kN | C0r: 13.9 kN | Mass: 0.4 kg
6405d: 25 mm | D: 80 mm | B: 21 mm | Cr: 34.5 kN | C0r: 17.5 kN | Mass: 0.53 kg
6406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 43.5 kN | C0r: 23.9 kN | Mass: 0.735 kg
6407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 55 kN | C0r: 31 kN | Mass: 0.952 kg
6408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 63.5 kN | C0r: 36.5 kN | Mass: 1.23 kg
6409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 77 kN | C0r: 45 kN | Mass: 1.53 kg
6410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 83 kN | C0r: 49.5 kN | Mass: 1.88 kg
6411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 89 kN | C0r: 54 kN | Mass: 2.29 kg
6412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 102 kN | C0r: 64.5 kN | Mass: 2.77 kg
