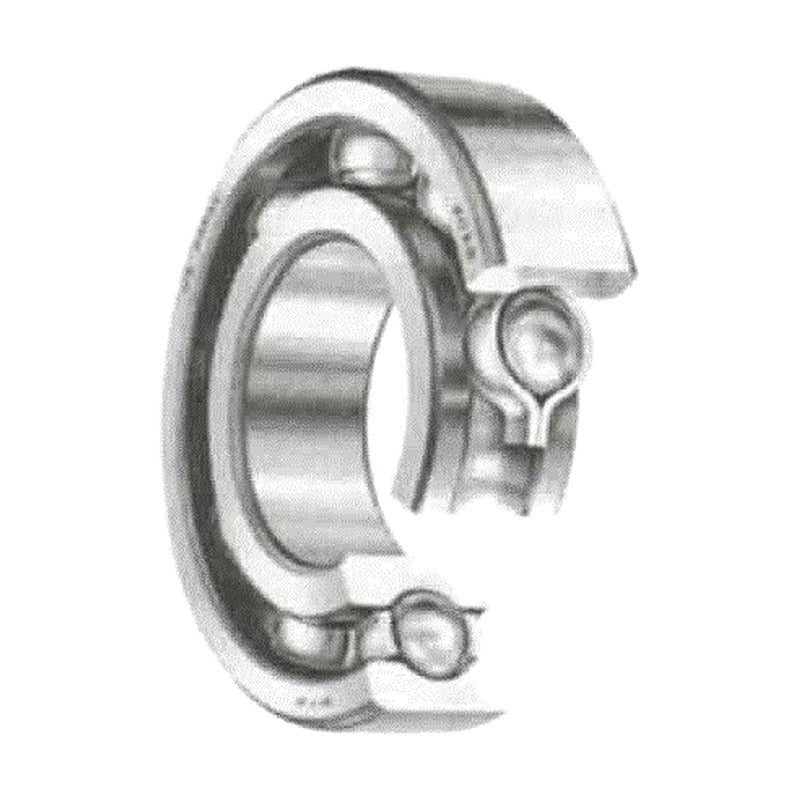

NTN 67 Series Deep Groove Ball Bearings (Open, LLF)

NTN 67 Series Deep Groove Ball Bearings (Open, LLF)

NTN 67 series single-row deep groove ball bearings, bore 10-30 mm, in open, shielded and sealed versions plus snap-ring groove types where listed.

Key features

  • Single-row deep groove design for radial and moderate axial loads
  • ZZ: steel shields on both sides
  • LLB / LLF: non-contact rubber seals both sides; LLH: low-torque seals; LLU: contact seals
  • N: snap ring groove; NR: snap ring groove with snap ring
  • Basic load ratings to ISO 281 / ISO 76 as listed by NTN

Specifications

Series 67
Bearing type Single-row deep groove ball bearing
Bore range 10-30 mm
Load rating unit kN
Mass Open type, approx.
Source NTN NTN Ball and Roller Bearings catalogue, p. 5-6
6700 d: 10 mm | D: 15 mm | B: 2 mm | Cr: 0.855 kN | C0r: 0.435 kN | Mass: 0.0015 kg
6701 d: 12 mm | D: 18 mm | B: 4 mm | Cr: 0.93 kN | C0r: 0.53 kN | Mass: 0.002 kg
6701LLF d: 12 mm | D: 18 mm | B: 4 mm | Cr: 0.93 kN | C0r: 0.53 kN | Mass: 0.002 kg
6702 d: 15 mm | D: 21 mm | B: 4 mm | Cr: 0.94 kN | C0r: 0.585 kN | Mass: 0.0025 kg
6702LLF d: 15 mm | D: 21 mm | B: 4 mm | Cr: 0.94 kN | C0r: 0.585 kN | Mass: 0.0025 kg
6703 d: 17 mm | D: 23 mm | B: 4 mm | Cr: 1 kN | C0r: 0.66 kN | Mass: 0.0025 kg
6703LLF d: 17 mm | D: 23 mm | B: 4 mm | Cr: 1 kN | C0r: 0.66 kN | Mass: 0.0025 kg
6704 d: 20 mm | D: 27 mm | B: 4 mm | Cr: 1.04 kN | C0r: 0.73 kN | Mass: 0.0045 kg
6704LLF d: 20 mm | D: 27 mm | B: 4 mm | Cr: 1.04 kN | C0r: 0.73 kN | Mass: 0.0045 kg
6705 d: 25 mm | D: 32 mm | B: 4 mm | Cr: 1.1 kN | C0r: 0.84 kN | Mass: 0.005 kg
6705LLF d: 25 mm | D: 32 mm | B: 4 mm | Cr: 1.1 kN | C0r: 0.84 kN | Mass: 0.005 kg
6706 d: 30 mm | D: 37 mm | B: 4 mm | Cr: 1.14 kN | C0r: 0.95 kN | Mass: 0.006 kg
6706LLF d: 30 mm | D: 37 mm | B: 4 mm | Cr: 1.14 kN | C0r: 0.95 kN | Mass: 0.006 kg
Deep Groove Ball BearingsNTN
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 67 Series Deep Groove Ball Bearings (Open, LLF)

Brand NTN·Deep Groove Ball Bearings

Available part numbers (13)

6700, 6701, 6701LLF, 6702, 6702LLF, 6703, 6703LLF, 6704, 6704LLF, 6705 + 3 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6700d: 10 mm | D: 15 mm | B: 2 mm | Cr: 0.855 kN | C0r: 0.435 kN | Mass: 0.0015 kg
6701d: 12 mm | D: 18 mm | B: 4 mm | Cr: 0.93 kN | C0r: 0.53 kN | Mass: 0.002 kg
6701LLFd: 12 mm | D: 18 mm | B: 4 mm | Cr: 0.93 kN | C0r: 0.53 kN | Mass: 0.002 kg
6702d: 15 mm | D: 21 mm | B: 4 mm | Cr: 0.94 kN | C0r: 0.585 kN | Mass: 0.0025 kg
6702LLFd: 15 mm | D: 21 mm | B: 4 mm | Cr: 0.94 kN | C0r: 0.585 kN | Mass: 0.0025 kg
6703d: 17 mm | D: 23 mm | B: 4 mm | Cr: 1 kN | C0r: 0.66 kN | Mass: 0.0025 kg
6703LLFd: 17 mm | D: 23 mm | B: 4 mm | Cr: 1 kN | C0r: 0.66 kN | Mass: 0.0025 kg
6704d: 20 mm | D: 27 mm | B: 4 mm | Cr: 1.04 kN | C0r: 0.73 kN | Mass: 0.0045 kg
6704LLFd: 20 mm | D: 27 mm | B: 4 mm | Cr: 1.04 kN | C0r: 0.73 kN | Mass: 0.0045 kg
6705d: 25 mm | D: 32 mm | B: 4 mm | Cr: 1.1 kN | C0r: 0.84 kN | Mass: 0.005 kg
6705LLFd: 25 mm | D: 32 mm | B: 4 mm | Cr: 1.1 kN | C0r: 0.84 kN | Mass: 0.005 kg
6706d: 30 mm | D: 37 mm | B: 4 mm | Cr: 1.14 kN | C0r: 0.95 kN | Mass: 0.006 kg
6706LLFd: 30 mm | D: 37 mm | B: 4 mm | Cr: 1.14 kN | C0r: 0.95 kN | Mass: 0.006 kg
