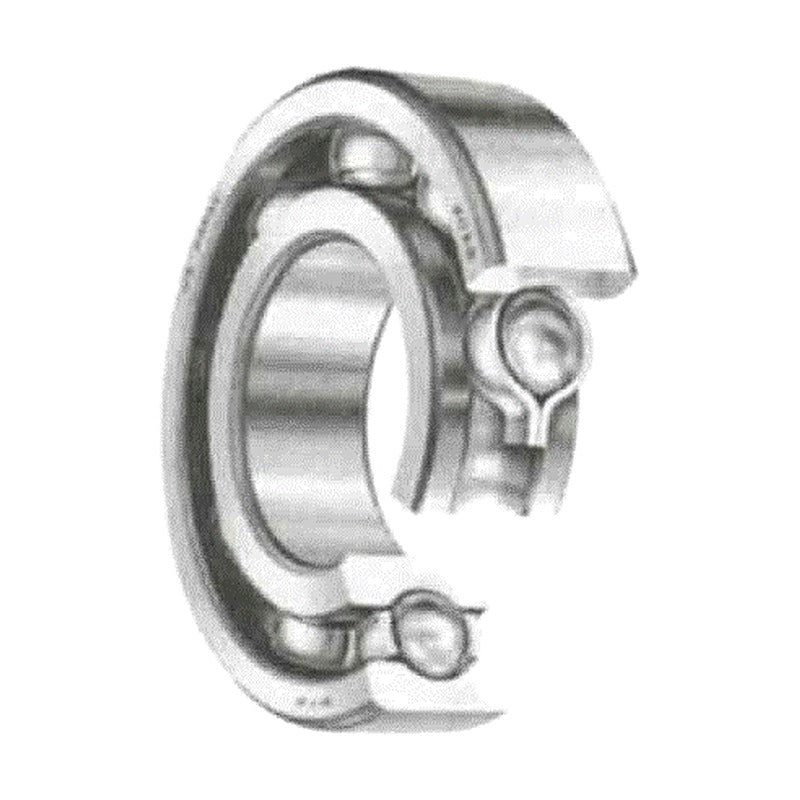

NTN 69 Series Deep Groove Ball Bearings (Open, ZZ, LLB, LLU, N, NR)

NTN 69 Series Deep Groove Ball Bearings (Open, ZZ, LLB, LLU, N, NR)

NTN 69 series single-row deep groove ball bearings, bore 10-480 mm, in open, shielded and sealed versions plus snap-ring groove types where listed.

Key features

  • Single-row deep groove design for radial and moderate axial loads
  • ZZ: steel shields on both sides
  • LLB / LLF: non-contact rubber seals both sides; LLH: low-torque seals; LLU: contact seals
  • N: snap ring groove; NR: snap ring groove with snap ring
  • Basic load ratings to ISO 281 / ISO 76 as listed by NTN

Specifications

Series 69
Bearing type Single-row deep groove ball bearing
Bore range 10-480 mm
Load rating unit kN
Mass Open type, approx.
Source NTN NTN Ball and Roller Bearings catalogue, p. 5-13
6900 d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900ZZ d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900LLB d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900LLU d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900N d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900NR d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6901 d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901ZZ d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901LLB d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901LLU d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901N d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901NR d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6902 d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902ZZ d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902LLB d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902LLU d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902N d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902NR d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6903 d: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903ZZ d: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903LLB d: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903LLU d: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903N d: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903NR d: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6904 d: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904ZZ d: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904LLB d: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904LLU d: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904N d: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904NR d: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6905 d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905ZZ d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905LLB d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905LLU d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905N d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905NR d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6906 d: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906ZZ d: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906LLB d: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906LLU d: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906N d: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906NR d: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6907 d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907ZZ d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907LLB d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907LLU d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907N d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907NR d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6908 d: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908ZZ d: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908LLB d: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908LLU d: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908N d: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908NR d: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6909 d: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909ZZ d: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909LLB d: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909LLU d: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909N d: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909NR d: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6910 d: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910ZZ d: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910LLB d: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910LLU d: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910N d: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910NR d: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6911 d: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911ZZ d: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911LLB d: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911LLU d: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911N d: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911NR d: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6912 d: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912ZZ d: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912LLB d: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912LLU d: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912N d: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912NR d: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6918 d: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918ZZ d: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918LLB d: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918LLU d: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918N d: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918NR d: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6919 d: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919ZZ d: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919LLB d: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919LLU d: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919N d: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919NR d: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6920 d: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920ZZ d: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920LLB d: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920LLU d: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920N d: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920NR d: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6921 d: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921ZZ d: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921LLB d: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921LLU d: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921N d: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921NR d: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6922 d: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922ZZ d: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922LLB d: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922LLU d: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922N d: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922NR d: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6924 d: 120 mm | D: 165 mm | B: 22 mm | Cr: 53 kN | C0r: 54 kN | Mass: 1.15 kg
6924N d: 120 mm | D: 165 mm | B: 22 mm | Cr: 53 kN | C0r: 54 kN | Mass: 1.15 kg
6924NR d: 120 mm | D: 165 mm | B: 22 mm | Cr: 53 kN | C0r: 54 kN | Mass: 1.15 kg
6926 d: 130 mm | D: 180 mm | B: 24 mm | Cr: 65 kN | C0r: 67.5 kN | Mass: 1.52 kg
6926N d: 130 mm | D: 180 mm | B: 24 mm | Cr: 65 kN | C0r: 67.5 kN | Mass: 1.52 kg
6926NR d: 130 mm | D: 180 mm | B: 24 mm | Cr: 65 kN | C0r: 67.5 kN | Mass: 1.52 kg
6928 d: 140 mm | D: 190 mm | B: 24 mm | Cr: 66.5 kN | C0r: 71.5 kN | Mass: 1.62 kg
6928N d: 140 mm | D: 190 mm | B: 24 mm | Cr: 66.5 kN | C0r: 71.5 kN | Mass: 1.62 kg
6928NR d: 140 mm | D: 190 mm | B: 24 mm | Cr: 66.5 kN | C0r: 71.5 kN | Mass: 1.62 kg
6930 d: 150 mm | D: 210 mm | B: 28 mm | Cr: 85 kN | C0r: 90.5 kN | Mass: 2.47 kg
6932 d: 160 mm | D: 220 mm | B: 28 mm | Cr: 87 kN | C0r: 96 kN | Mass: 2.61 kg
6934 d: 170 mm | D: 230 mm | B: 28 mm | Cr: 86 kN | C0r: 95.5 kN | Mass: 2.74 kg
6936 d: 180 mm | D: 250 mm | B: 33 mm | Cr: 110 kN | C0r: 119 kN | Mass: 4.76 kg
6938 d: 190 mm | D: 260 mm | B: 33 mm | Cr: 113 kN | C0r: 127 kN | Mass: 4.98 kg
6940 d: 200 mm | D: 280 mm | B: 38 mm | Cr: 157 kN | C0r: 168 kN | Mass: 7.1 kg
6944 d: 220 mm | D: 300 mm | B: 38 mm | Cr: 160 kN | C0r: 180 kN | Mass: 7.69 kg
6948 d: 240 mm | D: 320 mm | B: 38 mm | Cr: 170 kN | C0r: 203 kN | Mass: 8.28 kg
6952 d: 260 mm | D: 360 mm | B: 46 mm | Cr: 222 kN | C0r: 280 kN | Mass: 13.9 kg
6956 d: 280 mm | D: 380 mm | B: 46 mm | Cr: 227 kN | C0r: 299 kN | Mass: 14.8 kg
6960 d: 300 mm | D: 420 mm | B: 56 mm | Cr: 276 kN | C0r: 375 kN | Mass: 23.5 kg
6964 d: 320 mm | D: 440 mm | B: 56 mm | Cr: 285 kN | C0r: 405 kN | Mass: 24.8 kg
6968 d: 340 mm | D: 460 mm | B: 56 mm | Cr: 293 kN | C0r: 430 kN | Mass: 26.2 kg
6972 d: 360 mm | D: 480 mm | B: 56 mm | Cr: 300 kN | C0r: 455 kN | Mass: 27.5 kg
6976 d: 380 mm | D: 520 mm | B: 65 mm | Cr: 325 kN | C0r: 510 kN | Mass: 39.8 kg
6980 d: 440 mm | D: 540 mm | B: 65 mm | Cr: 335 kN | C0r: 535 kN | Mass: 41.6 kg
6984 d: 420 mm | D: 560 mm | B: 65 mm | Cr: 340 kN | C0r: 560 kN | Mass: 43.4 kg
6988 d: 440 mm | D: 600 mm | B: 74 mm | Cr: 365 kN | C0r: 615 kN | Mass: 60 kg
6992 d: 460 mm | D: 620 mm | B: 74 mm | Cr: 375 kN | C0r: 645 kN | Mass: 62.2 kg
6996 d: 480 mm | D: 650 mm | B: 78 mm | Cr: 430 kN | C0r: 770 kN | Mass: 73 kg
Deep Groove Ball BearingsNTN
137 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 69 Series Deep Groove Ball Bearings (Open, ZZ, LLB, LLU, N, NR)

Brand NTN·Deep Groove Ball Bearings

Available part numbers (137)

6900, 6900ZZ, 6900LLB, 6900LLU, 6900N, 6900NR, 6901, 6901ZZ, 6901LLB, 6901LLU + 127 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6900d: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900ZZd: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900LLBd: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900LLUd: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900Nd: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6900NRd: 10 mm | D: 22 mm | B: 6 mm | Cr: 2.7 kN | C0r: 1.27 kN | Mass: 0.009 kg
6901d: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901ZZd: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901LLBd: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901LLUd: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901Nd: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6901NRd: 12 mm | D: 24 mm | B: 6 mm | Cr: 2.89 kN | C0r: 1.46 kN | Mass: 0.011 kg
6902d: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902ZZd: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902LLBd: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902LLUd: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902Nd: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6902NRd: 15 mm | D: 28 mm | B: 7 mm | Cr: 3.65 kN | C0r: 2 kN | Mass: 0.016 kg
6903d: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903ZZd: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903LLBd: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903LLUd: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903Nd: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6903NRd: 17 mm | D: 30 mm | B: 7 mm | Cr: 4.65 kN | C0r: 2.58 kN | Mass: 0.018 kg
6904d: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904ZZd: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904LLBd: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904LLUd: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904Nd: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6904NRd: 20 mm | D: 37 mm | B: 9 mm | Cr: 6.4 kN | C0r: 3.7 kN | Mass: 0.036 kg
6905d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905ZZd: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905LLBd: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905LLUd: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905Nd: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6905NRd: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.05 kN | C0r: 4.55 kN | Mass: 0.042 kg
6906d: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906ZZd: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906LLBd: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906LLUd: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906Nd: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6906NRd: 30 mm | D: 47 mm | B: 9 mm | Cr: 7.25 kN | C0r: 5 kN | Mass: 0.048 kg
6907d: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907ZZd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907LLBd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907LLUd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907Nd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6907NRd: 35 mm | D: 55 mm | B: 10 mm | Cr: 9.55 kN | C0r: 6.85 kN | Mass: 0.074 kg
6908d: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908ZZd: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908LLBd: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908LLUd: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908Nd: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6908NRd: 40 mm | D: 62 mm | B: 12 mm | Cr: 12.2 kN | C0r: 8.9 kN | Mass: 0.11 kg
6909d: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909ZZd: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909LLBd: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909LLUd: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909Nd: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6909NRd: 45 mm | D: 68 mm | B: 12 mm | Cr: 13.1 kN | C0r: 10.4 kN | Mass: 0.128 kg
6910d: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910ZZd: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910LLBd: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910LLUd: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910Nd: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6910NRd: 50 mm | D: 72 mm | B: 12 mm | Cr: 13.4 kN | C0r: 11.2 kN | Mass: 0.132 kg
6911d: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911ZZd: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911LLBd: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911LLUd: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911Nd: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6911NRd: 55 mm | D: 80 mm | B: 13 mm | Cr: 16 kN | C0r: 13.3 kN | Mass: 0.18 kg
6912d: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912ZZd: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912LLBd: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912LLUd: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912Nd: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6912NRd: 60 mm | D: 85 mm | B: 13 mm | Cr: 16.4 kN | C0r: 14.3 kN | Mass: 0.193 kg
6918d: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918ZZd: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918LLBd: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918LLUd: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918Nd: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6918NRd: 90 mm | D: 125 mm | B: 18 mm | Cr: 33 kN | C0r: 31.5 kN | Mass: 0.554 kg
6919d: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919ZZd: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919LLBd: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919LLUd: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919Nd: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6919NRd: 95 mm | D: 130 mm | B: 18 mm | Cr: 33.5 kN | C0r: 33.5 kN | Mass: 0.579 kg
6920d: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920ZZd: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920LLBd: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920LLUd: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920Nd: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6920NRd: 100 mm | D: 140 mm | B: 20 mm | Cr: 41 kN | C0r: 39.5 kN | Mass: 0.785 kg
6921d: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921ZZd: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921LLBd: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921LLUd: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921Nd: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6921NRd: 105 mm | D: 145 mm | B: 20 mm | Cr: 42.5 kN | C0r: 42 kN | Mass: 0.816 kg
6922d: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922ZZd: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922LLBd: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922LLUd: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922Nd: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6922NRd: 110 mm | D: 150 mm | B: 20 mm | Cr: 43.5 kN | C0r: 44.5 kN | Mass: 0.849 kg
6924d: 120 mm | D: 165 mm | B: 22 mm | Cr: 53 kN | C0r: 54 kN | Mass: 1.15 kg
6924Nd: 120 mm | D: 165 mm | B: 22 mm | Cr: 53 kN | C0r: 54 kN | Mass: 1.15 kg
6924NRd: 120 mm | D: 165 mm | B: 22 mm | Cr: 53 kN | C0r: 54 kN | Mass: 1.15 kg
6926d: 130 mm | D: 180 mm | B: 24 mm | Cr: 65 kN | C0r: 67.5 kN | Mass: 1.52 kg
6926Nd: 130 mm | D: 180 mm | B: 24 mm | Cr: 65 kN | C0r: 67.5 kN | Mass: 1.52 kg
6926NRd: 130 mm | D: 180 mm | B: 24 mm | Cr: 65 kN | C0r: 67.5 kN | Mass: 1.52 kg
6928d: 140 mm | D: 190 mm | B: 24 mm | Cr: 66.5 kN | C0r: 71.5 kN | Mass: 1.62 kg
6928Nd: 140 mm | D: 190 mm | B: 24 mm | Cr: 66.5 kN | C0r: 71.5 kN | Mass: 1.62 kg
6928NRd: 140 mm | D: 190 mm | B: 24 mm | Cr: 66.5 kN | C0r: 71.5 kN | Mass: 1.62 kg
6930d: 150 mm | D: 210 mm | B: 28 mm | Cr: 85 kN | C0r: 90.5 kN | Mass: 2.47 kg
6932d: 160 mm | D: 220 mm | B: 28 mm | Cr: 87 kN | C0r: 96 kN | Mass: 2.61 kg
6934d: 170 mm | D: 230 mm | B: 28 mm | Cr: 86 kN | C0r: 95.5 kN | Mass: 2.74 kg
6936d: 180 mm | D: 250 mm | B: 33 mm | Cr: 110 kN | C0r: 119 kN | Mass: 4.76 kg
6938d: 190 mm | D: 260 mm | B: 33 mm | Cr: 113 kN | C0r: 127 kN | Mass: 4.98 kg
6940d: 200 mm | D: 280 mm | B: 38 mm | Cr: 157 kN | C0r: 168 kN | Mass: 7.1 kg
6944d: 220 mm | D: 300 mm | B: 38 mm | Cr: 160 kN | C0r: 180 kN | Mass: 7.69 kg
6948d: 240 mm | D: 320 mm | B: 38 mm | Cr: 170 kN | C0r: 203 kN | Mass: 8.28 kg
6952d: 260 mm | D: 360 mm | B: 46 mm | Cr: 222 kN | C0r: 280 kN | Mass: 13.9 kg
6956d: 280 mm | D: 380 mm | B: 46 mm | Cr: 227 kN | C0r: 299 kN | Mass: 14.8 kg
6960d: 300 mm | D: 420 mm | B: 56 mm | Cr: 276 kN | C0r: 375 kN | Mass: 23.5 kg
6964d: 320 mm | D: 440 mm | B: 56 mm | Cr: 285 kN | C0r: 405 kN | Mass: 24.8 kg
6968d: 340 mm | D: 460 mm | B: 56 mm | Cr: 293 kN | C0r: 430 kN | Mass: 26.2 kg
6972d: 360 mm | D: 480 mm | B: 56 mm | Cr: 300 kN | C0r: 455 kN | Mass: 27.5 kg
6976d: 380 mm | D: 520 mm | B: 65 mm | Cr: 325 kN | C0r: 510 kN | Mass: 39.8 kg
6980d: 440 mm | D: 540 mm | B: 65 mm | Cr: 335 kN | C0r: 535 kN | Mass: 41.6 kg
6984d: 420 mm | D: 560 mm | B: 65 mm | Cr: 340 kN | C0r: 560 kN | Mass: 43.4 kg
6988d: 440 mm | D: 600 mm | B: 74 mm | Cr: 365 kN | C0r: 615 kN | Mass: 60 kg
6992d: 460 mm | D: 620 mm | B: 74 mm | Cr: 375 kN | C0r: 645 kN | Mass: 62.2 kg
6996d: 480 mm | D: 650 mm | B: 78 mm | Cr: 430 kN | C0r: 770 kN | Mass: 73 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
