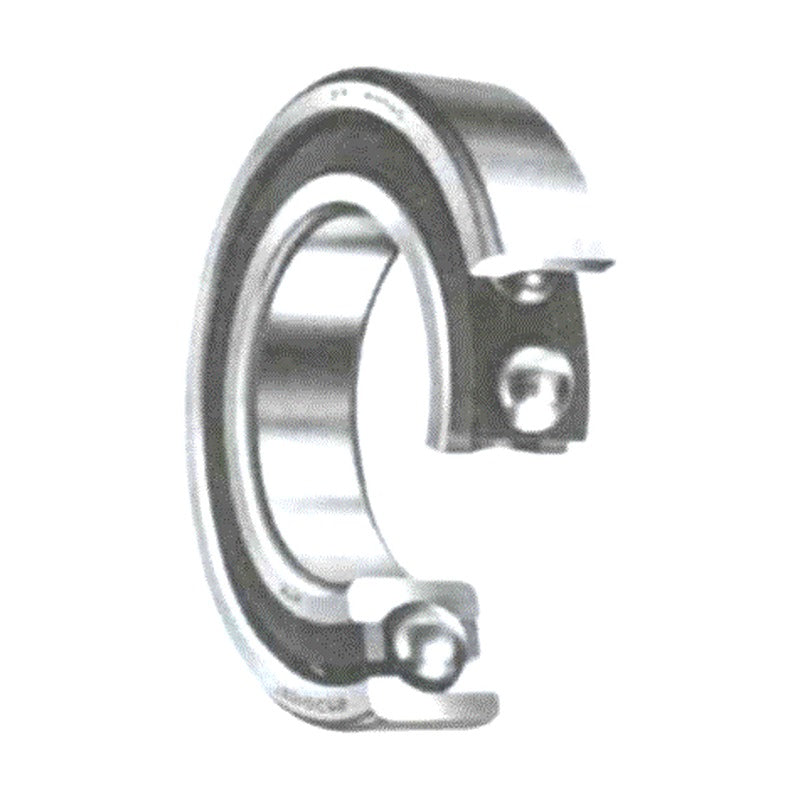

NTN 7000C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7000C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7000C high-speed single-row angular contact ball bearings, bore 10-200 mm, for single mounting or matched DB, DF and DT sets.

Key features

  • 15 deg contact angle (C suffix) for high-speed operation
  • Suited to machine tool spindles and high-speed shafts
  • Matched sets: DB back-to-back, DF face-to-face, DT tandem
  • Row specs show single-bearing ratings and mass

Specifications

Series 7000C
Bearing type High-speed angular contact ball bearing
Bore range 10-200 mm
Arrangements Single, DB, DF, DT
Load rating unit kN (single bearing)
Source NTN NTN Ball and Roller Bearings catalogue, p. 32-35
7000C d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7000CDB d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7000CDF d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7000CDT d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7001C d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7001CDB d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7001CDF d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7001CDT d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7002C d: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7002CDB d: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7002CDF d: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7002CDT d: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7003C d: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7003CDB d: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7003CDF d: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7003CDT d: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7004C d: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7004CDB d: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7004CDF d: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7004CDT d: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7005C d: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7005CDB d: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7005CDF d: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7005CDT d: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7006C d: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7006CDB d: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7006CDF d: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7006CDT d: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7007C d: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7007CDB d: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7007CDF d: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7007CDT d: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7008C d: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7008CDB d: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7008CDF d: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7008CDT d: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7009C d: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7009CDB d: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7009CDF d: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7009CDT d: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7010C d: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7010CDB d: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7010CDF d: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7010CDT d: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7011C d: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7011CDB d: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7011CDF d: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7011CDT d: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7012C d: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7012CDB d: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7012CDF d: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7012CDT d: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7013C d: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7013CDB d: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7013CDF d: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7013CDT d: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7014C d: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7014CDB d: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7014CDF d: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7014CDT d: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7015C d: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7015CDB d: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7015CDF d: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7015CDT d: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7016C d: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7016CDB d: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7016CDF d: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7016CDT d: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7017C d: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7017CDB d: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7017CDF d: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7017CDT d: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7018C d: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7018CDB d: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7018CDF d: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7018CDT d: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7019C d: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7019CDB d: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7019CDF d: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7019CDT d: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7020C d: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7020CDB d: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7020CDF d: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7020CDT d: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7021C d: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7021CDB d: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7021CDF d: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7021CDT d: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7022C d: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7022CDB d: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7022CDF d: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7022CDT d: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7024C d: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7024CDB d: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7024CDF d: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7024CDT d: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7026C d: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7026CDB d: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7026CDF d: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7026CDT d: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7028C d: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7028CDB d: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7028CDF d: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7028CDT d: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7030C d: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7030CDB d: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7030CDF d: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7030CDT d: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7032C d: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7032CDB d: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7032CDF d: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7032CDT d: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7034C d: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7034CDB d: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7034CDF d: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7034CDT d: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7036C d: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7036CDB d: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7036CDF d: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7036CDT d: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7038C d: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7038CDB d: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7038CDF d: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7038CDT d: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7040C d: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg
7040CDB d: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg
7040CDF d: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg
7040CDT d: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg
Angular Contact Ball BearingsNTN
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 7000C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

Brand NTN·Angular Contact Ball Bearings

Available part numbers (128)

7000C, 7000CDB, 7000CDF, 7000CDT, 7001C, 7001CDB, 7001CDF, 7001CDT, 7002C, 7002CDB + 118 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7000Cd: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7000CDBd: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7000CDFd: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7000CDTd: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.9 kN | C0r: 2.2 kN | Mass: 0.019 kg
7001Cd: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7001CDBd: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7001CDFd: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7001CDTd: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.021 kg
7002Cd: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7002CDBd: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7002CDFd: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7002CDTd: 15 mm | D: 32 mm | B: 9 mm | Cr: 6.25 kN | C0r: 3.4 kN | Mass: 0.029 kg
7003Cd: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7003CDBd: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7003CDFd: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7003CDTd: 17 mm | D: 35 mm | B: 10 mm | Cr: 7.7 kN | C0r: 4.1 kN | Mass: 0.038 kg
7004Cd: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7004CDBd: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7004CDFd: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7004CDTd: 20 mm | D: 42 mm | B: 12 mm | Cr: 10.5 kN | C0r: 6.05 kN | Mass: 0.066 kg
7005Cd: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7005CDBd: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7005CDFd: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7005CDTd: 25 mm | D: 47 mm | B: 12 mm | Cr: 11.7 kN | C0r: 7.45 kN | Mass: 0.078 kg
7006Cd: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7006CDBd: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7006CDFd: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7006CDTd: 30 mm | D: 55 mm | B: 13 mm | Cr: 15.1 kN | C0r: 10.3 kN | Mass: 0.112 kg
7007Cd: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7007CDBd: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7007CDFd: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7007CDTd: 35 mm | D: 62 mm | B: 14 mm | Cr: 19.1 kN | C0r: 13.7 kN | Mass: 0.149 kg
7008Cd: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7008CDBd: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7008CDFd: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7008CDTd: 40 mm | D: 68 mm | B: 15 mm | Cr: 20.6 kN | C0r: 15.9 kN | Mass: 0.184 kg
7009Cd: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7009CDBd: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7009CDFd: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7009CDTd: 15 mm | D: 75 mm | B: 16 mm | Cr: 24.4 kN | C0r: 19.3 kN | Mass: 0.233 kg
7010Cd: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7010CDBd: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7010CDFd: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7010CDTd: 17 mm | D: 80 mm | B: 16 mm | Cr: 26 kN | C0r: 21.9 kN | Mass: 0.253 kg
7011Cd: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7011CDBd: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7011CDFd: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7011CDTd: 25 mm | D: 90 mm | B: 18 mm | Cr: 34 kN | C0r: 28.6 kN | Mass: 0.37 kg
7012Cd: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7012CDBd: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7012CDFd: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7012CDTd: 30 mm | D: 95 mm | B: 18 mm | Cr: 35 kN | C0r: 30.5 kN | Mass: 0.387 kg
7013Cd: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7013CDBd: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7013CDFd: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7013CDTd: 35 mm | D: 100 mm | B: 18 mm | Cr: 37 kN | C0r: 34.5 kN | Mass: 0.421 kg
7014Cd: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7014CDBd: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7014CDFd: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7014CDTd: 12 mm | D: 110 mm | B: 20 mm | Cr: 47 kN | C0r: 43 kN | Mass: 0.583 kg
7015Cd: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7015CDBd: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7015CDFd: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7015CDTd: 75 mm | D: 115 mm | B: 20 mm | Cr: 48 kN | C0r: 45.5 kN | Mass: 0.63 kg
7016Cd: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7016CDBd: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7016CDFd: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7016CDTd: 80 mm | D: 125 mm | B: 22 mm | Cr: 58.5 kN | C0r: 55.5 kN | Mass: 0.822 kg
7017Cd: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7017CDBd: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7017CDFd: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7017CDTd: 85 mm | D: 130 mm | B: 22 mm | Cr: 60 kN | C0r: 58.5 kN | Mass: 0.862 kg
7018Cd: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7018CDBd: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7018CDFd: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7018CDTd: 90 mm | D: 140 mm | B: 24 mm | Cr: 71.5 kN | C0r: 69 kN | Mass: 1.12 kg
7019Cd: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7019CDBd: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7019CDFd: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7019CDTd: 95 mm | D: 145 mm | B: 24 mm | Cr: 73.5 kN | C0r: 73 kN | Mass: 1.17 kg
7020Cd: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7020CDBd: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7020CDFd: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7020CDTd: 100 mm | D: 150 mm | B: 24 mm | Cr: 75.5 kN | C0r: 77 kN | Mass: 1.25 kg
7021Cd: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7021CDBd: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7021CDFd: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7021CDTd: 105 mm | D: 160 mm | B: 26 mm | Cr: 88 kN | C0r: 89.5 kN | Mass: 1.53 kg
7022Cd: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7022CDBd: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7022CDFd: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7022CDTd: 110 mm | D: 170 mm | B: 28 mm | Cr: 101 kN | C0r: 101 kN | Mass: 1.91 kg
7024Cd: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7024CDBd: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7024CDFd: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7024CDTd: 120 mm | D: 180 mm | B: 28 mm | Cr: 103 kN | C0r: 108 kN | Mass: 2.04 kg
7026Cd: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7026CDBd: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7026CDFd: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7026CDTd: 130 mm | D: 200 mm | B: 33 mm | Cr: 129 kN | C0r: 137 kN | Mass: 3.73 kg
7028Cd: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7028CDBd: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7028CDFd: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7028CDTd: 140 mm | D: 210 mm | B: 33 mm | Cr: 132 kN | C0r: 145 kN | Mass: 3.96 kg
7030Cd: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7030CDBd: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7030CDFd: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7030CDTd: 150 mm | D: 225 mm | B: 35 mm | Cr: 151 kN | C0r: 168 kN | Mass: 4.82 kg
7032Cd: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7032CDBd: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7032CDFd: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7032CDTd: 160 mm | D: 240 mm | B: 38 mm | Cr: 171 kN | C0r: 193 kN | Mass: 5.96 kg
7034Cd: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7034CDBd: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7034CDFd: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7034CDTd: 170 mm | D: 260 mm | B: 42 mm | Cr: 205 kN | C0r: 234 kN | Mass: 7.96 kg
7036Cd: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7036CDBd: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7036CDFd: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7036CDTd: 180 mm | D: 280 mm | B: 46 mm | Cr: 241 kN | C0r: 290 kN | Mass: 10.4 kg
7038Cd: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7038CDBd: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7038CDFd: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7038CDTd: 190 mm | D: 290 mm | B: 46 mm | Cr: 247 kN | C0r: 305 kN | Mass: 10.8 kg
7040Cd: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg
7040CDBd: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg
7040CDFd: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg
7040CDTd: 200 mm | D: 310 mm | B: 51 mm | Cr: 277 kN | C0r: 355 kN | Mass: 14 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
