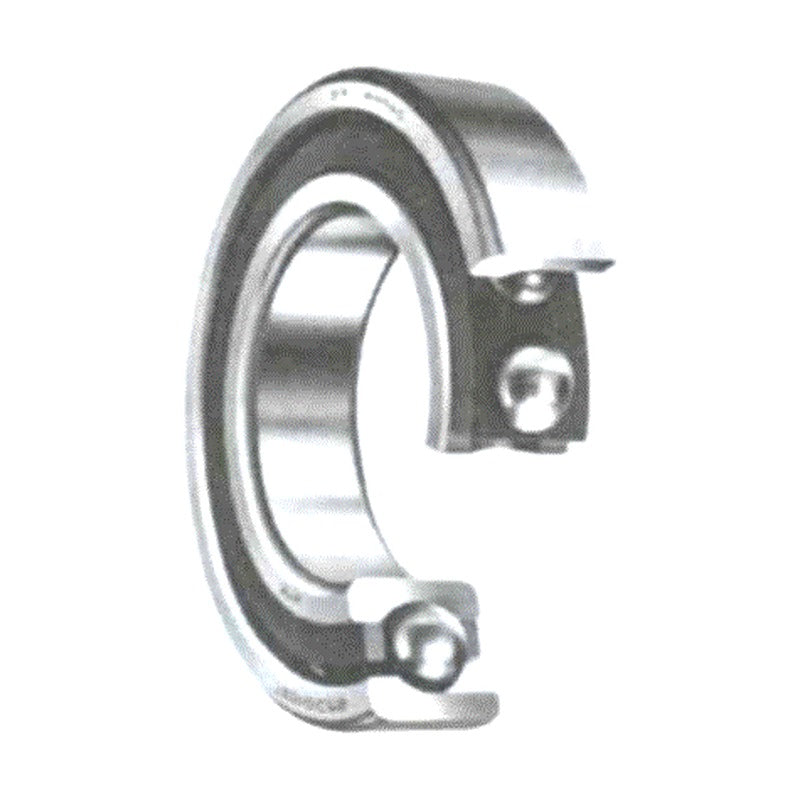

NTN 7200C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7200C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7200C high-speed single-row angular contact ball bearings, bore 10-150 mm, for single mounting or matched DB, DF and DT sets.

Key features

  • 15 deg contact angle (C suffix) for high-speed operation
  • Suited to machine tool spindles and high-speed shafts
  • Matched sets: DB back-to-back, DF face-to-face, DT tandem
  • Row specs show single-bearing ratings and mass

Specifications

Series 7200C
Bearing type High-speed angular contact ball bearing
Bore range 10-150 mm
Arrangements Single, DB, DF, DT
Load rating unit kN (single bearing)
Source NTN NTN Ball and Roller Bearings catalogue, p. 32-35
7200C d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.029 kg
7200CDB d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.029 kg
7200CDF d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.029 kg
7200CDT d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.4 kN | C0r: 2.64 kN | Mass: 0.029 kg
7201C d: 12 mm | D: 32 mm | B: 10 mm | Cr: 7.1 kN | C0r: 3.45 kN | Mass: 0.036 kg
7201CDB d: 12 mm | D: 32 mm | B: 10 mm | Cr: 7.1 kN | C0r: 3.45 kN | Mass: 0.036 kg
7201CDF d: 12 mm | D: 32 mm | B: 10 mm | Cr: 7.1 kN | C0r: 3.45 kN | Mass: 0.036 kg
7201CDT d: 12 mm | D: 32 mm | B: 10 mm | Cr: 7.1 kN | C0r: 3.45 kN | Mass: 0.036 kg
7202C d: 15 mm | D: 35 mm | B: 11 mm | Cr: 9 kN | C0r: 4.5 kN | Mass: 0.045 kg
7202CDB d: 15 mm | D: 35 mm | B: 11 mm | Cr: 9 kN | C0r: 4.5 kN | Mass: 0.045 kg
7202CDF d: 15 mm | D: 35 mm | B: 11 mm | Cr: 9 kN | C0r: 4.5 kN | Mass: 0.045 kg
7202CDT d: 15 mm | D: 35 mm | B: 11 mm | Cr: 9 kN | C0r: 4.5 kN | Mass: 0.045 kg
7203C d: 17 mm | D: 40 mm | B: 12 mm | Cr: 11.2 kN | C0r: 5.75 kN | Mass: 0.062 kg
7203CDB d: 17 mm | D: 40 mm | B: 12 mm | Cr: 11.2 kN | C0r: 5.75 kN | Mass: 0.062 kg
7203CDF d: 17 mm | D: 40 mm | B: 12 mm | Cr: 11.2 kN | C0r: 5.75 kN | Mass: 0.062 kg
7203CDT d: 17 mm | D: 40 mm | B: 12 mm | Cr: 11.2 kN | C0r: 5.75 kN | Mass: 0.062 kg
7204C d: 20 mm | D: 47 mm | B: 14 mm | Cr: 14.6 kN | C0r: 8.15 kN | Mass: 0.1 kg
7204CDB d: 20 mm | D: 47 mm | B: 14 mm | Cr: 14.6 kN | C0r: 8.15 kN | Mass: 0.1 kg
7204CDF d: 20 mm | D: 47 mm | B: 14 mm | Cr: 14.6 kN | C0r: 8.15 kN | Mass: 0.1 kg
7204CDT d: 20 mm | D: 47 mm | B: 14 mm | Cr: 14.6 kN | C0r: 8.15 kN | Mass: 0.1 kg
7205C d: 25 mm | D: 52 mm | B: 15 mm | Cr: 16.6 kN | C0r: 10.2 kN | Mass: 0.121 kg
7205CDB d: 25 mm | D: 52 mm | B: 15 mm | Cr: 16.6 kN | C0r: 10.2 kN | Mass: 0.121 kg
7205CDF d: 25 mm | D: 52 mm | B: 15 mm | Cr: 16.6 kN | C0r: 10.2 kN | Mass: 0.121 kg
7205CDT d: 25 mm | D: 52 mm | B: 15 mm | Cr: 16.6 kN | C0r: 10.2 kN | Mass: 0.121 kg
7206C d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23 kN | C0r: 14.7 kN | Mass: 0.191 kg
7206CDB d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23 kN | C0r: 14.7 kN | Mass: 0.191 kg
7206CDF d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23 kN | C0r: 14.7 kN | Mass: 0.191 kg
7206CDT d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23 kN | C0r: 14.7 kN | Mass: 0.191 kg
7207C d: 35 mm | D: 72 mm | B: 17 mm | Cr: 30.5 kN | C0r: 19.9 kN | Mass: 0.273 kg
7207CDB d: 35 mm | D: 72 mm | B: 17 mm | Cr: 30.5 kN | C0r: 19.9 kN | Mass: 0.273 kg
7207CDF d: 35 mm | D: 72 mm | B: 17 mm | Cr: 30.5 kN | C0r: 19.9 kN | Mass: 0.273 kg
7207CDT d: 35 mm | D: 72 mm | B: 17 mm | Cr: 30.5 kN | C0r: 19.9 kN | Mass: 0.273 kg
7208C d: 40 mm | D: 80 mm | B: 18 mm | Cr: 36.5 kN | C0r: 25.2 kN | Mass: 0.35 kg
7208CDB d: 40 mm | D: 80 mm | B: 18 mm | Cr: 36.5 kN | C0r: 25.2 kN | Mass: 0.35 kg
7208CDF d: 40 mm | D: 80 mm | B: 18 mm | Cr: 36.5 kN | C0r: 25.2 kN | Mass: 0.35 kg
7208CDT d: 40 mm | D: 80 mm | B: 18 mm | Cr: 36.5 kN | C0r: 25.2 kN | Mass: 0.35 kg
7209C d: 15 mm | D: 85 mm | B: 19 mm | Cr: 41 kN | C0r: 28.8 kN | Mass: 0.4 kg
7209CDB d: 15 mm | D: 85 mm | B: 19 mm | Cr: 41 kN | C0r: 28.8 kN | Mass: 0.4 kg
7209CDF d: 15 mm | D: 85 mm | B: 19 mm | Cr: 41 kN | C0r: 28.8 kN | Mass: 0.4 kg
7209CDT d: 15 mm | D: 85 mm | B: 19 mm | Cr: 41 kN | C0r: 28.8 kN | Mass: 0.4 kg
7210C d: 17 mm | D: 90 mm | B: 20 mm | Cr: 43 kN | C0r: 31.5 kN | Mass: 0.454 kg
7210CDB d: 17 mm | D: 90 mm | B: 20 mm | Cr: 43 kN | C0r: 31.5 kN | Mass: 0.454 kg
7210CDF d: 17 mm | D: 90 mm | B: 20 mm | Cr: 43 kN | C0r: 31.5 kN | Mass: 0.454 kg
7210CDT d: 17 mm | D: 90 mm | B: 20 mm | Cr: 43 kN | C0r: 31.5 kN | Mass: 0.454 kg
7211C d: 25 mm | D: 100 mm | B: 21 mm | Cr: 53 kN | C0r: 40 kN | Mass: 0.59 kg
7211CDB d: 25 mm | D: 100 mm | B: 21 mm | Cr: 53 kN | C0r: 40 kN | Mass: 0.59 kg
7211CDF d: 25 mm | D: 100 mm | B: 21 mm | Cr: 53 kN | C0r: 40 kN | Mass: 0.59 kg
7211CDT d: 25 mm | D: 100 mm | B: 21 mm | Cr: 53 kN | C0r: 40 kN | Mass: 0.59 kg
7212C d: 30 mm | D: 110 mm | B: 22 mm | Cr: 64 kN | C0r: 49.5 kN | Mass: 0.757 kg
7212CDB d: 30 mm | D: 110 mm | B: 22 mm | Cr: 64 kN | C0r: 49.5 kN | Mass: 0.757 kg
7212CDF d: 30 mm | D: 110 mm | B: 22 mm | Cr: 64 kN | C0r: 49.5 kN | Mass: 0.757 kg
7212CDT d: 30 mm | D: 110 mm | B: 22 mm | Cr: 64 kN | C0r: 49.5 kN | Mass: 0.757 kg
7213C d: 35 mm | D: 120 mm | B: 23 mm | Cr: 70 kN | C0r: 55 kN | Mass: 0.948 kg
7213CDB d: 35 mm | D: 120 mm | B: 23 mm | Cr: 70 kN | C0r: 55 kN | Mass: 0.948 kg
7213CDF d: 35 mm | D: 120 mm | B: 23 mm | Cr: 70 kN | C0r: 55 kN | Mass: 0.948 kg
7213CDT d: 35 mm | D: 120 mm | B: 23 mm | Cr: 70 kN | C0r: 55 kN | Mass: 0.948 kg
7214C d: 12 mm | D: 125 mm | B: 24 mm | Cr: 76 kN | C0r: 60 kN | Mass: 1.04 kg
7214CDB d: 12 mm | D: 125 mm | B: 24 mm | Cr: 76 kN | C0r: 60 kN | Mass: 1.04 kg
7214CDF d: 12 mm | D: 125 mm | B: 24 mm | Cr: 76 kN | C0r: 60 kN | Mass: 1.04 kg
7214CDT d: 12 mm | D: 125 mm | B: 24 mm | Cr: 76 kN | C0r: 60 kN | Mass: 1.04 kg
7215C d: 75 mm | D: 130 mm | B: 25 mm | Cr: 79.5 kN | C0r: 65.5 kN | Mass: 1.14 kg
7215CDB d: 75 mm | D: 130 mm | B: 25 mm | Cr: 79.5 kN | C0r: 65.5 kN | Mass: 1.14 kg
7215CDF d: 75 mm | D: 130 mm | B: 25 mm | Cr: 79.5 kN | C0r: 65.5 kN | Mass: 1.14 kg
7215CDT d: 75 mm | D: 130 mm | B: 25 mm | Cr: 79.5 kN | C0r: 65.5 kN | Mass: 1.14 kg
7216C d: 80 mm | D: 140 mm | B: 26 mm | Cr: 93 kN | C0r: 77.5 kN | Mass: 1.39 kg
7216CDB d: 80 mm | D: 140 mm | B: 26 mm | Cr: 93 kN | C0r: 77.5 kN | Mass: 1.39 kg
7216CDF d: 80 mm | D: 140 mm | B: 26 mm | Cr: 93 kN | C0r: 77.5 kN | Mass: 1.39 kg
7216CDT d: 80 mm | D: 140 mm | B: 26 mm | Cr: 93 kN | C0r: 77.5 kN | Mass: 1.39 kg
7217C d: 85 mm | D: 150 mm | B: 28 mm | Cr: 104 kN | C0r: 90.5 kN | Mass: 1.73 kg
7217CDB d: 85 mm | D: 150 mm | B: 28 mm | Cr: 104 kN | C0r: 90.5 kN | Mass: 1.73 kg
7217CDF d: 85 mm | D: 150 mm | B: 28 mm | Cr: 104 kN | C0r: 90.5 kN | Mass: 1.73 kg
7217CDT d: 85 mm | D: 150 mm | B: 28 mm | Cr: 104 kN | C0r: 90.5 kN | Mass: 1.73 kg
7218C d: 90 mm | D: 160 mm | B: 30 mm | Cr: 123 kN | C0r: 105 kN | Mass: 2.13 kg
7218CDB d: 90 mm | D: 160 mm | B: 30 mm | Cr: 123 kN | C0r: 105 kN | Mass: 2.13 kg
7218CDF d: 90 mm | D: 160 mm | B: 30 mm | Cr: 123 kN | C0r: 105 kN | Mass: 2.13 kg
7218CDT d: 90 mm | D: 160 mm | B: 30 mm | Cr: 123 kN | C0r: 105 kN | Mass: 2.13 kg
7219C d: 95 mm | D: 170 mm | B: 32 mm | Cr: 139 kN | C0r: 120 kN | Mass: 2.58 kg
7219CDB d: 95 mm | D: 170 mm | B: 32 mm | Cr: 139 kN | C0r: 120 kN | Mass: 2.58 kg
7219CDF d: 95 mm | D: 170 mm | B: 32 mm | Cr: 139 kN | C0r: 120 kN | Mass: 2.58 kg
7219CDT d: 95 mm | D: 170 mm | B: 32 mm | Cr: 139 kN | C0r: 120 kN | Mass: 2.58 kg
7220C d: 100 mm | D: 180 mm | B: 34 mm | Cr: 149 kN | C0r: 127 kN | Mass: 3.08 kg
7220CDB d: 100 mm | D: 180 mm | B: 34 mm | Cr: 149 kN | C0r: 127 kN | Mass: 3.08 kg
7220CDF d: 100 mm | D: 180 mm | B: 34 mm | Cr: 149 kN | C0r: 127 kN | Mass: 3.08 kg
7220CDT d: 100 mm | D: 180 mm | B: 34 mm | Cr: 149 kN | C0r: 127 kN | Mass: 3.08 kg
7221C d: 105 mm | D: 190 mm | B: 36 mm | Cr: 162 kN | C0r: 143 kN | Mass: 3.66 kg
7221CDB d: 105 mm | D: 190 mm | B: 36 mm | Cr: 162 kN | C0r: 143 kN | Mass: 3.66 kg
7221CDF d: 105 mm | D: 190 mm | B: 36 mm | Cr: 162 kN | C0r: 143 kN | Mass: 3.66 kg
7221CDT d: 105 mm | D: 190 mm | B: 36 mm | Cr: 162 kN | C0r: 143 kN | Mass: 3.66 kg
7222C d: 110 mm | D: 200 mm | B: 38 mm | Cr: 176 kN | C0r: 160 kN | Mass: 4.29 kg
7222CDB d: 110 mm | D: 200 mm | B: 38 mm | Cr: 176 kN | C0r: 160 kN | Mass: 4.29 kg
7222CDF d: 110 mm | D: 200 mm | B: 38 mm | Cr: 176 kN | C0r: 160 kN | Mass: 4.29 kg
7222CDT d: 110 mm | D: 200 mm | B: 38 mm | Cr: 176 kN | C0r: 160 kN | Mass: 4.29 kg
7224C d: 120 mm | D: 215 mm | B: 40 mm | Cr: 199 kN | C0r: 192 kN | Mass: 5.16 kg
7224CDB d: 120 mm | D: 215 mm | B: 40 mm | Cr: 199 kN | C0r: 192 kN | Mass: 5.16 kg
7224CDF d: 120 mm | D: 215 mm | B: 40 mm | Cr: 199 kN | C0r: 192 kN | Mass: 5.16 kg
7224CDT d: 120 mm | D: 215 mm | B: 40 mm | Cr: 199 kN | C0r: 192 kN | Mass: 5.16 kg
7226C d: 130 mm | D: 230 mm | B: 40 mm | Cr: 213 kN | C0r: 214 kN | Mass: 5.83 kg
7226CDB d: 130 mm | D: 230 mm | B: 40 mm | Cr: 213 kN | C0r: 214 kN | Mass: 5.83 kg
7226CDF d: 130 mm | D: 230 mm | B: 40 mm | Cr: 213 kN | C0r: 214 kN | Mass: 5.83 kg
7226CDT d: 130 mm | D: 230 mm | B: 40 mm | Cr: 213 kN | C0r: 214 kN | Mass: 5.83 kg
7228C d: 140 mm | D: 250 mm | B: 42 mm | Cr: 221 kN | C0r: 233 kN | Mass: 7.3 kg
7228CDB d: 140 mm | D: 250 mm | B: 42 mm | Cr: 221 kN | C0r: 233 kN | Mass: 7.3 kg
7228CDF d: 140 mm | D: 250 mm | B: 42 mm | Cr: 221 kN | C0r: 233 kN | Mass: 7.3 kg
7228CDT d: 140 mm | D: 250 mm | B: 42 mm | Cr: 221 kN | C0r: 233 kN | Mass: 7.3 kg
7230C d: 150 mm | D: 270 mm | B: 45 mm | Cr: 253 kN | C0r: 281 kN | Mass: 11 kg
7230CDB d: 150 mm | D: 270 mm | B: 45 mm | Cr: 253 kN | C0r: 281 kN | Mass: 11 kg
7230CDF d: 150 mm | D: 270 mm | B: 45 mm | Cr: 253 kN | C0r: 281 kN | Mass: 11 kg
7230CDT d: 150 mm | D: 270 mm | B: 45 mm | Cr: 253 kN | C0r: 281 kN | Mass: 11 kg
Angular Contact Ball BearingsNTN
108 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 7200C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

Brand NTN·Angular Contact Ball Bearings

Available part numbers (108)

7200C, 7200CDB, 7200CDF, 7200CDT, 7201C, 7201CDB, 7201CDF, 7201CDT, 7202C, 7202CDB + 98 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
