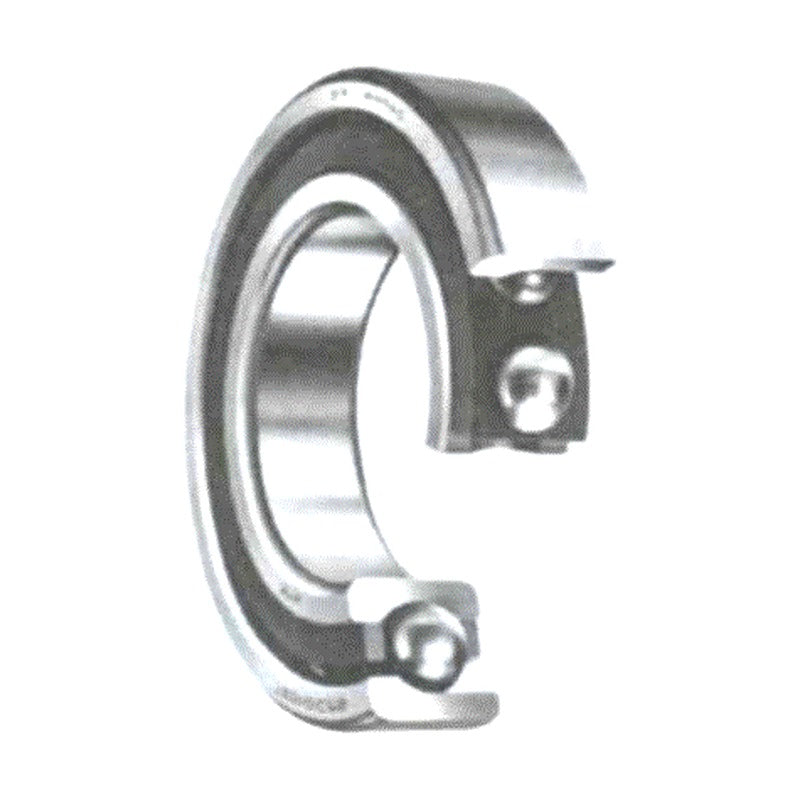

NTN 7300C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7300C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7300C high-speed single-row angular contact ball bearings, bore 10-110 mm, for single mounting or matched DB, DF and DT sets.

Key features

  • 15 deg contact angle (C suffix) for high-speed operation
  • Suited to machine tool spindles and high-speed shafts
  • Matched sets: DB back-to-back, DF face-to-face, DT tandem
  • Row specs show single-bearing ratings and mass

Specifications

Series 7300C
Bearing type High-speed angular contact ball bearing
Bore range 10-110 mm
Arrangements Single, DB, DF, DT
Load rating unit kN (single bearing)
Source NTN NTN Ball and Roller Bearings catalogue, p. 32-35
7302C d: 15 mm | D: 42 mm | B: 13 mm | Cr: 13.3 kN | C0r: 6.85 kN | Mass: 0.081 kg
7302CDB d: 15 mm | D: 42 mm | B: 13 mm | Cr: 13.3 kN | C0r: 6.85 kN | Mass: 0.081 kg
7302CDF d: 15 mm | D: 42 mm | B: 13 mm | Cr: 13.3 kN | C0r: 6.85 kN | Mass: 0.081 kg
7302CDT d: 15 mm | D: 42 mm | B: 13 mm | Cr: 13.3 kN | C0r: 6.85 kN | Mass: 0.081 kg
7303C d: 17 mm | D: 47 mm | B: 14 mm | Cr: 15.7 kN | C0r: 8.25 kN | Mass: 0.109 kg
7303CDB d: 17 mm | D: 47 mm | B: 14 mm | Cr: 15.7 kN | C0r: 8.25 kN | Mass: 0.109 kg
7303CDF d: 17 mm | D: 47 mm | B: 14 mm | Cr: 15.7 kN | C0r: 8.25 kN | Mass: 0.109 kg
7303CDT d: 17 mm | D: 47 mm | B: 14 mm | Cr: 15.7 kN | C0r: 8.25 kN | Mass: 0.109 kg
7304C d: 20 mm | D: 52 mm | B: 15 mm | Cr: 18.5 kN | C0r: 9.95 kN | Mass: 0.14 kg
7304CDB d: 20 mm | D: 52 mm | B: 15 mm | Cr: 18.5 kN | C0r: 9.95 kN | Mass: 0.14 kg
7304CDF d: 20 mm | D: 52 mm | B: 15 mm | Cr: 18.5 kN | C0r: 9.95 kN | Mass: 0.14 kg
7304CDT d: 20 mm | D: 52 mm | B: 15 mm | Cr: 18.5 kN | C0r: 9.95 kN | Mass: 0.14 kg
7305C d: 25 mm | D: 62 mm | B: 17 mm | Cr: 26.4 kN | C0r: 15.3 kN | Mass: 0.222 kg
7305CDB d: 25 mm | D: 62 mm | B: 17 mm | Cr: 26.4 kN | C0r: 15.3 kN | Mass: 0.222 kg
7305CDF d: 25 mm | D: 62 mm | B: 17 mm | Cr: 26.4 kN | C0r: 15.3 kN | Mass: 0.222 kg
7305CDT d: 25 mm | D: 62 mm | B: 17 mm | Cr: 26.4 kN | C0r: 15.3 kN | Mass: 0.222 kg
7306C d: 30 mm | D: 72 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.3 kN | Mass: 0.33 kg
7306CDB d: 30 mm | D: 72 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.3 kN | Mass: 0.33 kg
7306CDF d: 30 mm | D: 72 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.3 kN | Mass: 0.33 kg
7306CDT d: 30 mm | D: 72 mm | B: 19 mm | Cr: 32.5 kN | C0r: 20.3 kN | Mass: 0.33 kg
7307C d: 35 mm | D: 80 mm | B: 21 mm | Cr: 40.5 kN | C0r: 25.8 kN | Mass: 0.44 kg
7307CDB d: 35 mm | D: 80 mm | B: 21 mm | Cr: 40.5 kN | C0r: 25.8 kN | Mass: 0.44 kg
7307CDF d: 35 mm | D: 80 mm | B: 21 mm | Cr: 40.5 kN | C0r: 25.8 kN | Mass: 0.44 kg
7307CDT d: 35 mm | D: 80 mm | B: 21 mm | Cr: 40.5 kN | C0r: 25.8 kN | Mass: 0.44 kg
7308C d: 10 mm | D: 90 mm | B: 23 mm | Cr: 49.5 kN | C0r: 32.5 kN | Mass: 0.606 kg
7308CDB d: 10 mm | D: 90 mm | B: 23 mm | Cr: 49.5 kN | C0r: 32.5 kN | Mass: 0.606 kg
7308CDF d: 10 mm | D: 90 mm | B: 23 mm | Cr: 49.5 kN | C0r: 32.5 kN | Mass: 0.606 kg
7308CDT d: 10 mm | D: 90 mm | B: 23 mm | Cr: 49.5 kN | C0r: 32.5 kN | Mass: 0.606 kg
7309C d: 15 mm | D: 100 mm | B: 25 mm | Cr: 64 kN | C0r: 43 kN | Mass: 0.83 kg
7309CDB d: 15 mm | D: 100 mm | B: 25 mm | Cr: 64 kN | C0r: 43 kN | Mass: 0.83 kg
7309CDF d: 15 mm | D: 100 mm | B: 25 mm | Cr: 64 kN | C0r: 43 kN | Mass: 0.83 kg
7309CDT d: 15 mm | D: 100 mm | B: 25 mm | Cr: 64 kN | C0r: 43 kN | Mass: 0.83 kg
7310C d: 17 mm | D: 110 mm | B: 27 mm | Cr: 75 kN | C0r: 51.5 kN | Mass: 1.05 kg
7310CDB d: 17 mm | D: 110 mm | B: 27 mm | Cr: 75 kN | C0r: 51.5 kN | Mass: 1.05 kg
7310CDF d: 17 mm | D: 110 mm | B: 27 mm | Cr: 75 kN | C0r: 51.5 kN | Mass: 1.05 kg
7310CDT d: 17 mm | D: 110 mm | B: 27 mm | Cr: 75 kN | C0r: 51.5 kN | Mass: 1.05 kg
7311C d: 25 mm | D: 120 mm | B: 29 mm | Cr: 87 kN | C0r: 60.5 kN | Mass: 1.34 kg
7311CDB d: 25 mm | D: 120 mm | B: 29 mm | Cr: 87 kN | C0r: 60.5 kN | Mass: 1.34 kg
7311CDF d: 25 mm | D: 120 mm | B: 29 mm | Cr: 87 kN | C0r: 60.5 kN | Mass: 1.34 kg
7311CDT d: 25 mm | D: 120 mm | B: 29 mm | Cr: 87 kN | C0r: 60.5 kN | Mass: 1.34 kg
7312C d: 30 mm | D: 130 mm | B: 31 mm | Cr: 99 kN | C0r: 70.5 kN | Mass: 1.68 kg
7312CDB d: 30 mm | D: 130 mm | B: 31 mm | Cr: 99 kN | C0r: 70.5 kN | Mass: 1.68 kg
7312CDF d: 30 mm | D: 130 mm | B: 31 mm | Cr: 99 kN | C0r: 70.5 kN | Mass: 1.68 kg
7312CDT d: 30 mm | D: 130 mm | B: 31 mm | Cr: 99 kN | C0r: 70.5 kN | Mass: 1.68 kg
7313C d: 35 mm | D: 140 mm | B: 33 mm | Cr: 112 kN | C0r: 80.5 kN | Mass: 2.06 kg
7313CDB d: 35 mm | D: 140 mm | B: 33 mm | Cr: 112 kN | C0r: 80.5 kN | Mass: 2.06 kg
7313CDF d: 35 mm | D: 140 mm | B: 33 mm | Cr: 112 kN | C0r: 80.5 kN | Mass: 2.06 kg
7313CDT d: 35 mm | D: 140 mm | B: 33 mm | Cr: 112 kN | C0r: 80.5 kN | Mass: 2.06 kg
7314C d: 12 mm | D: 150 mm | B: 35 mm | Cr: 126 kN | C0r: 92 kN | Mass: 2.5 kg
7314CDB d: 12 mm | D: 150 mm | B: 35 mm | Cr: 126 kN | C0r: 92 kN | Mass: 2.5 kg
7314CDF d: 12 mm | D: 150 mm | B: 35 mm | Cr: 126 kN | C0r: 92 kN | Mass: 2.5 kg
7314CDT d: 12 mm | D: 150 mm | B: 35 mm | Cr: 126 kN | C0r: 92 kN | Mass: 2.5 kg
7315C d: 75 mm | D: 160 mm | B: 37 mm | Cr: 137 kN | C0r: 104 kN | Mass: 3.09 kg
7315CDB d: 75 mm | D: 160 mm | B: 37 mm | Cr: 137 kN | C0r: 104 kN | Mass: 3.09 kg
7315CDF d: 75 mm | D: 160 mm | B: 37 mm | Cr: 137 kN | C0r: 104 kN | Mass: 3.09 kg
7315CDT d: 75 mm | D: 160 mm | B: 37 mm | Cr: 137 kN | C0r: 104 kN | Mass: 3.09 kg
7316C d: 80 mm | D: 170 mm | B: 39 mm | Cr: 149 kN | C0r: 117 kN | Mass: 3.55 kg
7316CDB d: 80 mm | D: 170 mm | B: 39 mm | Cr: 149 kN | C0r: 117 kN | Mass: 3.55 kg
7316CDF d: 80 mm | D: 170 mm | B: 39 mm | Cr: 149 kN | C0r: 117 kN | Mass: 3.55 kg
7316CDT d: 80 mm | D: 170 mm | B: 39 mm | Cr: 149 kN | C0r: 117 kN | Mass: 3.55 kg
7317C d: 85 mm | D: 180 mm | B: 41 mm | Cr: 161 kN | C0r: 130 kN | Mass: 4.18 kg
7317CDB d: 85 mm | D: 180 mm | B: 41 mm | Cr: 161 kN | C0r: 130 kN | Mass: 4.18 kg
7317CDF d: 85 mm | D: 180 mm | B: 41 mm | Cr: 161 kN | C0r: 130 kN | Mass: 4.18 kg
7317CDT d: 85 mm | D: 180 mm | B: 41 mm | Cr: 161 kN | C0r: 130 kN | Mass: 4.18 kg
7318C d: 90 mm | D: 190 mm | B: 43 mm | Cr: 183 kN | C0r: 158 kN | Mass: 4.88 kg
7318CDB d: 90 mm | D: 190 mm | B: 43 mm | Cr: 183 kN | C0r: 158 kN | Mass: 4.88 kg
7318CDF d: 90 mm | D: 190 mm | B: 43 mm | Cr: 183 kN | C0r: 158 kN | Mass: 4.88 kg
7318CDT d: 90 mm | D: 190 mm | B: 43 mm | Cr: 183 kN | C0r: 158 kN | Mass: 4.88 kg
7319C d: 95 mm | D: 200 mm | B: 45 mm | Cr: 196 kN | C0r: 174 kN | Mass: 5.65 kg
7319CDB d: 95 mm | D: 200 mm | B: 45 mm | Cr: 196 kN | C0r: 174 kN | Mass: 5.65 kg
7319CDF d: 95 mm | D: 200 mm | B: 45 mm | Cr: 196 kN | C0r: 174 kN | Mass: 5.65 kg
7319CDT d: 95 mm | D: 200 mm | B: 45 mm | Cr: 196 kN | C0r: 174 kN | Mass: 5.65 kg
7320C d: 100 mm | D: 215 mm | B: 47 mm | Cr: 222 kN | C0r: 207 kN | Mass: 6.9 kg
7320CDB d: 100 mm | D: 215 mm | B: 47 mm | Cr: 222 kN | C0r: 207 kN | Mass: 6.9 kg
7320CDF d: 100 mm | D: 215 mm | B: 47 mm | Cr: 222 kN | C0r: 207 kN | Mass: 6.9 kg
7320CDT d: 100 mm | D: 215 mm | B: 47 mm | Cr: 222 kN | C0r: 207 kN | Mass: 6.9 kg
7321C d: 105 mm | D: 225 mm | B: 49 mm | Cr: 236 kN | C0r: 226 kN | Mass: 7.86 kg
7321CDB d: 105 mm | D: 225 mm | B: 49 mm | Cr: 236 kN | C0r: 226 kN | Mass: 7.86 kg
7321CDF d: 105 mm | D: 225 mm | B: 49 mm | Cr: 236 kN | C0r: 226 kN | Mass: 7.86 kg
7321CDT d: 105 mm | D: 225 mm | B: 49 mm | Cr: 236 kN | C0r: 226 kN | Mass: 7.86 kg
7322C d: 110 mm | D: 240 mm | B: 50 mm | Cr: 249 kN | C0r: 241 kN | Mass: 9.22 kg
7322CDB d: 110 mm | D: 240 mm | B: 50 mm | Cr: 249 kN | C0r: 241 kN | Mass: 9.22 kg
7322CDF d: 110 mm | D: 240 mm | B: 50 mm | Cr: 249 kN | C0r: 241 kN | Mass: 9.22 kg
7322CDT d: 110 mm | D: 240 mm | B: 50 mm | Cr: 249 kN | C0r: 241 kN | Mass: 9.22 kg
