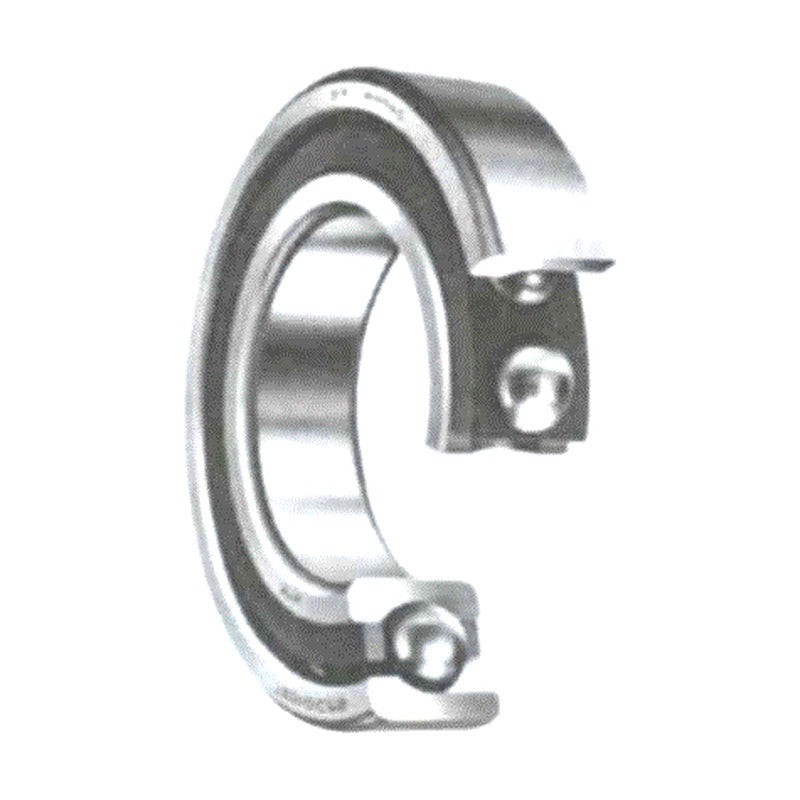

NTN 7800C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7800C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7800C high-speed single-row angular contact ball bearings, bore 12-170 mm, for single mounting or matched DB, DF and DT sets.

Key features

  • 15 deg contact angle (C suffix) for high-speed operation
  • Suited to machine tool spindles and high-speed shafts
  • Matched sets: DB back-to-back, DF face-to-face, DT tandem
  • Row specs show single-bearing ratings and mass

Specifications

Series 7800C
Bearing type High-speed angular contact ball bearing
Bore range 12-170 mm
Arrangements Single, DB, DF, DT
Load rating unit kN (single bearing)
Source NTN NTN Ball and Roller Bearings catalogue, p. 32-35
7805C d: 25 mm | D: 37 mm | B: 7 mm | Cr: 5.05 kN | C0r: 3.85 kN | Mass: 0.021 kg
7805CDB d: 25 mm | D: 37 mm | B: 7 mm | Cr: 5.05 kN | C0r: 3.85 kN | Mass: 0.021 kg
7805CDF d: 25 mm | D: 37 mm | B: 7 mm | Cr: 5.05 kN | C0r: 3.85 kN | Mass: 0.021 kg
7805CDT d: 25 mm | D: 37 mm | B: 7 mm | Cr: 5.05 kN | C0r: 3.85 kN | Mass: 0.021 kg
7806C d: 30 mm | D: 42 mm | B: 7 mm | Cr: 5.35 kN | C0r: 4.5 kN | Mass: 0.025 kg
7806CDB d: 30 mm | D: 42 mm | B: 7 mm | Cr: 5.35 kN | C0r: 4.5 kN | Mass: 0.025 kg
7806CDF d: 30 mm | D: 42 mm | B: 7 mm | Cr: 5.35 kN | C0r: 4.5 kN | Mass: 0.025 kg
7806CDT d: 30 mm | D: 42 mm | B: 7 mm | Cr: 5.35 kN | C0r: 4.5 kN | Mass: 0.025 kg
7807C d: 35 mm | D: 47 mm | B: 7 mm | Cr: 5.8 kN | C0r: 5.25 kN | Mass: 0.028 kg
7807CDB d: 35 mm | D: 47 mm | B: 7 mm | Cr: 5.8 kN | C0r: 5.25 kN | Mass: 0.028 kg
7807CDF d: 35 mm | D: 47 mm | B: 7 mm | Cr: 5.8 kN | C0r: 5.25 kN | Mass: 0.028 kg
7807CDT d: 35 mm | D: 47 mm | B: 7 mm | Cr: 5.8 kN | C0r: 5.25 kN | Mass: 0.028 kg
7808C d: 40 mm | D: 52 mm | B: 7 mm | Cr: 6.05 kN | C0r: 5.75 kN | Mass: 0.031 kg
7808CDB d: 40 mm | D: 52 mm | B: 7 mm | Cr: 6.05 kN | C0r: 5.75 kN | Mass: 0.031 kg
7808CDF d: 40 mm | D: 52 mm | B: 7 mm | Cr: 6.05 kN | C0r: 5.75 kN | Mass: 0.031 kg
7808CDT d: 40 mm | D: 52 mm | B: 7 mm | Cr: 6.05 kN | C0r: 5.75 kN | Mass: 0.031 kg
7809C d: 15 mm | D: 58 mm | B: 7 mm | Cr: 7.6 kN | C0r: 7.4 kN | Mass: 0.038 kg
7809CDB d: 15 mm | D: 58 mm | B: 7 mm | Cr: 7.6 kN | C0r: 7.4 kN | Mass: 0.038 kg
7809CDF d: 15 mm | D: 58 mm | B: 7 mm | Cr: 7.6 kN | C0r: 7.4 kN | Mass: 0.038 kg
7809CDT d: 15 mm | D: 58 mm | B: 7 mm | Cr: 7.6 kN | C0r: 7.4 kN | Mass: 0.038 kg
7810C d: 17 mm | D: 65 mm | B: 7 mm | Cr: 7.9 kN | C0r: 8.05 kN | Mass: 0.049 kg
7810CDB d: 17 mm | D: 65 mm | B: 7 mm | Cr: 7.9 kN | C0r: 8.05 kN | Mass: 0.049 kg
7810CDF d: 17 mm | D: 65 mm | B: 7 mm | Cr: 7.9 kN | C0r: 8.05 kN | Mass: 0.049 kg
7810CDT d: 17 mm | D: 65 mm | B: 7 mm | Cr: 7.9 kN | C0r: 8.05 kN | Mass: 0.049 kg
7811C d: 25 mm | D: 72 mm | B: 9 mm | Cr: 13.1 kN | C0r: 12.7 kN | Mass: 0.079 kg
7811CDB d: 25 mm | D: 72 mm | B: 9 mm | Cr: 13.1 kN | C0r: 12.7 kN | Mass: 0.079 kg
7811CDF d: 25 mm | D: 72 mm | B: 9 mm | Cr: 13.1 kN | C0r: 12.7 kN | Mass: 0.079 kg
7811CDT d: 25 mm | D: 72 mm | B: 9 mm | Cr: 13.1 kN | C0r: 12.7 kN | Mass: 0.079 kg
7812C d: 30 mm | D: 78 mm | B: 10 mm | Cr: 13.4 kN | C0r: 13.6 kN | Mass: 0.101 kg
7812CDB d: 30 mm | D: 78 mm | B: 10 mm | Cr: 13.4 kN | C0r: 13.6 kN | Mass: 0.101 kg
7812CDF d: 30 mm | D: 78 mm | B: 10 mm | Cr: 13.4 kN | C0r: 13.6 kN | Mass: 0.101 kg
7812CDT d: 30 mm | D: 78 mm | B: 10 mm | Cr: 13.4 kN | C0r: 13.6 kN | Mass: 0.101 kg
7813C d: 35 mm | D: 85 mm | B: 10 mm | Cr: 14.1 kN | C0r: 14.9 kN | Mass: 0.122 kg
7813CDB d: 35 mm | D: 85 mm | B: 10 mm | Cr: 14.1 kN | C0r: 14.9 kN | Mass: 0.122 kg
7813CDF d: 35 mm | D: 85 mm | B: 10 mm | Cr: 14.1 kN | C0r: 14.9 kN | Mass: 0.122 kg
7813CDT d: 35 mm | D: 85 mm | B: 10 mm | Cr: 14.1 kN | C0r: 14.9 kN | Mass: 0.122 kg
7814C d: 12 mm | D: 90 mm | B: 10 mm | Cr: 14.5 kN | C0r: 15.8 kN | Mass: 0.13 kg
7814CDB d: 12 mm | D: 90 mm | B: 10 mm | Cr: 14.5 kN | C0r: 15.8 kN | Mass: 0.13 kg
7814CDF d: 12 mm | D: 90 mm | B: 10 mm | Cr: 14.5 kN | C0r: 15.8 kN | Mass: 0.13 kg
7814CDT d: 12 mm | D: 90 mm | B: 10 mm | Cr: 14.5 kN | C0r: 15.8 kN | Mass: 0.13 kg
7815C d: 40 mm | D: 95 mm | B: 10 mm | Cr: 14.8 kN | C0r: 16.7 kN | Mass: 0.138 kg
7815CDB d: 40 mm | D: 95 mm | B: 10 mm | Cr: 14.8 kN | C0r: 16.7 kN | Mass: 0.138 kg
7815CDF d: 40 mm | D: 95 mm | B: 10 mm | Cr: 14.8 kN | C0r: 16.7 kN | Mass: 0.138 kg
7815CDT d: 40 mm | D: 95 mm | B: 10 mm | Cr: 14.8 kN | C0r: 16.7 kN | Mass: 0.138 kg
7816C d: 80 mm | D: 100 mm | B: 10 mm | Cr: 15.1 kN | C0r: 17.6 kN | Mass: 0.146 kg
7816CDB d: 80 mm | D: 100 mm | B: 10 mm | Cr: 15.1 kN | C0r: 17.6 kN | Mass: 0.146 kg
7816CDF d: 80 mm | D: 100 mm | B: 10 mm | Cr: 15.1 kN | C0r: 17.6 kN | Mass: 0.146 kg
7816CDT d: 80 mm | D: 100 mm | B: 10 mm | Cr: 15.1 kN | C0r: 17.6 kN | Mass: 0.146 kg
7817C d: 85 mm | D: 110 mm | B: 13 mm | Cr: 22.1 kN | C0r: 24.7 kN | Mass: 0.257 kg
7817CDB d: 85 mm | D: 110 mm | B: 13 mm | Cr: 22.1 kN | C0r: 24.7 kN | Mass: 0.257 kg
7817CDF d: 85 mm | D: 110 mm | B: 13 mm | Cr: 22.1 kN | C0r: 24.7 kN | Mass: 0.257 kg
7817CDT d: 85 mm | D: 110 mm | B: 13 mm | Cr: 22.1 kN | C0r: 24.7 kN | Mass: 0.257 kg
7818C d: 90 mm | D: 115 mm | B: 13 mm | Cr: 22.7 kN | C0r: 26.1 kN | Mass: 0.27 kg
7818CDB d: 90 mm | D: 115 mm | B: 13 mm | Cr: 22.7 kN | C0r: 26.1 kN | Mass: 0.27 kg
7818CDF d: 90 mm | D: 115 mm | B: 13 mm | Cr: 22.7 kN | C0r: 26.1 kN | Mass: 0.27 kg
7818CDT d: 90 mm | D: 115 mm | B: 13 mm | Cr: 22.7 kN | C0r: 26.1 kN | Mass: 0.27 kg
7819C d: 95 mm | D: 120 mm | B: 13 mm | Cr: 23.4 kN | C0r: 27.6 kN | Mass: 0.283 kg
7819CDB d: 95 mm | D: 120 mm | B: 13 mm | Cr: 23.4 kN | C0r: 27.6 kN | Mass: 0.283 kg
7819CDF d: 95 mm | D: 120 mm | B: 13 mm | Cr: 23.4 kN | C0r: 27.6 kN | Mass: 0.283 kg
7819CDT d: 95 mm | D: 120 mm | B: 13 mm | Cr: 23.4 kN | C0r: 27.6 kN | Mass: 0.283 kg
7820C d: 100 mm | D: 125 mm | B: 13 mm | Cr: 23.5 kN | C0r: 28.3 kN | Mass: 0.296 kg
7820CDB d: 100 mm | D: 125 mm | B: 13 mm | Cr: 23.5 kN | C0r: 28.3 kN | Mass: 0.296 kg
7820CDF d: 100 mm | D: 125 mm | B: 13 mm | Cr: 23.5 kN | C0r: 28.3 kN | Mass: 0.296 kg
7820CDT d: 100 mm | D: 125 mm | B: 13 mm | Cr: 23.5 kN | C0r: 28.3 kN | Mass: 0.296 kg
7821C d: 105 mm | D: 130 mm | B: 13 mm | Cr: 24.1 kN | C0r: 29.8 kN | Mass: 0.31 kg
7821CDB d: 105 mm | D: 130 mm | B: 13 mm | Cr: 24.1 kN | C0r: 29.8 kN | Mass: 0.31 kg
7821CDF d: 105 mm | D: 130 mm | B: 13 mm | Cr: 24.1 kN | C0r: 29.8 kN | Mass: 0.31 kg
7821CDT d: 105 mm | D: 130 mm | B: 13 mm | Cr: 24.1 kN | C0r: 29.8 kN | Mass: 0.31 kg
7822C d: 110 mm | D: 140 mm | B: 16 mm | Cr: 34.5 kN | C0r: 42.5 kN | Mass: 0.486 kg
7822CDB d: 110 mm | D: 140 mm | B: 16 mm | Cr: 34.5 kN | C0r: 42.5 kN | Mass: 0.486 kg
7822CDF d: 110 mm | D: 140 mm | B: 16 mm | Cr: 34.5 kN | C0r: 42.5 kN | Mass: 0.486 kg
7822CDT d: 110 mm | D: 140 mm | B: 16 mm | Cr: 34.5 kN | C0r: 42.5 kN | Mass: 0.486 kg
7824C d: 120 mm | D: 150 mm | B: 16 mm | Cr: 35 kN | C0r: 44.5 kN | Mass: 0.525 kg
7824CDB d: 120 mm | D: 150 mm | B: 16 mm | Cr: 35 kN | C0r: 44.5 kN | Mass: 0.525 kg
7824CDF d: 120 mm | D: 150 mm | B: 16 mm | Cr: 35 kN | C0r: 44.5 kN | Mass: 0.525 kg
7824CDT d: 120 mm | D: 150 mm | B: 16 mm | Cr: 35 kN | C0r: 44.5 kN | Mass: 0.525 kg
7826C d: 130 mm | D: 165 mm | B: 18 mm | Cr: 47 kN | C0r: 59.5 kN | Mass: 0.911 kg
7826CDB d: 130 mm | D: 165 mm | B: 18 mm | Cr: 47 kN | C0r: 59.5 kN | Mass: 0.911 kg
7826CDF d: 130 mm | D: 165 mm | B: 18 mm | Cr: 47 kN | C0r: 59.5 kN | Mass: 0.911 kg
7826CDT d: 130 mm | D: 165 mm | B: 18 mm | Cr: 47 kN | C0r: 59.5 kN | Mass: 0.911 kg
7828C d: 140 mm | D: 175 mm | B: 18 mm | Cr: 47.5 kN | C0r: 62.5 kN | Mass: 0.973 kg
7828CDB d: 140 mm | D: 175 mm | B: 18 mm | Cr: 47.5 kN | C0r: 62.5 kN | Mass: 0.973 kg
7828CDF d: 140 mm | D: 175 mm | B: 18 mm | Cr: 47.5 kN | C0r: 62.5 kN | Mass: 0.973 kg
7828CDT d: 140 mm | D: 175 mm | B: 18 mm | Cr: 47.5 kN | C0r: 62.5 kN | Mass: 0.973 kg
7830C d: 150 mm | D: 190 mm | B: 20 mm | Cr: 60.5 kN | C0r: 79.5 kN | Mass: 1.33 kg
7830CDB d: 150 mm | D: 190 mm | B: 20 mm | Cr: 60.5 kN | C0r: 79.5 kN | Mass: 1.33 kg
7830CDF d: 150 mm | D: 190 mm | B: 20 mm | Cr: 60.5 kN | C0r: 79.5 kN | Mass: 1.33 kg
7830CDT d: 150 mm | D: 190 mm | B: 20 mm | Cr: 60.5 kN | C0r: 79.5 kN | Mass: 1.33 kg
7832C d: 160 mm | D: 200 mm | B: 20 mm | Cr: 62 kN | C0r: 83.5 kN | Mass: 1.41 kg
7832CDB d: 160 mm | D: 200 mm | B: 20 mm | Cr: 62 kN | C0r: 83.5 kN | Mass: 1.41 kg
7832CDF d: 160 mm | D: 200 mm | B: 20 mm | Cr: 62 kN | C0r: 83.5 kN | Mass: 1.41 kg
7832CDT d: 160 mm | D: 200 mm | B: 20 mm | Cr: 62 kN | C0r: 83.5 kN | Mass: 1.41 kg
7834C d: 170 mm | D: 215 mm | B: 22 mm | Cr: 76 kN | C0r: 102 kN | Mass: 1.87 kg
7834CDB d: 170 mm | D: 215 mm | B: 22 mm | Cr: 76 kN | C0r: 102 kN | Mass: 1.87 kg
7834CDF d: 170 mm | D: 215 mm | B: 22 mm | Cr: 76 kN | C0r: 102 kN | Mass: 1.87 kg
7834CDT d: 170 mm | D: 215 mm | B: 22 mm | Cr: 76 kN | C0r: 102 kN | Mass: 1.87 kg
Angular Contact Ball BearingsNTN
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN 7800C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

Brand NTN·Angular Contact Ball Bearings

Available part numbers (96)

7805C, 7805CDB, 7805CDF, 7805CDT, 7806C, 7806CDB, 7806CDF, 7806CDT, 7807C, 7807CDB + 86 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
