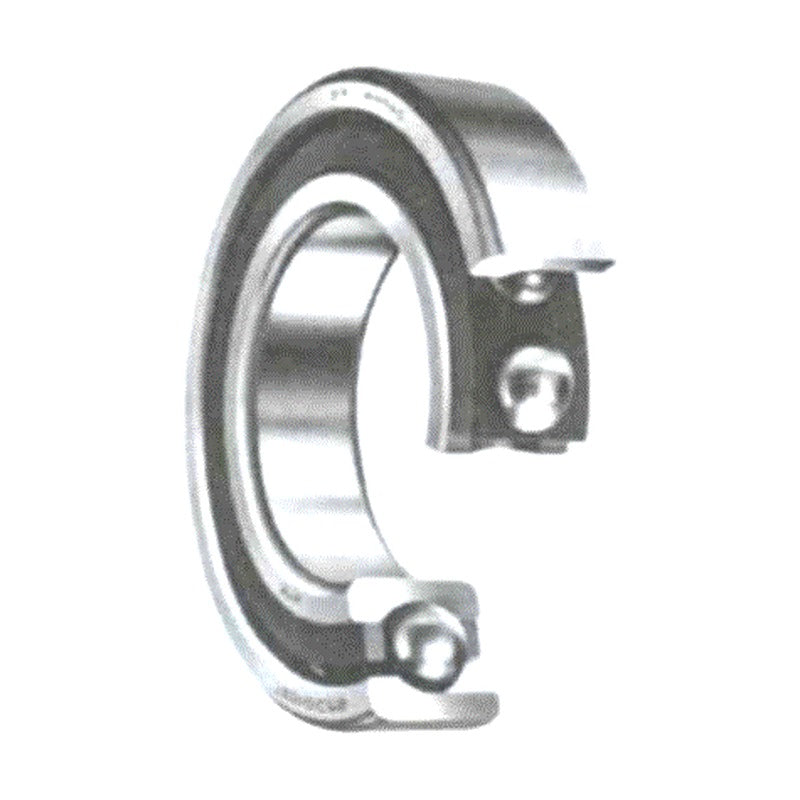

NTN 7900C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7900C High-Speed Angular Contact Ball Bearings (Single, DB, DF, DT

NTN 7900C high-speed single-row angular contact ball bearings, bore 12-170 mm, for single mounting or matched DB, DF and DT sets.

Key features

  • 15 deg contact angle (C suffix) for high-speed operation
  • Suited to machine tool spindles and high-speed shafts
  • Matched sets: DB back-to-back, DF face-to-face, DT tandem
  • Row specs show single-bearing ratings and mass

Specifications

Series 7900C
Bearing type High-speed angular contact ball bearing
Bore range 12-170 mm
Arrangements Single, DB, DF, DT
Load rating unit kN (single bearing)
Source NTN NTN Ball and Roller Bearings catalogue, p. 32-35
7905C d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.85 kN | C0r: 5.4 kN | Mass: 0.042 kg
7905CDB d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.85 kN | C0r: 5.4 kN | Mass: 0.042 kg
7905CDF d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.85 kN | C0r: 5.4 kN | Mass: 0.042 kg
7905CDT d: 25 mm | D: 42 mm | B: 9 mm | Cr: 7.85 kN | C0r: 5.4 kN | Mass: 0.042 kg
7906C d: 30 mm | D: 47 mm | B: 9 mm | Cr: 8.3 kN | C0r: 6.25 kN | Mass: 0.048 kg
7906CDB d: 30 mm | D: 47 mm | B: 9 mm | Cr: 8.3 kN | C0r: 6.25 kN | Mass: 0.048 kg
7906CDF d: 30 mm | D: 47 mm | B: 9 mm | Cr: 8.3 kN | C0r: 6.25 kN | Mass: 0.048 kg
7906CDT d: 30 mm | D: 47 mm | B: 9 mm | Cr: 8.3 kN | C0r: 6.25 kN | Mass: 0.048 kg
7907C d: 35 mm | D: 55 mm | B: 10 mm | Cr: 13.2 kN | C0r: 9.65 kN | Mass: 0.073 kg
7907CDB d: 35 mm | D: 55 mm | B: 10 mm | Cr: 13.2 kN | C0r: 9.65 kN | Mass: 0.073 kg
7907CDF d: 35 mm | D: 55 mm | B: 10 mm | Cr: 13.2 kN | C0r: 9.65 kN | Mass: 0.073 kg
7907CDT d: 35 mm | D: 55 mm | B: 10 mm | Cr: 13.2 kN | C0r: 9.65 kN | Mass: 0.073 kg
7908C d: 40 mm | D: 62 mm | B: 12 mm | Cr: 14 kN | C0r: 11.1 kN | Mass: 0.109 kg
7908CDB d: 40 mm | D: 62 mm | B: 12 mm | Cr: 14 kN | C0r: 11.1 kN | Mass: 0.109 kg
7908CDF d: 40 mm | D: 62 mm | B: 12 mm | Cr: 14 kN | C0r: 11.1 kN | Mass: 0.109 kg
7908CDT d: 40 mm | D: 62 mm | B: 12 mm | Cr: 14 kN | C0r: 11.1 kN | Mass: 0.109 kg
7909C d: 15 mm | D: 68 mm | B: 12 mm | Cr: 17.3 kN | C0r: 14.1 kN | Mass: 0.126 kg
7909CDB d: 15 mm | D: 68 mm | B: 12 mm | Cr: 17.3 kN | C0r: 14.1 kN | Mass: 0.126 kg
7909CDF d: 15 mm | D: 68 mm | B: 12 mm | Cr: 17.3 kN | C0r: 14.1 kN | Mass: 0.126 kg
7909CDT d: 15 mm | D: 68 mm | B: 12 mm | Cr: 17.3 kN | C0r: 14.1 kN | Mass: 0.126 kg
7910C d: 17 mm | D: 72 mm | B: 12 mm | Cr: 18.3 kN | C0r: 15.8 kN | Mass: 0.131 kg
7910CDB d: 17 mm | D: 72 mm | B: 12 mm | Cr: 18.3 kN | C0r: 15.8 kN | Mass: 0.131 kg
7910CDF d: 17 mm | D: 72 mm | B: 12 mm | Cr: 18.3 kN | C0r: 15.8 kN | Mass: 0.131 kg
7910CDT d: 17 mm | D: 72 mm | B: 12 mm | Cr: 18.3 kN | C0r: 15.8 kN | Mass: 0.131 kg
7911C d: 25 mm | D: 80 mm | B: 13 mm | Cr: 19.1 kN | C0r: 17.7 kN | Mass: 0.178 kg
7911CDB d: 25 mm | D: 80 mm | B: 13 mm | Cr: 19.1 kN | C0r: 17.7 kN | Mass: 0.178 kg
7911CDF d: 25 mm | D: 80 mm | B: 13 mm | Cr: 19.1 kN | C0r: 17.7 kN | Mass: 0.178 kg
7911CDT d: 25 mm | D: 80 mm | B: 13 mm | Cr: 19.1 kN | C0r: 17.7 kN | Mass: 0.178 kg
7912C d: 30 mm | D: 85 mm | B: 13 mm | Cr: 20 kN | C0r: 19.5 kN | Mass: 0.191 kg
7912CDB d: 30 mm | D: 85 mm | B: 13 mm | Cr: 20 kN | C0r: 19.5 kN | Mass: 0.191 kg
7912CDF d: 30 mm | D: 85 mm | B: 13 mm | Cr: 20 kN | C0r: 19.5 kN | Mass: 0.191 kg
7912CDT d: 30 mm | D: 85 mm | B: 13 mm | Cr: 20 kN | C0r: 19.5 kN | Mass: 0.191 kg
7913C d: 35 mm | D: 90 mm | B: 13 mm | Cr: 20.2 kN | C0r: 20.4 kN | Mass: 0.204 kg
7913CDB d: 35 mm | D: 90 mm | B: 13 mm | Cr: 20.2 kN | C0r: 20.4 kN | Mass: 0.204 kg
7913CDF d: 35 mm | D: 90 mm | B: 13 mm | Cr: 20.2 kN | C0r: 20.4 kN | Mass: 0.204 kg
7913CDT d: 35 mm | D: 90 mm | B: 13 mm | Cr: 20.2 kN | C0r: 20.4 kN | Mass: 0.204 kg
7914C d: 12 mm | D: 100 mm | B: 16 mm | Cr: 28.9 kN | C0r: 29 kN | Mass: 0.331 kg
7914CDB d: 12 mm | D: 100 mm | B: 16 mm | Cr: 28.9 kN | C0r: 29 kN | Mass: 0.331 kg
7914CDF d: 12 mm | D: 100 mm | B: 16 mm | Cr: 28.9 kN | C0r: 29 kN | Mass: 0.331 kg
7914CDT d: 12 mm | D: 100 mm | B: 16 mm | Cr: 28.9 kN | C0r: 29 kN | Mass: 0.331 kg
7915C d: 40 mm | D: 105 mm | B: 16 mm | Cr: 29.4 kN | C0r: 30.5 kN | Mass: 0.35 kg
7915CDB d: 40 mm | D: 105 mm | B: 16 mm | Cr: 29.4 kN | C0r: 30.5 kN | Mass: 0.35 kg
7915CDF d: 40 mm | D: 105 mm | B: 16 mm | Cr: 29.4 kN | C0r: 30.5 kN | Mass: 0.35 kg
7915CDT d: 40 mm | D: 105 mm | B: 16 mm | Cr: 29.4 kN | C0r: 30.5 kN | Mass: 0.35 kg
7916C d: 80 mm | D: 110 mm | B: 16 mm | Cr: 29.8 kN | C0r: 31.5 kN | Mass: 0.37 kg
7916CDB d: 80 mm | D: 110 mm | B: 16 mm | Cr: 29.8 kN | C0r: 31.5 kN | Mass: 0.37 kg
7916CDF d: 80 mm | D: 110 mm | B: 16 mm | Cr: 29.8 kN | C0r: 31.5 kN | Mass: 0.37 kg
7916CDT d: 80 mm | D: 110 mm | B: 16 mm | Cr: 29.8 kN | C0r: 31.5 kN | Mass: 0.37 kg
7917C d: 85 mm | D: 120 mm | B: 18 mm | Cr: 40 kN | C0r: 42.5 kN | Mass: 0.523 kg
7917CDB d: 85 mm | D: 120 mm | B: 18 mm | Cr: 40 kN | C0r: 42.5 kN | Mass: 0.523 kg
7917CDF d: 85 mm | D: 120 mm | B: 18 mm | Cr: 40 kN | C0r: 42.5 kN | Mass: 0.523 kg
7917CDT d: 85 mm | D: 120 mm | B: 18 mm | Cr: 40 kN | C0r: 42.5 kN | Mass: 0.523 kg
7918C d: 90 mm | D: 125 mm | B: 18 mm | Cr: 39.5 kN | C0r: 42.5 kN | Mass: 0.549 kg
7918CDB d: 90 mm | D: 125 mm | B: 18 mm | Cr: 39.5 kN | C0r: 42.5 kN | Mass: 0.549 kg
7918CDF d: 90 mm | D: 125 mm | B: 18 mm | Cr: 39.5 kN | C0r: 42.5 kN | Mass: 0.549 kg
7918CDT d: 90 mm | D: 125 mm | B: 18 mm | Cr: 39.5 kN | C0r: 42.5 kN | Mass: 0.549 kg
7919C d: 95 mm | D: 130 mm | B: 18 mm | Cr: 41 kN | C0r: 46 kN | Mass: 0.574 kg
7919CDB d: 95 mm | D: 130 mm | B: 18 mm | Cr: 41 kN | C0r: 46 kN | Mass: 0.574 kg
7919CDF d: 95 mm | D: 130 mm | B: 18 mm | Cr: 41 kN | C0r: 46 kN | Mass: 0.574 kg
7919CDT d: 95 mm | D: 130 mm | B: 18 mm | Cr: 41 kN | C0r: 46 kN | Mass: 0.574 kg
7920C d: 100 mm | D: 140 mm | B: 20 mm | Cr: 53 kN | C0r: 58.5 kN | Mass: 0.778 kg
7920CDB d: 100 mm | D: 140 mm | B: 20 mm | Cr: 53 kN | C0r: 58.5 kN | Mass: 0.778 kg
7920CDF d: 100 mm | D: 140 mm | B: 20 mm | Cr: 53 kN | C0r: 58.5 kN | Mass: 0.778 kg
7920CDT d: 100 mm | D: 140 mm | B: 20 mm | Cr: 53 kN | C0r: 58.5 kN | Mass: 0.778 kg
7921C d: 105 mm | D: 145 mm | B: 20 mm | Cr: 54 kN | C0r: 61.5 kN | Mass: 0.81 kg
7921CDB d: 105 mm | D: 145 mm | B: 20 mm | Cr: 54 kN | C0r: 61.5 kN | Mass: 0.81 kg
7921CDF d: 105 mm | D: 145 mm | B: 20 mm | Cr: 54 kN | C0r: 61.5 kN | Mass: 0.81 kg
7921CDT d: 105 mm | D: 145 mm | B: 20 mm | Cr: 54 kN | C0r: 61.5 kN | Mass: 0.81 kg
7922C d: 110 mm | D: 150 mm | B: 20 mm | Cr: 54.5 kN | C0r: 63.5 kN | Mass: 0.843 kg
7922CDB d: 110 mm | D: 150 mm | B: 20 mm | Cr: 54.5 kN | C0r: 63.5 kN | Mass: 0.843 kg
7922CDF d: 110 mm | D: 150 mm | B: 20 mm | Cr: 54.5 kN | C0r: 63.5 kN | Mass: 0.843 kg
7922CDT d: 110 mm | D: 150 mm | B: 20 mm | Cr: 54.5 kN | C0r: 63.5 kN | Mass: 0.843 kg
7924C d: 120 mm | D: 165 mm | B: 22 mm | Cr: 67.5 kN | C0r: 78.5 kN | Mass: 1.38 kg
7924CDB d: 120 mm | D: 165 mm | B: 22 mm | Cr: 67.5 kN | C0r: 78.5 kN | Mass: 1.38 kg
7924CDF d: 120 mm | D: 165 mm | B: 22 mm | Cr: 67.5 kN | C0r: 78.5 kN | Mass: 1.38 kg
7924CDT d: 120 mm | D: 165 mm | B: 22 mm | Cr: 67.5 kN | C0r: 78.5 kN | Mass: 1.38 kg
7926C d: 130 mm | D: 180 mm | B: 24 mm | Cr: 82.5 kN | C0r: 98 kN | Mass: 1.82 kg
7926CDB d: 130 mm | D: 180 mm | B: 24 mm | Cr: 82.5 kN | C0r: 98 kN | Mass: 1.82 kg
7926CDF d: 130 mm | D: 180 mm | B: 24 mm | Cr: 82.5 kN | C0r: 98 kN | Mass: 1.82 kg
7926CDT d: 130 mm | D: 180 mm | B: 24 mm | Cr: 82.5 kN | C0r: 98 kN | Mass: 1.82 kg
7928C d: 140 mm | D: 190 mm | B: 24 mm | Cr: 83.5 kN | C0r: 101 kN | Mass: 1.94 kg
7928CDB d: 140 mm | D: 190 mm | B: 24 mm | Cr: 83.5 kN | C0r: 101 kN | Mass: 1.94 kg
7928CDF d: 140 mm | D: 190 mm | B: 24 mm | Cr: 83.5 kN | C0r: 101 kN | Mass: 1.94 kg
7928CDT d: 140 mm | D: 190 mm | B: 24 mm | Cr: 83.5 kN | C0r: 101 kN | Mass: 1.94 kg
7930C d: 150 mm | D: 210 mm | B: 28 mm | Cr: 108 kN | C0r: 132 kN | Mass: 2.96 kg
7930CDB d: 150 mm | D: 210 mm | B: 28 mm | Cr: 108 kN | C0r: 132 kN | Mass: 2.96 kg
7930CDF d: 150 mm | D: 210 mm | B: 28 mm | Cr: 108 kN | C0r: 132 kN | Mass: 2.96 kg
7930CDT d: 150 mm | D: 210 mm | B: 28 mm | Cr: 108 kN | C0r: 132 kN | Mass: 2.96 kg
7932C d: 160 mm | D: 220 mm | B: 28 mm | Cr: 109 kN | C0r: 136 kN | Mass: 3.13 kg
7932CDB d: 160 mm | D: 220 mm | B: 28 mm | Cr: 109 kN | C0r: 136 kN | Mass: 3.13 kg
7932CDF d: 160 mm | D: 220 mm | B: 28 mm | Cr: 109 kN | C0r: 136 kN | Mass: 3.13 kg
7932CDT d: 160 mm | D: 220 mm | B: 28 mm | Cr: 109 kN | C0r: 136 kN | Mass: 3.13 kg
7934C d: 170 mm | D: 230 mm | B: 28 mm | Cr: 113 kN | C0r: 145 kN | Mass: 3.29 kg
7934CDB d: 170 mm | D: 230 mm | B: 28 mm | Cr: 113 kN | C0r: 145 kN | Mass: 3.29 kg
7934CDF d: 170 mm | D: 230 mm | B: 28 mm | Cr: 113 kN | C0r: 145 kN | Mass: 3.29 kg
7934CDT d: 170 mm | D: 230 mm | B: 28 mm | Cr: 113 kN | C0r: 145 kN | Mass: 3.29 kg
