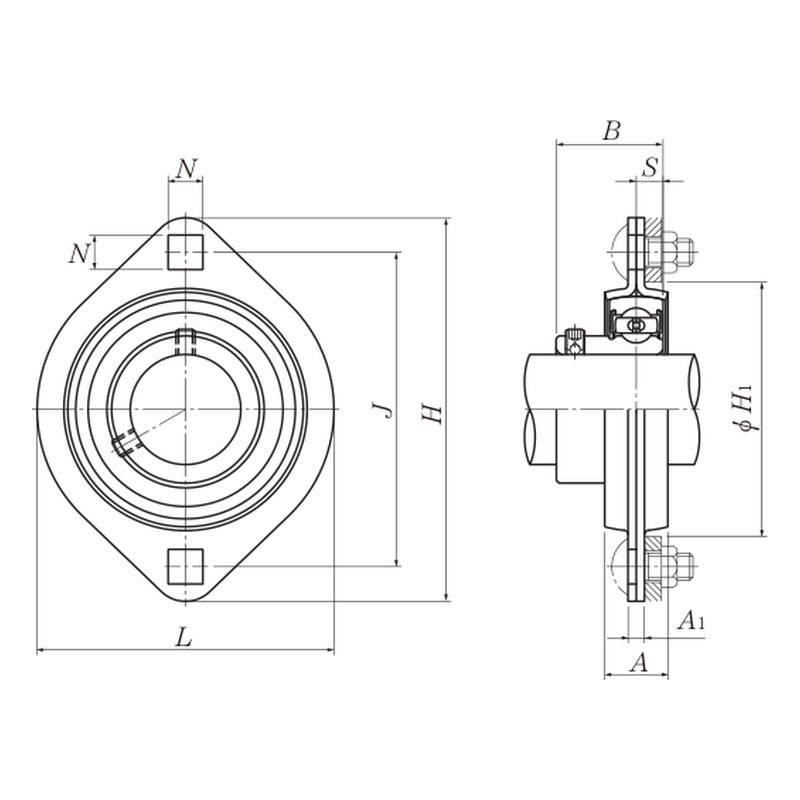

NTN ASPFL2 Rhombus Flanged Units, Pressed Steel Housing

NTN ASPFL2 Rhombus Flanged Units, Pressed Steel Housing

NTN ASPFL2 series rhombus flanged units pressed steel housing, set screw locking type, for shafts 12-40 mm and inch sizes.

Key features

  • Rhombus flanged units pressed steel housing with AS type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • Pre-lubricated, sealed insert bearing

Specifications

Series ASPFL2
Unit type Rhombus flanged units pressed steel housing
Shaft range 12-40 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 204-205
ASPFL201 Shaft: 12 mm | Insert bearing: AS201 | Housing: PFL203
ASPFL201-008 Shaft: 1/2 in | Insert bearing: AS201-008 | Housing: PFL203
ASPFL202 Shaft: 15 mm | Insert bearing: AS202 | Housing: PFL203
ASPFL202-009 Shaft: 9/16 in | Insert bearing: AS202-009 | Housing: PFL203
ASPFL202-010 Shaft: 5/8 in | Insert bearing: AS202-010 | Housing: PFL203
ASPFL203 Shaft: 17 mm | Insert bearing: AS203 | Housing: PFL203
ASPFL203-011 Shaft: 11/16 in | Insert bearing: AS203-011 | Housing: PFL203
ASPFL204 Shaft: 20 mm | Insert bearing: AS204 | Housing: PFL204
ASPFL204-012 Shaft: 3/4 in | Insert bearing: AS204-012 | Housing: PFL204
ASPFL205 Shaft: 25 mm | Insert bearing: AS205 | Housing: PFL205
ASPFL205-013 Shaft: 13/16 in | Insert bearing: AS205-013 | Housing: PFL205
ASPFL205-014 Shaft: 7/8 in | Insert bearing: AS205-014 | Housing: PFL205
ASPFL205-015 Shaft: 15/16 in | Insert bearing: AS205-015 | Housing: PFL205
ASPFL205-100 Shaft: 1 in | Insert bearing: AS205-100 | Housing: PFL205
ASPFL206 Shaft: 30 mm | Insert bearing: AS206 | Housing: PFL206
ASPFL206-101 Shaft: 1-1/16 in | Insert bearing: AS206-101 | Housing: PFL206
ASPFL206-102 Shaft: 1-1/8 in | Insert bearing: AS206-102 | Housing: PFL206
ASPFL206-103 Shaft: 1-3/16 in | Insert bearing: AS206-103 | Housing: PFL206
ASPFL206-104 Shaft: 1-1/4 in | Insert bearing: AS206-104 | Housing: PFL206
ASPFL207 Shaft: 35 mm | Insert bearing: AS207 | Housing: PFL207
ASPFL207-104 Shaft: 1-1/4 in | Insert bearing: AS207-104 | Housing: PFL207
ASPFL207-105 Shaft: 1-5/16 in | Insert bearing: AS207-105 | Housing: PFL207
ASPFL207-106 Shaft: 1-3/8 in | Insert bearing: AS207-106 | Housing: PFL207
ASPFL207-107 Shaft: 1-7/16 in | Insert bearing: AS207-107 | Housing: PFL207
ASPFL208 Shaft: 40 mm | Insert bearing: AS208 | Housing: PFL208
ASPFL208-108 Shaft: 1-1/2 in | Insert bearing: AS208-108 | Housing: PFL208
ASPFL208-109 Shaft: 1-9/16 in | Insert bearing: AS208-109 | Housing: PFL208
Mounted Bearing UnitsNTN
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN ASPFL2 Rhombus Flanged Units, Pressed Steel Housing

Brand NTN·Mounted Bearing Units

Available part numbers (27)

ASPFL201, ASPFL201-008, ASPFL202, ASPFL202-009, ASPFL202-010, ASPFL203, ASPFL203-011, ASPFL204, ASPFL204-012, ASPFL205 + 17 more — see full table ↓
