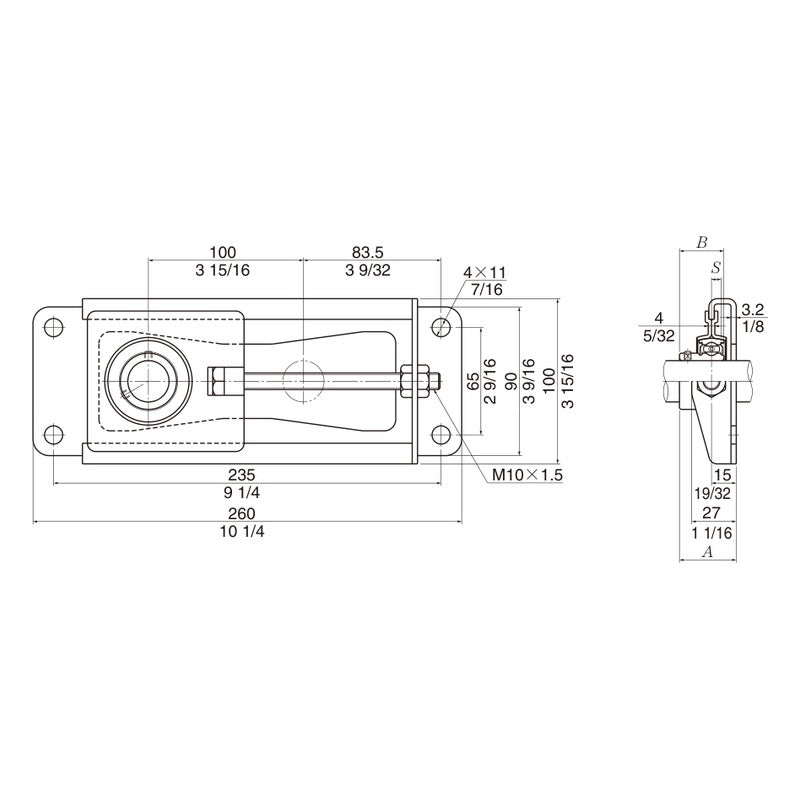

NTN ASPT2 Mini stretcher Units

NTN ASPT2 Mini stretcher Units

NTN ASPT2 series mini stretcher units, set screw locking type, for shafts 12-25 mm and inch sizes.

Key features

  • Mini stretcher units with AS type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • Pre-lubricated, sealed insert bearing

Specifications

Series ASPT2
Unit type Mini stretcher units
Shaft range 12-25 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 241-241
ASPT201-10 Shaft: 12 mm | Insert bearing: AS201 | Bore: Metric
ASPT201-008-10 Shaft: 1/2 in | Insert bearing: AS201-008 | Bore: Inch
ASPT202-10 Shaft: 15 mm | Insert bearing: AS202 | Bore: Metric
ASPT202-009-10 Shaft: 9/16 in | Insert bearing: AS202-009 | Bore: Inch
ASPT202-010-10 Shaft: 5/8 in | Insert bearing: AS202-010 | Bore: Inch
ASPT203-10 Shaft: 17 mm | Insert bearing: AS203 | Bore: Metric
ASPT203-011-10 Shaft: 11/16 in | Insert bearing: AS203-011 | Bore: Inch
ASPT204-10 Shaft: 20 mm | Insert bearing: AS204 | Bore: Metric
ASPT204-012-10 Shaft: 3/4 in | Insert bearing: AS204-012 | Bore: Inch
ASPT205-10 Shaft: 25 mm | Insert bearing: AS205 | Bore: Metric
ASPT205-013-10 Shaft: 13/16 in | Insert bearing: AS205-013 | Bore: Inch
ASPT205-014-10 Shaft: 7/8 in | Insert bearing: AS205-014 | Bore: Inch
ASPT205-015-10 Shaft: 15/16 in | Insert bearing: AS205-015 | Bore: Inch
ASPT205-100-10 Shaft: 1 in | Insert bearing: AS205-100 | Bore: Inch
Mounted Bearing UnitsNTN
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN ASPT2 Mini stretcher Units

Brand NTN·Mounted Bearing Units

Available part numbers (14)

ASPT201-10, ASPT201-008-10, ASPT202-10, ASPT202-009-10, ASPT202-010-10, ASPT203-10, ASPT203-011-10, ASPT204-10, ASPT204-012-10, ASPT205-10 + 4 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASPT201-10Shaft: 12 mm | Insert bearing: AS201 | Bore: Metric
ASPT201-008-10Shaft: 1/2 in | Insert bearing: AS201-008 | Bore: Inch
ASPT202-10Shaft: 15 mm | Insert bearing: AS202 | Bore: Metric
ASPT202-009-10Shaft: 9/16 in | Insert bearing: AS202-009 | Bore: Inch
ASPT202-010-10Shaft: 5/8 in | Insert bearing: AS202-010 | Bore: Inch
ASPT203-10Shaft: 17 mm | Insert bearing: AS203 | Bore: Metric
ASPT203-011-10Shaft: 11/16 in | Insert bearing: AS203-011 | Bore: Inch
ASPT204-10Shaft: 20 mm | Insert bearing: AS204 | Bore: Metric
ASPT204-012-10Shaft: 3/4 in | Insert bearing: AS204-012 | Bore: Inch
ASPT205-10Shaft: 25 mm | Insert bearing: AS205 | Bore: Metric
ASPT205-013-10Shaft: 13/16 in | Insert bearing: AS205-013 | Bore: Inch
ASPT205-014-10Shaft: 7/8 in | Insert bearing: AS205-014 | Bore: Inch
ASPT205-015-10Shaft: 15/16 in | Insert bearing: AS205-015 | Bore: Inch
ASPT205-100-10Shaft: 1 in | Insert bearing: AS205-100 | Bore: Inch
