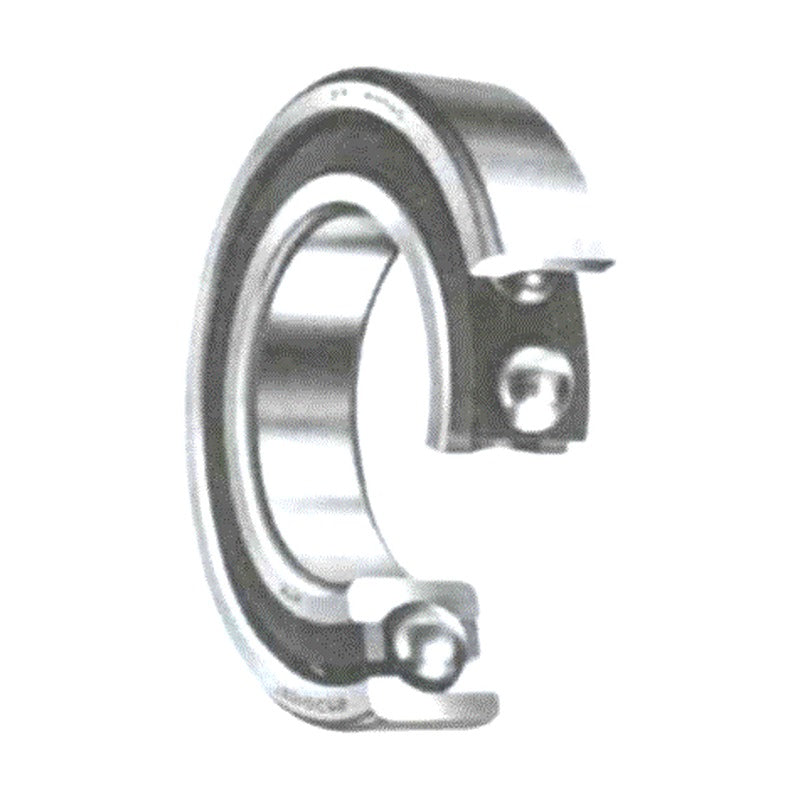

NTN BNT0/BNT2 Ultra High-Speed Angular Contact Ball Bearings

NTN BNT0/BNT2 Ultra High-Speed Angular Contact Ball Bearings

NTN BNT series ultra high-speed angular contact ball bearings for machine tool spindles and other high-speed applications.

Key features

  • Designed for very high rotational speeds
  • Single-row angular contact construction
  • BNT0 and BNT2 dimension series
  • Listed with load ratings, speed limits and mass

Specifications

Series BNT0, BNT2
Bearing type Ultra high-speed angular contact ball bearing
Load rating unit kN
Brand NTN
Product category Angular Contact Ball Bearings
Source NTN NTN Ball and Roller Bearings catalogue, p. 36-38
BNT000 d: 10 mm | D: 26 mm | B: 8 mm | Cr: 3.75 kN | C0r: 1.45 kN | Mass: 0.015 kg
BTN200 d: 10 mm | D: 30 mm | B: 9 mm | Cr: 4.15 kN | C0r: 1.71 kN | Mass: 0.019 kg
BNT001 d: 12 mm | D: 28 mm | B: 8 mm | Cr: 4.15 kN | C0r: 1.73 kN | Mass: 0.02 kg
BNT201 d: 12 mm | D: 32 mm | B: 10 mm | Cr: 5.4 kN | C0r: 2.28 kN | Mass: 0.025 kg
BNT002 d: 15 mm | D: 32 mm | B: 9 mm | Cr: 4.75 kN | C0r: 2.22 kN | Mass: 0.029 kg
BNT202 d: 15 mm | D: 35 mm | B: 11 mm | Cr: 6.85 kN | C0r: 2.97 kN | Mass: 0.035 kg
BNT003 d: 17 mm | D: 35 mm | B: 10 mm | Cr: 5.9 kN | C0r: 2.7 kN | Mass: 0.033 kg
BNT203 d: 17 mm | D: 40 mm | B: 12 mm | Cr: 8.55 kN | C0r: 3.8 kN | Mass: 0.054 kg
BNT004 d: 20 mm | D: 42 mm | B: 12 mm | Cr: 8 kN | C0r: 3.95 kN | Mass: 0.057 kg
BNT204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 11.2 kN | C0r: 5.35 kN | Mass: 0.092 kg
BNT005 d: 25 mm | D: 47 mm | B: 12 mm | Cr: 8.95 kN | C0r: 4.85 kN | Mass: 0.067 kg
BNT205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 12.7 kN | C0r: 6.7 kN | Mass: 0.127 kg
BNT006 d: 30 mm | D: 55 mm | B: 13 mm | Cr: 11.6 kN | C0r: 6.75 kN | Mass: 0.109 kg
BNT206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 17.6 kN | C0r: 9.6 kN | Mass: 0.201 kg
BNT007 d: 35 mm | D: 62 mm | B: 14 mm | Cr: 14.6 kN | C0r: 8.95 kN | Mass: 0.146 kg
BNT207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 23.2 kN | C0r: 13.1 kN | Mass: 0.294 kg
BNT008 d: 40 mm | D: 68 mm | B: 15 mm | Cr: 15.7 kN | C0r: 10.4 kN | Mass: 0.182 kg
BNT208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 27.8 kN | C0r: 16.5 kN | Mass: 0.383 kg
BNT009 d: 45 mm | D: 75 mm | B: 16 mm | Cr: 18.6 kN | C0r: 12.6 kN | Mass: 0.235 kg
BNT209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 31 kN | C0r: 18.9 kN | Mass: 0.437 kg
Angular Contact Ball BearingsNTN
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN BNT0/BNT2 Ultra High-Speed Angular Contact Ball Bearings

Brand NTN·Angular Contact Ball Bearings

Available part numbers (20)

BNT000, BTN200, BNT001, BNT201, BNT002, BNT202, BNT003, BNT203, BNT004, BNT204 + 10 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BNT000d: 10 mm | D: 26 mm | B: 8 mm | Cr: 3.75 kN | C0r: 1.45 kN | Mass: 0.015 kg
BTN200d: 10 mm | D: 30 mm | B: 9 mm | Cr: 4.15 kN | C0r: 1.71 kN | Mass: 0.019 kg
BNT001d: 12 mm | D: 28 mm | B: 8 mm | Cr: 4.15 kN | C0r: 1.73 kN | Mass: 0.02 kg
BNT201d: 12 mm | D: 32 mm | B: 10 mm | Cr: 5.4 kN | C0r: 2.28 kN | Mass: 0.025 kg
BNT002d: 15 mm | D: 32 mm | B: 9 mm | Cr: 4.75 kN | C0r: 2.22 kN | Mass: 0.029 kg
BNT202d: 15 mm | D: 35 mm | B: 11 mm | Cr: 6.85 kN | C0r: 2.97 kN | Mass: 0.035 kg
BNT003d: 17 mm | D: 35 mm | B: 10 mm | Cr: 5.9 kN | C0r: 2.7 kN | Mass: 0.033 kg
BNT203d: 17 mm | D: 40 mm | B: 12 mm | Cr: 8.55 kN | C0r: 3.8 kN | Mass: 0.054 kg
BNT004d: 20 mm | D: 42 mm | B: 12 mm | Cr: 8 kN | C0r: 3.95 kN | Mass: 0.057 kg
BNT204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 11.2 kN | C0r: 5.35 kN | Mass: 0.092 kg
BNT005d: 25 mm | D: 47 mm | B: 12 mm | Cr: 8.95 kN | C0r: 4.85 kN | Mass: 0.067 kg
BNT205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 12.7 kN | C0r: 6.7 kN | Mass: 0.127 kg
BNT006d: 30 mm | D: 55 mm | B: 13 mm | Cr: 11.6 kN | C0r: 6.75 kN | Mass: 0.109 kg
BNT206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 17.6 kN | C0r: 9.6 kN | Mass: 0.201 kg
BNT007d: 35 mm | D: 62 mm | B: 14 mm | Cr: 14.6 kN | C0r: 8.95 kN | Mass: 0.146 kg
BNT207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 23.2 kN | C0r: 13.1 kN | Mass: 0.294 kg
BNT008d: 40 mm | D: 68 mm | B: 15 mm | Cr: 15.7 kN | C0r: 10.4 kN | Mass: 0.182 kg
BNT208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 27.8 kN | C0r: 16.5 kN | Mass: 0.383 kg
BNT009d: 45 mm | D: 75 mm | B: 16 mm | Cr: 18.6 kN | C0r: 12.6 kN | Mass: 0.235 kg
BNT209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 31 kN | C0r: 18.9 kN | Mass: 0.437 kg
