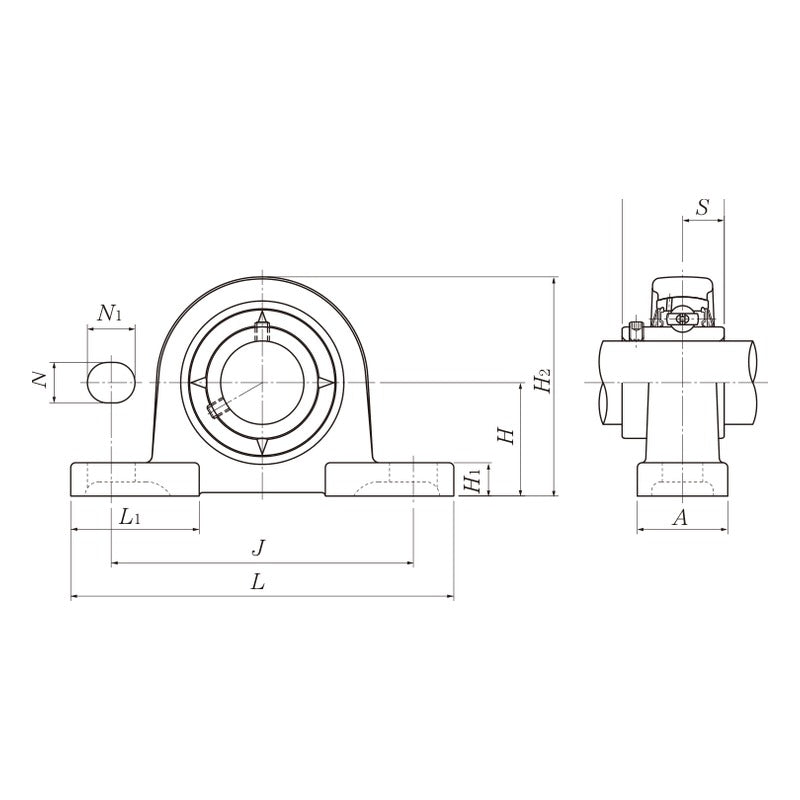

NTN F-UCPM2 Pillow Block Units (Stainless Series)

NTN F-UCPM2 Pillow Block Units (Stainless Series)

NTN F-UCPM2 series pillow blocks (stainless series), set screw locking type, for shafts 20-45 mm.

Key features

  • Pillow blocks (Stainless series) with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores
  • Pre-lubricated, sealed insert bearing
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed
  • Stainless / plastic housing series with LP09 food-grade grease specification

Specifications

Series F-UCPM2
Unit type Pillow blocks (Stainless series)
Shaft range 20-45 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 88-89
F-UCPM204/LP09 Shaft: 20 mm | Insert bearing: F-UC204D1/LP09 | Housing: PM204 | Cover: None (open unit)
F-FS-UCPM204/LP09 Shaft: 20 mm | Insert bearing: F-UC204D1/LP09 | Housing: PM204 | Cover: Stainless, open end
F-FSM-UCPM204/LP09 Shaft: 20 mm | Insert bearing: F-UC204D1/LP09 | Housing: PM204 | Cover: Stainless, closed end
F-UCPM205/LP09 Shaft: 25 mm | Insert bearing: F-UC205D1/LP09 | Housing: PM205 | Cover: None (open unit)
F-FS-UCPM205/LP09 Shaft: 25 mm | Insert bearing: F-UC205D1/LP09 | Housing: PM205 | Cover: Stainless, open end
F-FSM-UCPM205/LP09 Shaft: 25 mm | Insert bearing: F-UC205D1/LP09 | Housing: PM205 | Cover: Stainless, closed end
F-UCPM206/LP09 Shaft: 30 mm | Insert bearing: F-UC206D1/LP09 | Housing: PM206 | Cover: None (open unit)
F-FS-UCPM206/LP09 Shaft: 30 mm | Insert bearing: F-UC206D1/LP09 | Housing: PM206 | Cover: Stainless, open end
F-FSM-UCPM206/LP09 Shaft: 30 mm | Insert bearing: F-UC206D1/LP09 | Housing: PM206 | Cover: Stainless, closed end
F-UCPM207/LP09 Shaft: 35 mm | Insert bearing: F-UC207D1/LP09 | Housing: PM207 | Cover: None (open unit)
F-FS-UCPM207/LP09 Shaft: 35 mm | Insert bearing: F-UC207D1/LP09 | Housing: PM207 | Cover: Stainless, open end
F-FSM-UCPM207/LP09 Shaft: 35 mm | Insert bearing: F-UC207D1/LP09 | Housing: PM207 | Cover: Stainless, closed end
F-UCPM208/LP09 Shaft: 40 mm | Insert bearing: F-UC208D1/LP09 | Housing: PM208 | Cover: None (open unit)
F-FS-UCPM208/LP09 Shaft: 40 mm | Insert bearing: F-UC208D1/LP09 | Housing: PM208 | Cover: Stainless, open end
F-FSM-UCPM208/LP09 Shaft: 40 mm | Insert bearing: F-UC208D1/LP09 | Housing: PM208 | Cover: Stainless, closed end
F-UCPM209/LP09 Shaft: 45 mm | Insert bearing: F-UC209D1/LP09 | Housing: PM209 | Cover: None (open unit)
F-FS-UCPM209/LP09 Shaft: 45 mm | Insert bearing: F-UC209D1/LP09 | Housing: PM209 | Cover: Stainless, open end
F-FSM-UCPM209/LP09 Shaft: 45 mm | Insert bearing: F-UC209D1/LP09 | Housing: PM209 | Cover: Stainless, closed end
Mounted Bearing UnitsNTN
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN F-UCPM2 Pillow Block Units (Stainless Series)

Brand NTN·Mounted Bearing Units

Available part numbers (18)

F-UCPM204/LP09, F-FS-UCPM204/LP09, F-FSM-UCPM204/LP09, F-UCPM205/LP09, F-FS-UCPM205/LP09, F-FSM-UCPM205/LP09, F-UCPM206/LP09, F-FS-UCPM206/LP09, F-FSM-UCPM206/LP09, F-UCPM207/LP09 + 8 more — see full table ↓
