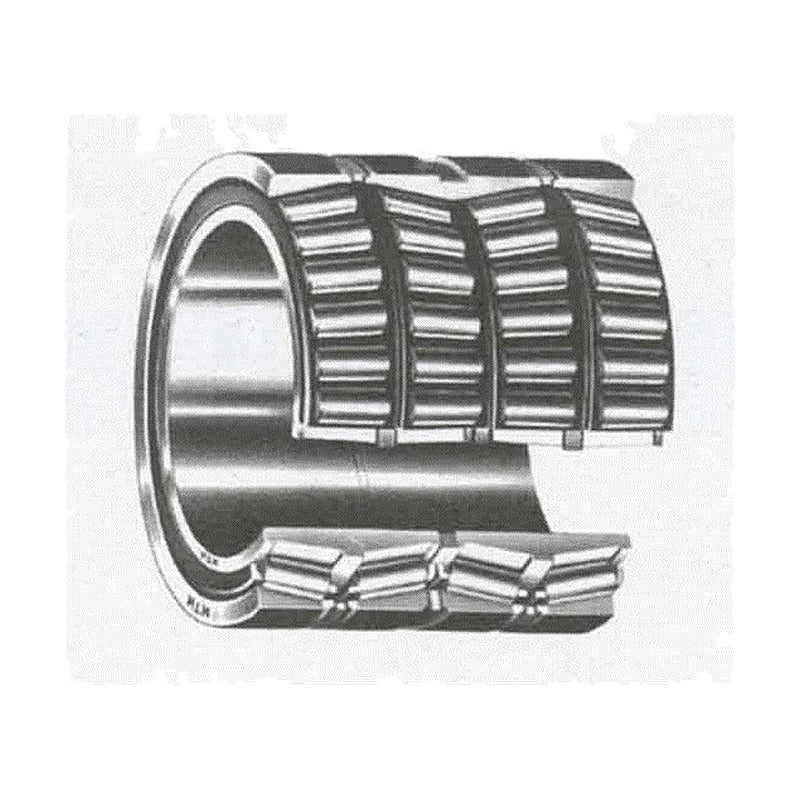

NTN Four-Row Tapered Roller Bearings (Rolling Mill Roll Necks)

NTN Four-Row Tapered Roller Bearings (Rolling Mill Roll Necks)

NTN four-row tapered roller bearings for rolling mill roll necks, supporting very high radial and axial loads, in metric and inch sizes.

Key features

  • Four rows of tapered rollers in a compact assembly
  • Handles heavy radial loads with axial loads in both directions
  • Designed for roll neck service in rolling mills
  • Metric (E-6259xx, E-CRO) and inch cone/cup designations

Specifications

Bearing type Four-row tapered roller bearing
Bore range 120-1200 mm
Load rating unit kN
Brand NTN
Product category Tapered Roller Bearings
Source NTN NTN Ball and Roller Bearings catalogue, p. 117-124
E-625924 d: 120 mm | D: 170 mm | B: 124 mm | Cr: 390 kN | Mass: 8.97 kg
E-CRO-2418 d: 120 mm | D: 210 mm | B: 174 mm | Cr: 855 kN | Mass: 22.2 kg
E-M224749D/M224710/M224710D d: 120.65 mm | D: 174.625 mm | B: 141.288 mm | Cr: 510 kN | Mass: 11.5 kg
E-48290D/48220/48220D d: 127 mm | D: 182.562 mm | B: 158.75 mm | Cr: 660 kN | Mass: 14.3 kg
E-625926 d: 130 mm | D: 184 mm | B: 134 mm | Cr: 480 kN | Mass: 11.3 kg
E-CRO-2701 d: 135 mm | D: 180 mm | B: 160 mm | Cr: 500 kN | Mass: 13.5 kg
E-48393D/48320/48320D d: 136.525 mm | D: 190.5 mm | B: 161.925 mm | Cr: 695 kN | Mass: 14.8 kg
E-48680D/48620/48620D d: 139.7 mm | D: 200.025 mm | B: 157.165 mm | Cr: 700 kN | Mass: 17.3 kg
E-625928 d: 140 mm | D: 198 mm | B: 144 mm | Cr: 575 kN | Mass: 14 kg
E-81576D/81962/81963D d: 146.05 mm | D: 244.475 mm | B: 192.088 mm | Cr: 955 kN | Mass: 36.8 kg
E-625930 d: 150 mm | D: 212 mm | B: 155 mm | Cr: 660 kN | Mass: 16.9 kg
E-M231649D/M231610/M231610D d: 152.4 mm | D: 222.25 mm | B: 174.625 mm | Cr: 930 kN | Mass: 24.7 kg
E-625932 d: 152.4 mm | D: 226 mm | B: 165 mm | Cr: 775 kN | Mass: 20.2 kg
E-CRO-3209 d: 152.4 mm | D: 265 mm | B: 173 mm | Cr: 1100 kN | Mass: 33.6 kg
E-46791D/46720/46721D d: 165.1 mm | D: 225.425 mm | B: 165.1 mm | Cr: 745 kN | Mass: 20.7 kg
E-625934 d: 170 mm | D: 240 mm | B: 175 mm | Cr: 835 kN | Mass: 24.4 kg
E-CRO-3409 d: 170 mm | D: 280 mm | B: 181 mm | Cr: 1150 kN | Mass: 44 kg
E-67791D/67720/67721D d: 177.8 mm | D: 247.65 mm | B: 192.088 mm | Cr: 1000 kN | Mass: 29.4 kg
E-82681D/82620/82620D d: 177.8 mm | D: 279.4 mm | B: 234.95 mm | Cr: 1420 kN | Mass: 55.3 kg
E-EE280700D/281200/281201D d: 177.8 mm | D: 304.8 mm | B: 238.227 mm | Cr: 1580 kN | Mass: 69.9 kg
E-625936 d: 180 mm | D: 254 mm | B: 185 mm | Cr: 910 kN | Mass: 28.9 kg
E-CRO-3617 d: 180 mm | D: 300 mm | B: 280 mm | Cr: 2160 kN | Mass: 69.4 kg
E-M238849D/M238810/M238810D d: 187.325 mm | D: 269.875 mm | B: 211.138 mm | Cr: 1240 kN | Mass: 41.8 kg
E-625938 d: 190 mm | D: 268 mm | B: 196 mm | Cr: 1060 kN | Mass: 34.7 kg
E-CRO-3812 d: 190 mm | D: 270 mm | B: 190 mm | Cr: 1080 kN | Mass: 34.7 kg
E-M241538D/M241510/M241510D d: 190 mm | D: 292.1 mm | B: 225.425 mm | Cr: 1570 kN | Mass: 59.6 kg
E-67885D/67820/67820D d: 190.5 mm | D: 266.7 mm | B: 187.325 mm | Cr: 1040 kN | Mass: 33.6 kg
E-625940 d: 200 mm | D: 282 mm | B: 206 mm | Cr: 1200 kN | Mass: 40.5 kg
E-CRO-4013 d: 200 mm | D: 290 mm | B: 160 mm | Cr: 925 kN | Mass: 35.1 kg
E-CRO-4014 d: 200 mm | D: 310 mm | B: 200 mm | Cr: 1360 kN | Mass: 48.4 kg
E-EE132082D/132125/132126D d: 203.2 mm | D: 317.5 mm | B: 215.9 mm | Cr: 1270 kN | Mass: 62.5 kg
E-LM742749D/LM742714/LM742714D d: 215.9 mm | D: 288.925 mm | B: 177.8 mm | Cr: 1090 kN | Mass: 34.3 kg
E-625944 d: 220 mm | D: 310 mm | B: 226 mm | Cr: 1380 kN | Mass: 53.5 kg
E-M244249D/M244210/M244210D d: 220.662 mm | D: 314.325 mm | B: 239.712 mm | Cr: 1840 kN | Mass: 60.2 kg
E-EE70090D/700167/700168D d: 228.6 mm | D: 425.45 mm | B: 349.25 mm | Cr: 3450 kN | Mass: 232 kg
E-8576D/8520/8520D d: 234.95 mm | D: 327.025 mm | B: 196.85 mm | Cr: 1370 kN | Mass: 53.6 kg
E-625948A d: 240 mm | D: 338 mm | B: 248 mm | Cr: 1870 kN | Mass: 70 kg
E-EE127097D/127137/127137D d: 241.478 mm | D: 350.838 mm | B: 228.6 mm | Cr: 1770 kN | Mass: 76.4 kg
E-LM247748D/LM247710/LM247710DA d: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1430 kN | Mass: 46.1 kg
E-EE126096D/126150/126151D d: 244.475 mm | D: 381 mm | B: 304.8 mm | Cr: 2220 kN | Mass: 132 kg
E-CRO-5004 d: 250 mm | D: 365 mm | B: 270 mm | Cr: 2150 kN | Mass: 82.1 kg
E-CRO-5001 d: 250 mm | D: 370 mm | B: 220 mm | Cr: 2050 kN | Mass: 87 kg
E-M249748D/M249710/M249710D d: 254 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2390 kN | Mass: 85.6 kg
E-EE171000D/171450/171451D d: 254 mm | D: 368.3 mm | B: 204.622 mm | Cr: 1350 kN | Mass: 71.8 kg
E-EE822101D/822175/822176D d: 254 mm | D: 444.5 mm | B: 279.4 mm | Cr: 2890 kN | Mass: 185 kg
E-625952 d: 260 mm | D: 368 mm | B: 268 mm | Cr: 1990 kN | Mass: 90.3 kg
E-CRO-5215 d: 260 mm | D: 400 mm | B: 255 mm | Cr: 2210 kN | Mass: 106 kg
E-EE134102D/134143/134144D d: 260.35 mm | D: 365.125 mm | B: 228.6 mm | Cr: 1750 kN | Mass: 76.5 kg
E-EE221027D/221575/221576D d: 260.35 mm | D: 400.05 mm | B: 255.588 mm | Cr: 2090 kN | Mass: 117 kg
E-HM252349D/HM252310/HM252310D d: 260.35 mm | D: 422.275 mm | B: 314.325 mm | Cr: 2980 kN | Mass: 180 kg
E-LM451349D/LM451310/LM451310D d: 266.7 mm | D: 355.6 mm | B: 230.188 mm | Cr: 1840 kN | Mass: 62 kg
E-EE275106D/275155/275156D d: 266.7 mm | D: 393.7 mm | B: 269.878 mm | Cr: 2110 kN | Mass: 116 kg
E-M252349D/M252310/M252310D d: 269.875 mm | D: 391 mm | B: 282.575 mm | Cr: 2470 kN | Mass: 97.5 kg
E-CRO-5403 d: 270 mm | D: 410 mm | B: 222 mm | Cr: 1910 kN | Mass: 91 kg
E-CRO-5501 d: 275 mm | D: 385 mm | B: 200 mm | Cr: 1610 kN | Mass: 62.5 kg
E-EE275109D/275160/27516D d: 276.225 mm | D: 406.4 mm | B: 268.29 mm | Cr: 2110 kN | Mass: 122 kg
E-EE722111D/722185/722186D d: 279.4 mm | D: 469.9 mm | B: 346.075 mm | Cr: 3500 kN | Mass: 258 kg
E-LM654644D/LM654610/LM654610D d: 279.578 mm | D: 380.898 mm | B: 244.475 mm | Cr: 1950 kN | Mass: 83.2 kg
E-625956 d: 280 mm | D: 395 mm | B: 288 mm | Cr: 2560 kN | Mass: 111 kg
E-LM654648D/LM654610/LM654610D d: 285.75 mm | D: 380.898 mm | B: 244.475 mm | Cr: 1950 kN | Mass: 77.9 kg
E-M255449D/M255410/M255410D d: 288.925 mm | D: 406.4 mm | B: 298.45 mm | Cr: 2980 kN | Mass: 125 kg
E-EE921150D/921875/921876D d: 292.1 mm | D: 476.25 mm | B: 296.047 mm | Cr: 3050 kN | Mass: 208 kg
E-625960 d: 300 mm | D: 424 mm | B: 310 mm | Cr: 2570 kN | Mass: 138 kg
E-CRO-6015 d: 300 mm | D: 460 mm | B: 360 mm | Cr: 4050 kN | Mass: 180 kg
E-CRO-6012 d: 300 mm | D: 470 mm | B: 270 mm | Cr: 3200 kN | Mass: 152 kg
E-CRO-6013 d: 300 mm | D: 470 mm | B: 292 mm | Cr: 3500 kN | Mass: 164 kg
E-HM256849D/HM256810/HM256810DG2 d: 300.038 mm | D: 422.275 mm | B: 311.15 mm | Cr: 3350 kN | Mass: 143 kg
E-EE329119D/329172/329173D d: 304.648 mm | D: 438.048 mm | B: 279.4 mm | Cr: 2470 kN | Mass: 143 kg
E-M757448D/M757410/M757410D d: 304.648 mm | D: 438.048 mm | B: 280.99 mm | Cr: 2630 kN | Mass: 140 kg
E-M257149D/M257110/M257110D d: 304.8 mm | D: 419.1 mm | B: 269.875 mm | Cr: 2390 kN | Mass: 115 kg
E-EE291202D/291750/291751D d: 304.8 mm | D: 444.5 mm | B: 247.65 mm | Cr: 1850 kN | Mass: 127 kg
E-EE724121D/724195/724196D d: 304.8 mm | D: 495.3 mm | B: 342.9 mm | Cr: 3650 kN | Mass: 273 kg
E-M257248D/M257210/M257210D d: 304.902 mm | D: 412.648 mm | B: 266.7 mm | Cr: 2610 kN | Mass: 107 kg
E-M757449D/M757410/M757410D d: 305.003 mm | D: 438.048 mm | B: 280.99 mm | Cr: 2630 kN | Mass: 139 kg
E-LM258649D/LM258610/LM258610D d: 317.5 mm | D: 422.275 mm | B: 269.875 mm | Cr: 2260 kN | Mass: 110 kg
E-HM259049D/HM259010/HM259010D d: 317.5 mm | D: 447.675 mm | B: 327.025 mm | Cr: 2820 kN | Mass: 170 kg
E-625964 d: 320 mm | D: 460 mm | B: 338 mm | Cr: 2940 kN | Mass: 183 kg
E-CRO-6604 d: 330 mm | D: 470 mm | B: 340 mm | Cr: 3150 kN | Mass: 141 kg
E-CRO-6602 d: 330 mm | D: 510 mm | B: 340 mm | Cr: 3900 kN | Mass: 221 kg
E-EE52613D/526190/52619D d: 330.2 mm | D: 482.6 mm | B: 306.388 mm | Cr: 2810 kN | Mass: 197 kg
E-HM261049D/HM261010/HM261010D d: 333.375 mm | D: 469.9 mm | B: 342.9 mm | Cr: 4000 kN | Mass: 187 kg
E-625968 d: 340 mm | D: 480 mm | B: 350 mm | Cr: 3450 kN | Mass: 200 kg
E-LM761648D/LM761610/LM761610D d: 341.312 mm | D: 457.098 mm | B: 254 mm | Cr: 2370 kN | Mass: 125 kg
E-EE971335D/972100/72103D d: 342.9 mm | D: 533.4 mm | B: 307.985 mm | Cr: 3150 kN | Mass: 252 kg
E-LM761649D/LM761610/LM761610D d: 343.052 mm | D: 457.098 mm | B: 254 mm | Cr: 2370 kN | Mass: 117 kg
E-HM262749D/HM262710/HM262710DG2 d: 346.075 mm | D: 488.95 mm | B: 358.775 mm | Cr: 4350 kN | Mass: 227 kg
E-M262449D/M262410/M262410D d: 347.662 mm | D: 469.9 mm | B: 292.1 mm | Cr: 3200 kN | Mass: 148 kg
E-CRO-7105 d: 355 mm | D: 490 mm | B: 316 mm | Cr: 3500 kN | Mass: 170 kg
E-L163149D/L163110/L163110D d: 355.6 mm | D: 444.5 mm | B: 241.3 mm | Cr: 1760 kN | Mass: 89.5 kg
E-LM263149D/LM263110/LM263110D d: 355.6 mm | D: 457.2 mm | B: 252.412 mm | Cr: 2470 kN | Mass: 106 kg
E-LM763449D/LM763410/LM763410D d: 355.6 mm | D: 482.6 mm | B: 265.112 mm | Cr: 2790 kN | Mass: 145 kg
E-M263349D/M263310/M263310D d: 355.6 mm | D: 488.95 mm | B: 317.5 mm | Cr: 3500 kN | Mass: 173 kg
E-625972 d: 360 mm | D: 508 mm | B: 370 mm | Cr: 3700 kN | Mass: 236 kg
E-CRO-7210 d: 360 mm | D: 600 mm | B: 540 mm | Cr: 6700 kN | Mass: 520 kg
E-HN265049D/HM265010/HM265010DG2 d: 368.3 mm | D: 523.875 mm | B: 382.588 mm | Cr: 4450 kN | Mass: 280 kg
E-LM765149D/LM765110/LM765110D d: 374.65 mm | D: 501.65 mm | B: 250.825 mm | Cr: 2360 kN | Mass: 145 kg
E-625976 d: 380 mm | D: 536 mm | B: 390 mm | Cr: 4900 kN | Mass: 277 kg
E-CRO-7612 d: 380 mm | D: 560 mm | B: 285 mm | Cr: 3250 kN | Mass: 208 kg
E-HM266449D/HM266410/HM266410DG2 d: 384.175 mm | D: 546.1 mm | B: 400.05 mm | Cr: 5400 kN | Mass: 328 kg
E-LM665949D/LM665910/LM665910D d: 385.762 mm | D: 514.35 mm | B: 317.5 mm | Cr: 3650 kN | Mass: 240 kg
E-LM767745D/LM767710/LM767710D d: 393.7 mm | D: 546.1 mm | B: 288.925 mm | Cr: 3200 kN | Mass: 219 kg
E-CRO-7901 d: 395 mm | D: 545 mm | B: 268.7 mm | Cr: 2970 kN | Mass: 200 kg
E-CRO-8005 d: 400 mm | D: 560 mm | B: 380 mm | Cr: 4800 kN | Mass: 300 kg
E-625980 d: 400 mm | D: 564 mm | B: 412 mm | Cr: 4850 kN | Mass: 324 kg
E-LM767749D/LM767710/LM767710D d: 406.4 mm | D: 546.1 mm | B: 288.925 mm | Cr: 3200 kN | Mass: 201 kg
E-EE833161D/833232/833233D d: 406.4 mm | D: 590.55 mm | B: 400.05 mm | Cr: 4850 kN | Mass: 395 kg
E-EE911603D/912400/912401D d: 406.4 mm | D: 609.6 mm | B: 309.562 mm | Cr: 3700 kN | Mass: 332 kg
E-M667947D/M667911/M667911DG2 d: 409.575 mm | D: 546.1 mm | B: 334.962 mm | Cr: 4100 kN | Mass: 226 kg
E-M268749D/M268710/M268710DG2 d: 415.925 mm | D: 590.55 mm | B: 434.975 mm | Cr: 5800 kN | Mass: 421 kg
E-625984 d: 420 mm | D: 592 mm | B: 432 mm | Cr: 5350 kN | Mass: 374 kg
E-COR-8402 d: 420 mm | D: 650 mm | B: 460 mm | Cr: 6950 kN | Mass: 600 kg
E-LM869449D/LM869410/LM869410DG2 d: 431.8 mm | D: 571.5 mm | B: 279.4 mm | Cr: 3050 kN | Mass: 198 kg
E-LM769349D/LM769310/LM769310D d: 431.8 mm | D: 571.5 mm | B: 336.55 mm | Cr: 3700 kN | Mass: 232 kg
E-EE736173D/736238/736239D d: 432.003 mm | D: 609.524 mm | B: 317.5 mm | Cr: 4350 kN | Mass: 297 kg
E-625988 d: 440 mm | D: 620 mm | B: 454 mm | Cr: 6500 kN | Mass: 430 kg
E-CRO-8807 d: 440 mm | D: 650 mm | B: 355 mm | Cr: 5350 kN | Mass: 400 kg
E-CRO-8806 d: 440 mm | D: 650 mm | B: 460 mm | Cr: 6750 kN | Mass: 600 kg
E-M270749D/M270710/M270710DAG2 d: 447.675 mm | D: 635 mm | B: 463.55 mm | Cr: 7100 kN | Mass: 509 kg
E-L770849D/L770810/L770810DG2 d: 457.2 mm | D: 596.9 mm | B: 276.225 mm | Cr: - | Mass: 209 kg
E-EE737179D/737260/737260D d: 457.2 mm | D: 660.4 mm | B: 323.85 mm | Cr: 4150 kN | Mass: 379 kg
E-625992A d: 460 mm | D: 650 mm | B: 474 mm | Cr: 6500 kN | Mass: 493 kg
E-CRO-9501 d: 475 mm | D: 660 mm | B: 450 mm | Cr: 6300 kN | Mass: 465 kg
E-625996 d: 480 mm | D: 678 mm | B: 494 mm | Cr: 6250 kN | Mass: 563 kg
E-CRO-9602 d: 480 mm | D: 700 mm | B: 390 mm | Cr: 4700 kN | Mass: 436 kg
E-LM272249D/LM272210/LM272210DG2 d: 482.6 mm | D: 615.95 mm | B: 330.2 mm | Cr: 4000 kN | Mass: 250 kg
E-EE640193D/640260/640261DG2 d: 488.95 mm | D: 660.4 mm | B: 365.125 mm | Cr: 4700 kN | Mass: 364 kg
E-LM772749D/LM772710/LM772710D d: 489.026 mm | D: 634.873 mm | B: 320.675 mm | Cr: 3650 kN | Mass: 268 kg
E-CRO-10008 d: 500 mm | D: 670 mm | B: 515 mm | Cr: 6900 kN | Mass: 598 kg
E-CRO-10005 d: 500 mm | D: 690 mm | B: 480 mm | Cr: 6000 kN | Mass: 600 kg
E-6259/500 d: 500 mm | D: 705 mm | B: 515 mm | Cr: 8450 kN | Mass: 632 kg
E-CRO-10003 d: 500 mm | D: 730 mm | B: 440 mm | Cr: 7200 kN | Mass: 535 kg
E-M274149D/M274110/M274110DG2 d: 501.65 mm | D: 711.2 mm | B: 520.7 mm | Cr: 8650 kN | Mass: 726 kg
E-LM274449D/LM274410/LM274410D d: 514.35 mm | D: 673.1 mm | B: 422.275 mm | Cr: 5950 kN | Mass: 390 kg
E-M275349D/M275310/M275310DG2 d: 519.112 mm | D: 736.6 mm | B: 536.575 mm | Cr: 9100 kN | Mass: 761 kg
E-CRO-10402 d: 520 mm | D: 735 mm | B: 535 mm | Cr: 9100 kN | Mass: 750 kg
E-M276449D/M276410/M276410DG2 d: 536.575 mm | D: 761.873 mm | B: 558.8 mm | Cr: 10100 kN | Mass: 890 kg
E-EE843221D/843290/843291D d: 558.8 mm | D: 736.6 mm | B: 322.265 mm | Cr: 4300 kN | Mass: 388 kg
E-LM377449D/LM377410/LM37741DG2 d: 558.8 mm | D: 736.6 mm | B: 409.575 mm | Cr: 6100 kN | Mass: 502 kg
E-CRO-11402 d: 570 mm | D: 780 mm | B: 515 mm | Cr: 9200 kN | Mass: 625 kg
E-CRO-11403 d: 570 mm | D: 810 mm | B: 590 mm | Cr: 11000 kN | Mass: 845 kg
E-M278749D/M278710/M278710DG2 d: 571.5 mm | D: 812.8 mm | B: 593.725 mm | Cr: 11900 kN | Mass: 1080 kg
E-LM778549D/LM778510/LM778510DG2 d: 584.2 mm | D: 762 mm | B: 396.875 mm | Cr: 6550 kN | Mass: 511 kg
E-LM278849D/LM278810/LM278810D d: 585.788 mm | D: 771.525 mm | B: 479.425 mm | Cr: 7350 kN | Mass: 750 kg
E-M280049D/M280010/M280010DG2 d: 595.312 mm | D: 844.55 mm | B: 615.95 mm | Cr: 12600 kN | Mass: 1160 kg
E-EE649241D/649310/649311DG2 d: 609.6 mm | D: 787.4 mm | B: 361.95 mm | Cr: 6450 kN | Mass: 458 kg
E-M281649D/M281610/M281610DG2 d: 657.225 mm | D: 933.45 mm | B: 676.275 mm | Cr: 15300 kN | Mass: 1630 kg
E-CRO-13202 d: 660 mm | D: 1070 mm | B: 642 mm | Cr: 15400 kN | Mass: 1950 kg
E-L281149D/L281110/L281110DG2 d: 660.4 mm | D: 812.8 mm | B: 365.125 mm | Cr: 6200 kN | Mass: 448 kg
E-CRO-13401 d: 670 mm | D: 960 mm | B: 700 mm | Cr: 16700 kN | Mass: 1600 kg
E-LM281849D/LM281810/LM281810DG2 d: 679.45 mm | D: 901.7 mm | B: 552.45 mm | Cr: 11200 kN | Mass: 1040 kg
E-CRO-13602 d: 680 mm | D: 870 mm | B: 460 mm | Cr: 7500 kN | Mass: 582 kg
E-M282249D/M282210/M282210DG2 d: 682.625 mm | D: 965.2 mm | B: 701.675 mm | Cr: 16100 kN | Mass: 1770 kg
E-EE655271D/655345/655346DG2 d: 685.8 mm | D: 876.3 mm | B: 352.425 mm | Cr: 6050 kN | Mass: 539 kg
E-CRO-14208 d: 710 mm | D: 900 mm | B: 410 mm | Cr: 7650 kN | Mass: 620 kg
E-EE755281D/755360/755361DG2 d: 711.2 mm | D: 914.4 mm | B: 317.5 mm | Cr: 5350 kN | Mass: 527 kg
E-CRO-14601 d: 730 mm | D: 1070 mm | B: 642 mm | Cr: 15400 kN | Mass: 1900 kg
E-M283449D/M283410/M283410D d: 730.25 mm | D: 1035.05 mm | B: 755.65 mm | Cr: 18300 kN | Mass: 2210 kg
E-LM283649D/LM283610/LM283610DG2 d: 749.3 mm | D: 990.6 mm | B: 605 mm | Cr: 12600 kN | Mass: 1310 kg
E-M284249D/M284210/M284210DG2 d: 762 mm | D: 1079.5 mm | B: 787.4 mm | Cr: - | Mass: 2480 kg
E-CRO-16001 d: 800 mm | D: 1120 mm | B: 820 mm | Cr: 21000 kN | Mass: 3960 kg
E-M285848D/M285810/M285810DG2 d: 825.5 mm | D: 1168.4 mm | B: 844.55 mm | Cr: - | Mass: 3010 kg
E-COR-16803 d: 840 mm | D: 1170 mm | B: 840 mm | Cr: 21900 kN | Mass: 3970 kg
E-LM286249D/LM286210/LM286210DG2 d: 863.6 mm | D: 1130.3 mm | B: 669.925 mm | Cr: - | Mass: 1950 kg
E-EE547341D/547480/547481DG2 d: 863.6 mm | D: 1219.2 mm | B: 876.3 mm | Cr: - | Mass: 3640 kg
E-LM287649D/LM287610/LM287610DG2 d: 938.212 mm | D: 1270 mm | B: 825.5 mm | Cr: - | Mass: 4100 kg
E-CRO-19001 d: 950 mm | D: 1360 mm | B: 880 mm | Cr: 27000 kN | Mass: 4100 kg
E-LM288949D/LM288910/LM288910DG2 d: 1200.15 mm | D: 1593.85 mm | B: 990.6 mm | Cr: - | Mass: 6130 kg
Tapered Roller BearingsNTN
167 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN Four-Row Tapered Roller Bearings (Rolling Mill Roll Necks)

Brand NTN·Tapered Roller Bearings

Available part numbers (167)

E-625924, E-CRO-2418, E-M224749D/M224710/M224710D, E-48290D/48220/48220D, E-625926, E-CRO-2701, E-48393D/48320/48320D, E-48680D/48620/48620D, E-625928, E-81576D/81962/81963D + 157 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E-625924d: 120 mm | D: 170 mm | B: 124 mm | Cr: 390 kN | Mass: 8.97 kg
E-CRO-2418d: 120 mm | D: 210 mm | B: 174 mm | Cr: 855 kN | Mass: 22.2 kg
E-M224749D/M224710/M224710Dd: 120.65 mm | D: 174.625 mm | B: 141.288 mm | Cr: 510 kN | Mass: 11.5 kg
E-48290D/48220/48220Dd: 127 mm | D: 182.562 mm | B: 158.75 mm | Cr: 660 kN | Mass: 14.3 kg
E-625926d: 130 mm | D: 184 mm | B: 134 mm | Cr: 480 kN | Mass: 11.3 kg
E-CRO-2701d: 135 mm | D: 180 mm | B: 160 mm | Cr: 500 kN | Mass: 13.5 kg
E-48393D/48320/48320Dd: 136.525 mm | D: 190.5 mm | B: 161.925 mm | Cr: 695 kN | Mass: 14.8 kg
E-48680D/48620/48620Dd: 139.7 mm | D: 200.025 mm | B: 157.165 mm | Cr: 700 kN | Mass: 17.3 kg
E-625928d: 140 mm | D: 198 mm | B: 144 mm | Cr: 575 kN | Mass: 14 kg
E-81576D/81962/81963Dd: 146.05 mm | D: 244.475 mm | B: 192.088 mm | Cr: 955 kN | Mass: 36.8 kg
E-625930d: 150 mm | D: 212 mm | B: 155 mm | Cr: 660 kN | Mass: 16.9 kg
E-M231649D/M231610/M231610Dd: 152.4 mm | D: 222.25 mm | B: 174.625 mm | Cr: 930 kN | Mass: 24.7 kg
E-625932d: 152.4 mm | D: 226 mm | B: 165 mm | Cr: 775 kN | Mass: 20.2 kg
E-CRO-3209d: 152.4 mm | D: 265 mm | B: 173 mm | Cr: 1100 kN | Mass: 33.6 kg
E-46791D/46720/46721Dd: 165.1 mm | D: 225.425 mm | B: 165.1 mm | Cr: 745 kN | Mass: 20.7 kg
E-625934d: 170 mm | D: 240 mm | B: 175 mm | Cr: 835 kN | Mass: 24.4 kg
E-CRO-3409d: 170 mm | D: 280 mm | B: 181 mm | Cr: 1150 kN | Mass: 44 kg
E-67791D/67720/67721Dd: 177.8 mm | D: 247.65 mm | B: 192.088 mm | Cr: 1000 kN | Mass: 29.4 kg
E-82681D/82620/82620Dd: 177.8 mm | D: 279.4 mm | B: 234.95 mm | Cr: 1420 kN | Mass: 55.3 kg
E-EE280700D/281200/281201Dd: 177.8 mm | D: 304.8 mm | B: 238.227 mm | Cr: 1580 kN | Mass: 69.9 kg
E-625936d: 180 mm | D: 254 mm | B: 185 mm | Cr: 910 kN | Mass: 28.9 kg
E-CRO-3617d: 180 mm | D: 300 mm | B: 280 mm | Cr: 2160 kN | Mass: 69.4 kg
E-M238849D/M238810/M238810Dd: 187.325 mm | D: 269.875 mm | B: 211.138 mm | Cr: 1240 kN | Mass: 41.8 kg
E-625938d: 190 mm | D: 268 mm | B: 196 mm | Cr: 1060 kN | Mass: 34.7 kg
E-CRO-3812d: 190 mm | D: 270 mm | B: 190 mm | Cr: 1080 kN | Mass: 34.7 kg
E-M241538D/M241510/M241510Dd: 190 mm | D: 292.1 mm | B: 225.425 mm | Cr: 1570 kN | Mass: 59.6 kg
E-67885D/67820/67820Dd: 190.5 mm | D: 266.7 mm | B: 187.325 mm | Cr: 1040 kN | Mass: 33.6 kg
E-625940d: 200 mm | D: 282 mm | B: 206 mm | Cr: 1200 kN | Mass: 40.5 kg
E-CRO-4013d: 200 mm | D: 290 mm | B: 160 mm | Cr: 925 kN | Mass: 35.1 kg
E-CRO-4014d: 200 mm | D: 310 mm | B: 200 mm | Cr: 1360 kN | Mass: 48.4 kg
E-EE132082D/132125/132126Dd: 203.2 mm | D: 317.5 mm | B: 215.9 mm | Cr: 1270 kN | Mass: 62.5 kg
E-LM742749D/LM742714/LM742714Dd: 215.9 mm | D: 288.925 mm | B: 177.8 mm | Cr: 1090 kN | Mass: 34.3 kg
E-625944d: 220 mm | D: 310 mm | B: 226 mm | Cr: 1380 kN | Mass: 53.5 kg
E-M244249D/M244210/M244210Dd: 220.662 mm | D: 314.325 mm | B: 239.712 mm | Cr: 1840 kN | Mass: 60.2 kg
E-EE70090D/700167/700168Dd: 228.6 mm | D: 425.45 mm | B: 349.25 mm | Cr: 3450 kN | Mass: 232 kg
E-8576D/8520/8520Dd: 234.95 mm | D: 327.025 mm | B: 196.85 mm | Cr: 1370 kN | Mass: 53.6 kg
E-625948Ad: 240 mm | D: 338 mm | B: 248 mm | Cr: 1870 kN | Mass: 70 kg
E-EE127097D/127137/127137Dd: 241.478 mm | D: 350.838 mm | B: 228.6 mm | Cr: 1770 kN | Mass: 76.4 kg
E-LM247748D/LM247710/LM247710DAd: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1430 kN | Mass: 46.1 kg
E-EE126096D/126150/126151Dd: 244.475 mm | D: 381 mm | B: 304.8 mm | Cr: 2220 kN | Mass: 132 kg
E-CRO-5004d: 250 mm | D: 365 mm | B: 270 mm | Cr: 2150 kN | Mass: 82.1 kg
E-CRO-5001d: 250 mm | D: 370 mm | B: 220 mm | Cr: 2050 kN | Mass: 87 kg
E-M249748D/M249710/M249710Dd: 254 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2390 kN | Mass: 85.6 kg
E-EE171000D/171450/171451Dd: 254 mm | D: 368.3 mm | B: 204.622 mm | Cr: 1350 kN | Mass: 71.8 kg
E-EE822101D/822175/822176Dd: 254 mm | D: 444.5 mm | B: 279.4 mm | Cr: 2890 kN | Mass: 185 kg
E-625952d: 260 mm | D: 368 mm | B: 268 mm | Cr: 1990 kN | Mass: 90.3 kg
E-CRO-5215d: 260 mm | D: 400 mm | B: 255 mm | Cr: 2210 kN | Mass: 106 kg
E-EE134102D/134143/134144Dd: 260.35 mm | D: 365.125 mm | B: 228.6 mm | Cr: 1750 kN | Mass: 76.5 kg
E-EE221027D/221575/221576Dd: 260.35 mm | D: 400.05 mm | B: 255.588 mm | Cr: 2090 kN | Mass: 117 kg
E-HM252349D/HM252310/HM252310Dd: 260.35 mm | D: 422.275 mm | B: 314.325 mm | Cr: 2980 kN | Mass: 180 kg
E-LM451349D/LM451310/LM451310Dd: 266.7 mm | D: 355.6 mm | B: 230.188 mm | Cr: 1840 kN | Mass: 62 kg
E-EE275106D/275155/275156Dd: 266.7 mm | D: 393.7 mm | B: 269.878 mm | Cr: 2110 kN | Mass: 116 kg
E-M252349D/M252310/M252310Dd: 269.875 mm | D: 391 mm | B: 282.575 mm | Cr: 2470 kN | Mass: 97.5 kg
E-CRO-5403d: 270 mm | D: 410 mm | B: 222 mm | Cr: 1910 kN | Mass: 91 kg
E-CRO-5501d: 275 mm | D: 385 mm | B: 200 mm | Cr: 1610 kN | Mass: 62.5 kg
E-EE275109D/275160/27516Dd: 276.225 mm | D: 406.4 mm | B: 268.29 mm | Cr: 2110 kN | Mass: 122 kg
E-EE722111D/722185/722186Dd: 279.4 mm | D: 469.9 mm | B: 346.075 mm | Cr: 3500 kN | Mass: 258 kg
E-LM654644D/LM654610/LM654610Dd: 279.578 mm | D: 380.898 mm | B: 244.475 mm | Cr: 1950 kN | Mass: 83.2 kg
E-625956d: 280 mm | D: 395 mm | B: 288 mm | Cr: 2560 kN | Mass: 111 kg
E-LM654648D/LM654610/LM654610Dd: 285.75 mm | D: 380.898 mm | B: 244.475 mm | Cr: 1950 kN | Mass: 77.9 kg
E-M255449D/M255410/M255410Dd: 288.925 mm | D: 406.4 mm | B: 298.45 mm | Cr: 2980 kN | Mass: 125 kg
E-EE921150D/921875/921876Dd: 292.1 mm | D: 476.25 mm | B: 296.047 mm | Cr: 3050 kN | Mass: 208 kg
E-625960d: 300 mm | D: 424 mm | B: 310 mm | Cr: 2570 kN | Mass: 138 kg
E-CRO-6015d: 300 mm | D: 460 mm | B: 360 mm | Cr: 4050 kN | Mass: 180 kg
E-CRO-6012d: 300 mm | D: 470 mm | B: 270 mm | Cr: 3200 kN | Mass: 152 kg
E-CRO-6013d: 300 mm | D: 470 mm | B: 292 mm | Cr: 3500 kN | Mass: 164 kg
E-HM256849D/HM256810/HM256810DG2d: 300.038 mm | D: 422.275 mm | B: 311.15 mm | Cr: 3350 kN | Mass: 143 kg
E-EE329119D/329172/329173Dd: 304.648 mm | D: 438.048 mm | B: 279.4 mm | Cr: 2470 kN | Mass: 143 kg
E-M757448D/M757410/M757410Dd: 304.648 mm | D: 438.048 mm | B: 280.99 mm | Cr: 2630 kN | Mass: 140 kg
E-M257149D/M257110/M257110Dd: 304.8 mm | D: 419.1 mm | B: 269.875 mm | Cr: 2390 kN | Mass: 115 kg
E-EE291202D/291750/291751Dd: 304.8 mm | D: 444.5 mm | B: 247.65 mm | Cr: 1850 kN | Mass: 127 kg
E-EE724121D/724195/724196Dd: 304.8 mm | D: 495.3 mm | B: 342.9 mm | Cr: 3650 kN | Mass: 273 kg
E-M257248D/M257210/M257210Dd: 304.902 mm | D: 412.648 mm | B: 266.7 mm | Cr: 2610 kN | Mass: 107 kg
E-M757449D/M757410/M757410Dd: 305.003 mm | D: 438.048 mm | B: 280.99 mm | Cr: 2630 kN | Mass: 139 kg
E-LM258649D/LM258610/LM258610Dd: 317.5 mm | D: 422.275 mm | B: 269.875 mm | Cr: 2260 kN | Mass: 110 kg
E-HM259049D/HM259010/HM259010Dd: 317.5 mm | D: 447.675 mm | B: 327.025 mm | Cr: 2820 kN | Mass: 170 kg
E-625964d: 320 mm | D: 460 mm | B: 338 mm | Cr: 2940 kN | Mass: 183 kg
E-CRO-6604d: 330 mm | D: 470 mm | B: 340 mm | Cr: 3150 kN | Mass: 141 kg
E-CRO-6602d: 330 mm | D: 510 mm | B: 340 mm | Cr: 3900 kN | Mass: 221 kg
E-EE52613D/526190/52619Dd: 330.2 mm | D: 482.6 mm | B: 306.388 mm | Cr: 2810 kN | Mass: 197 kg
E-HM261049D/HM261010/HM261010Dd: 333.375 mm | D: 469.9 mm | B: 342.9 mm | Cr: 4000 kN | Mass: 187 kg
E-625968d: 340 mm | D: 480 mm | B: 350 mm | Cr: 3450 kN | Mass: 200 kg
E-LM761648D/LM761610/LM761610Dd: 341.312 mm | D: 457.098 mm | B: 254 mm | Cr: 2370 kN | Mass: 125 kg
E-EE971335D/972100/72103Dd: 342.9 mm | D: 533.4 mm | B: 307.985 mm | Cr: 3150 kN | Mass: 252 kg
E-LM761649D/LM761610/LM761610Dd: 343.052 mm | D: 457.098 mm | B: 254 mm | Cr: 2370 kN | Mass: 117 kg
E-HM262749D/HM262710/HM262710DG2d: 346.075 mm | D: 488.95 mm | B: 358.775 mm | Cr: 4350 kN | Mass: 227 kg
E-M262449D/M262410/M262410Dd: 347.662 mm | D: 469.9 mm | B: 292.1 mm | Cr: 3200 kN | Mass: 148 kg
E-CRO-7105d: 355 mm | D: 490 mm | B: 316 mm | Cr: 3500 kN | Mass: 170 kg
E-L163149D/L163110/L163110Dd: 355.6 mm | D: 444.5 mm | B: 241.3 mm | Cr: 1760 kN | Mass: 89.5 kg
E-LM263149D/LM263110/LM263110Dd: 355.6 mm | D: 457.2 mm | B: 252.412 mm | Cr: 2470 kN | Mass: 106 kg
E-LM763449D/LM763410/LM763410Dd: 355.6 mm | D: 482.6 mm | B: 265.112 mm | Cr: 2790 kN | Mass: 145 kg
E-M263349D/M263310/M263310Dd: 355.6 mm | D: 488.95 mm | B: 317.5 mm | Cr: 3500 kN | Mass: 173 kg
E-625972d: 360 mm | D: 508 mm | B: 370 mm | Cr: 3700 kN | Mass: 236 kg
E-CRO-7210d: 360 mm | D: 600 mm | B: 540 mm | Cr: 6700 kN | Mass: 520 kg
E-HN265049D/HM265010/HM265010DG2d: 368.3 mm | D: 523.875 mm | B: 382.588 mm | Cr: 4450 kN | Mass: 280 kg
E-LM765149D/LM765110/LM765110Dd: 374.65 mm | D: 501.65 mm | B: 250.825 mm | Cr: 2360 kN | Mass: 145 kg
E-625976d: 380 mm | D: 536 mm | B: 390 mm | Cr: 4900 kN | Mass: 277 kg
E-CRO-7612d: 380 mm | D: 560 mm | B: 285 mm | Cr: 3250 kN | Mass: 208 kg
E-HM266449D/HM266410/HM266410DG2d: 384.175 mm | D: 546.1 mm | B: 400.05 mm | Cr: 5400 kN | Mass: 328 kg
E-LM665949D/LM665910/LM665910Dd: 385.762 mm | D: 514.35 mm | B: 317.5 mm | Cr: 3650 kN | Mass: 240 kg
E-LM767745D/LM767710/LM767710Dd: 393.7 mm | D: 546.1 mm | B: 288.925 mm | Cr: 3200 kN | Mass: 219 kg
E-CRO-7901d: 395 mm | D: 545 mm | B: 268.7 mm | Cr: 2970 kN | Mass: 200 kg
E-CRO-8005d: 400 mm | D: 560 mm | B: 380 mm | Cr: 4800 kN | Mass: 300 kg
E-625980d: 400 mm | D: 564 mm | B: 412 mm | Cr: 4850 kN | Mass: 324 kg
E-LM767749D/LM767710/LM767710Dd: 406.4 mm | D: 546.1 mm | B: 288.925 mm | Cr: 3200 kN | Mass: 201 kg
E-EE833161D/833232/833233Dd: 406.4 mm | D: 590.55 mm | B: 400.05 mm | Cr: 4850 kN | Mass: 395 kg
E-EE911603D/912400/912401Dd: 406.4 mm | D: 609.6 mm | B: 309.562 mm | Cr: 3700 kN | Mass: 332 kg
E-M667947D/M667911/M667911DG2d: 409.575 mm | D: 546.1 mm | B: 334.962 mm | Cr: 4100 kN | Mass: 226 kg
E-M268749D/M268710/M268710DG2d: 415.925 mm | D: 590.55 mm | B: 434.975 mm | Cr: 5800 kN | Mass: 421 kg
E-625984d: 420 mm | D: 592 mm | B: 432 mm | Cr: 5350 kN | Mass: 374 kg
E-COR-8402d: 420 mm | D: 650 mm | B: 460 mm | Cr: 6950 kN | Mass: 600 kg
E-LM869449D/LM869410/LM869410DG2d: 431.8 mm | D: 571.5 mm | B: 279.4 mm | Cr: 3050 kN | Mass: 198 kg
E-LM769349D/LM769310/LM769310Dd: 431.8 mm | D: 571.5 mm | B: 336.55 mm | Cr: 3700 kN | Mass: 232 kg
E-EE736173D/736238/736239Dd: 432.003 mm | D: 609.524 mm | B: 317.5 mm | Cr: 4350 kN | Mass: 297 kg
E-625988d: 440 mm | D: 620 mm | B: 454 mm | Cr: 6500 kN | Mass: 430 kg
E-CRO-8807d: 440 mm | D: 650 mm | B: 355 mm | Cr: 5350 kN | Mass: 400 kg
E-CRO-8806d: 440 mm | D: 650 mm | B: 460 mm | Cr: 6750 kN | Mass: 600 kg
E-M270749D/M270710/M270710DAG2d: 447.675 mm | D: 635 mm | B: 463.55 mm | Cr: 7100 kN | Mass: 509 kg
E-L770849D/L770810/L770810DG2d: 457.2 mm | D: 596.9 mm | B: 276.225 mm | Cr: - | Mass: 209 kg
E-EE737179D/737260/737260Dd: 457.2 mm | D: 660.4 mm | B: 323.85 mm | Cr: 4150 kN | Mass: 379 kg
E-625992Ad: 460 mm | D: 650 mm | B: 474 mm | Cr: 6500 kN | Mass: 493 kg
E-CRO-9501d: 475 mm | D: 660 mm | B: 450 mm | Cr: 6300 kN | Mass: 465 kg
E-625996d: 480 mm | D: 678 mm | B: 494 mm | Cr: 6250 kN | Mass: 563 kg
E-CRO-9602d: 480 mm | D: 700 mm | B: 390 mm | Cr: 4700 kN | Mass: 436 kg
E-LM272249D/LM272210/LM272210DG2d: 482.6 mm | D: 615.95 mm | B: 330.2 mm | Cr: 4000 kN | Mass: 250 kg
E-EE640193D/640260/640261DG2d: 488.95 mm | D: 660.4 mm | B: 365.125 mm | Cr: 4700 kN | Mass: 364 kg
E-LM772749D/LM772710/LM772710Dd: 489.026 mm | D: 634.873 mm | B: 320.675 mm | Cr: 3650 kN | Mass: 268 kg
E-CRO-10008d: 500 mm | D: 670 mm | B: 515 mm | Cr: 6900 kN | Mass: 598 kg
E-CRO-10005d: 500 mm | D: 690 mm | B: 480 mm | Cr: 6000 kN | Mass: 600 kg
E-6259/500d: 500 mm | D: 705 mm | B: 515 mm | Cr: 8450 kN | Mass: 632 kg
E-CRO-10003d: 500 mm | D: 730 mm | B: 440 mm | Cr: 7200 kN | Mass: 535 kg
E-M274149D/M274110/M274110DG2d: 501.65 mm | D: 711.2 mm | B: 520.7 mm | Cr: 8650 kN | Mass: 726 kg
E-LM274449D/LM274410/LM274410Dd: 514.35 mm | D: 673.1 mm | B: 422.275 mm | Cr: 5950 kN | Mass: 390 kg
E-M275349D/M275310/M275310DG2d: 519.112 mm | D: 736.6 mm | B: 536.575 mm | Cr: 9100 kN | Mass: 761 kg
E-CRO-10402d: 520 mm | D: 735 mm | B: 535 mm | Cr: 9100 kN | Mass: 750 kg
E-M276449D/M276410/M276410DG2d: 536.575 mm | D: 761.873 mm | B: 558.8 mm | Cr: 10100 kN | Mass: 890 kg
E-EE843221D/843290/843291Dd: 558.8 mm | D: 736.6 mm | B: 322.265 mm | Cr: 4300 kN | Mass: 388 kg
E-LM377449D/LM377410/LM37741DG2d: 558.8 mm | D: 736.6 mm | B: 409.575 mm | Cr: 6100 kN | Mass: 502 kg
E-CRO-11402d: 570 mm | D: 780 mm | B: 515 mm | Cr: 9200 kN | Mass: 625 kg
E-CRO-11403d: 570 mm | D: 810 mm | B: 590 mm | Cr: 11000 kN | Mass: 845 kg
E-M278749D/M278710/M278710DG2d: 571.5 mm | D: 812.8 mm | B: 593.725 mm | Cr: 11900 kN | Mass: 1080 kg
E-LM778549D/LM778510/LM778510DG2d: 584.2 mm | D: 762 mm | B: 396.875 mm | Cr: 6550 kN | Mass: 511 kg
E-LM278849D/LM278810/LM278810Dd: 585.788 mm | D: 771.525 mm | B: 479.425 mm | Cr: 7350 kN | Mass: 750 kg
E-M280049D/M280010/M280010DG2d: 595.312 mm | D: 844.55 mm | B: 615.95 mm | Cr: 12600 kN | Mass: 1160 kg
E-EE649241D/649310/649311DG2d: 609.6 mm | D: 787.4 mm | B: 361.95 mm | Cr: 6450 kN | Mass: 458 kg
E-M281649D/M281610/M281610DG2d: 657.225 mm | D: 933.45 mm | B: 676.275 mm | Cr: 15300 kN | Mass: 1630 kg
E-CRO-13202d: 660 mm | D: 1070 mm | B: 642 mm | Cr: 15400 kN | Mass: 1950 kg
E-L281149D/L281110/L281110DG2d: 660.4 mm | D: 812.8 mm | B: 365.125 mm | Cr: 6200 kN | Mass: 448 kg
E-CRO-13401d: 670 mm | D: 960 mm | B: 700 mm | Cr: 16700 kN | Mass: 1600 kg
E-LM281849D/LM281810/LM281810DG2d: 679.45 mm | D: 901.7 mm | B: 552.45 mm | Cr: 11200 kN | Mass: 1040 kg
E-CRO-13602d: 680 mm | D: 870 mm | B: 460 mm | Cr: 7500 kN | Mass: 582 kg
E-M282249D/M282210/M282210DG2d: 682.625 mm | D: 965.2 mm | B: 701.675 mm | Cr: 16100 kN | Mass: 1770 kg
E-EE655271D/655345/655346DG2d: 685.8 mm | D: 876.3 mm | B: 352.425 mm | Cr: 6050 kN | Mass: 539 kg
E-CRO-14208d: 710 mm | D: 900 mm | B: 410 mm | Cr: 7650 kN | Mass: 620 kg
E-EE755281D/755360/755361DG2d: 711.2 mm | D: 914.4 mm | B: 317.5 mm | Cr: 5350 kN | Mass: 527 kg
E-CRO-14601d: 730 mm | D: 1070 mm | B: 642 mm | Cr: 15400 kN | Mass: 1900 kg
E-M283449D/M283410/M283410Dd: 730.25 mm | D: 1035.05 mm | B: 755.65 mm | Cr: 18300 kN | Mass: 2210 kg
E-LM283649D/LM283610/LM283610DG2d: 749.3 mm | D: 990.6 mm | B: 605 mm | Cr: 12600 kN | Mass: 1310 kg
E-M284249D/M284210/M284210DG2d: 762 mm | D: 1079.5 mm | B: 787.4 mm | Cr: - | Mass: 2480 kg
E-CRO-16001d: 800 mm | D: 1120 mm | B: 820 mm | Cr: 21000 kN | Mass: 3960 kg
E-M285848D/M285810/M285810DG2d: 825.5 mm | D: 1168.4 mm | B: 844.55 mm | Cr: - | Mass: 3010 kg
E-COR-16803d: 840 mm | D: 1170 mm | B: 840 mm | Cr: 21900 kN | Mass: 3970 kg
E-LM286249D/LM286210/LM286210DG2d: 863.6 mm | D: 1130.3 mm | B: 669.925 mm | Cr: - | Mass: 1950 kg
E-EE547341D/547480/547481DG2d: 863.6 mm | D: 1219.2 mm | B: 876.3 mm | Cr: - | Mass: 3640 kg
E-LM287649D/LM287610/LM287610DG2d: 938.212 mm | D: 1270 mm | B: 825.5 mm | Cr: - | Mass: 4100 kg
E-CRO-19001d: 950 mm | D: 1360 mm | B: 880 mm | Cr: 27000 kN | Mass: 4100 kg
E-LM288949D/LM288910/LM288910DG2d: 1200.15 mm | D: 1593.85 mm | B: 990.6 mm | Cr: - | Mass: 6130 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
