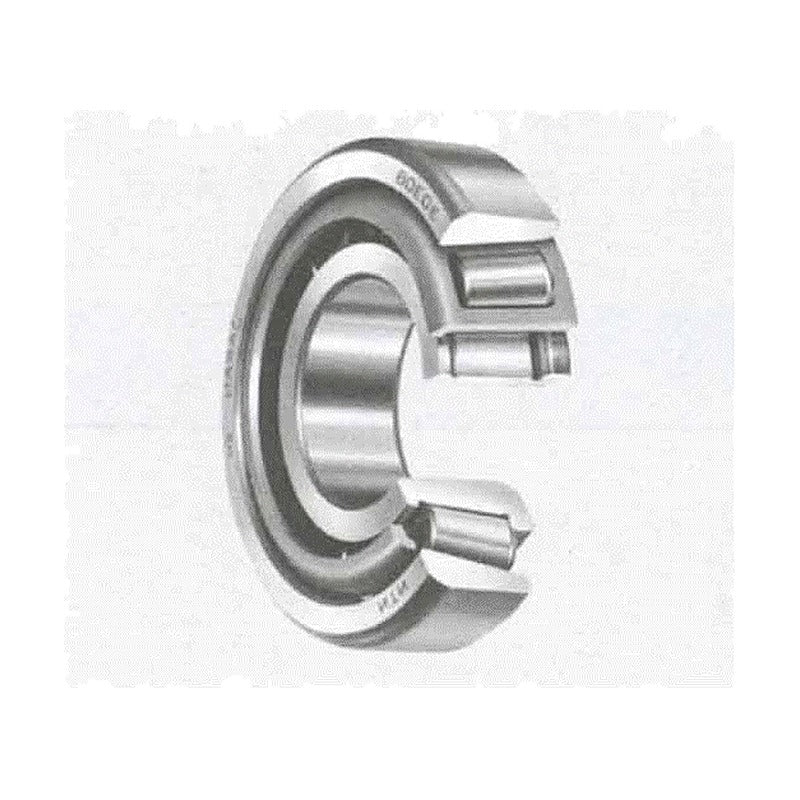

NTN Inch Series Tapered Roller Bearings (4T Cone/Cup Sets)

NTN inch-dimension single-row tapered roller bearings, designated as cone/cup sets (cone number / cup number), bore 12.700-196.850 mm.

Key features

Designation format: cone number / cup number
4T- prefix: NTN long-life 4T specification
Interchangeable with ABMA inch tapered roller bearing standards
Includes LM, M, HM, L and J series sets as listed

Specifications

Bearing type	Single-row tapered roller bearing
Dimension system	Inch (ABMA), shown in mm
Designation	Cone / cup set
Load rating unit	kN
Brand	NTN
Source	NTN NTN Ball and Roller Bearings catalogue, p. 89-107

4T-A4050/A4138		d: 12.7 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.3 kN \| C0r: 11.6 kN \| Mass: 0.053 kg
4T-A4059/A4138		d: 14.989 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.3 kN \| C0r: 11.6 kN \| Mass: 0.049 kg
4T-03062/03162		d: 15.875 mm \| D: 41.275 mm \| T: 14.288 mm \| Cr: 20.3 kN \| C0r: 18.7 kN \| Mass: 0.092 kg
4T-11590/11520		d: 15.875 mm \| D: 42.862 mm \| T: 14.288 mm \| Cr: 17.6 kN \| C0r: 17.5 kN \| Mass: 0.103 kg
4T-17580/17520		d: 15.875 mm \| D: 72.862 mm \| T: 16.67 mm \| Cr: 26.7 kN \| C0r: 26 kN \| Mass: 0.122 kg
4T-06062/05185		d: 15.875 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.131 kg
4T-09062/09195		d: 15.875 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.203 kg
4T-05066/05185		d: 16.993 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.127 kg
4T-LM11749/LM11710		d: 17.462 mm \| D: 39.878 mm \| T: 13.843 mm \| Cr: 23.8 kN \| C0r: 24.2 kN \| Mass: 0.084 kg
4T-A6075/A6157		d: 19.05 mm \| D: 39.992 mm \| T: 12.014 mm \| Cr: 12.8 kN \| C0r: 12.8 kN \| Mass: 0.065 kg
4T-LM11949/LM11910		d: 19.05 mm \| D: 45.237 mm \| T: 15.494 mm \| Cr: 28.3 kN \| C0r: 28.6 kN \| Mass: 0.122 kg
4T-5075/05185		d: 19.05 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.121 kg
4T-09067/09195		d: 19.05 mm \| D: 49.225 mm \| T: 18.034 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.179 kg
4T-09078/09195		d: 19.05 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.188 kg
4T-09067/09196		d: 19.05 mm \| D: 49.225 mm \| T: 21.209 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.198 kg
4T-21075/21212		d: 19.05 mm \| D: 53.975 mm \| T: 22.225 mm \| Cr: 40 kN \| C0r: 39 kN \| Mass: 0.248 kg
4T-1775/1729		d: 19.05 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 0.272 kg
4T-05079/05185		d: 19.987 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.117 kg
4T-07079/07196		d: 20 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.138 kg
4T-09081/09195		d: 20.625 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.179 kg
4T-12580/12520		d: 20.638 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.5 kN \| C0r: 39 kN \| Mass: 0.182 kg
4T-M12649/M12610		d: 21.43 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 38 kN \| C0r: 39 kN \| Mass: 0.169 kg
4T-LM12749/LM12711		d: 21.986 mm \| D: 45.974 mm \| T: 15.494 mm \| Cr: 29.6 kN \| C0r: 34 kN \| Mass: 0.123 kg
4T-07087/07196		d: 22.225 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.13 kg
4T-M12648/M12610		d: 22.225 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 38 kN \| C0r: 39 kN \| Mass: 0.165 kg
4T-1380/1328		d: 22.225 mm \| D: 52.388 mm \| T: 19.368 mm \| Cr: 40.5 kN \| C0r: 43 kN \| Mass: 0.2 kg
4T-1380/1329		d: 22.225 mm \| D: 53.975 mm \| T: 19.368 mm \| Cr: 40.5 kN \| C0r: 43 kN \| Mass: 0.215 kg
4T-1755/1729		d: 22.225 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 0.256 kg
4T-1280/1220		d: 22.225 mm \| D: 57.15 mm \| T: 22.225 mm \| Cr: 47 kN \| C0r: 49.5 kN \| Mass: 0.286 kg
4T-LM72849/LM72810		d: 22.606 mm \| D: 47 mm \| T: 15.5 mm \| Cr: 27.5 kN \| C0r: 32.5 kN \| Mass: 0.125 kg
4T-07093/07196		d: 23.812 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.123 kg
4T-L44640/L44610		d: 23.812 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.8 kN \| C0r: 34 kN \| Mass: 0.137 kg
4T-1779/1729		d: 23.812 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 0.247 kg
4T-07098/07196		d: 24.981 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.118 kg
4T-07097/07196		d: 25 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.118 kg
4T-07096/07196		d: 25.159 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.117 kg
4T-07100/07196		d: 25.4 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.117 kg
4T-07100S/07196		d: 25.4 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.116 kg
4T-L44643/L44610		d: 25.4 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.8 kN \| C0r: 34 kN \| Mass: 0.13 kg
4T-07100/07204		d: 25.4 mm \| D: 51.994 mm \| T: 15.011 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.144 kg
4T-1780/1729		d: 25.4 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 238 kg
4T-M84548/M84510		d: 25.4 mm \| D: 57.15 mm \| T: 19.431 mm \| Cr: 42 kN \| C0r: 48.5 kN \| Mass: 0.241 kg
4T-15101/15243		d: 25.4 mm \| D: 61.912 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.3 kg
4T-15100/15245		d: 25.4 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.299 kg
4T-15102/15245		d: 25.4 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.301 kg
4T-M86643/M86610		d: 25.4 mm \| D: 64.292 mm \| T: 21.433 mm \| Cr: 51.5 kN \| C0r: 64.5 kN \| Mass: 0.371 kg
4T-23100/23256		d: 25.4 mm \| D: 65.088 mm \| T: 22.225 mm \| Cr: 47 kN \| C0r: 50.5 kN \| Mass: 0.36 kg
4T-2687/2631		d: 25.4 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.442 kg
4T-15103/15245		d: 26.157 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.296 kg
4T-2682/2631		d: 26.162 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.436 kg
4T-L44649/L44610		d: 26.988 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.8 kN \| C0r: 34 kN \| Mass: 0.12 kg
4T-15580/15523		d: 26.988 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 39.5 kN \| C0r: 45.5 kN \| Mass: 0.26 kg
4T-15106/15245		d: 26.988 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.291 kg
4T-2688/2631		d: 26.988 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.429 kg
4T-1985/1930		d: 28.575 mm \| D: 56.896 mm \| T: 19.845 mm \| Cr: 40.5 kN \| C0r: 44.5 kN \| Mass: 0.217 kg
4T-15590/15520		d: 28.575 mm \| D: 57.15 mm \| T: 17.462 mm \| Cr: 39.5 kN \| C0r: 45.5 kN \| Mass: 0.196 kg
4T-1985/1932		d: 28.575 mm \| D: 58.738 mm \| T: 19.05 mm \| Cr: 40.5 kN \| C0r: 44.5 kN \| Mass: 0.23 kg
4T-15590/15523		d: 28.575 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 39.5 kN \| C0r: 45.5 kN \| Mass: 0.25 kg
4T-1985/1931		d: 28.575 mm \| D: 60.325 mm \| T: 19.845 mm \| Cr: 40.5 kN \| C0r: 44.5 kN \| Mass: 0.255 kg
4T-15112/15245		d: 28.575 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.277 kg
4T-M86647/M86610		d: 28.575 mm \| D: 64.292 mm \| T: 21.433 mm \| Cr: 51.5 kN \| C0r: 64.5 kN \| Mass: 0.343 kg
4T-2689/2631		d: 28.575 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.416 kg
4T-02474/02420		d: 28.575 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 57 kN \| C0r: 67 kN \| Mass: 0.409 kg
4T-2474/2420		d: 28.575 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 57.5 kN \| C0r: 65.5 kN \| Mass: 0.41 kg
4T-2578/2523		d: 28.575 mm \| D: 69.85 mm \| T: 23.812 mm \| Cr: 69 kN \| C0r: 81.5 kN \| Mass: 0.483 kg
4T-41125/41286		d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 58 kN \| C0r: 55.5 kN \| Mass: 0.477 kg
4T-02872/02820		d: 28.575 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 56.5 kN \| C0r: 68 kN \| Mass: 0.48 kg
4T-L45449/L45410		d: 29 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28 kN \| C0r: 35.5 kN \| Mass: 0.113 kg
4T-2690/2631		d: 29367 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.406 kg
4T-17118/17244		d: 29.987 mm \| D: 62 mm \| T: 16.002 mm \| Cr: 39 kN \| C0r: 42 kN \| Mass: 0.228 kg
4T-15117/15245		d: 29.987 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.269 kg
4T-14117A/14276		d: 30 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 48.5 kN \| C0r: 58 kN \| Mass: 0.369 kg
4T-15116/15245		d: 30.112 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.268 kg
4T-17119/17244		d: 30.162 mm \| D: 62 mm \| T: 16.002 mm \| Cr: 39 kN \| C0r: 42 kN \| Mass: 0.226 kg
4T-M86649/M86610		d: 30.162 mm \| D: 64.292 mm \| T: 21.433 mm \| Cr: 51.5 kN \| C0r: 64.5 kN \| Mass: 0.336 kg
4T-2558/2523		d: 30.162 mm \| D: 69.85 mm \| T: 23.812 mm \| Cr: 69 kN \| C0r: 81.5 kN \| Mass: 0.468 kg
4T-3187/3120		d: 30.162 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 84.5 kN \| C0r: 98 kN \| Mass: 0.621 kg
4T-15118/15245		d: 30.213 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.265 kg
4T-15119/15245		d: 30.213 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.267 kg
4T-15120/15245		d: 30.213 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.267 kg
4T-14116/14274		d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 48.5 kN \| C0r: 58 kN \| Mass: 0.366 kg
4T-14116/14276		d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 48.5 kN \| C0r: 58 kN \| Mass: 0.37 kg
4T-LM67048/LM67010		d: 31.75 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 34.5 kN \| C0r: 41 kN \| Mass: 0.182 kg
4T-15123/15245		d: 31.75 mm \| D: 62 mm \| T: 18.161 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.244 kg
4T-15125/15245		d: 31.75 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.253 kg
4T-45280/45220		d: 44.45 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 130 kN \| C0r: 169 kN \| Mass: 1.35 kg
4T-HM807040/HM807010		d: 44.45 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 138 kN \| C0r: 189 kN \| Mass: 1.62 kg
4T-55175C/55437		d: 44.45 mm \| D: 111.125 mm \| T: 30.162 mm \| Cr: 104 kN \| C0r: 136 kN \| Mass: 1.45 kg
4T-55176C/55437		d: 44.45 mm \| D: 111.125 mm \| T: 30.162 mm \| Cr: 104 kN \| C0r: 136 kN \| Mass: 1.09 kg
4T-6277/6220		d: 44.45 mm \| D: 127 mm \| T: 50.8 mm \| Cr: 250 kN \| C0r: 320 kN \| Mass: 3.58 kg
4T-25584/25520		d: 44.983 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.555 kg
4T-3776/3720		d: 44.983 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 102 kN \| C0r: 134 kN \| Mass: 0.952 kg
4T-358/354A		d: 45 mm \| D: 85 mm \| T: 20.638 mm \| Cr: 69.5 kN \| C0r: 79.5 kN \| Mass: 0.505 kg
4T-367/362A		d: 45 mm \| D: 88.9 mm \| T: 20.638 mm \| Cr: 76.5 kN \| C0r: 90.5 kN \| Mass: 0.595 kg
4T-3586/3525		d: 45.237 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 94 kN \| C0r: 117 kN \| Mass: 0.765 kg
4T-LM102949/LM102910		d: 45.242 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 54 kN \| C0r: 76 kN \| Mass: 0.307 kg
4T-LM603049/LM603011		d: 45.242 mm \| D: 77.788 mm \| T: 19.842 mm \| Cr: 57.5 kN \| C0r: 73.5 kN \| Mass: 0.372 kg
4T-25590/25519		d: 45.618 mm \| D: 82.55 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.534 kg
4T-25590/25520		d: 45.618 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.543 kg
4T-25590/25522		d: 45.618 mm \| D: 83.058 mm \| T: 23.876 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.545 kg
4T-25590/25526		d: 45.618 mm \| D: 85 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.581 kg
4T-LM503349A/LM503310		d: 45.987 mm \| D: 74.976 mm \| T: 18 mm \| Cr: 51 kN \| C0r: 71 kN \| Mass: 0.296 kg
4T-18690/18620		d: 46.038 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 45.5 kN \| C0r: 56 kN \| Mass: 0.329 kg
4T-25592/25520		d: 46.038 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.538 kg
4T-359A/354A		d: 46.038 mm \| D: 85 mm \| T: 20.638 mm \| Cr: 69.5 kN \| C0r: 79.5 kN \| Mass: 0.489 kg
4T-2984/2924		d: 46.038 mm \| D: 85 mm \| T: 25.4 mm \| Cr: 79 kN \| C0r: 104 kN \| Mass: 0.615 kg
4T-359S/352		d: 46.038 mm \| D: 90.119 mm \| T: 23 mm \| Cr: 69.5 kN \| C0r: 79.5 kN \| Mass: 0.651 kg
4T-3777/3720		d: 46.038 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 102 kN \| C0r: 134 kN \| Mass: 0.934 kg
4T-436/432		d: 46.038 mm \| D: 95.25 mm \| T: 27.783 mm \| Cr: 108 kN \| C0r: 129 kN \| Mass: 0.927 kg
4T-369A/362A		d: 47.625 mm \| D: 88.9 mm \| T: 20.638 mm \| Cr: 76.5 kN \| C0r: 90.5 kN \| Mass: 0.559 kg
4T-M80404846/HM804810		d: 47.625 mm \| D: 88.9 mm \| T: 25.4 mm \| Cr: 82 kN \| C0r: 101 kN \| Mass: 0.662 kg
4T-3778/3720		d: 47.625 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 102 kN \| C0r: 134 kN \| Mass: 0.898 kg
4T-HM804846/HM804810		d: 47.625 mm \| D: 95.25 mm \| T: 30.162 mm \| Cr: 109 kN \| C0r: 147 kN \| Mass: 0.978 kg
4T-386A/382A		d: 47.625 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.72 kg
4T-528/522		d: 47.625 mm \| D: 101.6 mm \| T: 34.925 mm \| Cr: 135 kN \| C0r: 165 kN \| Mass: 1.3 kg
4T-463/453X		d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.24 kg
4T-385/382A		d: 55 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.616 kg
4T-28680/28622		d: 55.562 mm \| D: 97.63 mm \| T: 24.608 mm \| Cr: 88.5 kN \| C0r: 128 kN \| Mass: 0.774 kg
4T-72218C/72487		d: 55.562 mm \| D: 123.825 mm \| T: 36.512 mm \| Cr: 154 kN \| C0r: 188 kN \| Mass: 1.99 kg
4T-HM813840/HM813810		d: 55.562 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 228 kN \| Mass: 2.34 kg
4T-389/382A		d: 55.575 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.608 kg
4T-387/382A		d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.583 kg
4T-387A/382A		d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.581 kg
4T-387AS/382A		d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.576 kg
4T-387S/382A		d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.585 kg
4T-28682/28622		d: 57.15 mm \| D: 97.63 mm \| T: 24.608 mm \| Cr: 88.5 kN \| C0r: 128 kN \| Mass: 0.747 kg
4T-462/453X		d: 57.15 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.06 kg
4T-469/453X		d: 57.15 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.06 kg
4T-45289/45220		d: 57.15 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 130 kN \| C0r: 169 kN \| Mass: 1.1 kg
4T-469/453A		d: 57.15 mm \| D: 107.95 mm \| T: 27.783 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.11 kg
4T-390/394A		d: 57.15 mm \| D: 110 mm \| T: 22 mm \| Cr: 89.5 kN \| C0r: 120 kN \| Mass: 0.954 kg
4T-469/454		d: 57.15 mm \| D: 110 mm \| T: 27.795 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.24 kg
4T-3979/3920		d: 57.15 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 119 kN \| C0r: 174 kN \| Mass: 1.4 kg
4T-39580/39520		d: 57.15 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 138 kN \| C0r: 195 kN \| Mass: 1.41 kg
4T-39581/39520		d: 57.15 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 138 kN \| C0r: 195 kN \| Mass: 1.4 kg
4T-33225/33462		d: 57.15 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.58 kg
4T-66225/66462		d: 57.15 mm \| D: 117.475 mm \| T: 33.338 mm \| Cr: 130 kN \| C0r: 153 kN \| Mass: 1.54 kg
4T-623/612		d: 57.15 mm \| D: 120.65 mm \| T: 41.275 mm \| Cr: 172 kN \| C0r: 213 kN \| Mass: 2.12 kg
4T-72225C/72487		d: 57.15 mm \| D: 123.825 mm \| T: 36.512 mm \| Cr: 154 kN \| C0r: 188 kN \| Mass: 1.96 kg
4T-555S/552A		d: 57.15 mm \| D: 123.825 mm \| T: 38.1 mm \| Cr: 158 kN \| C0r: 216 kN \| Mass: 2.18 kg
4T-78225/78551		d: 57.15 mm \| D: 140.03 mm \| T: 36.512 mm \| Cr: 171 kN \| C0r: 212 kN \| Mass: 2.69 kg
4T-388A/382A		d: 57.531 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.575 kg
4T-66589/66520		d: 59.972 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 134 kN \| C0r: 163 kN \| Mass: 1.66 kg
4T-H913840/H913810		d: 59.987 mm \| D: 146.05 mm \| T: 41.275 mm \| Cr: 199 kN \| C0r: 234 kN \| Mass: 3.22 kg
4T-29580/29520		d: 60 mm \| D: 107.95 mm \| T: 25.4 mm \| Cr: 91.5 kN \| C0r: 140 kN \| Mass: 0.992 kg
4T-6379/6320		d: 65.088 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 278 kN \| C0r: 380 kN \| Mass: 3.71 kg
4T-L812148/L812111		d: 66.675 mm \| D: 103.213 mm \| T: 17.602 mm \| Cr: 60 kN \| C0r: 78 kN \| Mass: 0.48 kg
4T-29590/29520		d: 66.675 mm \| D: 107.95 mm \| T: 25.4 mm \| Cr: 91.5 kN \| C0r: 140 kN \| Mass: 0.86 kg
4T-395A/394A		d: 66.675 mm \| D: 110 mm \| T: 22 mm \| Cr: 89.5 kN \| C0r: 120 kN \| Mass: 0.796 kg
4T-3984/3925		d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 119 kN \| C0r: 174 kN \| Mass: 1.19 kg
4T-3994/3920		d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 119 kN \| C0r: 174 kN \| Mass: 1.18 kg
4T-39590/39520		d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 138 kN \| C0r: 195 kN \| Mass: 1.19 kg
4T-HM212049/HM212010		d: 66.675 mm \| D: 122.238 mm \| T: 38.1 mm \| Cr: 187 kN \| C0r: 244 kN \| Mass: 1.86 kg
4T-560/552A		d: 66.675 mm \| D: 123.825 mm \| T: 38.1 mm \| Cr: 158 kN \| C0r: 216 kN \| Mass: 1.92 kg
4T-HM813844/HM813810		d: 66.675 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 228 kN \| Mass: 2.03 kg
4T-641/633		d: 66.675 mm \| D: 130.175 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.41 kg
4T-6386/6320		d: 66.675 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 278 kN \| C0r: 380 kN \| Mass: 3.64 kg
4T-641/632		d: 66.675 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.74 kg
4T-H414242/H414210		d: 66.675 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 226 kN \| C0r: 293 kN \| Mass: 2.75 kg
4T-399A/394A		d: 68.262 mm \| D: 110 mm \| T: 22 mm \| Cr: 89.5 kN \| C0r: 120 kN \| Mass: 0.764 kg
4T-480/472		d: 68.262 mm \| D: 120 mm \| T: 29.794 mm \| Cr: 128 kN \| C0r: 177 kN \| Mass: 1.37 kg
4T-560S/552A		d: 68.262 mm \| D: 123.825 mm \| T: 38.1 mm \| Cr: 158 kN \| C0r: 216 kN \| Mass: 1.87 kg
4T-H414245/H414210		d: 68.262 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 226 kN \| C0r: 293 kN \| Mass: 2.7 kg
4T-H715343/H715311		d: 68.262 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 224 kN \| C0r: 355 kN \| Mass: 3.24 kg
4T-29675/29620		d: 69.85 mm \| D: 112.712 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 0.949 kg
4T-33275/33462		d: 69.85 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.28 kg
4T-482/472		d: 69.85 mm \| D: 120 mm \| T: 29.794 mm \| Cr: 128 kN \| C0r: 177 kN \| Mass: 1.33 kg
4T-47487/47420		d: 69.85 mm \| D: 120 mm \| T: 32.545 mm \| Cr: 147 kN \| C0r: 214 kN \| Mass: 1.47 kg
4T-29675/29630		d: 69.85 mm \| D: 120.65 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 1.17 kg
4T-566/563		d: 69.85 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.92 kg
4T-643/632		d: 69.85 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.63 kg
4T-655/653		d: 69.85 mm \| D: 146.05 mm \| T: 41.275 mm \| Cr: 206 kN \| C0r: 295 kN \| Mass: 3.28 kg
4T-745A/742		d: 69.85 mm \| D: 150.089 mm \| T: 44.45 mm \| Cr: 261 kN \| C0r: 360 kN \| Mass: 3.92 kg
4T-835/832		d: 69.85 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 340 kN \| C0r: 460 kN \| Mass: 6.13 kg
4T-34274/34478		d: 69.952 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 91 kN \| C0r: 127 kN \| Mass: 1.11 kg
4T-484/472		d: 70 mm \| D: 120 mm \| T: 29.794 mm \| Cr: 128 kN \| C0r: 177 kN \| Mass: 1.33 kg
4T-33281/33462		d: 71.438 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.24 kg
4T-47490/47420		d: 71.438 mm \| D: 120 mm \| T: 32.545 mm \| Cr: 147 kN \| C0r: 214 kN \| Mass: 1.42 kg
4T-567A/563		d: 71.438 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.87 kg
4T-644/632		d: 71.438 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.57 kg
4T-H414249/H414210		d: 71.438 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 226 kN \| C0r: 293 kN \| Mass: 2.58 kg
4T-H715345/H715311		d: 71.438 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 224 kN \| C0r: 355 kN \| Mass: 3.11 kg
4T-29685/29620		d: 73.025 mm \| D: 112.712 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 0.873 kg
4T-33287/33462		d: 73.025 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.19 kg
4T-567/563		d: 73.025 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.82 kg
4T-576/572		d: 73.025 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.53 kg
4T-6460/6420		d: 73.025 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 287 kN \| C0r: 410 kN \| Mass: 4.42 kg
4T-744/742		d: 73.025 mm \| D: 150.089 mm \| T: 44.45 mm \| Cr: 261 kN \| C0r: 360 kN \| Mass: 3.79 kg
4T-29688/29620		d: 73.817 mm \| D: 112.712 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 0.86 kg
4T-568/563		d: 73.817 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.8 kg
4T-577/572		d: 74.612 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.48 kg
4T-L814749/L814710		d: 76.2 mm \| D: 109.538 mm \| T: 19.05 mm \| Cr: 63 kN \| C0r: 115 kN \| Mass: 0.579 kg
4T-34300/34478		d: 76.2 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 91 kN \| C0r: 127 kN \| Mass: 0.982 kg
4T-34301/34478		d: 76.2 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 91 kN \| C0r: 127 kN \| Mass: 0.977 kg
4T-42687/42620		d: 76.2 mm \| D: 127 mm \| T: 30.162 mm \| Cr: 135 kN \| C0r: 194 kN \| Mass: 1.46 kg
4T-47678/47620		d: 76.2 mm \| D: 133.35 mm \| T: 33.338 mm \| Cr: 153 kN \| C0r: 235 kN \| Mass: 1.92 kg
4T-HM516442/HM516410		d: 76.2 mm \| D: 133.35 mm \| T: 39.688 mm \| Cr: 177 kN \| C0r: 305 kN \| Mass: 2.43 kg
4T-5760/5735		d: 76.2 mm \| D: 135.733 mm \| T: 44.45 mm \| Cr: 211 kN \| C0r: 330 kN \| Mass: 2.75 kg
4T-495A/493		d: 76.2 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 129 kN \| C0r: 189 kN \| Mass: 1.83 kg
4T-575/572		d: 76.2 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.43 kg
4T-575S/572		d: 76.2 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.41 kg
4T-659/653		d: 76.2 mm \| D: 146.05 mm \| T: 41.275 mm \| Cr: 206 kN \| C0r: 295 kN \| Mass: 3.04 kg
4T-6461A/6420		d: 76.2 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 287 kN \| C0r: 410 kN \| Mass: 4.23 kg
4T-748S/742		d: 76.2 mm \| D: 150.089 mm \| T: 44.45 mm \| Cr: 261 kN \| C0r: 360 kN \| Mass: 3.66 kg
4T-L319249/L319210		d: 95.25 mm \| D: 130.175 mm \| T: 20.638 mm \| Cr: 81 kN \| C0r: 147 kN \| Mass: 0.789 kg
4T-47896/47820		d: 95.25 mm \| D: 146.05 mm \| T: 33.338 mm \| Cr: 163 kN \| C0r: 266 kN \| Mass: 1.95 kg
4T-594A/592XE		d: 95.25 mm \| D: 147.638 mm \| T: 35.717 mm \| Cr: 180 kN \| C0r: 279 kN \| Mass: 2.09 kg
4T-42375/42584		d: 95.25 mm \| D: 148.43 mm \| T: 28.575 mm \| Cr: 138 kN \| C0r: 215 kN \| Mass: 1.75 kg
4T-594/592A		d: 95.25 mm \| D: 152.4 mm \| T: 39.688 mm \| Cr: 180 kN \| C0r: 279 kN \| Mass: 2.51 kg
4T-52375/52618		d: 95.25 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.76 kg
4T-683/672		d: 95.25 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 222 kN \| C0r: 340 kN \| Mass: 3.72 kg
4T-HH221440/HH221410		d: 95.25 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 445 kN \| C0r: 610 kN \| Mass: 7.5 kg
4T-42381/42584		d: 96.838 mm \| D: 148.43 mm \| T: 28.575 mm \| Cr: 138 kN \| C0r: 215 kN \| Mass: 1.69 kg
4T-90381/90744		d: 96.838 mm \| D: 188.912 mm \| T: 50.8 mm \| Cr: 281 kN \| C0r: 365 kN \| Mass: 5.67 kg
4T-52387/52618		d: 98.425 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.62 kg
4T-685/672		d: 98.425 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 222 kN \| C0r: 340 kN \| Mass: 3.56 kg
4T-HH224334/HH224310		d: 99.974 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 575 kN \| C0r: 810 kN \| Mass: 11.5 kg
4T-52393/52618		d: 100.012 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.55 kg
4T-52400/52618		d: 101.6 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.48 kg
4T-687/672		d: 101.6 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 222 kN \| C0r: 340 kN \| Mass: 3.4 kg
4T-780/772		d: 101.6 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 285 kN \| C0r: 430 kN \| Mass: 5.11 kg
4T-861/854		d: 101.6 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 380 kN \| C0r: 555 kN \| Mass: 7 kg
4T-HH221449/HH221410		d: 101.6 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 445 kN \| C0r: 610 kN \| Mass: 7.06 kg
4T-HH221449A/HH221410		d: 101.6 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 445 kN \| C0r: 610 kN \| Mass: 7.06 kg
4T-941/932		d: 101.6 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 475 kN \| C0r: 695 kN \| Mass: 11.2 kg
4T-HH224335/HH224310		d: 101.6 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 575 kN \| C0r: 810 kN \| Mass: 11.3 kg
4T-782/772		d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 285 kN \| C0r: 430 kN \| Mass: 4.92 kg
4T-37425/37625		d: 107.95 mm \| D: 158.75 mm \| T: 23.02 mm \| Cr: 102 kN \| C0r: 166 kN \| Mass: 1.37 kg
4T-LM522546/LM522510		d: 107.95 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 167 kN \| C0r: 320 kN \| Mass: 2.37 kg
4T-56425/56650		d: 107.95 mm \| D: 165.1 mm \| T: 36.512 mm \| Cr: 191 kN \| C0r: 315 kN \| Mass: 2.69 kg
4T-936/932		d: 107.95 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 475 kN \| C0r: 695 kN \| Mass: 10.7 kg
4T-37431/37625		d: 109.538 mm \| D: 158.75 mm \| T: 23.02 mm \| Cr: 102 kN \| C0r: 166 kN \| Mass: 1.33 kg
4T-LM522548/LM522510		d: 109.987 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 167 kN \| C0r: 320 kN \| Mass: 2.24 kg
4T-64433/64700		d: 109.992 mm \| D: 177.8 mm \| T: 41.275 mm \| Cr: 232 kN \| C0r: 375 kN \| Mass: 3.77 kg
4T-H924045/H924010		d: 111.125 mm \| D: 214.312 mm \| T: 55.562 mm \| Cr: 405 kN \| C0r: 560 kN \| Mass: 8.18 kg
4T-64450/64700		d: 114.3 mm \| D: 177.8 mm \| T: 41.275 mm \| Cr: 232 kN \| C0r: 375 kN \| Mass: 3.52 kg
4T-68450/68712		d: 114.3 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 169 kN \| C0r: 245 kN \| Mass: 2.93 kg
4T-938/932		d: 114.3 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 475 kN \| C0r: 695 kN \| Mass: 10.1 kg
4T-HH224346/HH224310		d: 114.3 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 575 kN \| C0r: 810 kN \| Mass: 10.2 kg
4T-HM926740/HM926710		d: 114.3 mm \| D: 228.6 mm \| T: 53.975 mm \| Cr: 430 kN \| C0r: 620 kN \| Mass: 9.76 kg
4T-71453/71750		d: 115.087 mm \| D: 190.5 mm \| T: 47.625 mm \| Cr: 300 kN \| C0r: 475 kN \| Mass: 5.11 kg
4T-68462/68712		d: 117.475 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 169 kN \| C0r: 245 kN \| Mass: 2.78 kg
4T-95475/95925		d: 120.65 mm \| D: 234.95 mm \| T: 63.5 mm \| Cr: 525 kN \| C0r: 825 kN \| Mass: 12.6 kg
4T-48286/48220		d: 123.825 mm \| D: 182.562 mm \| T: 39.688 mm \| Cr: 224 kN \| C0r: 435 kN \| Mass: 3.52 kg
4T-48290/48220		d: 127 mm \| D: 182.562 mm \| T: 39.688 mm \| Cr: 224 kN \| C0r: 435 kN \| Mass: 3.33 kg
4T-67388/67322		d: 127 mm \| D: 196.85 mm \| T: 46.038 mm \| Cr: 310 kN \| C0r: 550 kN \| Mass: 5.1 kg
4T-74500/74850		d: 127 mm \| D: 215.9 mm \| T: 47.625 mm \| Cr: 320 kN \| C0r: 540 kN \| Mass: 7.05 kg
4T-97500/97900		d: 127 mm \| D: 228.6 mm \| T: 53.975 mm \| Cr: 320 kN \| C0r: 445 kN \| Mass: 8.43 kg
4T-HM926747/HM926710		d: 127 mm \| D: 228.6 mm \| T: 53.975 mm \| Cr: 430 kN \| C0r: 620 kN \| Mass: 8.83 kg
4T-95500/95905		d: 127 mm \| D: 230 mm \| T: 63.5 mm \| Cr: 525 kN \| C0r: 825 kN \| Mass: 12.9 kg
4T-HH228349/HH228310		d: 127 mm \| D: 254 mm \| T: 77.788 mm \| Cr: 740 kN \| C0r: 1070 kN \| Mass: 19.5 kg
4T-799/792		d: 128.588 mm \| D: 206.375 mm \| T: 47.625 mm \| Cr: 315 kN \| C0r: 520 kN \| Mass: 5.77 kg
4T-67389/67322		d: 130.175 mm \| D: 196.85 mm \| T: 46.038 mm \| Cr: 310 kN \| C0r: 550 kN \| Mass: 4.87 kg
4T-799A/792		d: 130.175 mm \| D: 206.375 mm \| T: 47.625 mm \| Cr: 315 kN \| C0r: 520 kN \| Mass: 5.65 kg
4T-L327249/L327210		d: 133.35 mm \| D: 177.008 mm \| T: 25.4 mm \| Cr: 126 kN \| C0r: 259 kN \| Mass: 1.7 kg

Tapered Roller BearingsNTN

255 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN Inch Series Tapered Roller Bearings (4T Cone/Cup Sets)

Brand NTN·Tapered Roller Bearings

Available part numbers (255)

4T-A4050/A4138, 4T-A4059/A4138, 4T-03062/03162, 4T-11590/11520, 4T-17580/17520, 4T-06062/05185, 4T-09062/09195, 4T-05066/05185, 4T-LM11749/LM11710, 4T-A6075/A6157 + 245 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	4T-A4050/A4138	d: 12.7 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.3 kN \| C0r: 11.6 kN \| Mass: 0.053 kg
	4T-A4059/A4138	d: 14.989 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.3 kN \| C0r: 11.6 kN \| Mass: 0.049 kg
	4T-03062/03162	d: 15.875 mm \| D: 41.275 mm \| T: 14.288 mm \| Cr: 20.3 kN \| C0r: 18.7 kN \| Mass: 0.092 kg
	4T-11590/11520	d: 15.875 mm \| D: 42.862 mm \| T: 14.288 mm \| Cr: 17.6 kN \| C0r: 17.5 kN \| Mass: 0.103 kg
	4T-17580/17520	d: 15.875 mm \| D: 72.862 mm \| T: 16.67 mm \| Cr: 26.7 kN \| C0r: 26 kN \| Mass: 0.122 kg
	4T-06062/05185	d: 15.875 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.131 kg
	4T-09062/09195	d: 15.875 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.203 kg
	4T-05066/05185	d: 16.993 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.127 kg
	4T-LM11749/LM11710	d: 17.462 mm \| D: 39.878 mm \| T: 13.843 mm \| Cr: 23.8 kN \| C0r: 24.2 kN \| Mass: 0.084 kg
	4T-A6075/A6157	d: 19.05 mm \| D: 39.992 mm \| T: 12.014 mm \| Cr: 12.8 kN \| C0r: 12.8 kN \| Mass: 0.065 kg
	4T-LM11949/LM11910	d: 19.05 mm \| D: 45.237 mm \| T: 15.494 mm \| Cr: 28.3 kN \| C0r: 28.6 kN \| Mass: 0.122 kg
	4T-5075/05185	d: 19.05 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.121 kg
	4T-09067/09195	d: 19.05 mm \| D: 49.225 mm \| T: 18.034 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.179 kg
	4T-09078/09195	d: 19.05 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.188 kg
	4T-09067/09196	d: 19.05 mm \| D: 49.225 mm \| T: 21.209 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.198 kg
	4T-21075/21212	d: 19.05 mm \| D: 53.975 mm \| T: 22.225 mm \| Cr: 40 kN \| C0r: 39 kN \| Mass: 0.248 kg
	4T-1775/1729	d: 19.05 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 0.272 kg
	4T-05079/05185	d: 19.987 mm \| D: 47 mm \| T: 14.381 mm \| Cr: 24 kN \| C0r: 24.2 kN \| Mass: 0.117 kg
	4T-07079/07196	d: 20 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.138 kg
	4T-09081/09195	d: 20.625 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 38.5 kN \| C0r: 39 kN \| Mass: 0.179 kg
	4T-12580/12520	d: 20.638 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.5 kN \| C0r: 39 kN \| Mass: 0.182 kg
	4T-M12649/M12610	d: 21.43 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 38 kN \| C0r: 39 kN \| Mass: 0.169 kg
	4T-LM12749/LM12711	d: 21.986 mm \| D: 45.974 mm \| T: 15.494 mm \| Cr: 29.6 kN \| C0r: 34 kN \| Mass: 0.123 kg
	4T-07087/07196	d: 22.225 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.13 kg
	4T-M12648/M12610	d: 22.225 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 38 kN \| C0r: 39 kN \| Mass: 0.165 kg
	4T-1380/1328	d: 22.225 mm \| D: 52.388 mm \| T: 19.368 mm \| Cr: 40.5 kN \| C0r: 43 kN \| Mass: 0.2 kg
	4T-1380/1329	d: 22.225 mm \| D: 53.975 mm \| T: 19.368 mm \| Cr: 40.5 kN \| C0r: 43 kN \| Mass: 0.215 kg
	4T-1755/1729	d: 22.225 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 0.256 kg
	4T-1280/1220	d: 22.225 mm \| D: 57.15 mm \| T: 22.225 mm \| Cr: 47 kN \| C0r: 49.5 kN \| Mass: 0.286 kg
	4T-LM72849/LM72810	d: 22.606 mm \| D: 47 mm \| T: 15.5 mm \| Cr: 27.5 kN \| C0r: 32.5 kN \| Mass: 0.125 kg
	4T-07093/07196	d: 23.812 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.123 kg
	4T-L44640/L44610	d: 23.812 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.8 kN \| C0r: 34 kN \| Mass: 0.137 kg
	4T-1779/1729	d: 23.812 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 0.247 kg
	4T-07098/07196	d: 24.981 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.118 kg
	4T-07097/07196	d: 25 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.118 kg
	4T-07096/07196	d: 25.159 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.117 kg
	4T-07100/07196	d: 25.4 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.117 kg
	4T-07100S/07196	d: 25.4 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.116 kg
	4T-L44643/L44610	d: 25.4 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.8 kN \| C0r: 34 kN \| Mass: 0.13 kg
	4T-07100/07204	d: 25.4 mm \| D: 51.994 mm \| T: 15.011 mm \| Cr: 26 kN \| C0r: 27.9 kN \| Mass: 0.144 kg
	4T-1780/1729	d: 25.4 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 42.5 kN \| C0r: 46.5 kN \| Mass: 238 kg
	4T-M84548/M84510	d: 25.4 mm \| D: 57.15 mm \| T: 19.431 mm \| Cr: 42 kN \| C0r: 48.5 kN \| Mass: 0.241 kg
	4T-15101/15243	d: 25.4 mm \| D: 61.912 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.3 kg
	4T-15100/15245	d: 25.4 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.299 kg
	4T-15102/15245	d: 25.4 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.301 kg
	4T-M86643/M86610	d: 25.4 mm \| D: 64.292 mm \| T: 21.433 mm \| Cr: 51.5 kN \| C0r: 64.5 kN \| Mass: 0.371 kg
	4T-23100/23256	d: 25.4 mm \| D: 65.088 mm \| T: 22.225 mm \| Cr: 47 kN \| C0r: 50.5 kN \| Mass: 0.36 kg
	4T-2687/2631	d: 25.4 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.442 kg
	4T-15103/15245	d: 26.157 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.296 kg
	4T-2682/2631	d: 26.162 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.436 kg
	4T-L44649/L44610	d: 26.988 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.8 kN \| C0r: 34 kN \| Mass: 0.12 kg
	4T-15580/15523	d: 26.988 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 39.5 kN \| C0r: 45.5 kN \| Mass: 0.26 kg
	4T-15106/15245	d: 26.988 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.291 kg
	4T-2688/2631	d: 26.988 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.429 kg
	4T-1985/1930	d: 28.575 mm \| D: 56.896 mm \| T: 19.845 mm \| Cr: 40.5 kN \| C0r: 44.5 kN \| Mass: 0.217 kg
	4T-15590/15520	d: 28.575 mm \| D: 57.15 mm \| T: 17.462 mm \| Cr: 39.5 kN \| C0r: 45.5 kN \| Mass: 0.196 kg
	4T-1985/1932	d: 28.575 mm \| D: 58.738 mm \| T: 19.05 mm \| Cr: 40.5 kN \| C0r: 44.5 kN \| Mass: 0.23 kg
	4T-15590/15523	d: 28.575 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 39.5 kN \| C0r: 45.5 kN \| Mass: 0.25 kg
	4T-1985/1931	d: 28.575 mm \| D: 60.325 mm \| T: 19.845 mm \| Cr: 40.5 kN \| C0r: 44.5 kN \| Mass: 0.255 kg
	4T-15112/15245	d: 28.575 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.277 kg
	4T-M86647/M86610	d: 28.575 mm \| D: 64.292 mm \| T: 21.433 mm \| Cr: 51.5 kN \| C0r: 64.5 kN \| Mass: 0.343 kg
	4T-2689/2631	d: 28.575 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.416 kg
	4T-02474/02420	d: 28.575 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 57 kN \| C0r: 67 kN \| Mass: 0.409 kg
	4T-2474/2420	d: 28.575 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 57.5 kN \| C0r: 65.5 kN \| Mass: 0.41 kg
	4T-2578/2523	d: 28.575 mm \| D: 69.85 mm \| T: 23.812 mm \| Cr: 69 kN \| C0r: 81.5 kN \| Mass: 0.483 kg
	4T-41125/41286	d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 58 kN \| C0r: 55.5 kN \| Mass: 0.477 kg
	4T-02872/02820	d: 28.575 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 56.5 kN \| C0r: 68 kN \| Mass: 0.48 kg
	4T-L45449/L45410	d: 29 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28 kN \| C0r: 35.5 kN \| Mass: 0.113 kg
	4T-2690/2631	d: 29367 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 64.5 kN \| C0r: 72.5 kN \| Mass: 0.406 kg
	4T-17118/17244	d: 29.987 mm \| D: 62 mm \| T: 16.002 mm \| Cr: 39 kN \| C0r: 42 kN \| Mass: 0.228 kg
	4T-15117/15245	d: 29.987 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.269 kg
	4T-14117A/14276	d: 30 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 48.5 kN \| C0r: 58 kN \| Mass: 0.369 kg
	4T-15116/15245	d: 30.112 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.268 kg
	4T-17119/17244	d: 30.162 mm \| D: 62 mm \| T: 16.002 mm \| Cr: 39 kN \| C0r: 42 kN \| Mass: 0.226 kg
	4T-M86649/M86610	d: 30.162 mm \| D: 64.292 mm \| T: 21.433 mm \| Cr: 51.5 kN \| C0r: 64.5 kN \| Mass: 0.336 kg
	4T-2558/2523	d: 30.162 mm \| D: 69.85 mm \| T: 23.812 mm \| Cr: 69 kN \| C0r: 81.5 kN \| Mass: 0.468 kg
	4T-3187/3120	d: 30.162 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 84.5 kN \| C0r: 98 kN \| Mass: 0.621 kg
	4T-15118/15245	d: 30.213 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.265 kg
	4T-15119/15245	d: 30.213 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.267 kg
	4T-15120/15245	d: 30.213 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.267 kg
	4T-14116/14274	d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 48.5 kN \| C0r: 58 kN \| Mass: 0.366 kg
	4T-14116/14276	d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 48.5 kN \| C0r: 58 kN \| Mass: 0.37 kg
	4T-LM67048/LM67010	d: 31.75 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 34.5 kN \| C0r: 41 kN \| Mass: 0.182 kg
	4T-15123/15245	d: 31.75 mm \| D: 62 mm \| T: 18.161 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.244 kg
	4T-15125/15245	d: 31.75 mm \| D: 62 mm \| T: 19.05 mm \| Cr: 46.5 kN \| C0r: 54 kN \| Mass: 0.253 kg
	4T-45280/45220	d: 44.45 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 130 kN \| C0r: 169 kN \| Mass: 1.35 kg
	4T-HM807040/HM807010	d: 44.45 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 138 kN \| C0r: 189 kN \| Mass: 1.62 kg
	4T-55175C/55437	d: 44.45 mm \| D: 111.125 mm \| T: 30.162 mm \| Cr: 104 kN \| C0r: 136 kN \| Mass: 1.45 kg
	4T-55176C/55437	d: 44.45 mm \| D: 111.125 mm \| T: 30.162 mm \| Cr: 104 kN \| C0r: 136 kN \| Mass: 1.09 kg
	4T-6277/6220	d: 44.45 mm \| D: 127 mm \| T: 50.8 mm \| Cr: 250 kN \| C0r: 320 kN \| Mass: 3.58 kg
	4T-25584/25520	d: 44.983 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.555 kg
	4T-3776/3720	d: 44.983 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 102 kN \| C0r: 134 kN \| Mass: 0.952 kg
	4T-358/354A	d: 45 mm \| D: 85 mm \| T: 20.638 mm \| Cr: 69.5 kN \| C0r: 79.5 kN \| Mass: 0.505 kg
	4T-367/362A	d: 45 mm \| D: 88.9 mm \| T: 20.638 mm \| Cr: 76.5 kN \| C0r: 90.5 kN \| Mass: 0.595 kg
	4T-3586/3525	d: 45.237 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 94 kN \| C0r: 117 kN \| Mass: 0.765 kg
	4T-LM102949/LM102910	d: 45.242 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 54 kN \| C0r: 76 kN \| Mass: 0.307 kg
	4T-LM603049/LM603011	d: 45.242 mm \| D: 77.788 mm \| T: 19.842 mm \| Cr: 57.5 kN \| C0r: 73.5 kN \| Mass: 0.372 kg
	4T-25590/25519	d: 45.618 mm \| D: 82.55 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.534 kg
	4T-25590/25520	d: 45.618 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.543 kg
	4T-25590/25522	d: 45.618 mm \| D: 83.058 mm \| T: 23.876 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.545 kg
	4T-25590/25526	d: 45.618 mm \| D: 85 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.581 kg
	4T-LM503349A/LM503310	d: 45.987 mm \| D: 74.976 mm \| T: 18 mm \| Cr: 51 kN \| C0r: 71 kN \| Mass: 0.296 kg
	4T-18690/18620	d: 46.038 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 45.5 kN \| C0r: 56 kN \| Mass: 0.329 kg
	4T-25592/25520	d: 46.038 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 76 kN \| C0r: 98 kN \| Mass: 0.538 kg
	4T-359A/354A	d: 46.038 mm \| D: 85 mm \| T: 20.638 mm \| Cr: 69.5 kN \| C0r: 79.5 kN \| Mass: 0.489 kg
	4T-2984/2924	d: 46.038 mm \| D: 85 mm \| T: 25.4 mm \| Cr: 79 kN \| C0r: 104 kN \| Mass: 0.615 kg
	4T-359S/352	d: 46.038 mm \| D: 90.119 mm \| T: 23 mm \| Cr: 69.5 kN \| C0r: 79.5 kN \| Mass: 0.651 kg
	4T-3777/3720	d: 46.038 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 102 kN \| C0r: 134 kN \| Mass: 0.934 kg
	4T-436/432	d: 46.038 mm \| D: 95.25 mm \| T: 27.783 mm \| Cr: 108 kN \| C0r: 129 kN \| Mass: 0.927 kg
	4T-369A/362A	d: 47.625 mm \| D: 88.9 mm \| T: 20.638 mm \| Cr: 76.5 kN \| C0r: 90.5 kN \| Mass: 0.559 kg
	4T-M80404846/HM804810	d: 47.625 mm \| D: 88.9 mm \| T: 25.4 mm \| Cr: 82 kN \| C0r: 101 kN \| Mass: 0.662 kg
	4T-3778/3720	d: 47.625 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 102 kN \| C0r: 134 kN \| Mass: 0.898 kg
	4T-HM804846/HM804810	d: 47.625 mm \| D: 95.25 mm \| T: 30.162 mm \| Cr: 109 kN \| C0r: 147 kN \| Mass: 0.978 kg
	4T-386A/382A	d: 47.625 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.72 kg
	4T-528/522	d: 47.625 mm \| D: 101.6 mm \| T: 34.925 mm \| Cr: 135 kN \| C0r: 165 kN \| Mass: 1.3 kg
	4T-463/453X	d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.24 kg
	4T-385/382A	d: 55 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.616 kg
	4T-28680/28622	d: 55.562 mm \| D: 97.63 mm \| T: 24.608 mm \| Cr: 88.5 kN \| C0r: 128 kN \| Mass: 0.774 kg
	4T-72218C/72487	d: 55.562 mm \| D: 123.825 mm \| T: 36.512 mm \| Cr: 154 kN \| C0r: 188 kN \| Mass: 1.99 kg
	4T-HM813840/HM813810	d: 55.562 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 228 kN \| Mass: 2.34 kg
	4T-389/382A	d: 55.575 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.608 kg
	4T-387/382A	d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.583 kg
	4T-387A/382A	d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.581 kg
	4T-387AS/382A	d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.576 kg
	4T-387S/382A	d: 57.15 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.585 kg
	4T-28682/28622	d: 57.15 mm \| D: 97.63 mm \| T: 24.608 mm \| Cr: 88.5 kN \| C0r: 128 kN \| Mass: 0.747 kg
	4T-462/453X	d: 57.15 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.06 kg
	4T-469/453X	d: 57.15 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.06 kg
	4T-45289/45220	d: 57.15 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 130 kN \| C0r: 169 kN \| Mass: 1.1 kg
	4T-469/453A	d: 57.15 mm \| D: 107.95 mm \| T: 27.783 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.11 kg
	4T-390/394A	d: 57.15 mm \| D: 110 mm \| T: 22 mm \| Cr: 89.5 kN \| C0r: 120 kN \| Mass: 0.954 kg
	4T-469/454	d: 57.15 mm \| D: 110 mm \| T: 27.795 mm \| Cr: 115 kN \| C0r: 148 kN \| Mass: 1.24 kg
	4T-3979/3920	d: 57.15 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 119 kN \| C0r: 174 kN \| Mass: 1.4 kg
	4T-39580/39520	d: 57.15 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 138 kN \| C0r: 195 kN \| Mass: 1.41 kg
	4T-39581/39520	d: 57.15 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 138 kN \| C0r: 195 kN \| Mass: 1.4 kg
	4T-33225/33462	d: 57.15 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.58 kg
	4T-66225/66462	d: 57.15 mm \| D: 117.475 mm \| T: 33.338 mm \| Cr: 130 kN \| C0r: 153 kN \| Mass: 1.54 kg
	4T-623/612	d: 57.15 mm \| D: 120.65 mm \| T: 41.275 mm \| Cr: 172 kN \| C0r: 213 kN \| Mass: 2.12 kg
	4T-72225C/72487	d: 57.15 mm \| D: 123.825 mm \| T: 36.512 mm \| Cr: 154 kN \| C0r: 188 kN \| Mass: 1.96 kg
	4T-555S/552A	d: 57.15 mm \| D: 123.825 mm \| T: 38.1 mm \| Cr: 158 kN \| C0r: 216 kN \| Mass: 2.18 kg
	4T-78225/78551	d: 57.15 mm \| D: 140.03 mm \| T: 36.512 mm \| Cr: 171 kN \| C0r: 212 kN \| Mass: 2.69 kg
	4T-388A/382A	d: 57.531 mm \| D: 96.838 mm \| T: 21 mm \| Cr: 78 kN \| C0r: 96.5 kN \| Mass: 0.575 kg
	4T-66589/66520	d: 59.972 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 134 kN \| C0r: 163 kN \| Mass: 1.66 kg
	4T-H913840/H913810	d: 59.987 mm \| D: 146.05 mm \| T: 41.275 mm \| Cr: 199 kN \| C0r: 234 kN \| Mass: 3.22 kg
	4T-29580/29520	d: 60 mm \| D: 107.95 mm \| T: 25.4 mm \| Cr: 91.5 kN \| C0r: 140 kN \| Mass: 0.992 kg
	4T-6379/6320	d: 65.088 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 278 kN \| C0r: 380 kN \| Mass: 3.71 kg
	4T-L812148/L812111	d: 66.675 mm \| D: 103.213 mm \| T: 17.602 mm \| Cr: 60 kN \| C0r: 78 kN \| Mass: 0.48 kg
	4T-29590/29520	d: 66.675 mm \| D: 107.95 mm \| T: 25.4 mm \| Cr: 91.5 kN \| C0r: 140 kN \| Mass: 0.86 kg
	4T-395A/394A	d: 66.675 mm \| D: 110 mm \| T: 22 mm \| Cr: 89.5 kN \| C0r: 120 kN \| Mass: 0.796 kg
	4T-3984/3925	d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 119 kN \| C0r: 174 kN \| Mass: 1.19 kg
	4T-3994/3920	d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 119 kN \| C0r: 174 kN \| Mass: 1.18 kg
	4T-39590/39520	d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 138 kN \| C0r: 195 kN \| Mass: 1.19 kg
	4T-HM212049/HM212010	d: 66.675 mm \| D: 122.238 mm \| T: 38.1 mm \| Cr: 187 kN \| C0r: 244 kN \| Mass: 1.86 kg
	4T-560/552A	d: 66.675 mm \| D: 123.825 mm \| T: 38.1 mm \| Cr: 158 kN \| C0r: 216 kN \| Mass: 1.92 kg
	4T-HM813844/HM813810	d: 66.675 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 228 kN \| Mass: 2.03 kg
	4T-641/633	d: 66.675 mm \| D: 130.175 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.41 kg
	4T-6386/6320	d: 66.675 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 278 kN \| C0r: 380 kN \| Mass: 3.64 kg
	4T-641/632	d: 66.675 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.74 kg
	4T-H414242/H414210	d: 66.675 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 226 kN \| C0r: 293 kN \| Mass: 2.75 kg
	4T-399A/394A	d: 68.262 mm \| D: 110 mm \| T: 22 mm \| Cr: 89.5 kN \| C0r: 120 kN \| Mass: 0.764 kg
	4T-480/472	d: 68.262 mm \| D: 120 mm \| T: 29.794 mm \| Cr: 128 kN \| C0r: 177 kN \| Mass: 1.37 kg
	4T-560S/552A	d: 68.262 mm \| D: 123.825 mm \| T: 38.1 mm \| Cr: 158 kN \| C0r: 216 kN \| Mass: 1.87 kg
	4T-H414245/H414210	d: 68.262 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 226 kN \| C0r: 293 kN \| Mass: 2.7 kg
	4T-H715343/H715311	d: 68.262 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 224 kN \| C0r: 355 kN \| Mass: 3.24 kg
	4T-29675/29620	d: 69.85 mm \| D: 112.712 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 0.949 kg
	4T-33275/33462	d: 69.85 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.28 kg
	4T-482/472	d: 69.85 mm \| D: 120 mm \| T: 29.794 mm \| Cr: 128 kN \| C0r: 177 kN \| Mass: 1.33 kg
	4T-47487/47420	d: 69.85 mm \| D: 120 mm \| T: 32.545 mm \| Cr: 147 kN \| C0r: 214 kN \| Mass: 1.47 kg
	4T-29675/29630	d: 69.85 mm \| D: 120.65 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 1.17 kg
	4T-566/563	d: 69.85 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.92 kg
	4T-643/632	d: 69.85 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.63 kg
	4T-655/653	d: 69.85 mm \| D: 146.05 mm \| T: 41.275 mm \| Cr: 206 kN \| C0r: 295 kN \| Mass: 3.28 kg
	4T-745A/742	d: 69.85 mm \| D: 150.089 mm \| T: 44.45 mm \| Cr: 261 kN \| C0r: 360 kN \| Mass: 3.92 kg
	4T-835/832	d: 69.85 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 340 kN \| C0r: 460 kN \| Mass: 6.13 kg
	4T-34274/34478	d: 69.952 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 91 kN \| C0r: 127 kN \| Mass: 1.11 kg
	4T-484/472	d: 70 mm \| D: 120 mm \| T: 29.794 mm \| Cr: 128 kN \| C0r: 177 kN \| Mass: 1.33 kg
	4T-33281/33462	d: 71.438 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.24 kg
	4T-47490/47420	d: 71.438 mm \| D: 120 mm \| T: 32.545 mm \| Cr: 147 kN \| C0r: 214 kN \| Mass: 1.42 kg
	4T-567A/563	d: 71.438 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.87 kg
	4T-644/632	d: 71.438 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 194 kN \| C0r: 262 kN \| Mass: 2.57 kg
	4T-H414249/H414210	d: 71.438 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 226 kN \| C0r: 293 kN \| Mass: 2.58 kg
	4T-H715345/H715311	d: 71.438 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 224 kN \| C0r: 355 kN \| Mass: 3.11 kg
	4T-29685/29620	d: 73.025 mm \| D: 112.712 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 0.873 kg
	4T-33287/33462	d: 73.025 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 117 kN \| C0r: 175 kN \| Mass: 1.19 kg
	4T-567/563	d: 73.025 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.82 kg
	4T-576/572	d: 73.025 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.53 kg
	4T-6460/6420	d: 73.025 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 287 kN \| C0r: 410 kN \| Mass: 4.42 kg
	4T-744/742	d: 73.025 mm \| D: 150.089 mm \| T: 44.45 mm \| Cr: 261 kN \| C0r: 360 kN \| Mass: 3.79 kg
	4T-29688/29620	d: 73.817 mm \| D: 112.712 mm \| T: 25.4 mm \| Cr: 95.5 kN \| C0r: 151 kN \| Mass: 0.86 kg
	4T-568/563	d: 73.817 mm \| D: 127 mm \| T: 36.512 mm \| Cr: 163 kN \| C0r: 229 kN \| Mass: 1.8 kg
	4T-577/572	d: 74.612 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.48 kg
	4T-L814749/L814710	d: 76.2 mm \| D: 109.538 mm \| T: 19.05 mm \| Cr: 63 kN \| C0r: 115 kN \| Mass: 0.579 kg
	4T-34300/34478	d: 76.2 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 91 kN \| C0r: 127 kN \| Mass: 0.982 kg
	4T-34301/34478	d: 76.2 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 91 kN \| C0r: 127 kN \| Mass: 0.977 kg
	4T-42687/42620	d: 76.2 mm \| D: 127 mm \| T: 30.162 mm \| Cr: 135 kN \| C0r: 194 kN \| Mass: 1.46 kg
	4T-47678/47620	d: 76.2 mm \| D: 133.35 mm \| T: 33.338 mm \| Cr: 153 kN \| C0r: 235 kN \| Mass: 1.92 kg
	4T-HM516442/HM516410	d: 76.2 mm \| D: 133.35 mm \| T: 39.688 mm \| Cr: 177 kN \| C0r: 305 kN \| Mass: 2.43 kg
	4T-5760/5735	d: 76.2 mm \| D: 135.733 mm \| T: 44.45 mm \| Cr: 211 kN \| C0r: 330 kN \| Mass: 2.75 kg
	4T-495A/493	d: 76.2 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 129 kN \| C0r: 189 kN \| Mass: 1.83 kg
	4T-575/572	d: 76.2 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.43 kg
	4T-575S/572	d: 76.2 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 178 kN \| C0r: 265 kN \| Mass: 2.41 kg
	4T-659/653	d: 76.2 mm \| D: 146.05 mm \| T: 41.275 mm \| Cr: 206 kN \| C0r: 295 kN \| Mass: 3.04 kg
	4T-6461A/6420	d: 76.2 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 287 kN \| C0r: 410 kN \| Mass: 4.23 kg
	4T-748S/742	d: 76.2 mm \| D: 150.089 mm \| T: 44.45 mm \| Cr: 261 kN \| C0r: 360 kN \| Mass: 3.66 kg
	4T-L319249/L319210	d: 95.25 mm \| D: 130.175 mm \| T: 20.638 mm \| Cr: 81 kN \| C0r: 147 kN \| Mass: 0.789 kg
	4T-47896/47820	d: 95.25 mm \| D: 146.05 mm \| T: 33.338 mm \| Cr: 163 kN \| C0r: 266 kN \| Mass: 1.95 kg
	4T-594A/592XE	d: 95.25 mm \| D: 147.638 mm \| T: 35.717 mm \| Cr: 180 kN \| C0r: 279 kN \| Mass: 2.09 kg
	4T-42375/42584	d: 95.25 mm \| D: 148.43 mm \| T: 28.575 mm \| Cr: 138 kN \| C0r: 215 kN \| Mass: 1.75 kg
	4T-594/592A	d: 95.25 mm \| D: 152.4 mm \| T: 39.688 mm \| Cr: 180 kN \| C0r: 279 kN \| Mass: 2.51 kg
	4T-52375/52618	d: 95.25 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.76 kg
	4T-683/672	d: 95.25 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 222 kN \| C0r: 340 kN \| Mass: 3.72 kg
	4T-HH221440/HH221410	d: 95.25 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 445 kN \| C0r: 610 kN \| Mass: 7.5 kg
	4T-42381/42584	d: 96.838 mm \| D: 148.43 mm \| T: 28.575 mm \| Cr: 138 kN \| C0r: 215 kN \| Mass: 1.69 kg
	4T-90381/90744	d: 96.838 mm \| D: 188.912 mm \| T: 50.8 mm \| Cr: 281 kN \| C0r: 365 kN \| Mass: 5.67 kg
	4T-52387/52618	d: 98.425 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.62 kg
	4T-685/672	d: 98.425 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 222 kN \| C0r: 340 kN \| Mass: 3.56 kg
	4T-HH224334/HH224310	d: 99.974 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 575 kN \| C0r: 810 kN \| Mass: 11.5 kg
	4T-52393/52618	d: 100.012 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.55 kg
	4T-52400/52618	d: 101.6 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 188 kN \| C0r: 305 kN \| Mass: 2.48 kg
	4T-687/672	d: 101.6 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 222 kN \| C0r: 340 kN \| Mass: 3.4 kg
	4T-780/772	d: 101.6 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 285 kN \| C0r: 430 kN \| Mass: 5.11 kg
	4T-861/854	d: 101.6 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 380 kN \| C0r: 555 kN \| Mass: 7 kg
	4T-HH221449/HH221410	d: 101.6 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 445 kN \| C0r: 610 kN \| Mass: 7.06 kg
	4T-HH221449A/HH221410	d: 101.6 mm \| D: 190.5 mm \| T: 57.15 mm \| Cr: 445 kN \| C0r: 610 kN \| Mass: 7.06 kg
	4T-941/932	d: 101.6 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 475 kN \| C0r: 695 kN \| Mass: 11.2 kg
	4T-HH224335/HH224310	d: 101.6 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 575 kN \| C0r: 810 kN \| Mass: 11.3 kg
	4T-782/772	d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 285 kN \| C0r: 430 kN \| Mass: 4.92 kg
	4T-37425/37625	d: 107.95 mm \| D: 158.75 mm \| T: 23.02 mm \| Cr: 102 kN \| C0r: 166 kN \| Mass: 1.37 kg
	4T-LM522546/LM522510	d: 107.95 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 167 kN \| C0r: 320 kN \| Mass: 2.37 kg
	4T-56425/56650	d: 107.95 mm \| D: 165.1 mm \| T: 36.512 mm \| Cr: 191 kN \| C0r: 315 kN \| Mass: 2.69 kg
	4T-936/932	d: 107.95 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 475 kN \| C0r: 695 kN \| Mass: 10.7 kg
	4T-37431/37625	d: 109.538 mm \| D: 158.75 mm \| T: 23.02 mm \| Cr: 102 kN \| C0r: 166 kN \| Mass: 1.33 kg
	4T-LM522548/LM522510	d: 109.987 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 167 kN \| C0r: 320 kN \| Mass: 2.24 kg
	4T-64433/64700	d: 109.992 mm \| D: 177.8 mm \| T: 41.275 mm \| Cr: 232 kN \| C0r: 375 kN \| Mass: 3.77 kg
	4T-H924045/H924010	d: 111.125 mm \| D: 214.312 mm \| T: 55.562 mm \| Cr: 405 kN \| C0r: 560 kN \| Mass: 8.18 kg
	4T-64450/64700	d: 114.3 mm \| D: 177.8 mm \| T: 41.275 mm \| Cr: 232 kN \| C0r: 375 kN \| Mass: 3.52 kg
	4T-68450/68712	d: 114.3 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 169 kN \| C0r: 245 kN \| Mass: 2.93 kg
	4T-938/932	d: 114.3 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 475 kN \| C0r: 695 kN \| Mass: 10.1 kg
	4T-HH224346/HH224310	d: 114.3 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 575 kN \| C0r: 810 kN \| Mass: 10.2 kg
	4T-HM926740/HM926710	d: 114.3 mm \| D: 228.6 mm \| T: 53.975 mm \| Cr: 430 kN \| C0r: 620 kN \| Mass: 9.76 kg
	4T-71453/71750	d: 115.087 mm \| D: 190.5 mm \| T: 47.625 mm \| Cr: 300 kN \| C0r: 475 kN \| Mass: 5.11 kg
	4T-68462/68712	d: 117.475 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 169 kN \| C0r: 245 kN \| Mass: 2.78 kg
	4T-95475/95925	d: 120.65 mm \| D: 234.95 mm \| T: 63.5 mm \| Cr: 525 kN \| C0r: 825 kN \| Mass: 12.6 kg
	4T-48286/48220	d: 123.825 mm \| D: 182.562 mm \| T: 39.688 mm \| Cr: 224 kN \| C0r: 435 kN \| Mass: 3.52 kg
	4T-48290/48220	d: 127 mm \| D: 182.562 mm \| T: 39.688 mm \| Cr: 224 kN \| C0r: 435 kN \| Mass: 3.33 kg
	4T-67388/67322	d: 127 mm \| D: 196.85 mm \| T: 46.038 mm \| Cr: 310 kN \| C0r: 550 kN \| Mass: 5.1 kg
	4T-74500/74850	d: 127 mm \| D: 215.9 mm \| T: 47.625 mm \| Cr: 320 kN \| C0r: 540 kN \| Mass: 7.05 kg
	4T-97500/97900	d: 127 mm \| D: 228.6 mm \| T: 53.975 mm \| Cr: 320 kN \| C0r: 445 kN \| Mass: 8.43 kg
	4T-HM926747/HM926710	d: 127 mm \| D: 228.6 mm \| T: 53.975 mm \| Cr: 430 kN \| C0r: 620 kN \| Mass: 8.83 kg
	4T-95500/95905	d: 127 mm \| D: 230 mm \| T: 63.5 mm \| Cr: 525 kN \| C0r: 825 kN \| Mass: 12.9 kg
	4T-HH228349/HH228310	d: 127 mm \| D: 254 mm \| T: 77.788 mm \| Cr: 740 kN \| C0r: 1070 kN \| Mass: 19.5 kg
	4T-799/792	d: 128.588 mm \| D: 206.375 mm \| T: 47.625 mm \| Cr: 315 kN \| C0r: 520 kN \| Mass: 5.77 kg
	4T-67389/67322	d: 130.175 mm \| D: 196.85 mm \| T: 46.038 mm \| Cr: 310 kN \| C0r: 550 kN \| Mass: 4.87 kg
	4T-799A/792	d: 130.175 mm \| D: 206.375 mm \| T: 47.625 mm \| Cr: 315 kN \| C0r: 520 kN \| Mass: 5.65 kg
	4T-L327249/L327210	d: 133.35 mm \| D: 177.008 mm \| T: 25.4 mm \| Cr: 126 kN \| C0r: 259 kN \| Mass: 1.7 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

NTN Inch Series Tapered Roller Bearings (4T Cone/Cup Sets)
