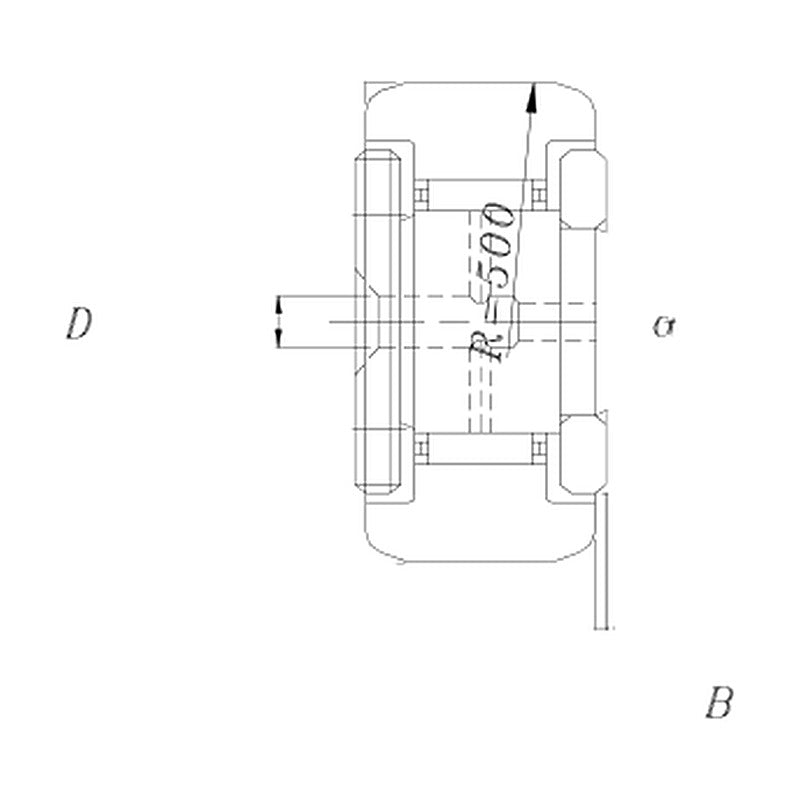

NTN KR / KRV Cam Followers (Stud Type Track Rollers)

NTN KR / KRV Cam Followers (Stud Type Track Rollers)

NTN KR (caged) and KRV (full complement) cam followers with integral threaded stud, in open and sealed (LL) types, with hexagon socket (H) versions.

Key features

  • Integral threaded stud for simple mounting
  • KR: caged needle rollers; KRV: full complement
  • LL suffix: sealed; H suffix: hexagon socket in stud head
  • Used on cams, conveyors and linear guides

Specifications

Product type Stud type track roller (cam follower)
Load rating unit kN
Brand NTN
Product category Track Rollers
Dimension unit mm
Source NTN NTN Ball and Roller Bearings catalogue, p. 211-212
KR10T2H/3A D: 10 mm | C: 7 mm | d1: 4 mm | B1: 17 mm | Cr: 1.51 kN | C0r: 1.14 kN
KR10T2LLH D: 10 mm | C: 7 mm | d1: 4 mm | B1: 17 mm | Cr: 1.51 kN | C0r: 1.14 kN
KRV10H D: 10 mm | C: 7 mm | d1: 4 mm | B1: 17 mm | Cr: 2.33 kN | C0r: 2.4 kN
KRV10LLH D: 10 mm | C: 7 mm | d1: 4 mm | B1: 17 mm | Cr: 2.33 kN | C0r: 2.4 kN
KR12T2H/3A D: 12 mm | C: 8 mm | d1: 4.8 mm | B1: 20 mm | Cr: 2.03 kN | C0r: 1.55 kN
KR12T2LLH D: 12 mm | C: 8 mm | d1: 4.8 mm | B1: 20 mm | Cr: 2.03 kN | C0r: 1.55 kN
KRV12H D: 12 mm | C: 8 mm | d1: 4.8 mm | B1: 20 mm | Cr: 3.35 kN | C0r: 3.55 kN
KRV12LLH D: 12 mm | C: 8 mm | d1: 4.8 mm | B1: 20 mm | Cr: 3.35 kN | C0r: 3.55 kN
KR13T2H/3A D: 13 mm | C: 9 mm | d1: 5.75 mm | B1: 23 mm | Cr: 2.48 kN | C0r: 2.07 kN
KR13T2LLH D: 13 mm | C: 9 mm | d1: 5.75 mm | B1: 23 mm | Cr: 2.48 kN | C0r: 2.07 kN
KRV13H D: 13 mm | C: 9 mm | d1: 5.75 mm | B1: 23 mm | Cr: 4.3 kN | C0r: 5.05 kN
KRV13LLH D: 13 mm | C: 9 mm | d1: 5.75 mm | B1: 23 mm | Cr: 4.3 kN | C0r: 5.05 kN
KR16 D: 16 mm | C: 11 mm | d1: 8 mm | B1: 28 mm | Cr: 4.1 kN | C0r: 4.25 kN
KR16LL D: 16 mm | C: 11 mm | d1: 8 mm | B1: 28 mm | Cr: 4.1 kN | C0r: 4.25 kN
KRV16 D: 16 mm | C: 11 mm | d1: 8 mm | B1: 28 mm | Cr: 6.25 kN | C0r: 8.9 kN
KRV16LL D: 16 mm | C: 11 mm | d1: 8 mm | B1: 28 mm | Cr: 6.25 kN | C0r: 8.9 kN
KR19 D: 19 mm | C: 11 mm | d1: 10 mm | B1: 32 mm | Cr: 4.5 kN | C0r: 5.1 kN
KR19LL D: 19 mm | C: 11 mm | d1: 10 mm | B1: 32 mm | Cr: 4.5 kN | C0r: 5.1 kN
KRV19 D: 19 mm | C: 11 mm | d1: 10 mm | B1: 32 mm | Cr: 7.2 kN | C0r: 11.2 kN
KRV19LL D: 19 mm | C: 11 mm | d1: 10 mm | B1: 32 mm | Cr: 7.2 kN | C0r: 11.2 kN
KR22 D: 22 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 5.05 kN | C0r: 6.25 kN
KR22LL D: 22 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 5.05 kN | C0r: 6.25 kN
KRV22 D: 22 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 7.9 kN | C0r: 13.3 kN
KRV22LL D: 22 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 7.9 kN | C0r: 13.3 kN
KR26 D: 26 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 5.05 kN | C0r: 6.25 kN
KR26LL D: 26 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 5.05 kN | C0r: 6.25 kN
KRV26 D: 26 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 7.9 kN | C0r: 13.3 kN
KRV26LL D: 26 mm | C: 12 mm | d1: 12 mm | B1: 36 mm | Cr: 7.9 kN | C0r: 13.3 kN
KR30 D: 30 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 7.5 kN | C0r: 9.1 kN
KR30LL D: 30 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 7.5 kN | C0r: 9.1 kN
KRV30 D: 30 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 11.7 kN | C0r: 19.5 kN
KRV30LL D: 30 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 11.7 kN | C0r: 19.5 kN
KR32 D: 32 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 7.5 kN | C0r: 9.1 kN
KR32LL D: 32 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 7.5 kN | C0r: 9.1 kN
KRV32 D: 32 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 11.7 kN | C0r: 19.5 kN
KRV32LL D: 32 mm | C: 14 mm | d1: 15 mm | B1: 40 mm | Cr: 11.7 kN | C0r: 19.5 kN
KR35 D: 35 mm | C: 18 mm | d1: 18 mm | B1: 52 mm | Cr: 11.8 kN | C0r: 17.3 kN
KR35LL D: 35 mm | C: 18 mm | d1: 18 mm | B1: 52 mm | Cr: 11.8 kN | C0r: 17.3 kN
KRV35 D: 35 mm | C: 18 mm | d1: 19 mm | B1: 52 mm | Cr: 17.2 kN | C0r: 33 kN
KRV35LL D: 35 mm | C: 18 mm | d1: 19 mm | B1: 52 mm | Cr: 17.2 kN | C0r: 33 kN
KR40 D: 40 mm | C: 20 mm | d1: 22 mm | B1: 58 mm | Cr: 13.6 kN | C0r: 22.1 kN
KR40LL D: 40 mm | C: 20 mm | d1: 22 mm | B1: 58 mm | Cr: 13.6 kN | C0r: 22.1 kN
KRV40 D: 40 mm | C: 20 mm | d1: 22 mm | B1: 58 mm | Cr: 18.9 kN | C0r: 40.5 kN
KRV40LL D: 40 mm | C: 20 mm | d1: 22 mm | B1: 58 mm | Cr: 18.9 kN | C0r: 40.5 kN
KR47 D: 47 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 20.3 kN | C0r: 33 kN
KR47LL D: 47 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 20.3 kN | C0r: 33 kN
KRV47 D: 47 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 28.3 kN | C0r: 60 kN
KRV47LL D: 47 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 28.3 kN | C0r: 60 kN
KR52 D: 52 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 20.3 kN | C0r: 33 kN
KR52LL D: 52 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 20.3 kN | C0r: 33 kN
KRV52 D: 52 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 28.3 kN | C0r: 60 kN
KRV52LL D: 52 mm | C: 24 mm | d1: 25 mm | B1: 66 mm | Cr: 28.3 kN | C0r: 60 kN
KR22xLL D: 52 mm | C: 0 mm | d1: - | B1: - | Cr: - | C0r: -
KR62 D: 62 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 29.1 kN | C0r: 55 kN
KR62LL D: 62 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 29.1 kN | C0r: 55 kN
KRV62 D: 62 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 39 kN | C0r: 96.5 kN
KRV62LL D: 62 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 39 kN | C0r: 96.5 kN
KR72 D: 72 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 29.1 kN | C0r: 55 kN
KR72LL D: 72 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 29.1 kN | C0r: 55 kN
KRV72 D: 72 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 39 kN | C0r: 96.5 kN
KRV72LL D: 72 mm | C: 29 mm | d1: 30 mm | B1: 80 mm | Cr: 39 kN | C0r: 96.5 kN
KR80 D: 80 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 44 kN | C0r: 86.5 kN
KR80LL D: 80 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 44 kN | C0r: 86.5 kN
KRV80 D: 80 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 57 kN | C0r: 144 kN
KRV80LL D: 80 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 57 kN | C0r: 144 kN
KR85 D: 85 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 44 kN | C0r: 86.5 kN
KR85LL D: 85 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 44 kN | C0r: 86.5 kN
KR90 D: 90 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 44 kN | C0r: 86.5 kN
KR90LL D: 90 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 44 kN | C0r: 86.5 kN
KRV90 D: 90 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 57 kN | C0r: 144 kN
KRV90LL D: 90 mm | C: 35 mm | d1: 38 mm | B1: 100 mm | Cr: 57 kN | C0r: 144 kN
Track RollersNTN
71 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN KR / KRV Cam Followers (Stud Type Track Rollers)

Brand NTN·Track Rollers

Available part numbers (71)

KR10T2H/3A, KR10T2LLH, KRV10H, KRV10LLH, KR12T2H/3A, KR12T2LLH, KRV12H, KRV12LLH, KR13T2H/3A, KR13T2LLH + 61 more — see full table ↓
