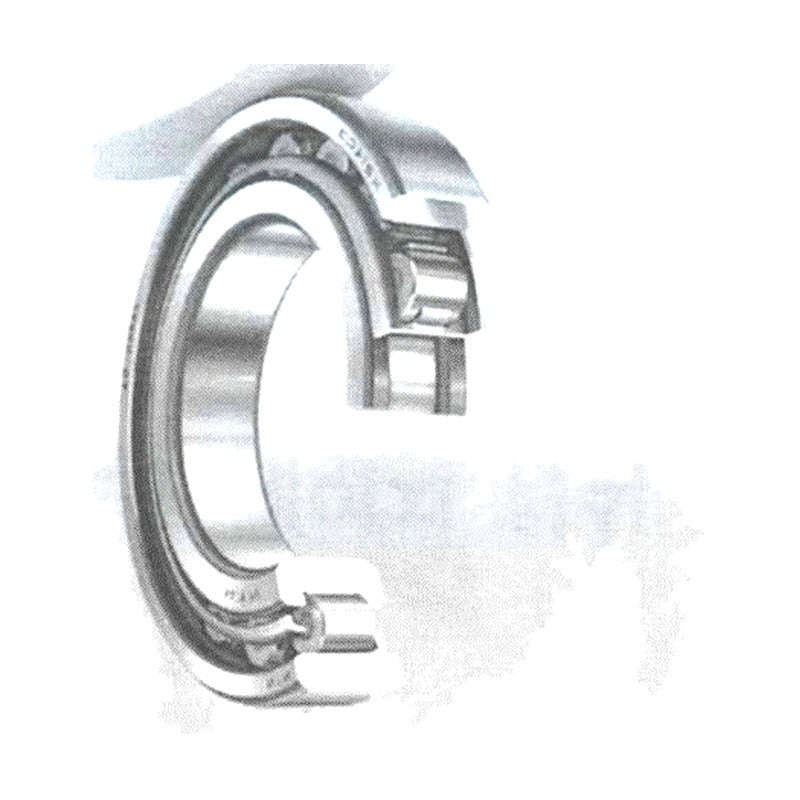

NTN NU22 Series Cylindrical Roller Bearings (NU, NJ, NUP, N)

NTN NU22 Series Cylindrical Roller Bearings (NU, NJ, NUP, N)

NTN single-row cylindrical roller bearings of dimension series 22, bore 20-320 mm, in NU, NJ, NUP, N and NF configurations as listed.

Key features

  • High radial load capacity with line-contact rollers
  • NU/N: separable, free axial movement; NJ: one-direction axial location; NUP/NF: locating designs
  • E suffix: high-capacity internal design where listed
  • Mass shown for NU type

Specifications

Dimension series 22
Bearing type Single-row cylindrical roller bearing
Bore range 20-320 mm
Configurations NU, NJ, NUP, N
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 56-63
NU2204E d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Mass: 0.158 kg
NJ2204E d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Mass: 0.158 kg
NUP2204E d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Mass: 0.158 kg
NU2205E d: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Mass: 0.186 kg
NJ2205E d: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Mass: 0.186 kg
NUP2205E d: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Mass: 0.186 kg
NU2206E d: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Mass: 0.297 kg
NJ2206E d: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Mass: 0.297 kg
NUP2206E d: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Mass: 0.297 kg
NU2207E d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65.5 kN | Mass: 0.455 kg
NJ2207E d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65.5 kN | Mass: 0.455 kg
NUP2207E d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65.5 kN | Mass: 0.455 kg
NU2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
NJ2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
NUP2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
N2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
NU2208E d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Mass: 0.552 kg
NJ2208E d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Mass: 0.552 kg
NUP2208E d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Mass: 0.552 kg
NU2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
NJ2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
NUP2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
N2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
NU2209E d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Mass: 0.6 kg
NJ2209E d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Mass: 0.6 kg
NUP2209E d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Mass: 0.6 kg
NU2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
NJ2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
NUP2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
N2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
NU2210E d: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.5 kN | C0r: 91.5 kN | Mass: 0.652 kg
NJ2210E d: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.5 kN | C0r: 91.5 kN | Mass: 0.652 kg
NUP2210E d: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.5 kN | C0r: 91.5 kN | Mass: 0.652 kg
NU2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
NJ2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
NUP2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
N2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
NU2211E d: 55 mm | D: 100 mm | B: 25 mm | Cr: 97 kN | C0r: 114 kN | Mass: 0.968 kg
NJ2211E d: 55 mm | D: 100 mm | B: 25 mm | Cr: 97 kN | C0r: 114 kN | Mass: 0.968 kg
NUP2211E d: 55 mm | D: 100 mm | B: 25 mm | Cr: 97 kN | C0r: 114 kN | Mass: 0.968 kg
NU2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
NJ2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
NUP2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
N2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
NU2212E d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.21 kg
NJ2212E d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.21 kg
NUP2212E d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.21 kg
NU2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
NJ2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
NUP2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
N2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
NU2213E d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.6 kg
NJ2213E d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.6 kg
NUP2213E d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.6 kg
NU2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
NJ2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
NUP2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
N2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
NU2214E d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.7 kg
NJ2214E d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.7 kg
NUP2214E d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.7 kg
NU2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
NJ2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
NUP2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
N2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
NU2215E d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.79 kg
NJ2215E d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.79 kg
NUP2215E d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.79 kg
NU2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
NJ2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
NUP2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
N2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
NU2216E d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.12 kg
NJ2216E d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.12 kg
NUP2216E d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.12 kg
NU2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
NJ2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
NUP2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
N2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
NU2217E d: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Mass: 2.68 kg
NJ2217E d: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Mass: 2.68 kg
NUP2217E d: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Mass: 2.68 kg
NU2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
NJ2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
NUP2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
N2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
NU2218E d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Mass: 3.33 kg
NJ2218E d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Mass: 3.33 kg
NUP2218E d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Mass: 3.33 kg
NU2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
NJ2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
NUP2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
N2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
NU2219E d: 95 mm | D: 170 mm | B: 43 mm | Cr: 286 kN | C0r: 370 kN | Mass: 4.14 kg
NJ2219E d: 95 mm | D: 170 mm | B: 43 mm | Cr: 286 kN | C0r: 370 kN | Mass: 4.14 kg
NUP2219E d: 95 mm | D: 170 mm | B: 43 mm | Cr: 286 kN | C0r: 370 kN | Mass: 4.14 kg
NU2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
NJ2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
NUP2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
N2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
NU2220E d: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Mass: 5.01 kg
NJ2220E d: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Mass: 5.01 kg
NUP2220E d: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Mass: 5.01 kg
NU2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
NJ2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
NUP2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
N2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
NU2222E d: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Mass: 7.4 kg
NJ2222E d: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Mass: 7.4 kg
NUP2222E d: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Mass: 7.4 kg
NU2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
NJ2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
NUP2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
N2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
NU2224E d: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Mass: 9.18 kg
NJ2224E d: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Mass: 9.18 kg
NUP2224E d: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Mass: 9.18 kg
NU2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
NJ2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
NUP2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
N2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
NU2226E d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Mass: 11.8 kg
NJ2226E d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Mass: 11.8 kg
NUP2226E d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Mass: 11.8 kg
NU2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
NJ2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
NUP2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
N2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
NU2228E d: 140 mm | D: 250 mm | B: 68 mm | Cr: 575 kN | C0r: 835 kN | Mass: 15.8 kg
NJ2228E d: 140 mm | D: 250 mm | B: 68 mm | Cr: 575 kN | C0r: 835 kN | Mass: 15.8 kg
NUP2228E d: 140 mm | D: 250 mm | B: 68 mm | Cr: 575 kN | C0r: 835 kN | Mass: 15.8 kg
NU2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
NJ2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
NUP2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
N2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
NU2230E d: 150 mm | D: 270 mm | B: 73 mm | Cr: 660 kN | C0r: 980 kN | Mass: 19.7 kg
NJ2230E d: 150 mm | D: 270 mm | B: 73 mm | Cr: 660 kN | C0r: 980 kN | Mass: 19.7 kg
NUP2230E d: 150 mm | D: 270 mm | B: 73 mm | Cr: 660 kN | C0r: 980 kN | Mass: 19.7 kg
NU2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
NJ2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
NUP2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
N2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
NU2232E d: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Mass: 25.1 kg
NJ2232E d: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Mass: 25.1 kg
NUP2232E d: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Mass: 25.1 kg
NU2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
NJ2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
NUP2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
N2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
NU2234E d: 170 mm | D: 310 mm | B: 86 mm | Cr: 965 kN | C0r: 1410 kN | Mass: 31 kg
NJ2234E d: 170 mm | D: 310 mm | B: 86 mm | Cr: 965 kN | C0r: 1410 kN | Mass: 31 kg
NUP2234E d: 170 mm | D: 310 mm | B: 86 mm | Cr: 965 kN | C0r: 1410 kN | Mass: 31 kg
NU2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
NJ2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
NUP2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
N2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
NU2236E d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Mass: 31.9 kg
NJ2236E d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Mass: 31.9 kg
NUP2236E d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Mass: 31.9 kg
NU2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
NJ2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
NUP2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
N2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
NU2238E d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Mass: 39.5 kg
NJ2238E d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Mass: 39.5 kg
NUP2238E d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Mass: 39.5 kg
NU2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
NJ2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
NUP2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
N2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
NU2240E d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Mass: 47.8 kg
NJ2240E d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Mass: 47.8 kg
NUP2240E d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Mass: 47.8 kg
NU2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
NJ2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
NUP2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
N2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
NU2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
NJ2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
NUP2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
N2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
NU2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
NJ2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
NUP2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
N2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
NU2256 d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
NJ2256 d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
NUP2256 d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
N2256 d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
NU2264 d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg
NJ2264 d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg
NUP2264 d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg
N2264 d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg
Cylindrical Roller BearingsNTN
193 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN NU22 Series Cylindrical Roller Bearings (NU, NJ, NUP, N)

Brand NTN·Cylindrical Roller Bearings

Available part numbers (193)

NU2204E, NJ2204E, NUP2204E, NU2205E, NJ2205E, NUP2205E, NU2206E, NJ2206E, NUP2206E, NU2207E + 183 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU2204Ed: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Mass: 0.158 kg
NJ2204Ed: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Mass: 0.158 kg
NUP2204Ed: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.5 kN | C0r: 28.3 kN | Mass: 0.158 kg
NU2205Ed: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Mass: 0.186 kg
NJ2205Ed: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Mass: 0.186 kg
NUP2205Ed: 25 mm | D: 52 mm | B: 18 mm | Cr: 35 kN | C0r: 34.5 kN | Mass: 0.186 kg
NU2206Ed: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Mass: 0.297 kg
NJ2206Ed: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Mass: 0.297 kg
NUP2206Ed: 30 mm | D: 62 mm | B: 20 mm | Cr: 49 kN | C0r: 50 kN | Mass: 0.297 kg
NU2207Ed: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65.5 kN | Mass: 0.455 kg
NJ2207Ed: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65.5 kN | Mass: 0.455 kg
NUP2207Ed: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.5 kN | C0r: 65.5 kN | Mass: 0.455 kg
NU2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
NJ2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
NUP2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
N2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58 kN | C0r: 62 kN | Mass: 0.49 kg
NU2208Ed: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Mass: 0.552 kg
NJ2208Ed: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Mass: 0.552 kg
NUP2208Ed: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.5 kN | C0r: 77.5 kN | Mass: 0.552 kg
NU2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
NJ2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
NUP2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
N2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.5 kN | C0r: 68 kN | Mass: 0.53 kg
NU2209Ed: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Mass: 0.6 kg
NJ2209Ed: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Mass: 0.6 kg
NUP2209Ed: 45 mm | D: 85 mm | B: 23 mm | Cr: 76 kN | C0r: 84.5 kN | Mass: 0.6 kg
NU2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
NJ2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
NUP2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
N2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64 kN | C0r: 73.5 kN | Mass: 0.571 kg
NU2210Ed: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.5 kN | C0r: 91.5 kN | Mass: 0.652 kg
NJ2210Ed: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.5 kN | C0r: 91.5 kN | Mass: 0.652 kg
NUP2210Ed: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.5 kN | C0r: 91.5 kN | Mass: 0.652 kg
NU2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
NJ2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
NUP2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
N2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.5 kN | C0r: 87 kN | Mass: 0.773 kg
NU2211Ed: 55 mm | D: 100 mm | B: 25 mm | Cr: 97 kN | C0r: 114 kN | Mass: 0.968 kg
NJ2211Ed: 55 mm | D: 100 mm | B: 25 mm | Cr: 97 kN | C0r: 114 kN | Mass: 0.968 kg
NUP2211Ed: 55 mm | D: 100 mm | B: 25 mm | Cr: 97 kN | C0r: 114 kN | Mass: 0.968 kg
NU2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
NJ2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
NUP2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
N2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 96 kN | C0r: 116 kN | Mass: 1.06 kg
NU2212Ed: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.21 kg
NJ2212Ed: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.21 kg
NUP2212Ed: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.21 kg
NU2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
NJ2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
NUP2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
N2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.4 kg
NU2213Ed: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.6 kg
NJ2213Ed: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.6 kg
NUP2213Ed: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.6 kg
NU2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
NJ2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
NUP2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
N2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.47 kg
NU2214Ed: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.7 kg
NJ2214Ed: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.7 kg
NUP2214Ed: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.7 kg
NU2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
NJ2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
NUP2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
N2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 130 kN | C0r: 162 kN | Mass: 1.55 kg
NU2215Ed: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.79 kg
NJ2215Ed: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.79 kg
NUP2215Ed: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.79 kg
NU2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
NJ2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
NUP2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
N2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 147 kN | C0r: 186 kN | Mass: 1.93 kg
NU2216Ed: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.12 kg
NJ2216Ed: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.12 kg
NUP2216Ed: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.12 kg
NU2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
NJ2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
NUP2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
N2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 170 kN | C0r: 218 kN | Mass: 2.44 kg
NU2217Ed: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Mass: 2.68 kg
NJ2217Ed: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Mass: 2.68 kg
NUP2217Ed: 85 mm | D: 150 mm | B: 36 mm | Cr: 217 kN | C0r: 279 kN | Mass: 2.68 kg
NU2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
NJ2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
NUP2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
N2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 197 kN | C0r: 248 kN | Mass: 3.1 kg
NU2218Ed: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Mass: 3.33 kg
NJ2218Ed: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Mass: 3.33 kg
NUP2218Ed: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 315 kN | Mass: 3.33 kg
NU2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
NJ2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
NUP2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
N2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.79 kg
NU2219Ed: 95 mm | D: 170 mm | B: 43 mm | Cr: 286 kN | C0r: 370 kN | Mass: 4.14 kg
NJ2219Ed: 95 mm | D: 170 mm | B: 43 mm | Cr: 286 kN | C0r: 370 kN | Mass: 4.14 kg
NUP2219Ed: 95 mm | D: 170 mm | B: 43 mm | Cr: 286 kN | C0r: 370 kN | Mass: 4.14 kg
NU2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
NJ2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
NUP2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
N2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 258 kN | C0r: 340 kN | Mass: 4.57 kg
NU2220Ed: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Mass: 5.01 kg
NJ2220Ed: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Mass: 5.01 kg
NUP2220Ed: 100 mm | D: 180 mm | B: 46 mm | Cr: 335 kN | C0r: 445 kN | Mass: 5.01 kg
NU2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
NJ2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
NUP2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
N2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 320 kN | C0r: 415 kN | Mass: 6.56 kg
NU2222Ed: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Mass: 7.4 kg
NJ2222Ed: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Mass: 7.4 kg
NUP2222Ed: 110 mm | D: 200 mm | B: 53 mm | Cr: 385 kN | C0r: 515 kN | Mass: 7.4 kg
NU2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
NJ2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
NUP2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
N2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 350 kN | C0r: 460 kN | Mass: 8.19 kg
NU2224Ed: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Mass: 9.18 kg
NJ2224Ed: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Mass: 9.18 kg
NUP2224Ed: 120 mm | D: 215 mm | B: 58 mm | Cr: 450 kN | C0r: 620 kN | Mass: 9.18 kg
NU2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
NJ2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
NUP2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
N2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 380 kN | C0r: 530 kN | Mass: 10.2 kg
NU2226Ed: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Mass: 11.8 kg
NJ2226Ed: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Mass: 11.8 kg
NUP2226Ed: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 735 kN | Mass: 11.8 kg
NU2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
NJ2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
NUP2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
N2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 445 kN | C0r: 635 kN | Mass: 12.9 kg
NU2228Ed: 140 mm | D: 250 mm | B: 68 mm | Cr: 575 kN | C0r: 835 kN | Mass: 15.8 kg
NJ2228Ed: 140 mm | D: 250 mm | B: 68 mm | Cr: 575 kN | C0r: 835 kN | Mass: 15.8 kg
NUP2228Ed: 140 mm | D: 250 mm | B: 68 mm | Cr: 575 kN | C0r: 835 kN | Mass: 15.8 kg
NU2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
NJ2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
NUP2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
N2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 500 kN | C0r: 710 kN | Mass: 16.3 kg
NU2230Ed: 150 mm | D: 270 mm | B: 73 mm | Cr: 660 kN | C0r: 980 kN | Mass: 19.7 kg
NJ2230Ed: 150 mm | D: 270 mm | B: 73 mm | Cr: 660 kN | C0r: 980 kN | Mass: 19.7 kg
NUP2230Ed: 150 mm | D: 270 mm | B: 73 mm | Cr: 660 kN | C0r: 980 kN | Mass: 19.7 kg
NU2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
NJ2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
NUP2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
N2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 630 kN | C0r: 940 kN | Mass: 22 kg
NU2232Ed: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Mass: 25.1 kg
NJ2232Ed: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Mass: 25.1 kg
NUP2232Ed: 160 mm | D: 290 mm | B: 80 mm | Cr: 810 kN | C0r: 1190 kN | Mass: 25.1 kg
NU2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
NJ2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
NUP2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
N2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1080 kN | Mass: 27.2 kg
NU2234Ed: 170 mm | D: 310 mm | B: 86 mm | Cr: 965 kN | C0r: 1410 kN | Mass: 31 kg
NJ2234Ed: 170 mm | D: 310 mm | B: 86 mm | Cr: 965 kN | C0r: 1410 kN | Mass: 31 kg
NUP2234Ed: 170 mm | D: 310 mm | B: 86 mm | Cr: 965 kN | C0r: 1410 kN | Mass: 31 kg
NU2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
NJ2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
NUP2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
N2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 745 kN | C0r: 1140 kN | Mass: 28.4 kg
NU2236Ed: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Mass: 31.9 kg
NJ2236Ed: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Mass: 31.9 kg
NUP2236Ed: 180 mm | D: 320 mm | B: 86 mm | Cr: 1010 kN | C0r: 1510 kN | Mass: 31.9 kg
NU2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
NJ2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
NUP2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
N2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 830 kN | C0r: 1290 kN | Mass: 34.4 kg
NU2238Ed: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Mass: 39.5 kg
NJ2238Ed: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Mass: 39.5 kg
NUP2238Ed: 190 mm | D: 340 mm | B: 92 mm | Cr: 1100 kN | C0r: 1670 kN | Mass: 39.5 kg
NU2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
NJ2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
NUP2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
N2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 925 kN | C0r: 1440 kN | Mass: 41.3 kg
NU2240Ed: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Mass: 47.8 kg
NJ2240Ed: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Mass: 47.8 kg
NUP2240Ed: 200 mm | D: 360 mm | B: 98 mm | Cr: 1220 kN | C0r: 1870 kN | Mass: 47.8 kg
NU2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
NJ2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
NUP2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
N2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1140 kN | C0r: 1810 kN | Mass: 59 kg
NU2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
NJ2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
NUP2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
N2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1440 kN | C0r: 2320 kN | Mass: 80 kg
NU2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
NJ2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
NUP2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
N2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1780 kN | C0r: 2930 kN | Mass: 104 kg
NU2256d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
NJ2256d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
NUP2256d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
N2256d: 280 mm | D: 500 mm | B: 130 mm | Cr: 1840 kN | C0r: 3100 kN | Mass: 109 kg
NU2264d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg
NJ2264d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg
NUP2264d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg
N2264d: 320 mm | D: 580 mm | B: 150 mm | Cr: 2550 kN | C0r: 4350 kN | Mass: 172 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
