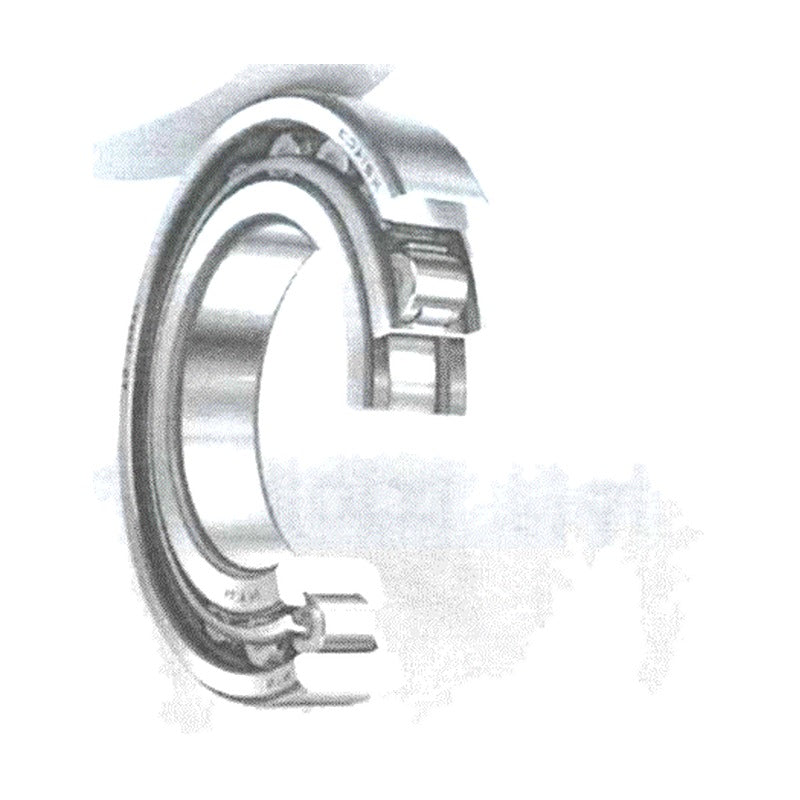

NTN NU23 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NTN NU23 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

NTN single-row cylindrical roller bearings of dimension series 23, bore 20-280 mm, in NU, NJ, NUP, N and NF configurations as listed.

Key features

  • High radial load capacity with line-contact rollers
  • NU/N: separable, free axial movement; NJ: one-direction axial location; NUP/NF: locating designs
  • E suffix: high-capacity internal design where listed
  • Mass shown for NU type

Specifications

Dimension series 23
Bearing type Single-row cylindrical roller bearing
Bore range 20-280 mm
Configurations NU, NJ, NUP, N, NF
Load rating unit kN
Source NTN NTN Ball and Roller Bearings catalogue, p. 56-63
NU2304E d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Mass: 0.242 kg
NJ2304E d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Mass: 0.242 kg
NUP2304E d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Mass: 0.242 kg
NU2305E d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Mass: 0.386 kg
NJ2305E d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Mass: 0.386 kg
NUP2305E d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Mass: 0.386 kg
NU2306E d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Mass: 0.58 kg
NJ2306E d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Mass: 0.58 kg
NUP2306E d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Mass: 0.58 kg
NU2307E d: 35 mm | D: 80 mm | B: 31 mm | Cr: 99 kN | C0r: 109 kN | Mass: 0.78 kg
NJ2307E d: 35 mm | D: 80 mm | B: 31 mm | Cr: 99 kN | C0r: 109 kN | Mass: 0.78 kg
NUP2307E d: 35 mm | D: 80 mm | B: 31 mm | Cr: 99 kN | C0r: 109 kN | Mass: 0.78 kg
NU2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
NJ2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
NUP2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
N2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
NU2308E d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 1.06 kg
NJ2308E d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 1.06 kg
NUP2308E d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 1.06 kg
NU2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
NJ2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
NUP2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
N2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
NU2309E d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.41 kg
NJ2309E d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.41 kg
NUP2309E d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.41 kg
NU2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NJ2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NUP2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
N2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NF2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NU2310E d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.9 kg
NJ2310E d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.9 kg
NUP2310E d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.9 kg
NU2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NJ2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NUP2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
N2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NF2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NU2311E d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.37 kg
NJ2311E d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.37 kg
NUP2311E d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.37 kg
NU2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
NJ2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
NUP2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
N2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
NU2312E d: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Mass: 2.96 kg
NJ2312E d: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Mass: 2.96 kg
NUP2312E d: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Mass: 2.96 kg
NU2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
NJ2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
NUP2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
N2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
NU2313E d: 65 mm | D: 140 mm | B: 48 mm | Cr: 248 kN | C0r: 287 kN | Mass: 3.48 kg
NJ2313E d: 65 mm | D: 140 mm | B: 48 mm | Cr: 248 kN | C0r: 287 kN | Mass: 3.48 kg
NUP2313E d: 65 mm | D: 140 mm | B: 48 mm | Cr: 248 kN | C0r: 287 kN | Mass: 3.48 kg
NU2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
NJ2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
NUP2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
N2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
NU2314E d: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Mass: 4.25 kg
NJ2314E d: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Mass: 4.25 kg
NUP2314E d: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Mass: 4.25 kg
NU2315 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
NJ2315 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
NUP2315 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
N2315 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
NU2315E d: 75 mm | D: 160 mm | B: 55 mm | Cr: 330 kN | C0r: 395 kN | Mass: 5.25 kg
NJ2315E d: 75 mm | D: 160 mm | B: 55 mm | Cr: 330 kN | C0r: 395 kN | Mass: 5.25 kg
NUP2315E d: 75 mm | D: 160 mm | B: 55 mm | Cr: 330 kN | C0r: 395 kN | Mass: 5.25 kg
NU2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
NJ2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
NUP2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
N2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
NU2316E d: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Mass: 6.25 kg
NJ2316E d: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Mass: 6.25 kg
NUP2316E d: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Mass: 6.25 kg
NU2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
NJ2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
NUP2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
N2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
NU2317E d: 85 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 485 kN | Mass: 7.16 kg
NJ2317E d: 85 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 485 kN | Mass: 7.16 kg
NUP2317E d: 85 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 485 kN | Mass: 7.16 kg
NU2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
NJ2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
NUP2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
N2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
NU2318E d: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Mass: 8.56 kg
NJ2318E d: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Mass: 8.56 kg
NUP2318E d: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Mass: 8.56 kg
NU2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
NJ2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
NUP2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
N2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
NU2319E d: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Mass: 9.8 kg
NJ2319E d: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Mass: 9.8 kg
NUP2319E d: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Mass: 9.8 kg
NU2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
NJ2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
NUP2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
N2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
NU2320E d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Mass: 12.8 kg
NJ2320E d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Mass: 12.8 kg
NUP2320E d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Mass: 12.8 kg
NU2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
NJ2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
NUP2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
N2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
NU2322E d: 110 mm | D: 240 mm | B: 80 mm | Cr: 675 kN | C0r: 880 kN | Mass: 19.4 kg
NJ2322E d: 110 mm | D: 240 mm | B: 80 mm | Cr: 675 kN | C0r: 880 kN | Mass: 19.4 kg
NUP2322E d: 110 mm | D: 240 mm | B: 80 mm | Cr: 675 kN | C0r: 880 kN | Mass: 19.4 kg
NU2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
NJ2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
NUP2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
N2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
NU2324E d: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Mass: 26.1 kg
NJ2324E d: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Mass: 26.1 kg
NUP2324E d: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Mass: 26.1 kg
NU2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
NJ2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
NUP2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
N2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
NU2326E d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Mass: 30.9 kg
NJ2326E d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Mass: 30.9 kg
NUP2326E d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Mass: 30.9 kg
NU2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
NJ2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
NUP2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
N2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
NU2328E d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Mass: 38.7 kg
NJ2328E d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Mass: 38.7 kg
NUP2328E d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Mass: 38.7 kg
NU2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
NJ2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
NUP2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
N2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
NU2330E d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Mass: 47.2 kg
NJ2330E d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Mass: 47.2 kg
NUP2330E d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Mass: 47.2 kg
NU2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
NJ2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
NUP2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
N2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
NU2332E d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Mass: 56 kg
NJ2332E d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Mass: 56 kg
NUP2332E d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Mass: 56 kg
NU2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
NJ2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
NUP2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
N2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
NU2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
NJ2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
NUP2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
N2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
NU2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
NJ2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
NUP2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
N2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
NU2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
NJ2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
NUP2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
N2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
NU2344 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
NJ2344 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
NUP2344 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
N2344 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
NU2348 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
NJ2348 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
NUP2348 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
N2348 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
NU2352 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
NJ2352 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
NUP2352 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
N2352 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
NU2356 d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg
NJ2356 d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg
NUP2356 d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg
N2356 d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg
Cylindrical Roller BearingsNTN
179 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN NU23 Series Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

Brand NTN·Cylindrical Roller Bearings

Available part numbers (179)

NU2304E, NJ2304E, NUP2304E, NU2305E, NJ2305E, NUP2305E, NU2306E, NJ2306E, NUP2306E, NU2307E + 169 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NU2304Ed: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Mass: 0.242 kg
NJ2304Ed: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Mass: 0.242 kg
NUP2304Ed: 20 mm | D: 52 mm | B: 21 mm | Cr: 42 kN | C0r: 39 kN | Mass: 0.242 kg
NU2305Ed: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Mass: 0.386 kg
NJ2305Ed: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Mass: 0.386 kg
NUP2305Ed: 25 mm | D: 62 mm | B: 24 mm | Cr: 57 kN | C0r: 56 kN | Mass: 0.386 kg
NU2306Ed: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Mass: 0.58 kg
NJ2306Ed: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Mass: 0.58 kg
NUP2306Ed: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.5 kN | C0r: 77.5 kN | Mass: 0.58 kg
NU2307Ed: 35 mm | D: 80 mm | B: 31 mm | Cr: 99 kN | C0r: 109 kN | Mass: 0.78 kg
NJ2307Ed: 35 mm | D: 80 mm | B: 31 mm | Cr: 99 kN | C0r: 109 kN | Mass: 0.78 kg
NUP2307Ed: 35 mm | D: 80 mm | B: 31 mm | Cr: 99 kN | C0r: 109 kN | Mass: 0.78 kg
NU2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
NJ2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
NUP2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
N2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.5 kN | C0r: 88 kN | Mass: 0.951 kg
NU2308Ed: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 1.06 kg
NJ2308Ed: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 1.06 kg
NUP2308Ed: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 1.06 kg
NU2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
NJ2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
NUP2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
N2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 99 kN | C0r: 104 kN | Mass: 1.27 kg
NU2309Ed: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.41 kg
NJ2309Ed: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.41 kg
NUP2309Ed: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.41 kg
NU2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NJ2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NUP2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
N2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NF2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 121 kN | C0r: 131 kN | Mass: 1.7 kg
NU2310Ed: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.9 kg
NJ2310Ed: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.9 kg
NUP2310Ed: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.9 kg
NU2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NJ2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NUP2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
N2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NF2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.17 kg
NU2311Ed: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.37 kg
NJ2311Ed: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.37 kg
NUP2311Ed: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.37 kg
NU2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
NJ2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
NUP2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
N2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 169 kN | C0r: 188 kN | Mass: 2.71 kg
NU2312Ed: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Mass: 2.96 kg
NJ2312Ed: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Mass: 2.96 kg
NUP2312Ed: 60 mm | D: 130 mm | B: 46 mm | Cr: 222 kN | C0r: 262 kN | Mass: 2.96 kg
NU2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
NJ2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
NUP2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
N2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 188 kN | C0r: 212 kN | Mass: 3.27 kg
NU2313Ed: 65 mm | D: 140 mm | B: 48 mm | Cr: 248 kN | C0r: 287 kN | Mass: 3.48 kg
NJ2313Ed: 65 mm | D: 140 mm | B: 48 mm | Cr: 248 kN | C0r: 287 kN | Mass: 3.48 kg
NUP2313Ed: 65 mm | D: 140 mm | B: 48 mm | Cr: 248 kN | C0r: 287 kN | Mass: 3.48 kg
NU2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
NJ2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
NUP2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
N2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 223 kN | C0r: 262 kN | Mass: 3.98 kg
NU2314Ed: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Mass: 4.25 kg
NJ2314Ed: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Mass: 4.25 kg
NUP2314Ed: 70 mm | D: 150 mm | B: 51 mm | Cr: 274 kN | C0r: 325 kN | Mass: 4.25 kg
NU2315d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
NJ2315d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
NUP2315d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
N2315d: 75 mm | D: 160 mm | B: 55 mm | Cr: 258 kN | C0r: 300 kN | Mass: 4.87 kg
NU2315Ed: 75 mm | D: 160 mm | B: 55 mm | Cr: 330 kN | C0r: 395 kN | Mass: 5.25 kg
NJ2315Ed: 75 mm | D: 160 mm | B: 55 mm | Cr: 330 kN | C0r: 395 kN | Mass: 5.25 kg
NUP2315Ed: 75 mm | D: 160 mm | B: 55 mm | Cr: 330 kN | C0r: 395 kN | Mass: 5.25 kg
NU2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
NJ2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
NUP2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
N2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 274 kN | C0r: 330 kN | Mass: 5.79 kg
NU2316Ed: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Mass: 6.25 kg
NJ2316Ed: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Mass: 6.25 kg
NUP2316Ed: 80 mm | D: 170 mm | B: 58 mm | Cr: 355 kN | C0r: 430 kN | Mass: 6.25 kg
NU2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
NJ2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
NUP2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
N2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 380 kN | Mass: 6.7 kg
NU2317Ed: 85 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 485 kN | Mass: 7.16 kg
NJ2317Ed: 85 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 485 kN | Mass: 7.16 kg
NUP2317Ed: 85 mm | D: 180 mm | B: 60 mm | Cr: 395 kN | C0r: 485 kN | Mass: 7.16 kg
NU2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
NJ2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
NUP2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
N2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 325 kN | C0r: 395 kN | Mass: 7.95 kg
NU2318Ed: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Mass: 8.56 kg
NJ2318Ed: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Mass: 8.56 kg
NUP2318Ed: 90 mm | D: 190 mm | B: 64 mm | Cr: 435 kN | C0r: 535 kN | Mass: 8.56 kg
NU2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
NJ2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
NUP2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
N2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 370 kN | C0r: 460 kN | Mass: 9.2 kg
NU2319Ed: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Mass: 9.8 kg
NJ2319Ed: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Mass: 9.8 kg
NUP2319Ed: 95 mm | D: 200 mm | B: 67 mm | Cr: 460 kN | C0r: 585 kN | Mass: 9.8 kg
NU2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
NJ2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
NUP2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
N2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 410 kN | C0r: 505 kN | Mass: 11.7 kg
NU2320Ed: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Mass: 12.8 kg
NJ2320Ed: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Mass: 12.8 kg
NUP2320Ed: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 715 kN | Mass: 12.8 kg
NU2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
NJ2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
NUP2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
N2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 605 kN | C0r: 790 kN | Mass: 17.1 kg
NU2322Ed: 110 mm | D: 240 mm | B: 80 mm | Cr: 675 kN | C0r: 880 kN | Mass: 19.4 kg
NJ2322Ed: 110 mm | D: 240 mm | B: 80 mm | Cr: 675 kN | C0r: 880 kN | Mass: 19.4 kg
NUP2322Ed: 110 mm | D: 240 mm | B: 80 mm | Cr: 675 kN | C0r: 880 kN | Mass: 19.4 kg
NU2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
NJ2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
NUP2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
N2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 710 kN | C0r: 920 kN | Mass: 21.5 kg
NU2324Ed: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Mass: 26.1 kg
NJ2324Ed: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Mass: 26.1 kg
NUP2324Ed: 120 mm | D: 260 mm | B: 86 mm | Cr: 795 kN | C0r: 1030 kN | Mass: 26.1 kg
NU2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
NJ2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
NUP2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
N2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 840 kN | C0r: 1130 kN | Mass: 26.9 kg
NU2326Ed: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Mass: 30.9 kg
NJ2326Ed: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Mass: 30.9 kg
NUP2326Ed: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1230 kN | Mass: 30.9 kg
NU2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
NJ2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
NUP2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
N2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1250 kN | Mass: 33.8 kg
NU2328Ed: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Mass: 38.7 kg
NJ2328Ed: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Mass: 38.7 kg
NUP2328Ed: 140 mm | D: 300 mm | B: 102 mm | Cr: 1020 kN | C0r: 1380 kN | Mass: 38.7 kg
NU2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
NJ2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
NUP2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
N2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1020 kN | C0r: 1400 kN | Mass: 40.6 kg
NU2330Ed: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Mass: 47.2 kg
NJ2330Ed: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Mass: 47.2 kg
NUP2330Ed: 150 mm | D: 320 mm | B: 108 mm | Cr: 1160 kN | C0r: 1600 kN | Mass: 47.2 kg
NU2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
NJ2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
NUP2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
N2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1070 kN | C0r: 1520 kN | Mass: 50.5 kg
NU2332Ed: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Mass: 56 kg
NJ2332Ed: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Mass: 56 kg
NUP2332Ed: 160 mm | D: 340 mm | B: 114 mm | Cr: 1310 kN | C0r: 1820 kN | Mass: 56 kg
NU2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
NJ2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
NUP2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
N2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1220 kN | C0r: 1750 kN | Mass: 59.5 kg
NU2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
NJ2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
NUP2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
N2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1380 kN | C0r: 1990 kN | Mass: 69.5 kg
NU2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
NJ2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
NUP2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
N2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1520 kN | C0r: 2220 kN | Mass: 80.5 kg
NU2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
NJ2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
NUP2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
N2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1510 kN | C0r: 2240 kN | Mass: 92.6 kg
NU2344d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
NJ2344d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
NUP2344d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
N2344d: 220 mm | D: 460 mm | B: 145 mm | Cr: 780 kN | C0r: 2620 kN | Mass: 116 kg
NU2348d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
NJ2348d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
NUP2348d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
N2348d: 240 mm | D: 500 mm | B: 155 mm | Cr: 1100 kN | C0r: 3200 kN | Mass: 147 kg
NU2352d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
NJ2352d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
NUP2352d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
N2352d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2340 kN | C0r: 3600 kN | Mass: 182 kg
NU2356d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg
NJ2356d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg
NUP2356d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg
N2356d: 280 mm | D: 580 mm | B: 175 mm | Cr: 2700 kN | C0r: 4250 kN | Mass: 222 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
