• NTN UCC3 Cartridge Units, Cast Housing
1 1

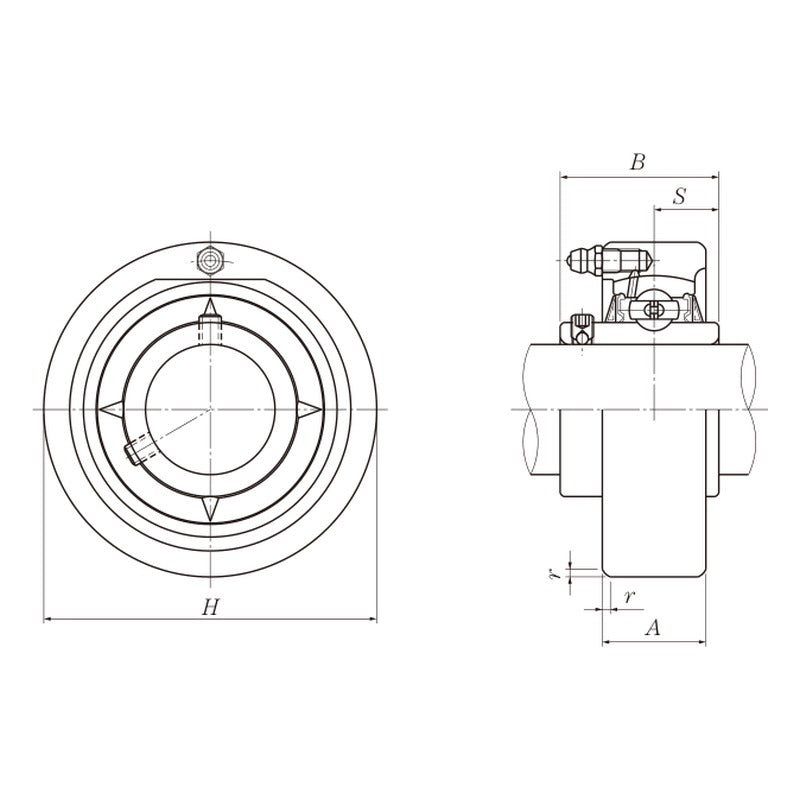

NTN UCC3 Cartridge Units, Cast Housing

NTN UCC3 Cartridge Units, Cast Housing

NTN UCC3 series cartridge units cast housing, set screw locking type, for shafts 25-140 mm and inch sizes.

Key features

  • Cartridge units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design

Specifications

Series UCC3
Unit type Cartridge units cast housing
Shaft range 25-140 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 236-238
UCC305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: C305D1
UCC305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: C305D1
UCC305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: C305D1
UCC305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: C305D1
UCC305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: C305D1
UCC306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: C306D1
UCC306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: C306D1
UCC306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: C306D1
UCC306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: C306D1
UCC307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: C307D1
UCC307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: C307D1
UCC307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: C307D1
UCC307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: C307D1
UCC307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: C307D1
UCC308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: C308D1
UCC308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: C308D1
UCC308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: C308D1
UCC309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: C309D1
UCC309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: C309D1
UCC309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: C309D1
UCC309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: C309D1
UCC310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: C310D1
UCC310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: C310D1
UCC310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: C310D1
UCC310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: C310D1
UCC311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: C311D1
UCC311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: C311D1
UCC311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: C311D1
UCC311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: C311D1
UCC311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: C311D1
UCC312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: C312D1
UCC312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: C312D1
UCC312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: C312D1
UCC312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: C312D1
UCC312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: C312D1
UCC313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: C313D1
UCC313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: C313D1
UCC313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: C313D1
UCC314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: C314D1
UCC314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: C314D1
UCC314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: C314D1
UCC314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: C314D1
UCC315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: C315D1
UCC315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: C315D1
UCC315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: C315D1
UCC315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: C315D1
UCC315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: C315D1
UCC316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: C316D1
UCC316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: C316D1
UCC316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: C316D1
UCC316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: C316D1
UCC317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: C317D1
UCC317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: C317D1
UCC317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: C317D1
UCC317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: C317D1
UCC318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: C318D1
UCC318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: C318D1
UCC319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: C319D1
UCC319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: C319D1
UCC319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: C319D1
UCC319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: C319D1
UCC320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: C320D1
UCC320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: C320D1
UCC320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: C320D1
UCC320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: C320D1
UCC320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: C320D1
UCC321D1 Shaft: 105 mm | Insert bearing: UC321D1 | Housing: C321D1
UCC322D1 Shaft: 110 mm | Insert bearing: UC322D1 | Housing: C322D1
UCC324D1 Shaft: 120 mm | Insert bearing: UC324D1 | Housing: C324D1
UCC326D1 Shaft: 130 mm | Insert bearing: UC326D1 | Housing: C326D1
UCC328D1 Shaft: 140 mm | Insert bearing: UC328D1 | Housing: C328D1
Mounted Bearing UnitsNTN
71 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCC3 Cartridge Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (71)

UCC305D1, UCC305-013D1, UCC305-014D1, UCC305-015D1, UCC305-100D1, UCC306D1, UCC306-101D1, UCC306-102D1, UCC306-103D1, UCC307D1 + 61 more — see full table ↓
