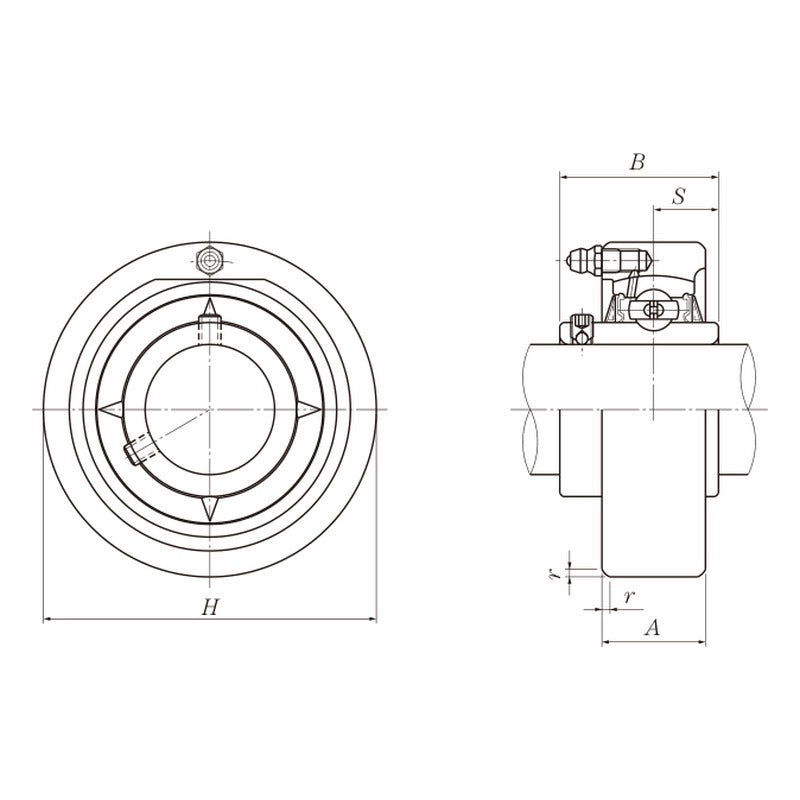

NTN UCCX Cartridge Units, Cast Housing

NTN UCCX Cartridge Units, Cast Housing

NTN UCCX series cartridge units cast housing, set screw locking type, for shafts 25-60 mm and inch sizes.

Key features

  • Cartridge units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design

Specifications

Series UCCX
Unit type Cartridge units cast housing
Shaft range 25-60 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 239-240
UCCX05D1 Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: CX05D1
UCCX05-013D1 Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: CX05D1
UCCX05-014D1 Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: CX05D1
UCCX05-015D1 Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: CX05D1
UCCX05-100D1 Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: CX05D1
UCCX06D1 Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: CX06D1
UCCX06-101D1 Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: CX06D1
UCCX06-102D1 Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: CX06D1
UCCX06-103D1 Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: CX06D1
UCCX06-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: CX06D1
UCCX07D1 Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: CX07D1
UCCX07-105D1 Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: CX07D1
UCCX07-106D1 Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: CX07D1
UCCX07-107D1 Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: CX07D1
UCCX08D1 Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: CX08D1
UCCX08-108D1 Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: CX08D1
UCCX08-109D1 Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: CX08D1
UCCX09D1 Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: CX09D1
UCCX09-110D1 Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: CX09D1
UCCX09-111D1 Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: CX09D1
UCCX09-112D1 Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: CX09D1
UCCX09-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: CX09D1
UCCX10D1 Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: CX10D1
UCCX10-114D1 Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: CX10D1
UCCX10-115D1 Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: CX10D1
UCCX10-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: CX10D1
UCCX11D1 Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: CX11D1
UCCX11-201D1 Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: CX11D1
UCCX11-202D1 Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: CX11D1
UCCX11-203D1 Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: CX11D1
UCCX11-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: CX11D1
UCCX11-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: CX11D1
UCCX12D1 Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: CX12D1
UCCX12-206D1 Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: CX12D1
UCCX12-207D1 Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: CX12D1
Mounted Bearing UnitsNTN
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCCX Cartridge Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (35)

UCCX05D1, UCCX05-013D1, UCCX05-014D1, UCCX05-015D1, UCCX05-100D1, UCCX06D1, UCCX06-101D1, UCCX06-102D1, UCCX06-103D1, UCCX06-104D1 + 25 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCCX05D1Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: CX05D1
UCCX05-013D1Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: CX05D1
UCCX05-014D1Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: CX05D1
UCCX05-015D1Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: CX05D1
UCCX05-100D1Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: CX05D1
UCCX06D1Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: CX06D1
UCCX06-101D1Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: CX06D1
UCCX06-102D1Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: CX06D1
UCCX06-103D1Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: CX06D1
UCCX06-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: CX06D1
UCCX07D1Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: CX07D1
UCCX07-105D1Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: CX07D1
UCCX07-106D1Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: CX07D1
UCCX07-107D1Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: CX07D1
UCCX08D1Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: CX08D1
UCCX08-108D1Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: CX08D1
UCCX08-109D1Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: CX08D1
UCCX09D1Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: CX09D1
UCCX09-110D1Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: CX09D1
UCCX09-111D1Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: CX09D1
UCCX09-112D1Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: CX09D1
UCCX09-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: CX09D1
UCCX10D1Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: CX10D1
UCCX10-114D1Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: CX10D1
UCCX10-115D1Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: CX10D1
UCCX10-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: CX10D1
UCCX11D1Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: CX11D1
UCCX11-201D1Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: CX11D1
UCCX11-202D1Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: CX11D1
UCCX11-203D1Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: CX11D1
UCCX11-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: CX11D1
UCCX11-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: CX11D1
UCCX12D1Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: CX12D1
UCCX12-206D1Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: CX12D1
UCCX12-207D1Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: CX12D1
