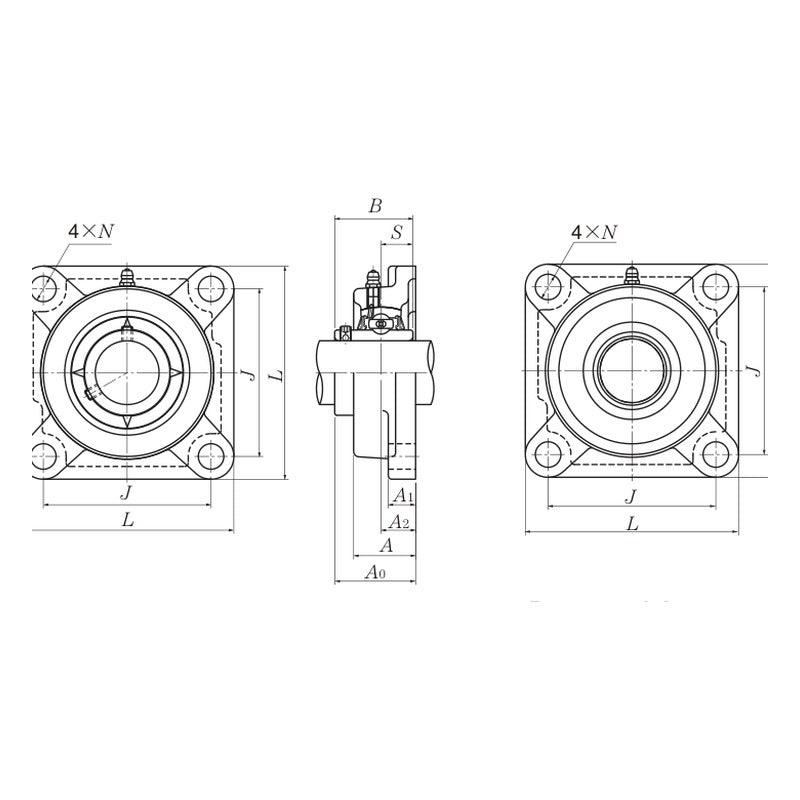

NTN UCF2 Square Flanged Units, Cast Housing

NTN UCF2 Square Flanged Units, Cast Housing

NTN UCF2 series square flanged units cast housing, set screw locking type, for shafts 12-90 mm and inch sizes.

Key features

  • Square flanged units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed

Specifications

Series UCF2
Unit type Square flanged units cast housing
Shaft range 12-90 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 120-125
UCF201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: None (open unit)
S-UCF208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Pressed steel, open end
SM-UCF208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Pressed steel, closed end
C-UCF208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Cast iron, open end
CM-UCF208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Cast iron, closed end
UCF208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: None (open unit)
S-UCF208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Pressed steel, open end
SM-UCF208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Pressed steel, closed end
C-UCF208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Cast iron, open end
CM-UCF208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Cast iron, closed end
UCF208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: None (open unit)
S-UCF208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Pressed steel, open end
SM-UCF208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Pressed steel, closed end
C-UCF208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Cast iron, open end
CM-UCF208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Cast iron, closed end
UCF209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: None (open unit)
S-UCF213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Pressed steel, open end
SM-UCF213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Pressed steel, closed end
C-UCF213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Cast iron, open end
CM-UCF213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Cast iron, closed end
UCF213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: None (open unit)
S-UCF213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Pressed steel, open end
SM-UCF213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Pressed steel, closed end
C-UCF213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Cast iron, open end
CM-UCF213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Cast iron, closed end
UCF213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: None (open unit)
S-UCF213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Pressed steel, open end
SM-UCF213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Pressed steel, closed end
C-UCF213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Cast iron, open end
CM-UCF213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Cast iron, closed end
UCF214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF218D1 Shaft: 90 mm | Insert bearing: UC218D1 | Housing: F218D1 | Cover: None (open unit)
C-UCF218D1 Shaft: 90 mm | Insert bearing: UC218D1 | Housing: F218D1 | Cover: Cast iron, open end
CM-UCF218D1 Shaft: 90 mm | Insert bearing: UC218D1 | Housing: F218D1 | Cover: Cast iron, closed end
UCF218-308D1 Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: F218D1 | Cover: None (open unit)
C-UCF218-308D1 Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: F218D1 | Cover: Cast iron, open end
CM-UCF218-308D1 Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: F218D1 | Cover: Cast iron, closed end
Mounted Bearing UnitsNTN
302 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCF2 Square Flanged Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (302)

UCF201D1, S-UCF201D1, SM-UCF201D1, C-UCF201D1, CM-UCF201D1, UCF201-008D1, S-UCF201-008D1, SM-UCF201-008D1, C-UCF201-008D1, CM-UCF201-008D1 + 292 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCF201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: None (open unit)
S-UCF204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Pressed steel, open end
SM-UCF204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Pressed steel, closed end
C-UCF204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Cast iron, open end
CM-UCF204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: F204D1 | Cover: Cast iron, closed end
UCF205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: None (open unit)
S-UCF205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Pressed steel, open end
SM-UCF205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Pressed steel, closed end
C-UCF205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Cast iron, open end
CM-UCF205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: F205D1 | Cover: Cast iron, closed end
UCF206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: None (open unit)
S-UCF206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Pressed steel, open end
SM-UCF206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Pressed steel, closed end
C-UCF206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Cast iron, open end
CM-UCF206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: F206D1 | Cover: Cast iron, closed end
UCF207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: None (open unit)
S-UCF207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Pressed steel, open end
SM-UCF207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Pressed steel, closed end
C-UCF207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Cast iron, open end
CM-UCF207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: F207D1 | Cover: Cast iron, closed end
UCF208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: None (open unit)
S-UCF208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Pressed steel, open end
SM-UCF208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Pressed steel, closed end
C-UCF208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Cast iron, open end
CM-UCF208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: F208D1 | Cover: Cast iron, closed end
UCF208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: None (open unit)
S-UCF208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Pressed steel, open end
SM-UCF208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Pressed steel, closed end
C-UCF208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Cast iron, open end
CM-UCF208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: F208D1 | Cover: Cast iron, closed end
UCF208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: None (open unit)
S-UCF208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Pressed steel, open end
SM-UCF208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Pressed steel, closed end
C-UCF208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Cast iron, open end
CM-UCF208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: F208D1 | Cover: Cast iron, closed end
UCF209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: None (open unit)
S-UCF209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Pressed steel, open end
SM-UCF209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Pressed steel, closed end
C-UCF209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Cast iron, open end
CM-UCF209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: F209D1 | Cover: Cast iron, closed end
UCF210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: None (open unit)
S-UCF210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Pressed steel, open end
SM-UCF210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Pressed steel, closed end
C-UCF210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Cast iron, open end
CM-UCF210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: F210D1 | Cover: Cast iron, closed end
UCF211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: None (open unit)
S-UCF211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Pressed steel, open end
SM-UCF211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Pressed steel, closed end
C-UCF211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Cast iron, open end
CM-UCF211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: F211D1 | Cover: Cast iron, closed end
UCF212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: None (open unit)
S-UCF212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Pressed steel, open end
SM-UCF212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Pressed steel, closed end
C-UCF212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Cast iron, open end
CM-UCF212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: F212D1 | Cover: Cast iron, closed end
UCF213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: None (open unit)
S-UCF213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Pressed steel, open end
SM-UCF213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Pressed steel, closed end
C-UCF213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Cast iron, open end
CM-UCF213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: F213D1 | Cover: Cast iron, closed end
UCF213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: None (open unit)
S-UCF213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Pressed steel, open end
SM-UCF213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Pressed steel, closed end
C-UCF213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Cast iron, open end
CM-UCF213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: F213D1 | Cover: Cast iron, closed end
UCF213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: None (open unit)
S-UCF213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Pressed steel, open end
SM-UCF213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Pressed steel, closed end
C-UCF213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Cast iron, open end
CM-UCF213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: F213D1 | Cover: Cast iron, closed end
UCF214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: F214D1 | Cover: None (open unit)
C-UCF214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: F214D1 | Cover: Cast iron, open end
CM-UCF214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: F214D1 | Cover: Cast iron, closed end
UCF215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: F215D1 | Cover: None (open unit)
C-UCF215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: F215D1 | Cover: Cast iron, open end
CM-UCF215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: F215D1 | Cover: Cast iron, closed end
UCF216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: F216D1 | Cover: None (open unit)
C-UCF216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: F216D1 | Cover: Cast iron, open end
CM-UCF216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: F216D1 | Cover: Cast iron, closed end
UCF217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: F217D1 | Cover: None (open unit)
C-UCF217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: F217D1 | Cover: Cast iron, open end
CM-UCF217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: F217D1 | Cover: Cast iron, closed end
UCF218D1Shaft: 90 mm | Insert bearing: UC218D1 | Housing: F218D1 | Cover: None (open unit)
C-UCF218D1Shaft: 90 mm | Insert bearing: UC218D1 | Housing: F218D1 | Cover: Cast iron, open end
CM-UCF218D1Shaft: 90 mm | Insert bearing: UC218D1 | Housing: F218D1 | Cover: Cast iron, closed end
UCF218-308D1Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: F218D1 | Cover: None (open unit)
C-UCF218-308D1Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: F218D1 | Cover: Cast iron, open end
CM-UCF218-308D1Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: F218D1 | Cover: Cast iron, closed end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
