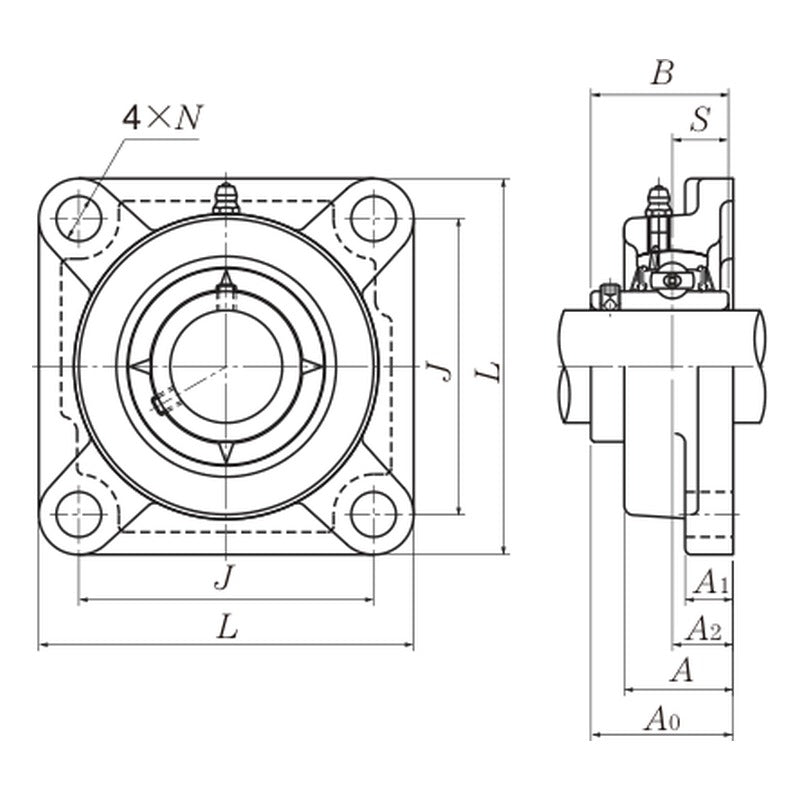

NTN UCF3 Square Flanged Units, Cast Housing

NTN UCF3 Square Flanged Units, Cast Housing

NTN UCF3 series square flanged units cast housing, set screw locking type, for shafts 25-140 mm and inch sizes.

Key features

  • Square flanged units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed

Specifications

Series UCF3
Unit type Square flanged units cast housing
Shaft range 25-140 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 126-131
UCF305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: F308D1 | Cover: None (open unit)
C-UCF308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: F308D1 | Cover: Cast iron, open end
CM-UCF308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: F308D1 | Cover: Cast iron, closed end
UCF308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: F308D1 | Cover: None (open unit)
C-UCF308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: F308D1 | Cover: Cast iron, open end
CM-UCF308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: F308D1 | Cover: Cast iron, closed end
UCF308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: F308D1 | Cover: None (open unit)
C-UCF308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: F308D1 | Cover: Cast iron, open end
CM-UCF308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: F308D1 | Cover: Cast iron, closed end
UCF309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: F313D1 | Cover: None (open unit)
C-UCF313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: F313D1 | Cover: Cast iron, open end
CM-UCF313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: F313D1 | Cover: Cast iron, closed end
UCF313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: F313D1 | Cover: None (open unit)
C-UCF313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: F313D1 | Cover: Cast iron, open end
CM-UCF313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: F313D1 | Cover: Cast iron, closed end
UCF313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: F313D1 | Cover: None (open unit)
C-UCF313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: F313D1 | Cover: Cast iron, open end
CM-UCF313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: F313D1 | Cover: Cast iron, closed end
UCF314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: F318D1 | Cover: None (open unit)
C-UCF318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: F318D1 | Cover: Cast iron, open end
CM-UCF318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: F318D1 | Cover: Cast iron, closed end
UCF318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: F318D1 | Cover: None (open unit)
C-UCF318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: F318D1 | Cover: Cast iron, open end
CM-UCF318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: F318D1 | Cover: Cast iron, closed end
UCF318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: F318D1 | Cover: None (open unit)
C-UCF318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: F318D1 | Cover: Cast iron, open end
CM-UCF318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: F318D1 | Cover: Cast iron, closed end
UCF319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF321D1 Shaft: 105 mm | Insert bearing: UC321D1 | Housing: F321D1 | Cover: None (open unit)
C-UCF321D1 Shaft: 105 mm | Insert bearing: UC321D1 | Housing: F321D1 | Cover: Cast iron, open end
CM-UCF321D1 Shaft: 105 mm | Insert bearing: UC321D1 | Housing: F321D1 | Cover: Cast iron, closed end
UCF322D1 Shaft: 110 mm | Insert bearing: UC322D1 | Housing: F322D1 | Cover: None (open unit)
C-UCF322D1 Shaft: 110 mm | Insert bearing: UC322D1 | Housing: F322D1 | Cover: Cast iron, open end
CM-UCF322D1 Shaft: 110 mm | Insert bearing: UC322D1 | Housing: F322D1 | Cover: Cast iron, closed end
UCF324D1 Shaft: 120 mm | Insert bearing: UC324D1 | Housing: F324D1 | Cover: None (open unit)
C-UCF324D1 Shaft: 120 mm | Insert bearing: UC324D1 | Housing: F324D1 | Cover: Cast iron, open end
CM-UCF324D1 Shaft: 120 mm | Insert bearing: UC324D1 | Housing: F324D1 | Cover: Cast iron, closed end
UCF326D1 Shaft: 130 mm | Insert bearing: UC326D1 | Housing: F326D1 | Cover: None (open unit)
C-UCF326D1 Shaft: 130 mm | Insert bearing: UC326D1 | Housing: F326D1 | Cover: Cast iron, open end
CM-UCF326D1 Shaft: 130 mm | Insert bearing: UC326D1 | Housing: F326D1 | Cover: Cast iron, closed end
UCF328D1 Shaft: 140 mm | Insert bearing: UC328D1 | Housing: F328D1 | Cover: None (open unit)
C-UCF328D1 Shaft: 140 mm | Insert bearing: UC328D1 | Housing: F328D1 | Cover: Cast iron, open end
CM-UCF328D1 Shaft: 140 mm | Insert bearing: UC328D1 | Housing: F328D1 | Cover: Cast iron, closed end
Mounted Bearing UnitsNTN
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCF3 Square Flanged Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (216)

UCF305D1, C-UCF305D1, CM-UCF305D1, UCF305-013D1, C-UCF305-013D1, CM-UCF305-013D1, UCF305-014D1, C-UCF305-014D1, CM-UCF305-014D1, UCF305-015D1 + 206 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCF305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: F305D1 | Cover: None (open unit)
C-UCF305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: F305D1 | Cover: Cast iron, open end
CM-UCF305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: F305D1 | Cover: Cast iron, closed end
UCF306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: F306D1 | Cover: None (open unit)
C-UCF306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: F306D1 | Cover: Cast iron, open end
CM-UCF306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: F306D1 | Cover: Cast iron, closed end
UCF307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: F307D1 | Cover: None (open unit)
C-UCF307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: F307D1 | Cover: Cast iron, open end
CM-UCF307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: F307D1 | Cover: Cast iron, closed end
UCF308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: F308D1 | Cover: None (open unit)
C-UCF308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: F308D1 | Cover: Cast iron, open end
CM-UCF308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: F308D1 | Cover: Cast iron, closed end
UCF308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: F308D1 | Cover: None (open unit)
C-UCF308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: F308D1 | Cover: Cast iron, open end
CM-UCF308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: F308D1 | Cover: Cast iron, closed end
UCF308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: F308D1 | Cover: None (open unit)
C-UCF308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: F308D1 | Cover: Cast iron, open end
CM-UCF308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: F308D1 | Cover: Cast iron, closed end
UCF309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: F309D1 | Cover: None (open unit)
C-UCF309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: F309D1 | Cover: Cast iron, open end
CM-UCF309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: F309D1 | Cover: Cast iron, closed end
UCF310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: F310D1 | Cover: None (open unit)
C-UCF310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: F310D1 | Cover: Cast iron, open end
CM-UCF310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: F310D1 | Cover: Cast iron, closed end
UCF311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: F311D1 | Cover: None (open unit)
C-UCF311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: F311D1 | Cover: Cast iron, open end
CM-UCF311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: F311D1 | Cover: Cast iron, closed end
UCF312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: F312D1 | Cover: None (open unit)
C-UCF312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: F312D1 | Cover: Cast iron, open end
CM-UCF312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: F312D1 | Cover: Cast iron, closed end
UCF313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: F313D1 | Cover: None (open unit)
C-UCF313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: F313D1 | Cover: Cast iron, open end
CM-UCF313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: F313D1 | Cover: Cast iron, closed end
UCF313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: F313D1 | Cover: None (open unit)
C-UCF313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: F313D1 | Cover: Cast iron, open end
CM-UCF313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: F313D1 | Cover: Cast iron, closed end
UCF313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: F313D1 | Cover: None (open unit)
C-UCF313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: F313D1 | Cover: Cast iron, open end
CM-UCF313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: F313D1 | Cover: Cast iron, closed end
UCF314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: F314D1 | Cover: None (open unit)
C-UCF314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: F314D1 | Cover: Cast iron, open end
CM-UCF314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: F314D1 | Cover: Cast iron, closed end
UCF315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: F315D1 | Cover: None (open unit)
C-UCF315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: F315D1 | Cover: Cast iron, open end
CM-UCF315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: F315D1 | Cover: Cast iron, closed end
UCF316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: F316D1 | Cover: None (open unit)
C-UCF316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: F316D1 | Cover: Cast iron, open end
CM-UCF316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: F316D1 | Cover: Cast iron, closed end
UCF317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: F317D1 | Cover: None (open unit)
C-UCF317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: F317D1 | Cover: Cast iron, open end
CM-UCF317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: F317D1 | Cover: Cast iron, closed end
UCF318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: F318D1 | Cover: None (open unit)
C-UCF318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: F318D1 | Cover: Cast iron, open end
CM-UCF318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: F318D1 | Cover: Cast iron, closed end
UCF318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: F318D1 | Cover: None (open unit)
C-UCF318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: F318D1 | Cover: Cast iron, open end
CM-UCF318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: F318D1 | Cover: Cast iron, closed end
UCF318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: F318D1 | Cover: None (open unit)
C-UCF318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: F318D1 | Cover: Cast iron, open end
CM-UCF318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: F318D1 | Cover: Cast iron, closed end
UCF319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: F319D1 | Cover: None (open unit)
C-UCF319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: F319D1 | Cover: Cast iron, open end
CM-UCF319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: F319D1 | Cover: Cast iron, closed end
UCF320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: F320D1 | Cover: None (open unit)
C-UCF320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: F320D1 | Cover: Cast iron, open end
CM-UCF320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: F320D1 | Cover: Cast iron, closed end
UCF321D1Shaft: 105 mm | Insert bearing: UC321D1 | Housing: F321D1 | Cover: None (open unit)
C-UCF321D1Shaft: 105 mm | Insert bearing: UC321D1 | Housing: F321D1 | Cover: Cast iron, open end
CM-UCF321D1Shaft: 105 mm | Insert bearing: UC321D1 | Housing: F321D1 | Cover: Cast iron, closed end
UCF322D1Shaft: 110 mm | Insert bearing: UC322D1 | Housing: F322D1 | Cover: None (open unit)
C-UCF322D1Shaft: 110 mm | Insert bearing: UC322D1 | Housing: F322D1 | Cover: Cast iron, open end
CM-UCF322D1Shaft: 110 mm | Insert bearing: UC322D1 | Housing: F322D1 | Cover: Cast iron, closed end
UCF324D1Shaft: 120 mm | Insert bearing: UC324D1 | Housing: F324D1 | Cover: None (open unit)
C-UCF324D1Shaft: 120 mm | Insert bearing: UC324D1 | Housing: F324D1 | Cover: Cast iron, open end
CM-UCF324D1Shaft: 120 mm | Insert bearing: UC324D1 | Housing: F324D1 | Cover: Cast iron, closed end
UCF326D1Shaft: 130 mm | Insert bearing: UC326D1 | Housing: F326D1 | Cover: None (open unit)
C-UCF326D1Shaft: 130 mm | Insert bearing: UC326D1 | Housing: F326D1 | Cover: Cast iron, open end
CM-UCF326D1Shaft: 130 mm | Insert bearing: UC326D1 | Housing: F326D1 | Cover: Cast iron, closed end
UCF328D1Shaft: 140 mm | Insert bearing: UC328D1 | Housing: F328D1 | Cover: None (open unit)
C-UCF328D1Shaft: 140 mm | Insert bearing: UC328D1 | Housing: F328D1 | Cover: Cast iron, open end
CM-UCF328D1Shaft: 140 mm | Insert bearing: UC328D1 | Housing: F328D1 | Cover: Cast iron, closed end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
